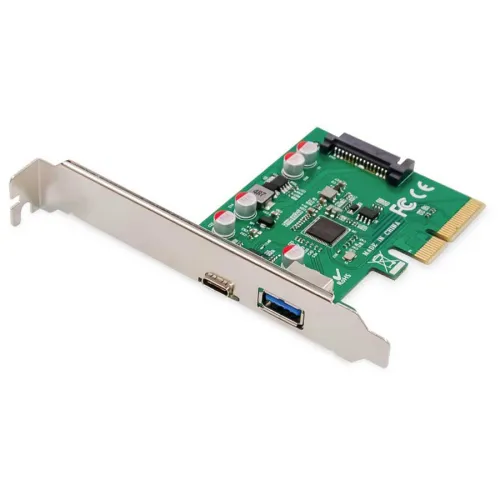

Digitus DS-30225 Pcie Card

Expand your computer with two external USB 3.1 ports to connect various USB devices, such as docking stations, card readers or external boxes. The card has 2 external USB 3.1 ports: 1 USB-A port and 1 USB Type-C™ port that enables data transfer speeds of up to 10 Gbps. It is also possible to install the card in a small computer case using the low profile opening.


Features:

- Super high transfer speed USB 3.1 up to 10Gbps
- 1 x 10Gbps Super High Speed ​​USB Type-C™ port (USB 3.1 Gen 2)
- 1 x 10Gbps Super High Speed ​​USB A port (USB 3.1 Gen 2)
- Supports data transmission speeds of 10G, 5G, 480Mbps, 12Mbps and 1.5Mbps
- 5V/3A power USB Type-C™ port
- USB Type-A port for 5V/900mA power
- 15-pin SATA connector for additional power supply from the motherboard
- Compatible with PCI Express 4 lane v 2.0
- Compliant with the Extensible Host Controller Interface (xHCI) 1.1 specification
- Supports multiple INs
- Overvoltage protection
- Supports remote wake-up function via keyboard or mouse
- PCI Express USB 3.1 interface card with 2 external USB 3.1 ports: 1 USB-A and 1 USB Type-C™ for next-generation devices


Specifications:

System Requirements:
- Supported Linux operating system: Yes
- Supported Windows operating system: Windows 10, Windows 7, Windows 8, Windows 8.1

Ports And Interfaces:
- Number of Type A ports USB 3.2 Gen 2 (3.1 Gen 2): 1
- Number of Type-C ports USB 3.2 Gen 2 (3.1 Gen 2): 1
- Expansion card standard: PCIe 2.0
- Expansion card form factor: Full-height / Low-profile
- Host interface: PCIe
- Output interface: USB 3.2 Gen 2 (3.1 Gen 2)
- SATA power connector type: SATA 15 pin

Weight And Measurements:
- Height: 141mm
- Broad: 153mm
- Weight: 50g
- Depth: 30mm

Power Control:
- Output current: 3A
- Output voltage: 5V

Design:
- Internal: Yes

Characteristics:
- Data transfer rate (max): 10 Gbit/s
