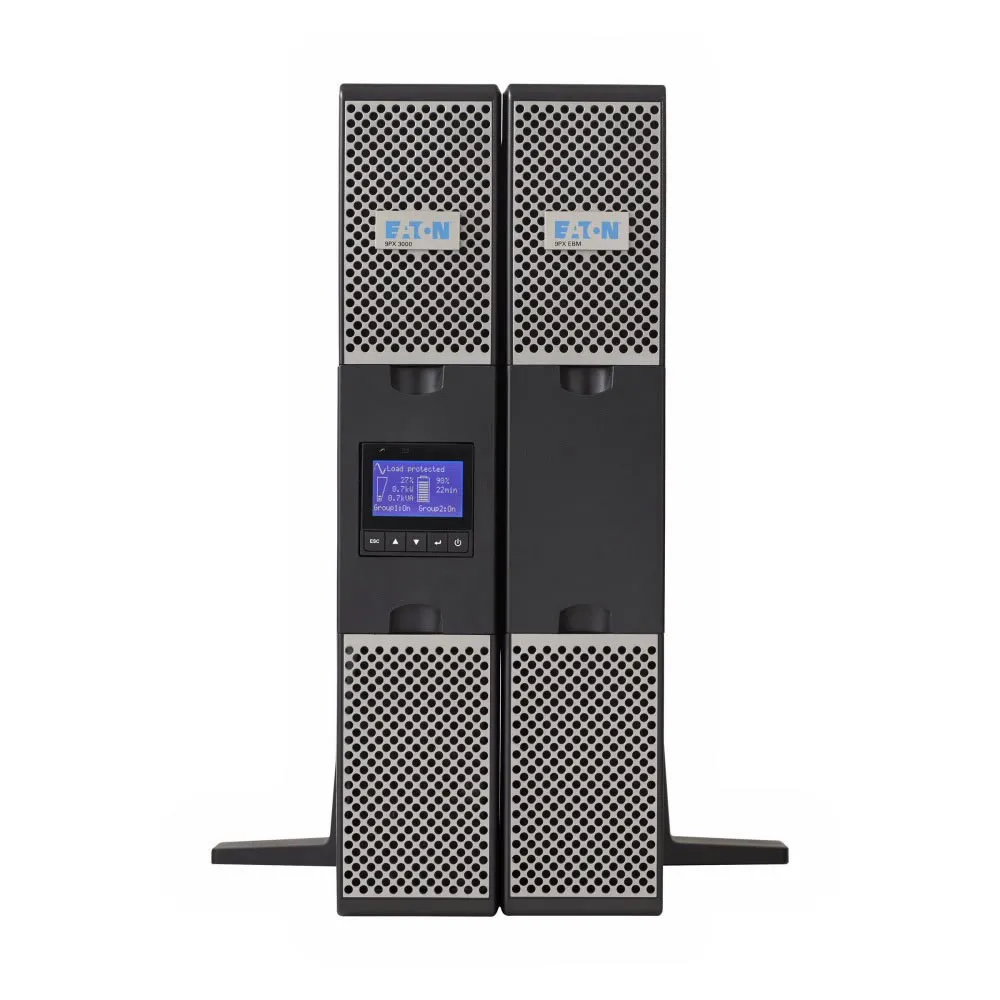

Eaton 9PX1000IRTN Net Pack UPS

EU PLUG.

Features:

- 9PX is the first UPS in its class to provide Unity power factor (VA=W).

- Energy Star qualified, the 9PX provides the highest efficiency level to reduce energy and cooling costs.

- Double conversion topology.

The Eaton 9PX constantly monitors power conditions and regulates voltage and frequency.

- Network card delivered as standard.

- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat).

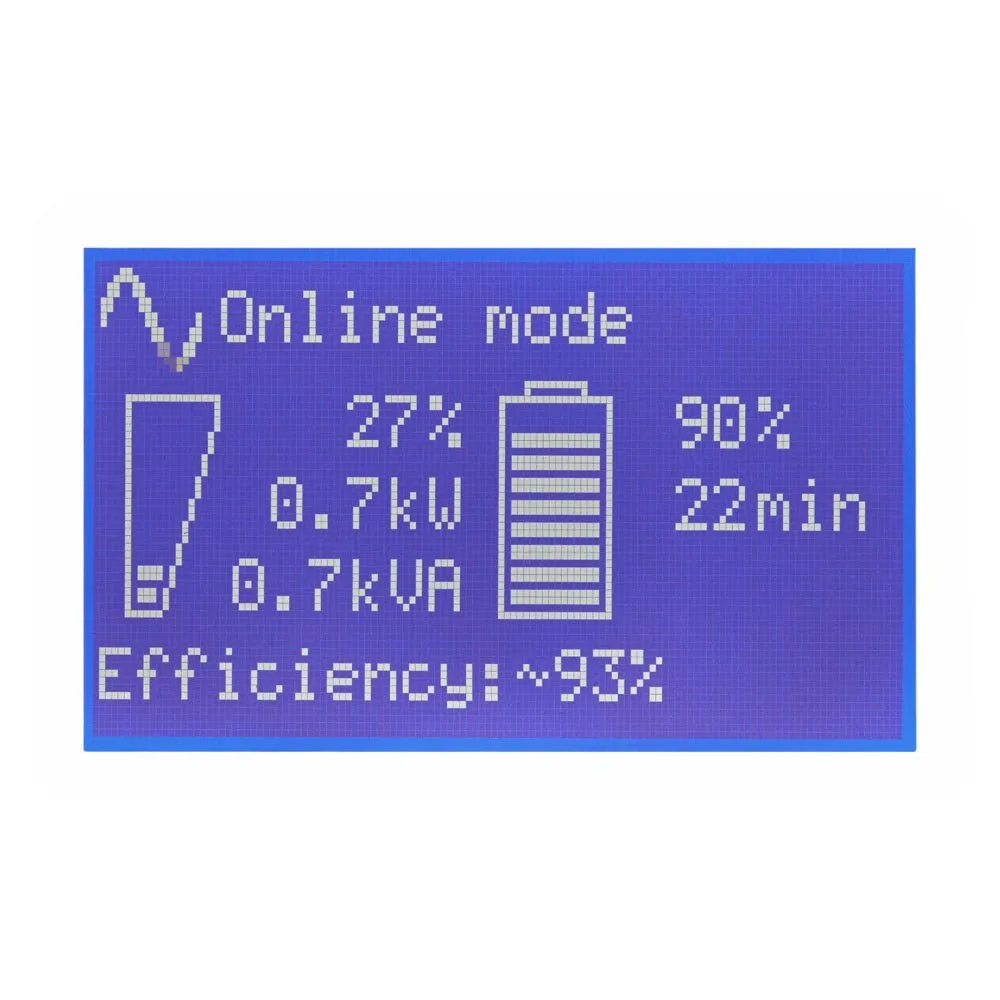

- The graphical LCD display provides clear information on the UPS´s status and measurements on a single screen.

- 9PX can meter energy consumption right down to the managed outlet groups.

- Pedestal and rail kits are included with all models.

- The internal bypass allows service continuity in case of internal fault Specifications:

- Length/Depth:

450 MM.

- Height:

86.5 MM.

- Width:

440 MM.

- Weight:

17.4 KG Compliances:

- Cispr22 Class B.

- Csa 22.2.

- Ce Marked.

- TUV.

- Culus Listed.

- Fcc Part 15 Class B Certifications:

- Culus Listed.

- Eac.

- Ce.

- Energy Star Certified.

- Ul 1778.

- Iec/En 62040-1.

- Iec/En 62040-2 Product Specifications:

- Output Waveform:

Sine Wave.

- Max Number Of Battery Packs:

4.

- Wattage:

1000 W.

- Output Power Factor:

1.

- Form Factor:

Rack/Tower.

- Max Volt Dist Output(Linear Load):

3.

- Includes Network Card:

Yes.

- Input Connection:

C14 C14.

- Software Compatibility:

Eaton Intelligent Power Manager, Eaton Intelligent Power Protector.

- Batteries Replacement:

Hot-Swappable Internal Batteries And Extended Battery Modules (Ebms).

- Battery Type:

Sealed, Lead-Acid.

- Efficiency:

91.5.

- Construction Type:

482.6 Mm (19 Inch) Device.

- Output Voltage Range:

200/208/220/230/240v +/- 1%.

- Extended Battery Capability:

Yes.

- Topology:

Online.

- Btu Rating:

Online:

290.

- Input Nominal Voltage:

230v Default (200/208/220/230/240v).

- Input Power Factor:

>.99.

- Input Frequency Range:

40-70 Hz.

- Internal Bypass:

Yes.

- Phase (Output):

1.

- Battery Management:

Abm & Temperature Compensated Charging Method (User Selectable), Automatic Battery Test, Deep Discharge Protection, Automatic Recognition Of External Battery Units.

- Auto Shutdown Function:

Yes -Number Of Outputs C13:

8.

- Va Rating:

1000 Va.

- Potential Free Switch Contact:

Yes.

- Receptacle:

(8) C13.

- Phase (Input):

1.

- Noise Level:

<35 Db At 1 Meter.

- Feed Type:

1.

- Runtime Graph:

View Runtime Graph View Runtime Graph.

- User Interface:

Multilingual Graphical Lcd Display.

- Battery Quantity:

4 -Rack Size:

2u.

- Voltage:

230v.

- Type Of Accessory:

Other -Hot Swap Power:

No.

- Temperature Range:

0° To 40°C (32° To 104°F).

- Ethernet Interface:

Yes.

- Protocol:

Snmp Communication:

- Network Card + 1 Usb Port + 1 Serial Rs232 Port + 1 Mini-Terminal Block For Remote On/Off + 1 Mini-Terminal Block For Remote Power Off + 1 Mini-Terminal Block For Output Relay Communication Slot.

- Relative Humidity:

0-96% Non-Condensing.

- Rack Mounting Kit:

Yes.

- Efficiency (Eco-Mode):

97.5.

- Output Frequency:

50-60 Hz.

- Runtime At Full Load:

6 Min.

- Type Of Interface:

Other.

- Battery Rating:

12v/7ah.

- Type:

Ups.

- Output Nominal Voltage:

230v Default (200/208/220/230/240v).

- Expansion Slots:

One Slot, Network Card Included.

- Input Voltage Range:

176-276v (100v-276v With Derating).

- Nominal Frequency:

50/60 Hz.

- Altitude:

3000 M.
