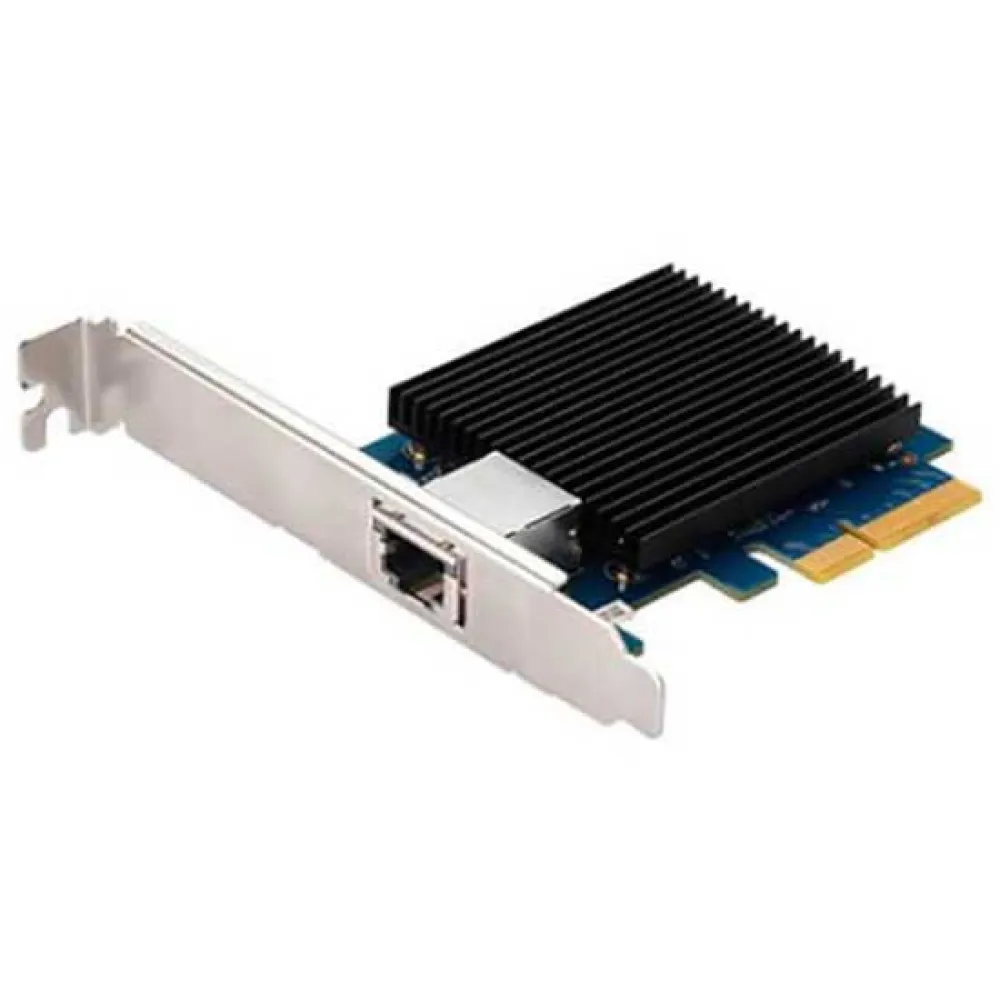

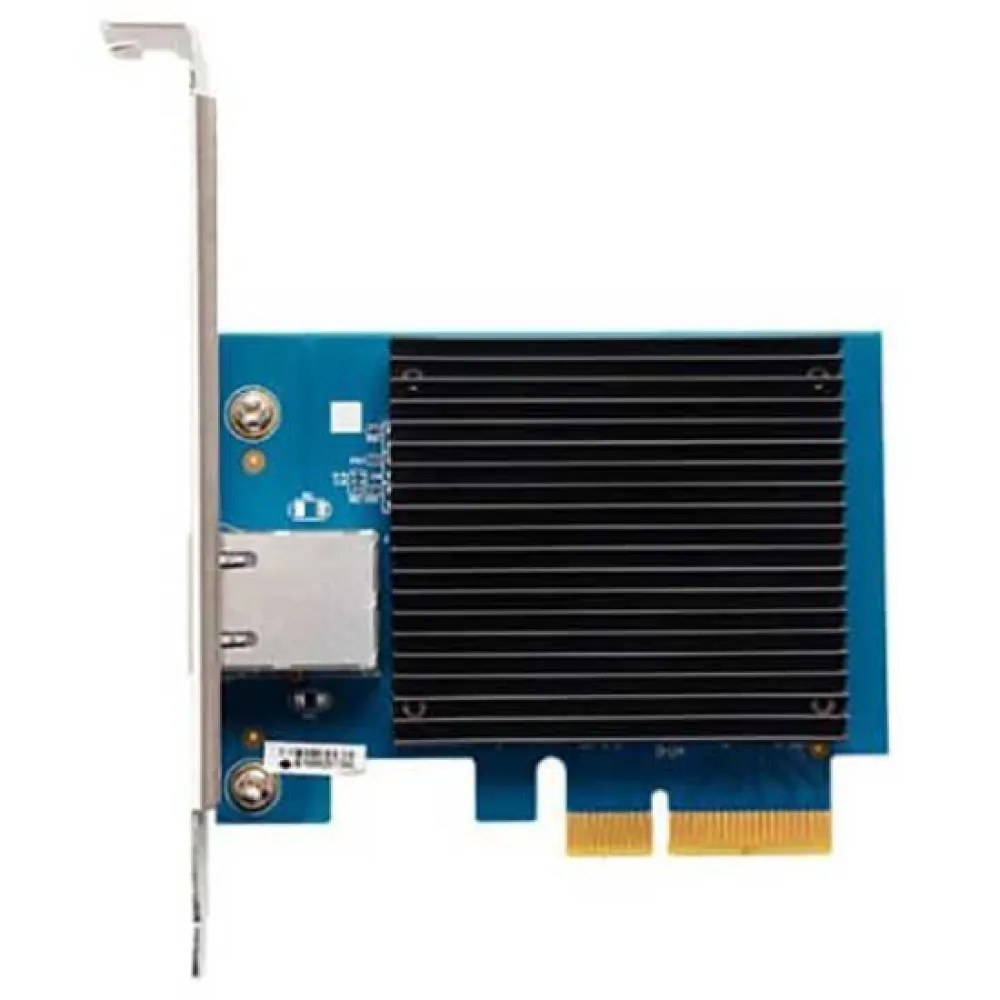

Edimax EN-9320TX-E V2 PCI-E Expansion Card

EDIMAX EN-9320TX-E V2 10 Gigabit PCI-E Network Expansion Card

Upgrade your server or workstation to the next generation of network performance with the EDIMAX EN-9320TX-E V2 PCI-E Expansion Card. Designed to eliminate data bottlenecks and significantly accelerate network throughput, this high-performance adapter is the ideal solution for demanding environments, including data centers, high-performance computing (HPC), virtualization, and large-scale file transfers. Experience a seamless and cost-effective transition to 10 Gigabit Ethernet speeds, leveraging your existing copper network infrastructure for maximum value and minimal disruption. This powerful network expansion card provides the raw speed and low latency required for modern data-intensive applications.

Key Benefits

* Breakthrough 10GbE Performance: Obliterate the 1 Gigabit bottleneck and achieve data transfer rates up to 10 times faster than standard Gigabit Ethernet. This dramatic speed increase is perfect for reducing server response times, accelerating backups, and enabling smooth 4K/8K video streaming and editing directly over the network.
* Cost-Effective Infrastructure Upgrade: The EN-9320TX-E V2 utilizes a standard RJ45 port and 10GBASE-T technology, allowing you to deploy high-speed network connections over familiar and widely available Cat 6a or Cat 7 copper cabling. This avoids the high cost and complexity associated with fiber optic installations.
* Optimized for Server Efficiency: Enhance your server´s overall performance by offloading network traffic processing from the CPU. With features like TCP, IP, and UDP checksum offloading, the card handles these tasks independently, freeing up valuable CPU cycles for critical applications and virtual machines.

Main Features

* High-Speed 10GBASE-T Ethernet Connectivity
* PCI Express Gen2 x4 Host Bus Interface
* Full Duplex Flow Control (IEEE 802.3x)
* Support for Jumbo Frames up to 16KB for Increased Throughput
* IP, TCP, and UDP Checksum Offloading to Reduce CPU Load
* IEEE 802.1Q VLAN Tagging for Network Segmentation and Security
* Quality of Service (QoS) with IEEE 802.1p for Traffic Prioritization
* Energy-Efficient Ethernet (IEEE 802.3az) for Reduced Power Consumption
* Includes Both Standard and Low-Profile Brackets for Flexible Installation
* Wide Operating System Compatibility

PCI-E NETWORK CARD Edimax EN-9320TX-E V2 1XRJ45 10 GIGABIT.

Technical Specifications

* Interface: PCI Express Gen 2.0 x4
* Port: 1 x RJ45 Copper Port

* IEEE 802.3an 10GBASE-T
* IEEE 802.3bz 2.5G/5GBASE-T
* IEEE 802.3ab 1000BASE-T
* IEEE 802.3u 100BASE-TX
* IEEE 802.1Q VLANs
* IEEE 802.3x Flow Control
* IEEE 802.1p Priority Queuing
* IEEE 802.3az Energy-Efficient Ethernet
* Supported Data Rates: 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps (Auto-Negotiation)

* 10GBASE-T: Cat 6a/Cat 7 (up to 100m)
* 5GBASE-T / 2.5GBASE-T: Cat 5e/Cat 6 (up to 100m)
* 1000BASE-T / 100BASE-TX: Cat 5e (up to 100m)
* Supported Operating Systems: Windows Server 2012/2016/2019, Windows 8.1/10/11 (32/64-bit), Linux Kernel 3.10 and later, VMWare ESXi 6.5/6.7/7.0
* Dimensions: 120(L) x 83.5(W) x 21.5(H) mm
