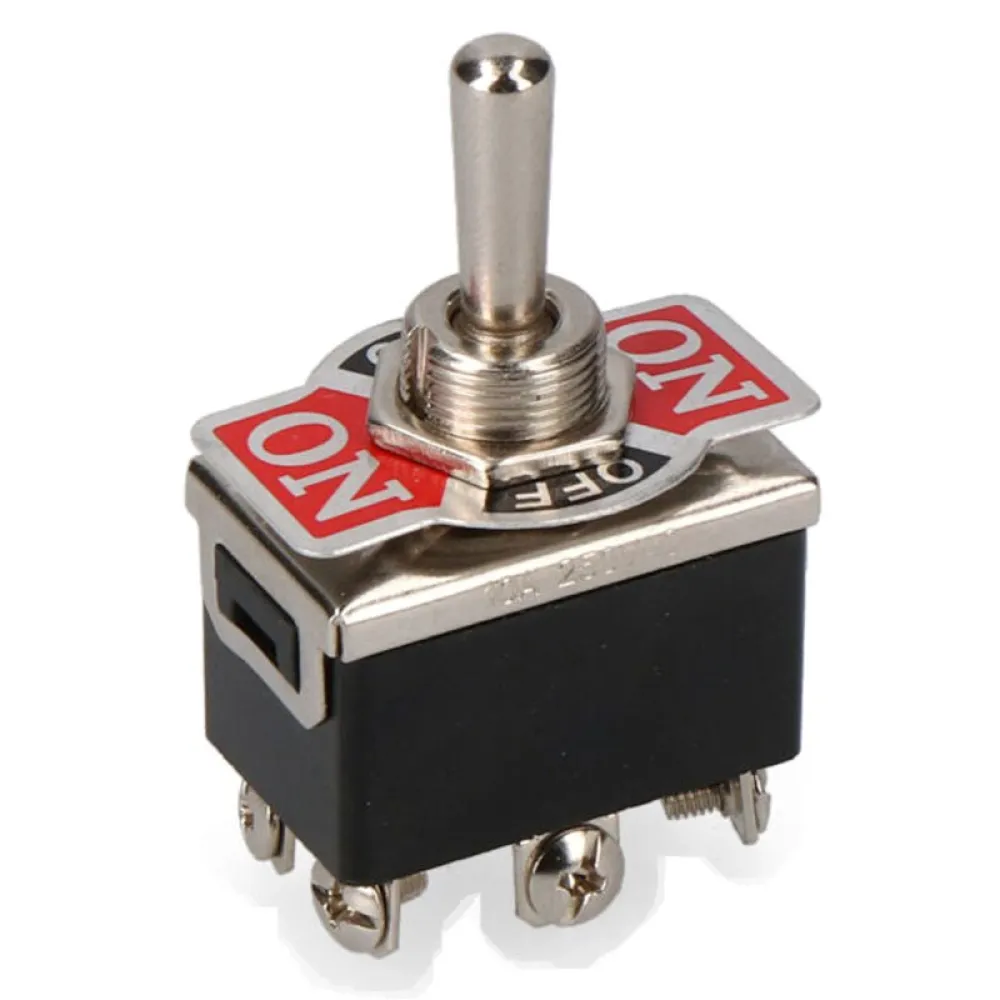

Edm On/Off/On Packaged 6 Pins switch

EDM On/Off/On Packaged 6-Pin Rocker Switch | 16A 250V

Elevate your control over electrical circuits with the robust and versatile EDM On/Off/On Packaged 6-Pin Switch. Designed for professionals and dedicated DIY enthusiasts in the electricity and smarthome sectors, this high-performance component offers superior functionality for a wide range of demanding applications. Whether you are repairing an appliance, building a custom control panel, or integrating advanced functions into a smarthome project, this switch provides the reliability and precision you need. Its three-position (On/Off/On) capability moves beyond simple power interruption, opening up a world of complex control possibilities from a single, compact interface.

The primary benefit of this EDM switch lies in its advanced three-position control. Unlike a standard two-position switch, the On/Off/On configuration allows you to manage two separate circuits or a single device with two distinct functions. This is ideal for applications such as controlling motor direction (forward/off/reverse), selecting between two different power sources, or activating dual-speed settings on fans and other equipment. The central ´Off´ position ensures a definitive and safe disconnection of power. With its 6-pin terminal design, this switch supports Double Pole, Double Throw (DPDT) wiring, offering maximum flexibility for routing power and signals in your electrical projects, ensuring complete isolation between circuits when needed.

Engineered for durability and high-power applications, this switch is built from a sturdy iron and metal body, ensuring a long operational life even in challenging industrial or high-use environments. It is rated for a substantial current of 16 Amps at 250 Volts, making it perfectly suited for controlling heavy-duty appliances, power tools, lighting systems, and other equipment that would overwhelm lesser switches. This high rating provides a significant safety margin and guarantees stable performance under load. The firm, tactile click of the rocker provides clear feedback, so you always know the status of your connection.

Installation is straightforward thanks to its standardized dimensions. The switch is designed for panel mounting, creating a clean and professional finish for your projects. The main body of the 6-pin switch measures 30x22.6x25 mm, a common size for easy integration. For a secure and flush fit, it requires a recessed panel cutout of 32.5x19.4x26 mm. This precision ensures the switch snaps firmly into place, preventing movement or vibration. Sold as a single packaged unit, it is ready for immediate use in repairs or new builds, making it a go-to component for your workshop or toolkit.

Specifications:
- Current(A): 16
- Voltage(V): 250
- Material: Iron / Metal
- Type: Switch (3-Position On/Off/On)
- Overall Size: 30x22.6x25 mm
- Recessed/Cutout Size: 32.5x19.4x26 mm
- Weight: 0.0380 KG
