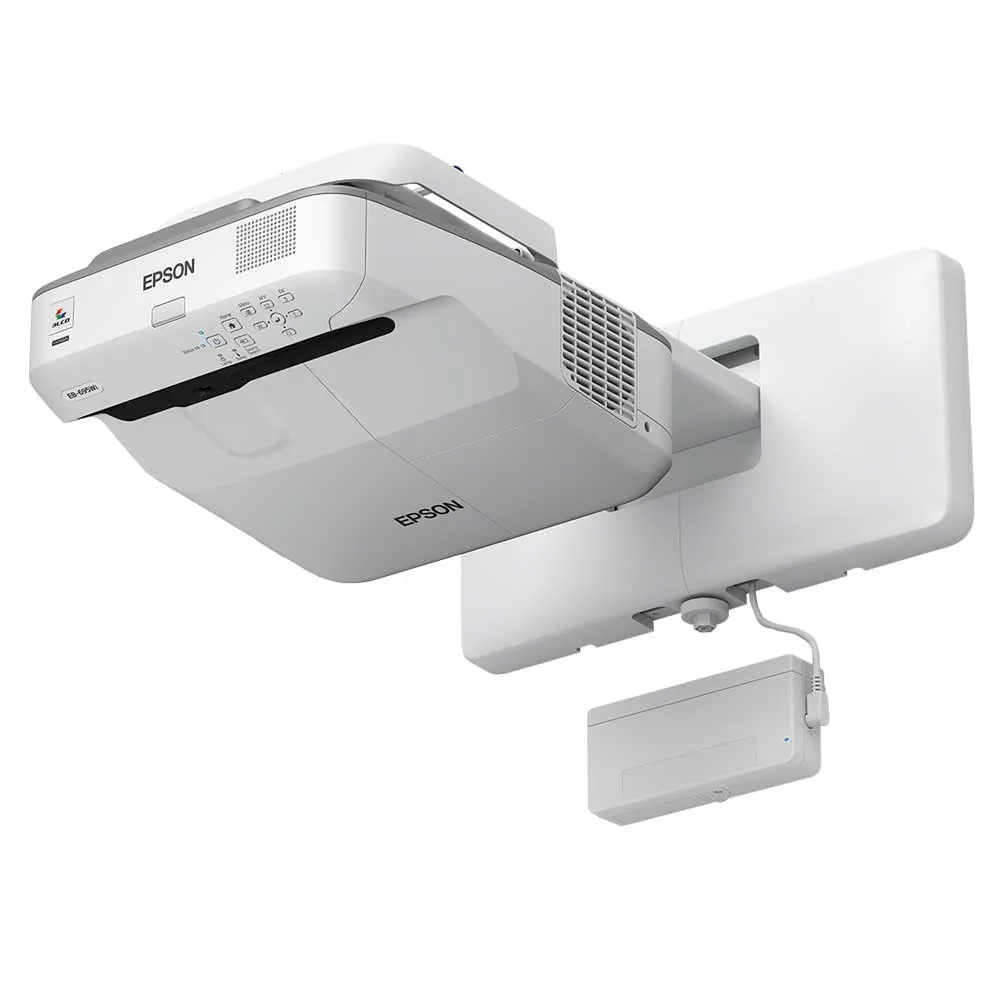

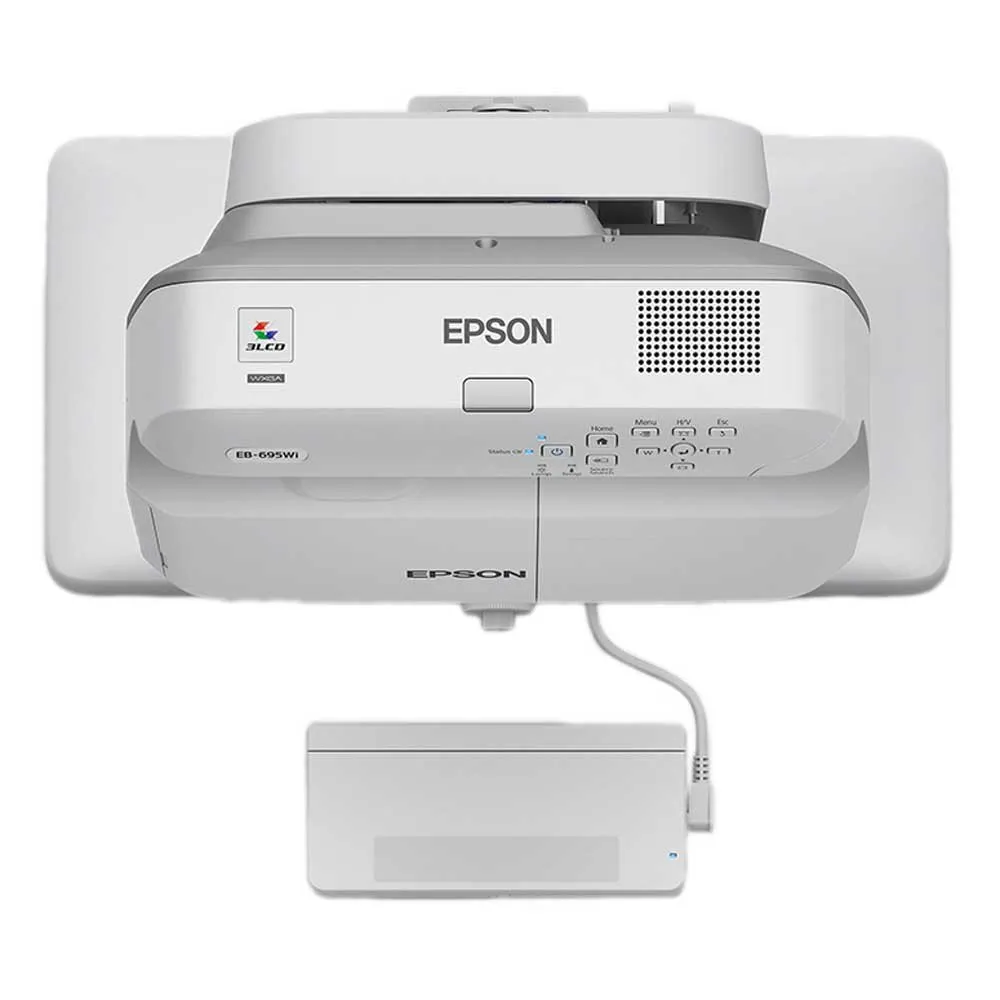

Epson EB-695WI 3LCD WXGA Projector

EU PLUG.

Features:

- Up to 100-inch display and outstanding quality:

HD-ready WXGA resolution with Epson 3LCD technology.

- Finger-touch and dual pen:

Use your fingers to annotate directly onto the screen.

- Highly Reliable:

Improved reliability and a longer lamp life.

- Multi-screen interactivity:

Combine two projectors to create one large interactive display.

- Wireless Connectivity (Optional):

Allows content to be shown from a range of devices.

- With a brightness of 3,500 lumens and HD-readyWXGA resolution, the EB-695Wi´s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare.

This projector offers ultimate interactivity by combining finger-touch with dual pen capability.

A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.

High brightness and image quality:

- Epson´s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors1.

With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.

Finger-touch and dual pen:

- Use your fingers to annotate directly onto the screen.

Epson´s interactive pens are now even more responsive and easy to use.

With the new dual pens, teacher and student or two students can work simultaneously using different attributes.

Highly reliable:

- Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Interact and enhance learning:

- Multi-PC projection software allows teachers and students to share content simultaneously.

The moderator function allows teachers to remain in control, choosing what content to display.

Combine two projectors to create one large interactive display.

Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.

Optional wireless capability:

- Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.

Specifications:

Projector:

- Supported aspect ratios:

16:10.

- Screen size compatibility:

1524.

- 2540 mm (60.

- 100´´).

- Projection distance (wide)0.

- 0.4 m.

- Projection distance (tele)0.

- 0.6 m.

- Contrast ratio (dynamic)14000:1.

- Projector brightness:

3500 ANSI lumens.

- Projection.

Technology:

3LCD.

- Projector native resolution:

WXGA (1280x800).

- Contrast ratio (typical):

300:1.

- Native aspect ratio:

16:10.

- Number of colours:

1.073 billion colours.

- Projector brightness (economic mode):

2900 ANSI lumens.

- Vertical scan range100.

- 120 Hz.

- Keystone correction, vertical:

-3.

- 3°.

- Matrix size:

1.5 cm (0.59´´).

- Vertical synchronization (min):

0.1 kHz.

- Vertical synchronization (max):

0.12 kHz.

- White light output:

3500 ANSI lumens.

- Colour light output:

3500 ANSI lumens Light source:

- Light source type:

Lamp.

- Service life of light source:

5000 h.

- Service life of light source (economic mode):

10000 h.

- Lamp power:

250 W Lens system:

- Focus:

Manual.

- Fixed focal length:

3.76 mm.

- Aperture range (F-F):

0.

- 1.6.

- Zoom ratio:

1.35:1.

- Digital zoom:

1.35x.

- Throw ratio:

0.28.

- 0.37:1 Video:

- Full HD:

No.

- 3D:

No.

- Video processing:

10 bit.

- Colour modes (2D):

Cinema, Dynamic.

- Video colour modes:

Blackboard, Cinema, Dynamic, Presentation, sRGB Ports & interfaces:

- S-Video inputs quantity:

1.

- USB 2.0 ports quantity:

1.

- USB 2.0 Type-B ports quantity:

1.

- Audio (L/R) in:

1.

- Headphone outputs:

1.

- Microphone in:

Yes.

- Serial interface type:

RS-232C.

- VGA (D-Sub) ports quantity:

3.

- HDMI ports quantity:

3.

- Composite video in:

1.

- DVI port:

No.

- Mobile High-Definition Link (MHL):

Yes.

- AC (power) in:

Yes.

- Consumer Electronics Control (CEC) support:

Yes Network:

- Ethernet LAN:

Yes.

- Ethernet LAN (RJ-45) ports:

1.

- Ethernet LAN data rates:

10,100 Mbit/s Storage:

- Card reader integrated:

No.

- Noise level (economic mode)30 dB.

- On Screen Display (OSD)Yes.

- Noise level:

35 dB.

- Password protection:

Yes.

-.

Certification:

TCO Multimedia:

- Built-in speaker(s):

Yes.

- RMS rated power:

16 W Design:

- Market positioning:

Ulta short throw.

- Product type:

Wall-mounted projector.

- LED indicators:

Yes.

- Cable lock slot:

Yes.

- Cable lock slot type:

Kensington Display:

- Built-in display:

No Power:

- Power source:

AC.

- Power consumption (typical):

354 W.

- Power consumption (standby):

0.37 W.

- Power consumption (economy mode):

309 W.

- AC input voltage:

100.

- 240 V.

- AC input frequency:

50.

- 60 Hz Software:

- Windows operating systems supported:

Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64.

- Mac compatibility:

Yes.

- Mac operating systems supported:

Mac OS X 10.10 Yosemite,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks.

- Linux operating systems supported:

Yes Operational conditions:

- Operating temperature (T-T):

5.

- 40 °C.

- Storage temperature (T-T):

-10.

- 60 °C.

- Operating relative humidity (H-H):

20.

- 80%.

- Storage relative humidity (H-H):

10.

- 90%.

Weight & dimensions:

- Width:

367 mm.

- Depth:

400 mm.

- Height:

149 mm.

- Weight:

5.8 kg.

- Package width:

335 mm.

- Package depth:

740 mm.

- Package height:

490 mm.

- Package weight:

21.6 g Packaging content:

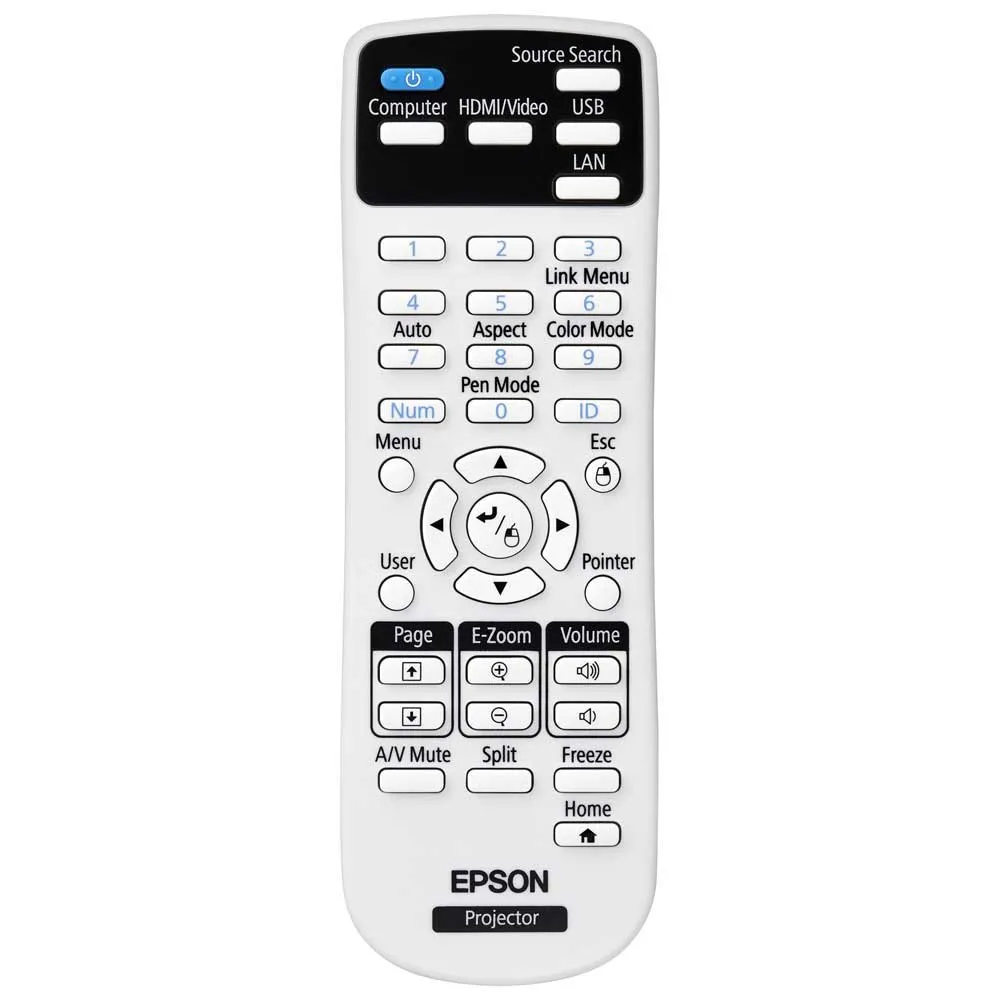

- Handheld remote control:

Yes.

- Batteries included:

Yes.

- Cables included:

AC, USB.

- Quick start guide:

Yes.

- Manual:

Yes.

- Mounting brackets included:

Yes.

- Warranty card:

Yes.

- Bundled software:

Easy Interactive Tools, Epson Projector Management Software, EasyMP Multi PC Projection Logistics data:

- Quantity per pack:

1 pc(s).

- Quantity per pallet:

12 pc(s).

- Pallet length:

120 cm.

- Pallet width:

80 cm.

- Pallet height:

15 cm.

- Quantity per pallet layer:

2 pc(s).

- Quantity per pallet layer (UK):

2 pc(s).

- Quantity per pallet (UK):

12 pc(s).

- Pallet length (UK):

120 cm.

- Pallet width (UK):

100 cm.

- Pallet height (UK):

15 cm Other.

Features:

- RS-232 ports:

1.

- RS-232C:

Yes.
