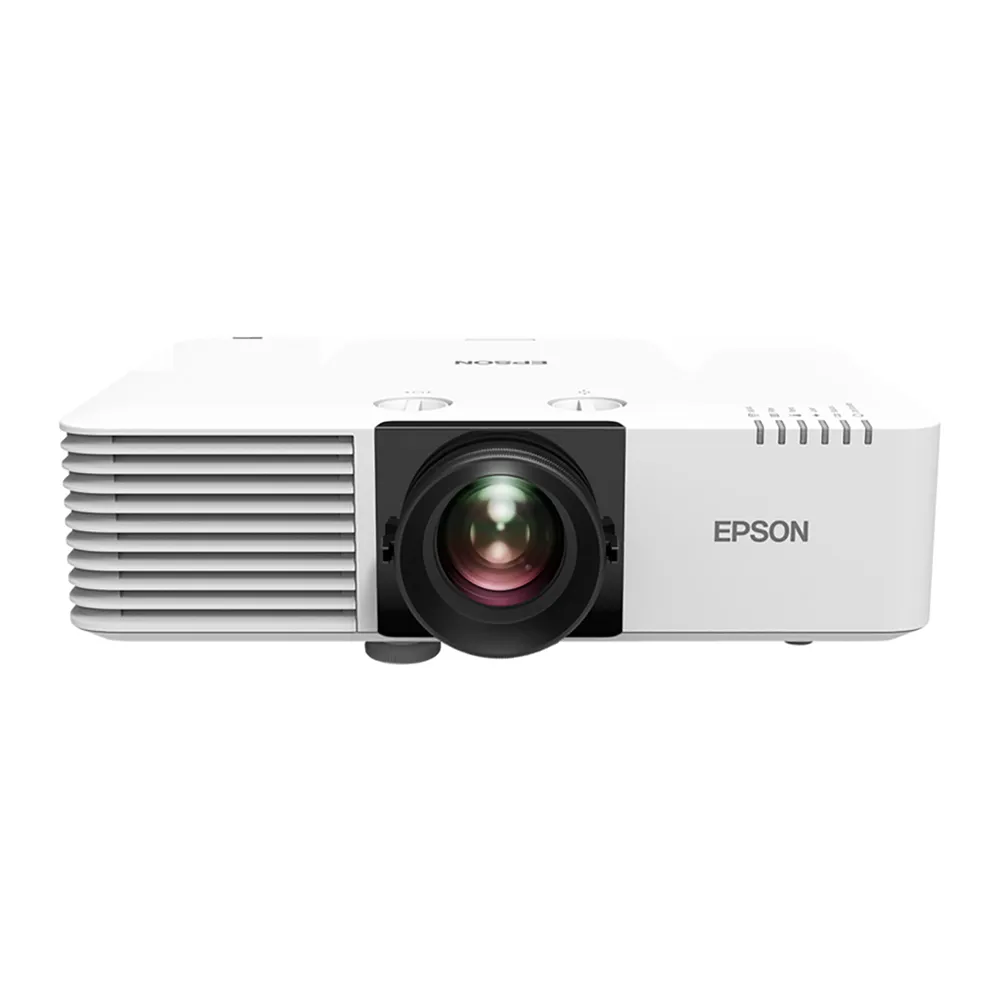

Epson EB-L570U WUXGA 3LCD Projector

Exceed your vision with Epson compact 3LCD technology laser projector, delivers sharp and smooth 4K images. The EB-L570U delivers effective, practical and creative display applications across a number of different industries.

Features:

Incredible picture quality:
- Providing higher quality content output, more engaging and impactful displays even in brightly-lit environments, the EB-L570U offers impressive 5,200-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L570U is also a scalable display from 50 to 500-inches.

Superior connectivity:
- This displays solution offers many ways to connect BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L570U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.

Effortless and flexible installation:
- 360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features.

Peace of mind and long-lasting durability:
- Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).

4KE display solution:
- 5,200-lumen brightness Sharp images and vivid colours, even in well-lit rooms
- 4KE resolution Sharp 4KE images for excellent clarity
- BYOD connectivity with optional wireless or wired and HDBaseT
- Effortless, flexible installation Compact with wide lens shift and multi-projection functions
- Large image Scalable display size of up to 500 inches

Specifications:

Technology:
- Projection System: 3LCD Technology
- LCD Panel: 0,67 inch with C2 Fine

Image:
- Color Light Output: 5.200 Lumen- 3.640 Lumen(economy) In accordance with IDMS15.4
- White Light Output: 5.200 Lumen - 3.640 Lumen(economy) In accordance with ISO 21118:2020
- Resolution: WUXGA
- Resolution Enhancement: 4K enhancement
- Aspect Ratio: 16:10
- On-Screen Pixel Count: 4,608,000 (1920 x1200 x2)
- Contrast Ratio: Over 5.000.000: 1
- Light source: Laser
- Laser Light source: 20.000 hoursDurability High, 30.000 hoursDurability Eco
- Keystone Correction: Manual vertical ±30 °, Manual horizontal ±30 °
- Colour Video Processing: 10 Bits
- Colour Reproduction: Upto 1.07 billion colours
- HDR support: HDR10

Optical:
- Throw Ratio: 1,35 - 2,20:1
- Zoom: Manual, Factor:1 - 1,6
- Lens: Optical
- Lens Shift: Manual - Vertical ±50 %, horizontal ±20 %
- Screen Size: 50 inches - 500 inches
- Projection Distance Wide: 1,4 m - 14,8 m
- Projection Distance Tele: 2,4 m - 23,8 m
- Projection Distance Wide/Tele: 1,44 m - 23,84 m
- Projection Lens F Number: 1,5 - 1,7
- Projection Lens Focal Length: 20 mm - 31,8 mm
- Projection Lens Focus: Manual

Connectivity:
- Interfaces: USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Ethernet interface (100 Base-TX / 10 Base-T)
- Epson iProjection App: Ad-Hoc / Infrastructure
- Network Protocol: HTTPS, IPv6, SNMP, PJLink

Advanced Features:
- Security: Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
- 2D Colour Modes: Dynamic, Natural, Cinema, Presentation, DICOM SIM
- Other features: 21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App
- Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
- Projector control: via: Crestron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General:
- Power consumption: 201 Watt (Normal On-Mode), 177 Watt (Eco On-Mode), 260 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)
- Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
- Product dimensions: 440 x 304 x 122 mm (Width x Depth x Height)
- Product weight: 8,3 kg
- Noise Level: Normal: 31 dB (A) - Economy: 23 dB (A)
- Supported Temperature: Storage -10° C - 60° C
- Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
- Included Software: Epson Projector Management
- Options: Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP20
- Loudspeaker: 10 Watt
- Room Type / Application: Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
- Positioning: Ceiling Mounted, Desktop

In the box:
- Cable cover
- HDMI Cable
- Main unit
- Power cable
- Remote control incl. batteries
- User guide
- Warranty document
