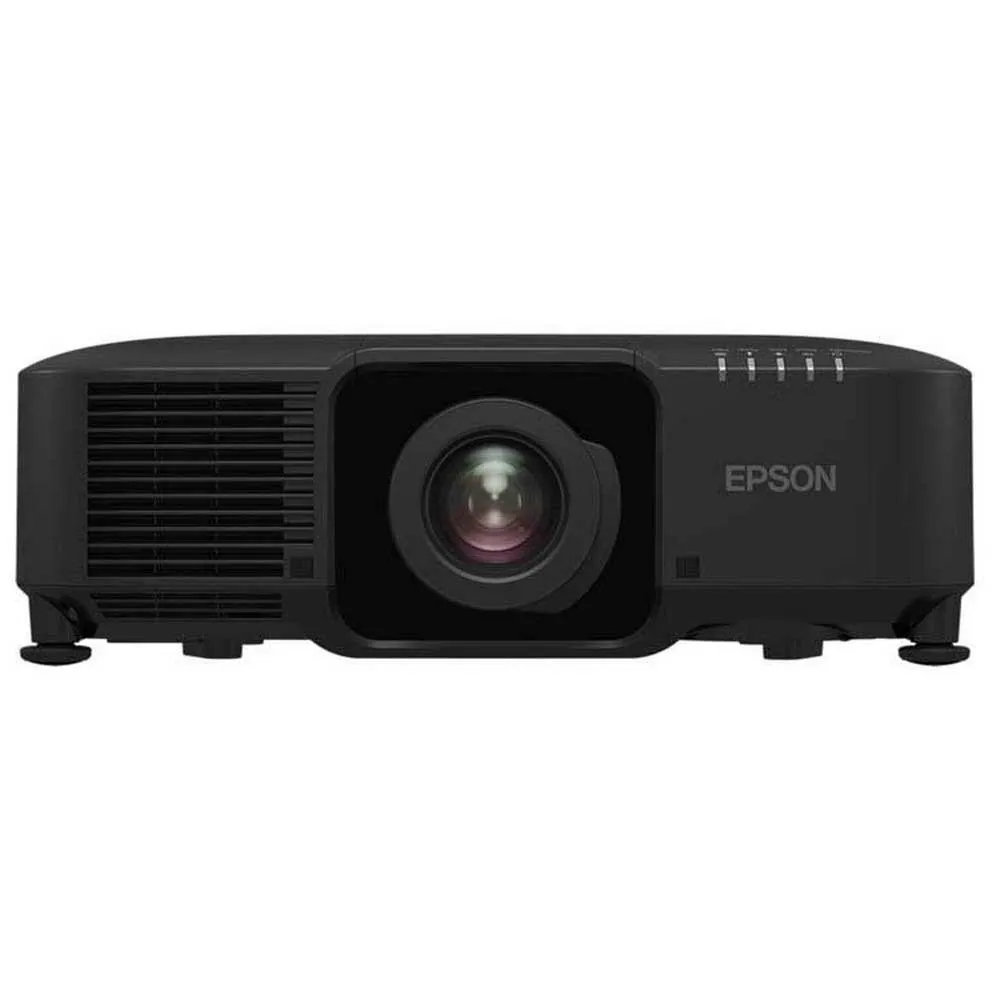

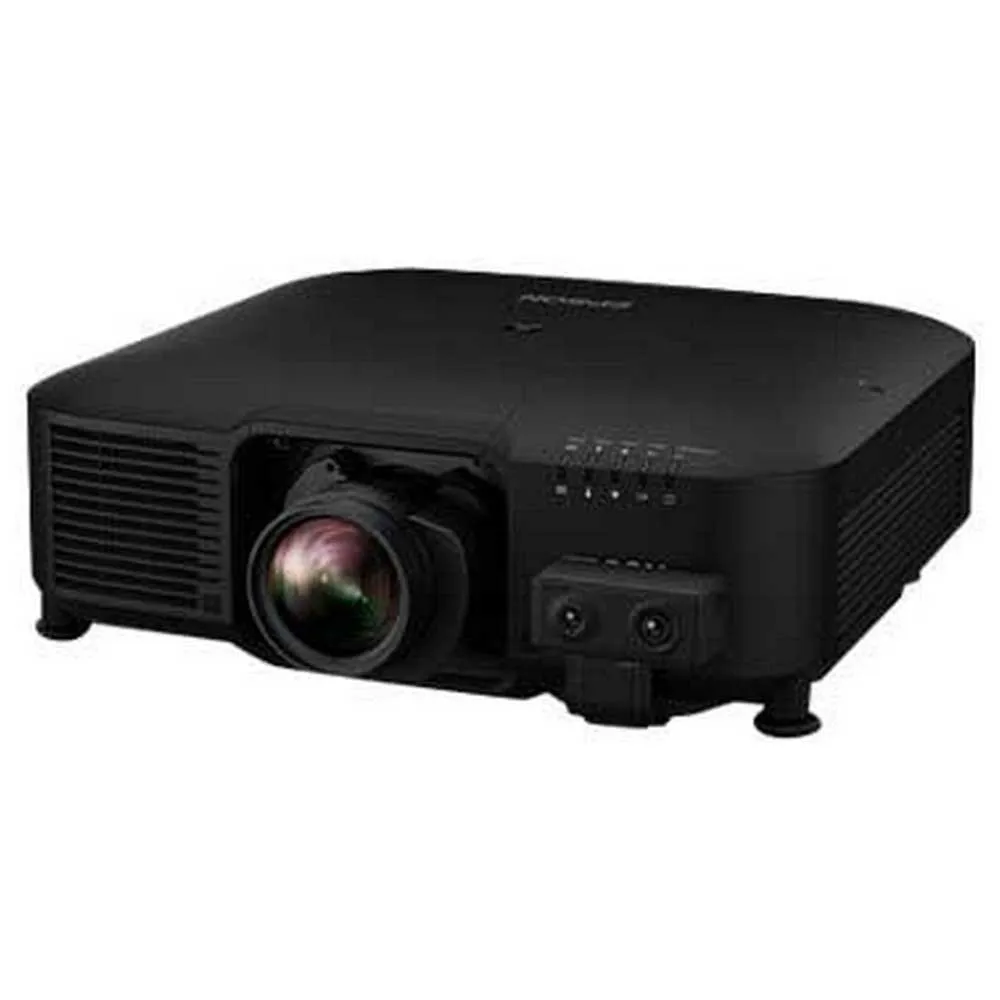

Epson EB-PU1007B Projector 7000 Lumens

EU PLUG.

This highly versatile 7,000 lumens installation projector is sold as ´body only´ and pairs seamlessly with Epson´s existing lens family to deliver bright, true-to-life images in a wide variety of environments:

from visitor attractions to lecture theatres, museums to meeting rooms.

The high lumens EB-PU1007B offers WUXGA resolution with 4K enhancement, HDR and advanced installation Features.

Features:

Superior image quality:

- The 7,000 lumens EB-PU1007B projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.

Compact and lightweight:

- The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets.

The unobtrusive design allows it to blend seamlessly into most environments.

Also available in white.

Interchangeable lens support:

- The EB-PU1007B accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens.

Epson supplies the projector as ‘body only´, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.

Designed for installation agility:

- Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key.

Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking.

The EB-PU1007B also Features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.

- Compact and lightweight Unobtrusive and easier to transport.

- Lens support Supports a wide selection of Epson interchangeable lenses.

- Enhanced design Clean, simple, and discreet design.

Black version.

- Image quality 7,000 lumens, 3LCD, WUXGA resolution with 4K enhancement.

- Advanced installation tools A range of free software tools and an optional external camera module Specifications:

Technology:

- Projection System:

3LCD Technology, RGB liquid crystal shutter.

- LCD Panel:

0,76 inch with C2 Fine Image:

- Color Light Output:

7.000 Lumen- 4.900 Lumen (economy) In accordance with IDMS15.4.

- White Light Output:

7.000 Lumen.

- 4.900 Lumen (economy) In accordance with ISO 21118:2020.

- Portrait Colour Light Output:

7.000 lm.

- Portrait White Light Output:

7.000 lm.

- Resolution:

WUXGA.

- High Definition:

4K enhancement.

- Aspect Ratio:

16:10.

- Contrast Ratio:

Over 2.500.000:

1.

- Native Contrast:

2.000:

1.

- Light source:

Laser.

- Laser Light source:

20.000 hours Durability High, 30.000 hours Durability Eco.

- Keystone Correction:

Manual vertical:

± 45 °, Manual horizontal ± 30 °.

- Colour Video Processing:

10 Bits.

- Colour Reproduction:

Upto 1.07 billion colours Optical:

- Throw Ratio:

0,35.

- 10,11:1.

- Zoom:

Motorized.

- Lens:

Optical.

- Lens Shift:

varies by lens.

- Screen Size:

varies by lens.

- Projection Distance Wide:

)varies by lens.

- Projection Distance Tele:

)varies by lens.

- Projection Distance Wide/Tele:

)varies by lens.

- Projection Lens F Number:

varies by lens.

- Projection Lens Focal Length:

varies by lens.

- Projection Lens Focus:

Motorized.

- Offset:

varies by lens.

- Interchangeable Lens:

Yes Connectivity:

Interfaces:

- USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), VGA in, DVI in, HDBaseT, Jack plug out, HDMI (HDCP 2.3), Near Field Communication (NFC).

- Network Protocol:

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink.

- Security:

Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection Other Features:

- 4K enhancement, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Long light source life, OSD copy function, Power on button, Quick Corner, Schedule Function, Super resolution, Web Control, Web Remote, iProjection App.

- Video Color Modes:

Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709.

- Projector control:

via:

Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery General:

- Power consumption:

431 Watt, 366 Watt (economy), 0,5 Watt (standby), On mode power consumption as defined in JBMS-84 358 Watt.

- Heat Dissipation:

1.465,4 BTU/hour (max).

- Supply Voltage:

AC 100 V.

- 240 V, 50 Hz.

- 60 Hz.

- Product dimensions:

545‎ x 436 x 189 mm (Width x Depth x Height).

- Product weight:

16,3 kg.

- Noise Level:

Normal:

33 dB (A).

- Economy:

29 dB (A).

- Supported Temperature:

Storage -10° C.

- 60° C.

- Supported Humidity:

Operation 20%.

- 80%, Storage 10%.

- 90%.

- If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

- If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

- Included Software:

Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool.

- Options:

Wireless LAN unit.

- What´s in the box:

Cable cover, Lens connector cap, Power cable, Remote control incl.

batteries, User´s Manual Set.

- Room Type / Application:

Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction.

- Positioning:

Ceiling Mounted, Desktop, Flying Frame.
