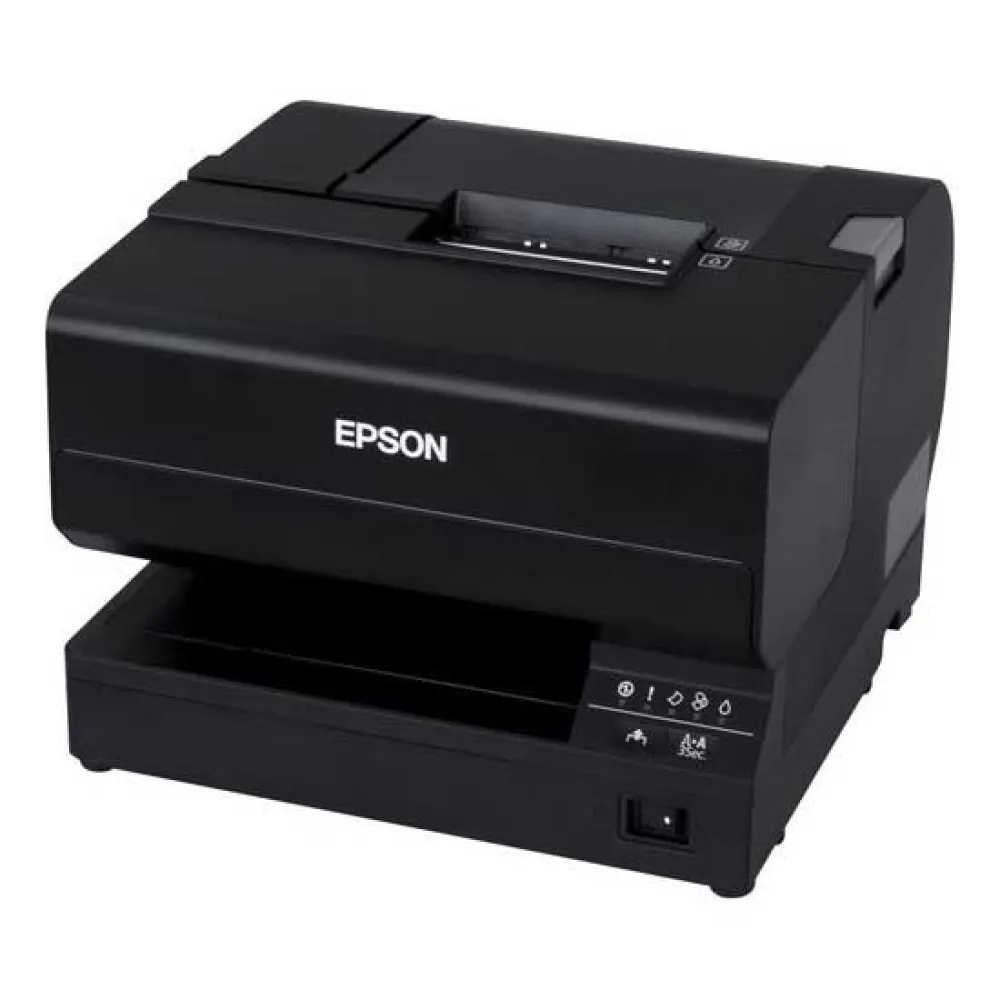

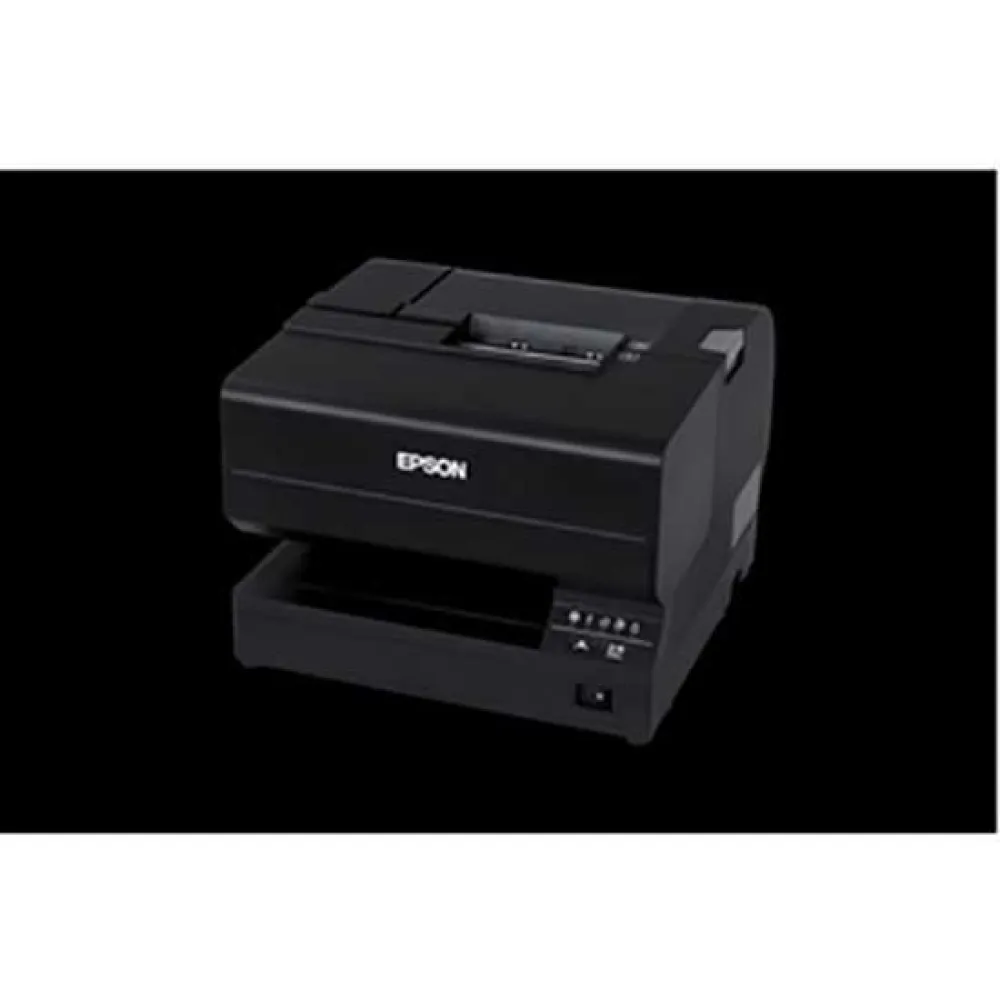

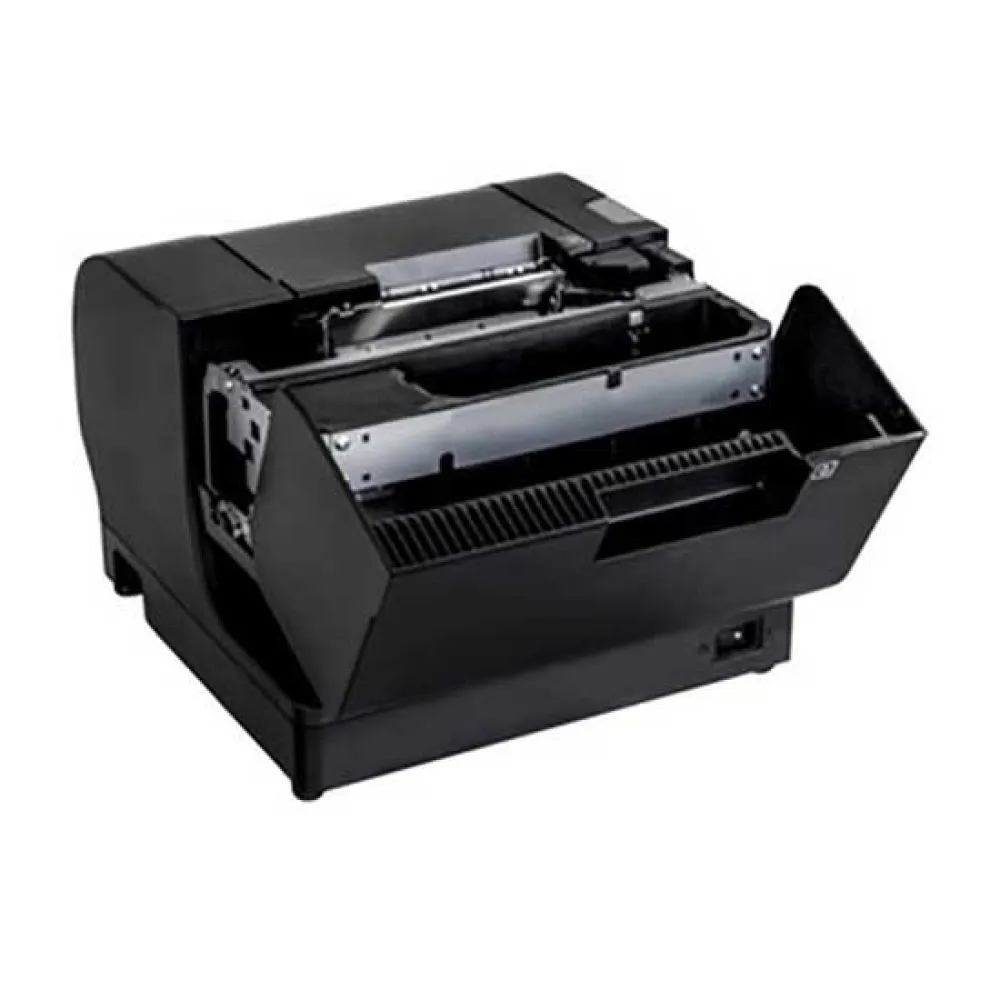

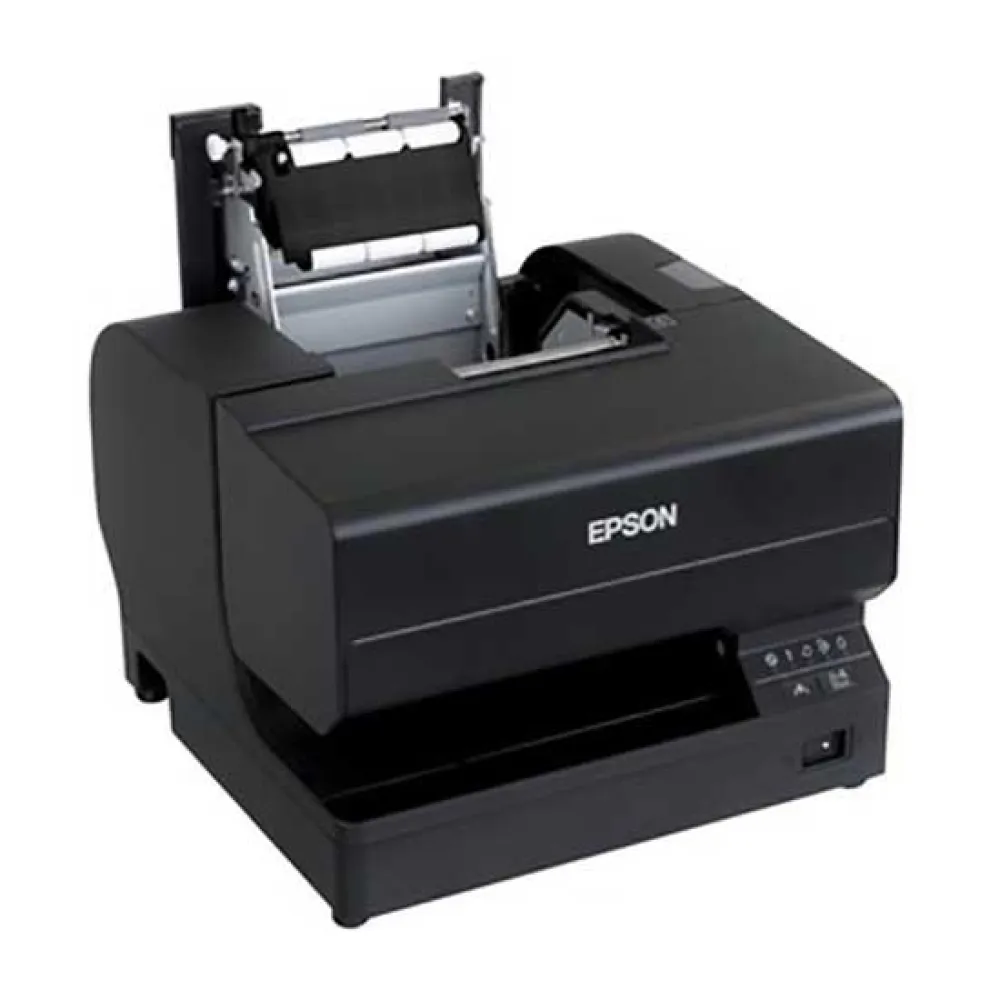

Epson TM-J7700 thermal printer

EU PLUG.

Faster, better inkjet.

Technology:

- Inkjet technology means that not only are printouts more detailed (600dpi compared to 180dpi for existing models), they´re around twice as fast too, with a print speed of 100mm/s (23.2lps) compared to 43mm/s (13.5lps) for previous models.

Low TCO:

- Epson has managed to incorporate inkjet technology into this new model while retaining a similar low total cost of ownership to previous dot matrix printers.

Simple maintenance:

- The ink cartridges have an easy-install design ideal for busy retail counters, as well as drop-in paper roll for quick loading, and the ink formulation used offers better water and light resistance than dot matrix, so receipts and documents will last longer.

Backwards compatible:

- To make upgrading from existing models incredibly easy, the TM-J7700 is fully backwards-compatible with the TM-J7500 and has exactly the same footprint, so it can simply be swapped in.

However, to integrate smoothly with the latest ePOS systems, the model offers both USB and Ethernet connection options.

Features:

- Versatile inkjet POS printer:

Faster, better quality and more versatile.

- Low TCO:

Similar overall costs to previous dot matrix model.

- Durable prints:

Print is now more resistant to water and light.

- Simple maintenance:

Ink and paper rolls are very easy to replace.

- Backwards compatible:

Crisp, clear text and glossy photos.

Specifications:

Printing:

- Print speed:

98 mm/sec.

- Print speed (graphic):

98 mm/sec.

- Print speed (receipt):

98 mm/sec.

- Print speed (slip):

85 mm/sec.

- Printing characters:

Text, Graphic, Barcode.

- Character sets:

ANK.

- Alphanumeric memory:

95.

- Print.

Technology:

Inkjet.

- Type:

POS printer Paper handling:

- Supported paper width:

58.

- 83 mm.

- Media thickness:

0.06.

- 0.09 mm.

- Maximum paper size (slip):

230 x 297 mm Ports & interfaces:

- USB port:

Yes.

- USB 2.0 ports quantity:

1.

- USB connector:

USB Type-B.

- Connectivity.

Technology:

Wired.

- Ethernet LAN (RJ-45) ports:

1 Network:

- Ethernet LAN connection:

Yes.

- Ethernet LAN data rates:

10,100 Mbit/s.

Features:

- Sound pressure level (printing):

55 dB.

- Mean time between failures (MTBF):

180000 h.

- Autocutter durability:

1.5 million cuts.

- Printer receipt unit life:

3700000000 lines.

- Printer slip unit life:

5000000 lines.

- Safety:

TÜV, TÜV (EN60950-1).

-.

Certification:

CE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11 Power:

- AC input voltage:

24 V.

- Power consumption (standby):

70000 mA Operational conditions:

- Operating temperature (T-T):

10.

- 35 °C.

- Storage temperature (T-T):

-20.

- 40 °C.

- Operating relative humidity (H-H):

20.

- 80%.

- Storage humidity:

20.

- 85%.

Weight & dimensions:

- Width:

251 mm.

- Depth:

260 mm.

- Height:

188 mm.

- Weight:

5.8 kg Packaging data:

- Cables included:

AC.

- Quantity per pack:

1 pc(s).

- Package width:

350 mm.

- Package depth:

390 mm.

- Package height:

310 mm.

- Package weight:

7.88 kg Technical details:

- Font styles:

ANK.

- Harmonized System (HS) code:

84433210 Other.

Features:

- Paper dimensions:

58 mm.

- 83 mm.

- Mean cycles between failures (MCBF):

5000000.
