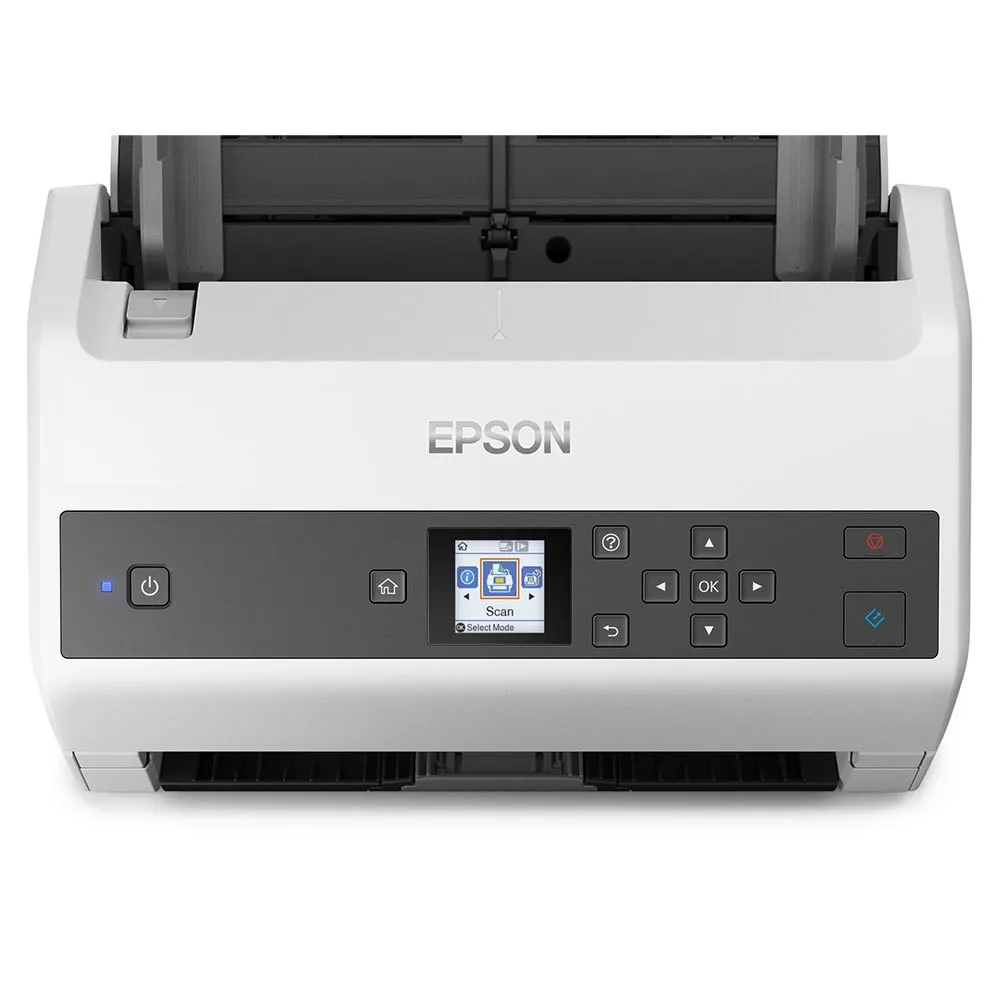

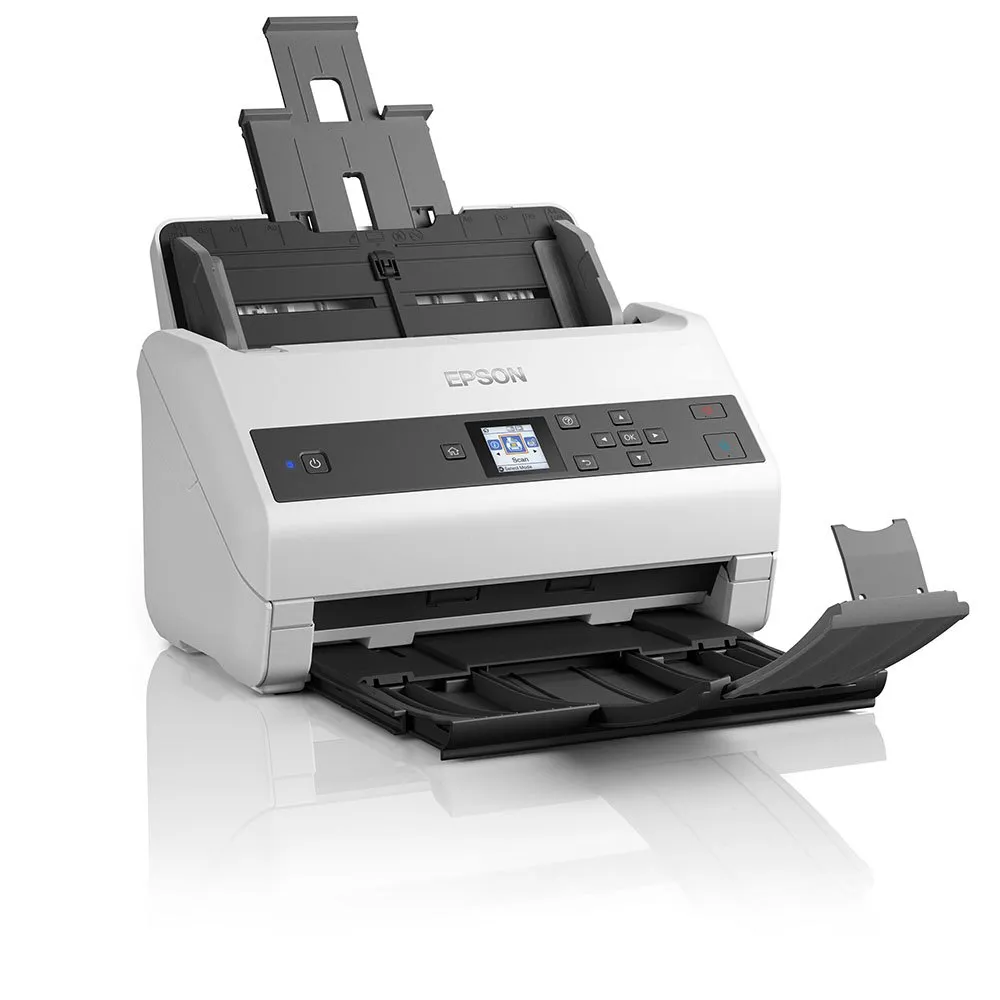

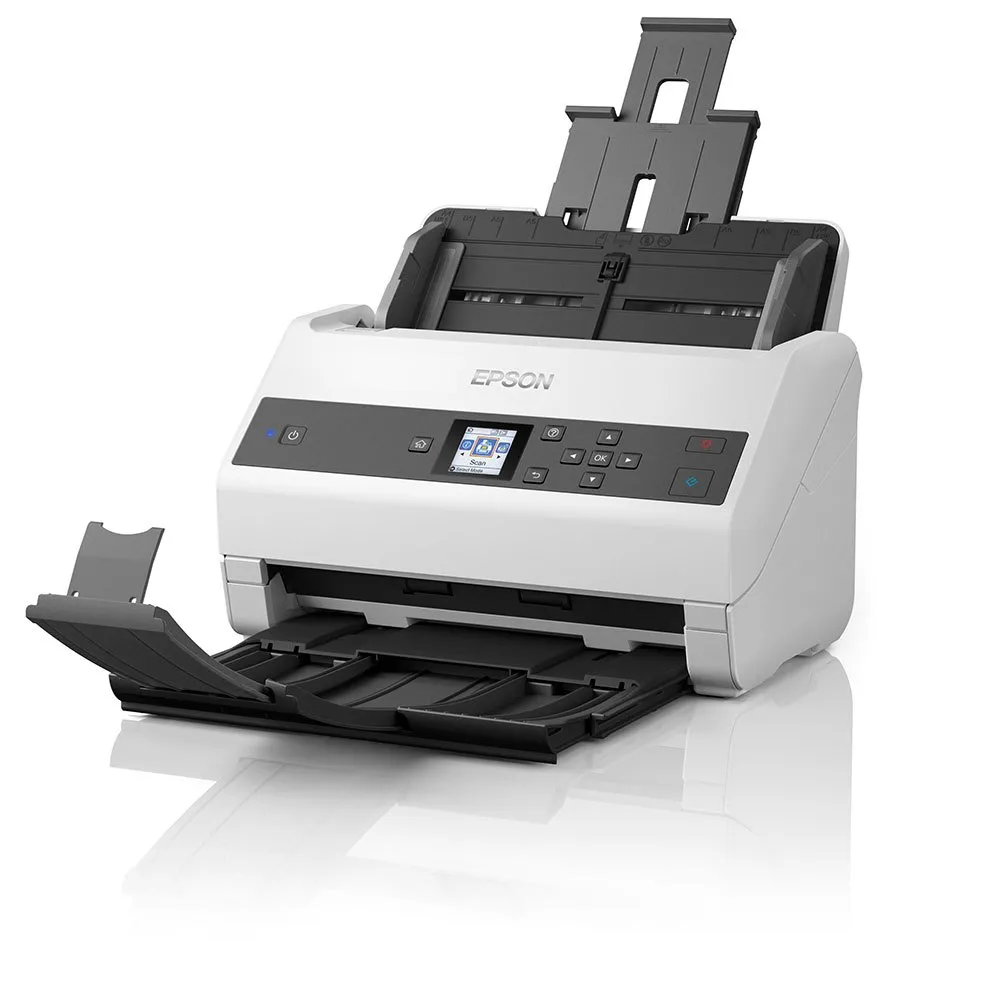

Epson Workforce DS-970 Scanner

EU PLUG.

Create a better business environment with the support of a global leader in document scanning.

When the goal is getting documents to the right place as fast as possible, trust in the WorkForce DS-970.

- Epson´s fastest scanner.

High performance matched with an endurance with easy-to-use Features that put you in control of your documents.

Features:

- High-speed scanning:

100-page ADF and 85ppm (170ipm) scanning speed.

- Low intervention:

Active Separation Roller system to prevent double feeding.

- Built-in protection:

Ultrasonic and paper protection sensors to detect processing errors.

- Optional flatbed scanner:

Choose from the conversion kit, or link to DS-5500 (A4) or DS-50000 (A3).

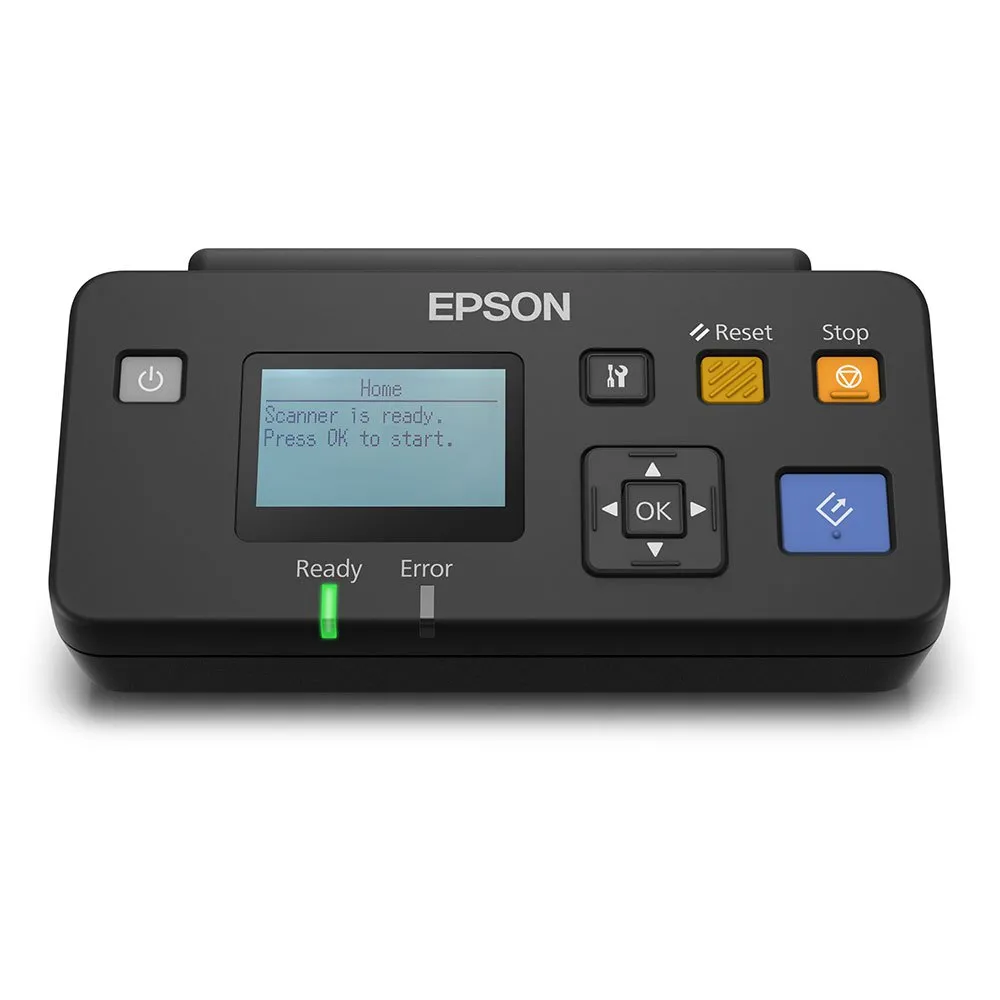

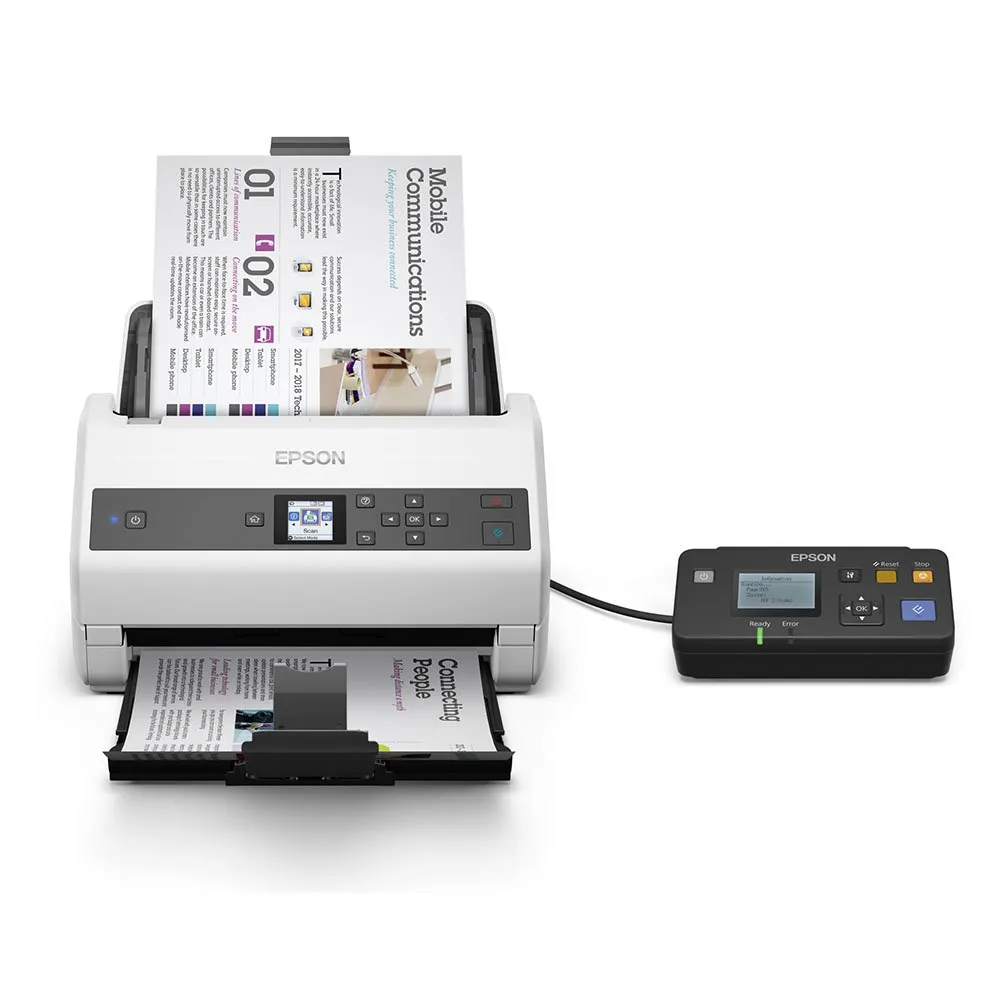

- Optional Network Interface:

Enable device sharing in a department.

Create pre-defined job profiles Specifications:

- Scanner type:

Sheetfed Scanner.

- Optical Resolution (ADF):

600 DPI x 600 DPI (Horizontal x Vertical).

- Scanning Resolution:

600 DPI x 600 DPI (Horizontal x Vertical).

- Paper Formats:

A4, A5, A6, B4, B5, B6, Letter, Legal, Postcard, Business cards, Plastic cards, A3 with stitching function.

- Colour Depth:

Input:

30 Bits Colour / 10 Bits Monochrome, Output:

24 Bits Colour / 1 Bits Monochrome.

- Ultrasonic Sensor:

Yes.

- Application:

High Capacity, General Office.

- Optical Sensor:

CIS (Contact Image Sensor).

- Light Source:

ReadyScan LED technology.

- Output Resolution:

1200 DPI Scanning Speed:

- Monochrome:

85 pages/min.

- Color:

85 pages/min measured with size:

A4, resolution:

200 / 300 dpi,.

- Monochrome:

170 image/min.

- Color:

170 image/min measured with size:

A4, resolution:

200 / 300 dpi.

- ADF Paper Setting Capacity:

100 Sheets.

- ADF Paper weight:

Auto loading:

27.

- 413 g/m.

- Automatic Document Feeder Type:

Single pass dual scanning.

- Reliability Daily Duty Cycle:

9,000 pages.

- Automatic Document Feeder:

100 pages.

- Duplex Scan:

Yes Features:

- RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stiching, Punch holes removal, Advanced editing, Pre-defined scanning settings, Automatic de-skew, Automatic multi-document recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Barcode Recognition, Manual / Automatic Job Separation, Scan to Cloud Storage.

- Output formats:

BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, PDF/A, PNG.

- File compression Features:

TIFF Compression (JPEG(7), CCITT G4, LZW), PDF Compression, JPEG compression.

- Scanning Volume:

9,000 pages per day.

- Interfaces:

USB 3.0.

- Network Interface Panel / Unit:

Optional.

- Panel type:

5-line LCD with Push Scan Features.

- Protocol support:

TCP/IP, DHCP, DNS, SNMP, SLP.

- IPv6 support:

Yes.

- Push scan Features:

Yes (with Document Capture Suite).

- Panel Lock with password:

Yes (with Document Capture Suite).

- Supply Voltage:

AC 100 V.

- 240 V, 50 Hz.

- 60 Hz.

- Energy Use:

20 Watt (Operation), 8.5 Watt (ready), 1.4 Watt (sleep mode), 0.1 Watt (Power off).

- Product dimensions:

296‎ x 169 x 167 mm (Width x Depth x Height).

- Product weight:

3.6 kg.

- Drivers:

TWAIN, ISIS (Web download), SANE (Linux), WIA (Windows).

- Included Software:

Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2 Compatible Operating Systems:

- Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3.

- Humidity:

Operation 15%.

- 80%, Storage 15%.

- 85%.

- Temperature:

Operation 5° C.

- 35° C, Storage 25° C.

- 60° C.

- What´s in the box:

AC adapter, Driver and utilities (CD), Main unit, Power cable, Setup guide, USB cable, Warranty card.

- Options:

Roller Assembly Kit Ultimate performance:

- Epsons´ fastest A4 document scanner offers class-leading performance1.

With a 100-page ADF, 85ppm/170ipm scanning speed and continuous scanning with its automatic feed mode, the WorkForce DS-970 gets through large jobs quickly and efficiently.

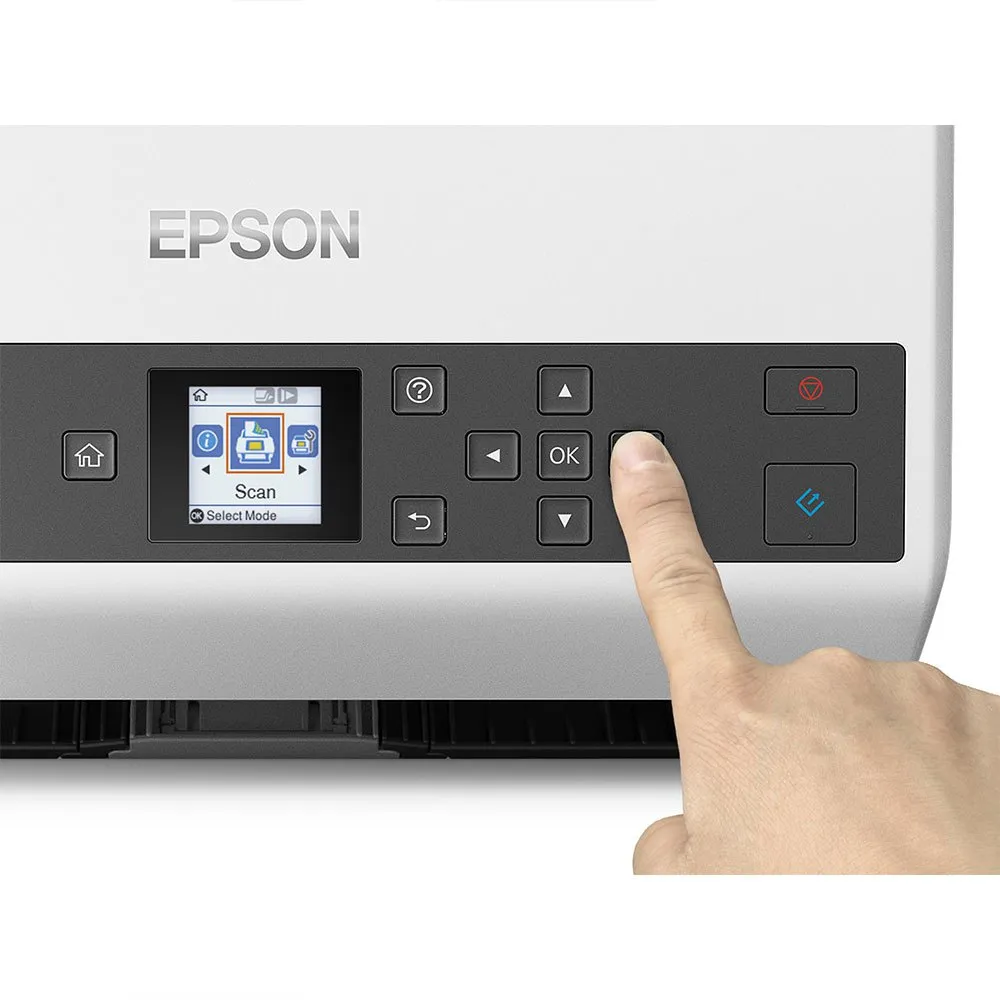

Scroll through pre-defined jobs easily using the intuituve panel and get your documents to the right place in just a few presses of a button.

TWAIN, WIA and ISIS drivers are available for enhanced compatibility with document management systems.

Efficient document processing:

- Stay in control of the document process with a scanner capable of scanning a wide range of media from 27gsm to 413gsm and a long paper scanning mode up to 6096mm.

For documents that cannot be scanned via the ADF - three different flatbed solutions are available up to A3 in size.

Slow mode decreases document friction by reducing the speed of the rollers, making it easier to capture fragile or damaged documents, without increasing file sizes.

The Active Separation Roller System prevent document double feeds, ensuring that every piece of paper gets scanned, and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes.
