Equip 24 Port Patch Panel

EQUIP 24 Port Cat6 Patch Panel 1U - The Foundation for Your Organized Network

Establish a clean, professional, and highly efficient network infrastructure with the EQUIP 24 Port Cat6 Patch Panel. Designed for superior performance and organization in demanding environments, this panel serves as the central hub for your structured cabling system, making it an essential component for any modern server room, data center, or office network closet. Eliminate cable clutter and simplify network management by consolidating up to 24 Ethernet connections into one streamlined, rack-mountable unit.

Streamlined Installation and Ultimate Flexibility

The EQUIP patch panel is engineered for versatility and ease of use. It is dual IDC compatible, supporting both LSA and 110 punch-down standards, which grants installers the freedom to use their preferred termination tools and methods. This flexibility significantly speeds up the installation process and reduces complexity. Furthermore, the clear IDC T568A/T568B color-coding guide printed on the rear of the unit removes any guesswork during termination, ensuring correct wiring and reliable connections every time. Full compliance with the ANSI/TIA/EIA 568 standard guarantees interoperability and performance you can trust.

Enhanced Cable Management and Durability

EU Plug.

The equip® Patch Panel is a 19´´ 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards.

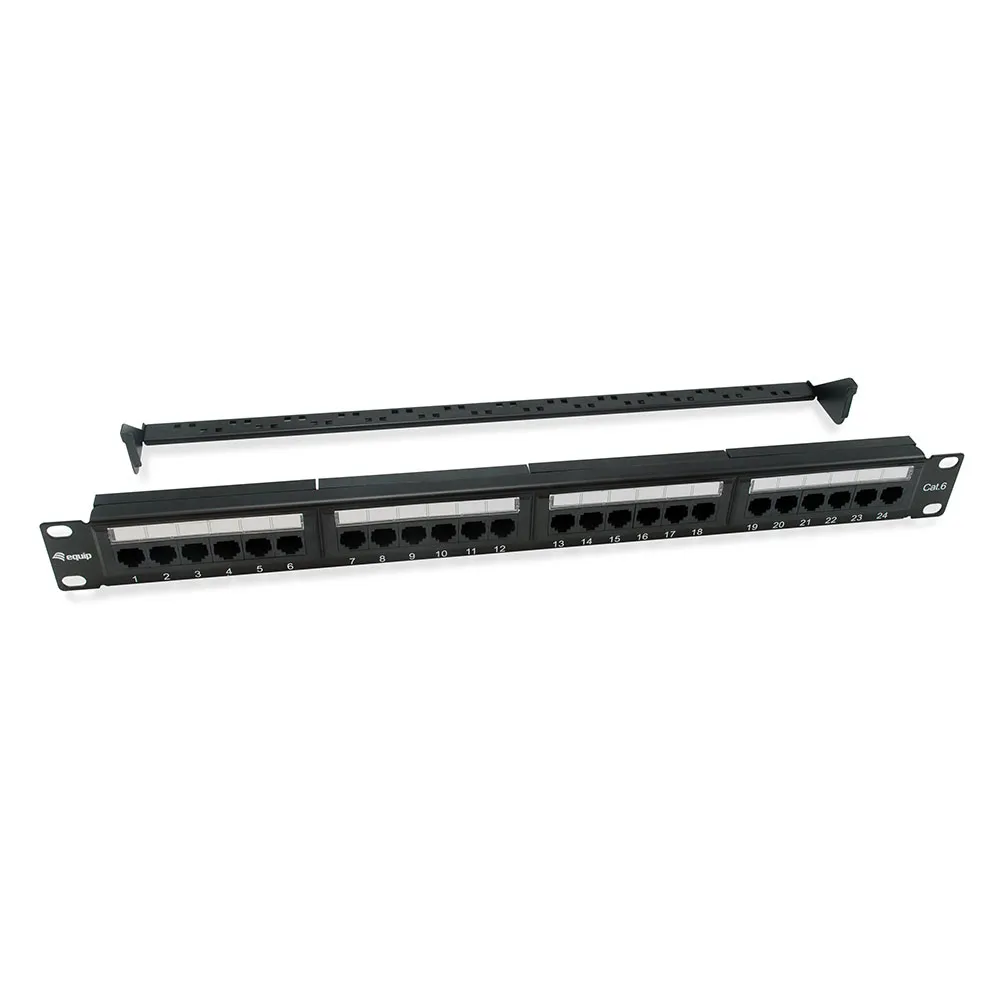

Featuring 24 x RJ45 ports, this patch panel is recommended to connect with equip® patch cords and cabling accessories to achieve outstanding performance.

Moreover, each port is marked with port number for recognition.

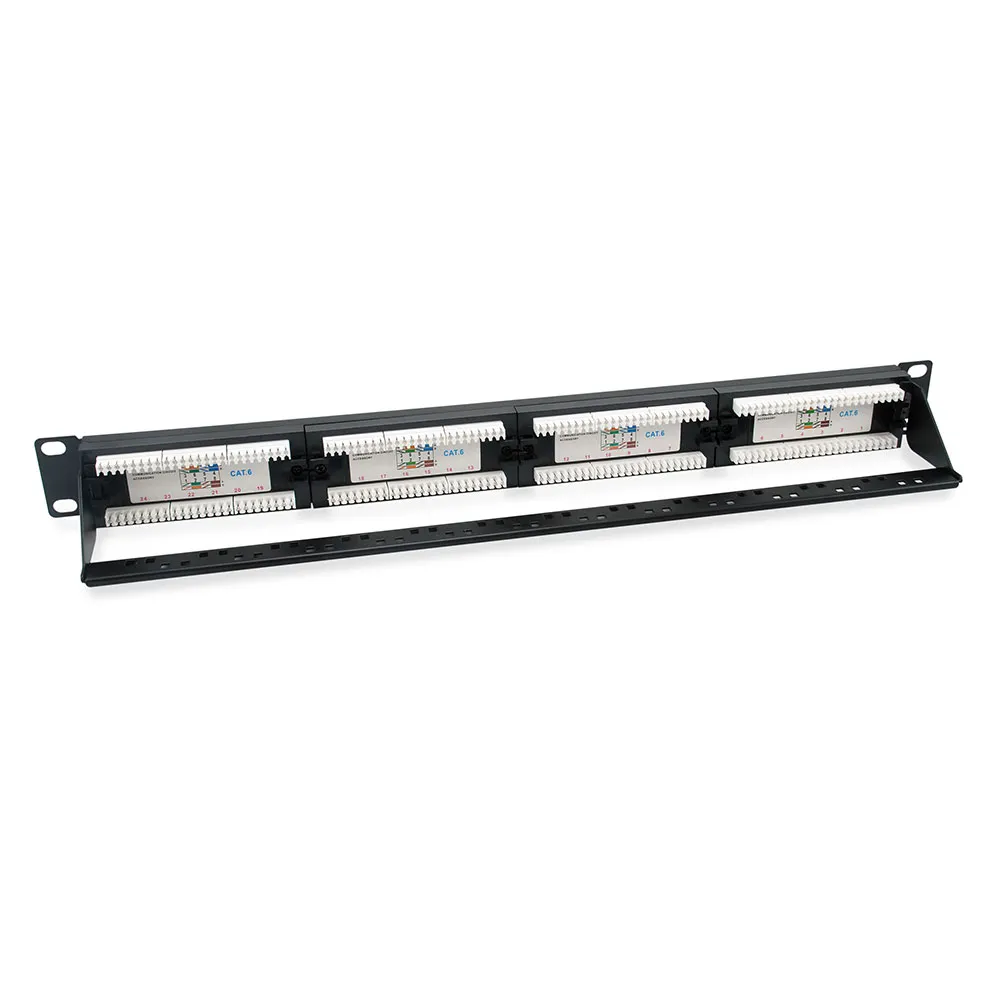

Built with a robust design, this patch panel features an integrated cable management system. This rear bar provides essential support for incoming cables, preventing excessive strain on the IDC terminations and ensuring long-term signal integrity. By properly routing your cables, you not only create a tidy and professional-looking installation but also improve airflow within the rack and make future maintenance significantly easier. Each of the 24 RJ45 ports on the front is clearly numbered, allowing for quick and effortless identification of network lines during setup, testing, and troubleshooting, which drastically minimizes potential downtime.

Crafted for seamless integration, its standard 19-inch width and space-saving 1U height allow it to be mounted effortlessly into any standard server rack, cabinet, or wall-mount bracket. The sleek black finish provides a professional aesthetic that complements other networking hardware.

Technical Specifications:

* Product Code: Equip 135426
* Termination Compatibility: Dual IDC (LSA and 110) compatible
* Standards Compliance: ANSI/TIA/EIA 568 standard
* Wiring Scheme: IDC T568A/T568B Color Coded
* Supported Cable Types: Cat6
* Supported Wire Size: AWG 22/26
* Rack Capacity: 1U
* Product Colour: Black
* Certification: CE
* Dimensions (W x H x D): 482.6 mm x 44.5 mm x 85.3 mm
* Package Dimensions (W x D x H): 95 mm x 55 mm x 500 mm
