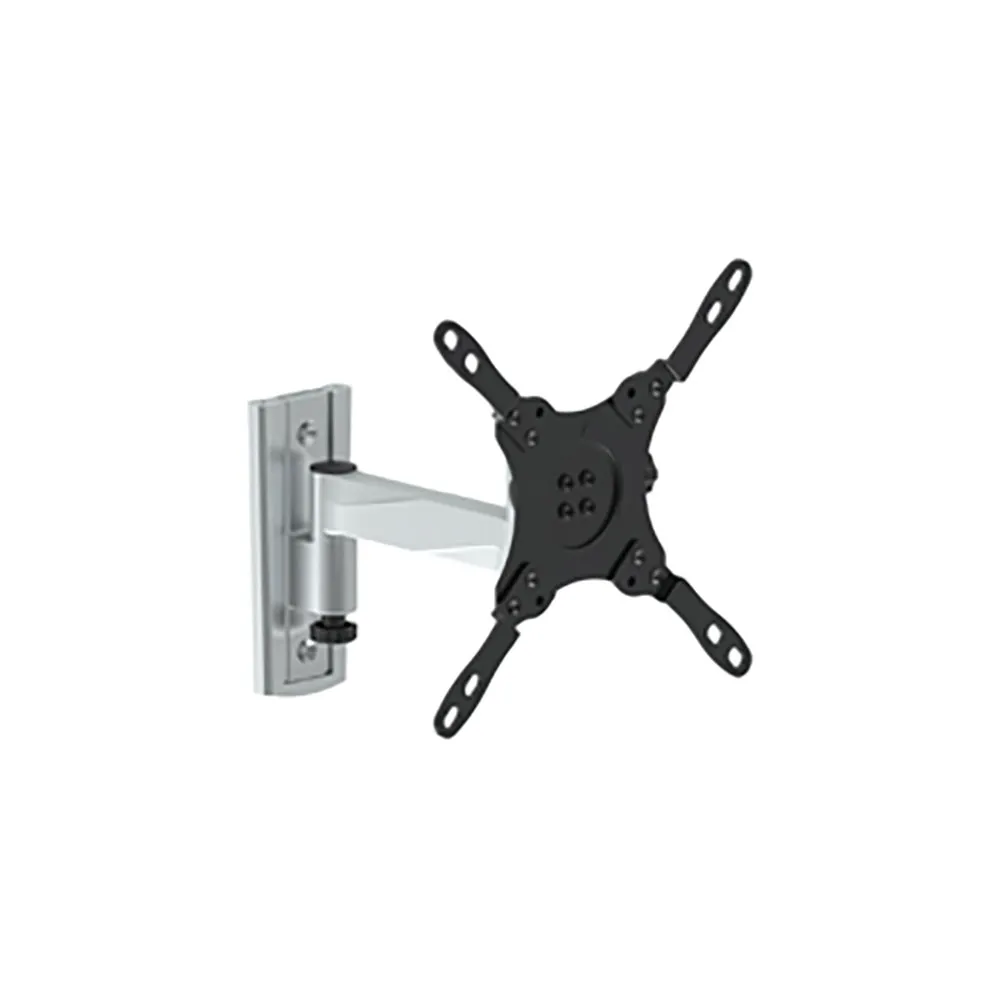

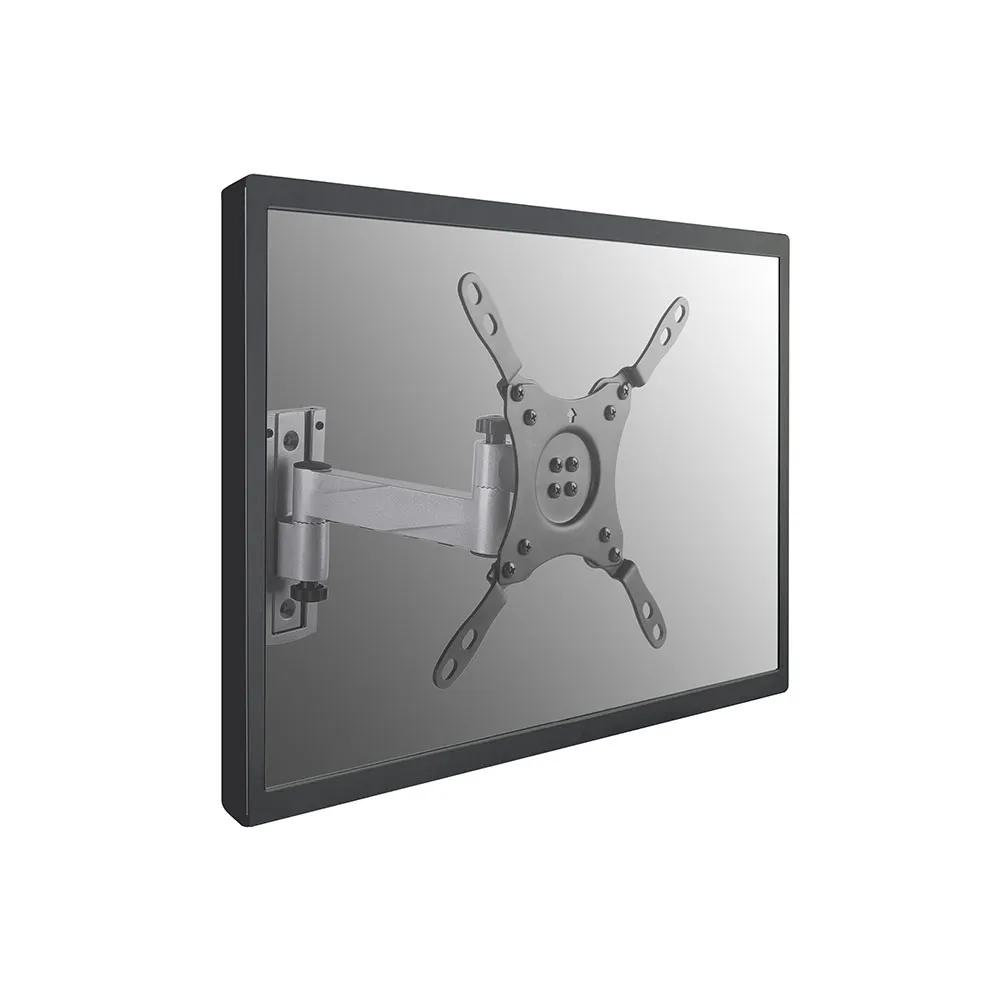

Equip 650106 Wall TV Bracket 13-42´´

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.


Features:

- Slide-in wall plate provides easy access for attachment and detachment
- Integrated bubble level assures easy installation alignment
- Unique gear structure with fixing knob helps TV withstand vibrations
- Adjustment knob enables a full range of tilt/swivel action
- Integrated cable management system
- Sturdy and lightweight aluminum construction
- VESA standards compliant

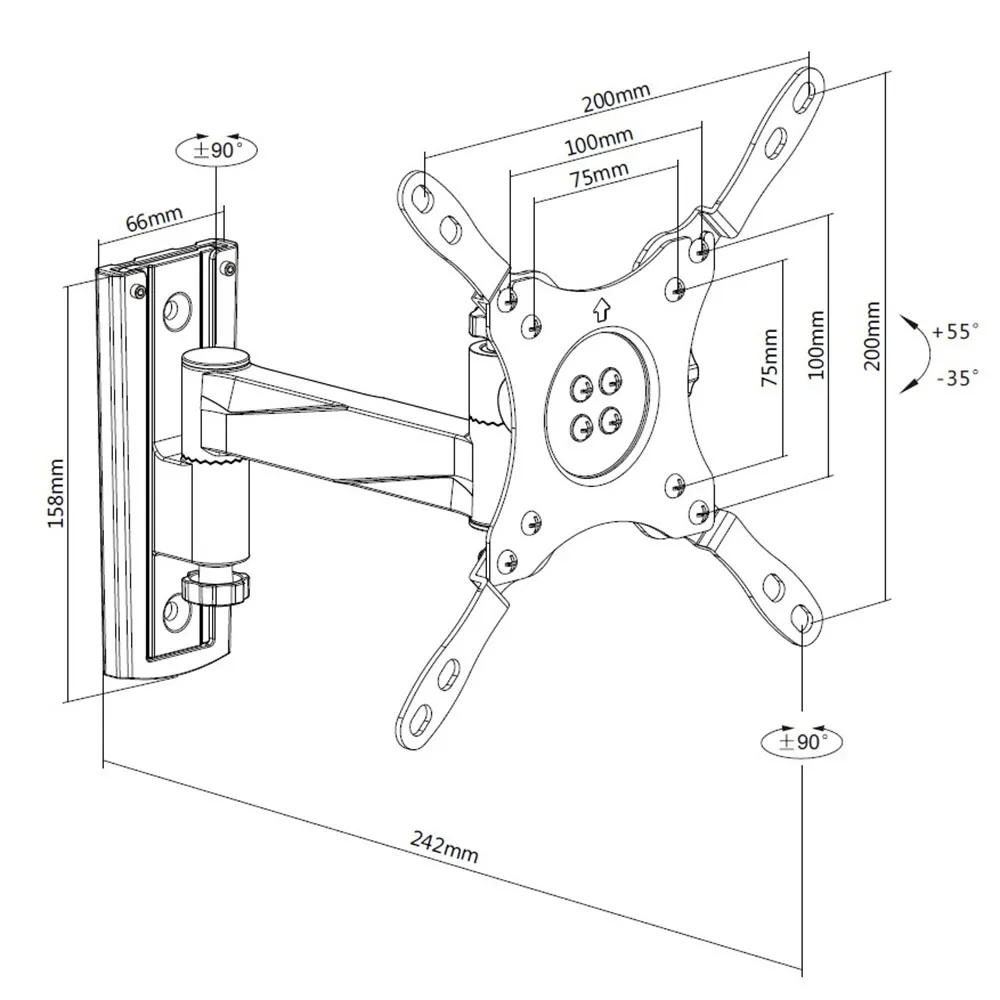

Specifications:

Mounting:
- Minimum screen size33 cm (13´´)
- Maximum weight capacity: 15 kg
- Maximum screen size: 106.7 cm (42´´)
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 200 x 200 mm
- Panel mounting interface75 x 75,100 x 100,200 x 100,200 x 200
- Number of displays supported: 1
- Mounting type: Wall

Ergonomics:
- Tilt angle range: -35 - 55°
- Swivel angle range: -90 - 90°
- Built-in spirit level: Yes
- Distance to the wall (max): 24.2 cm

Design:
- Housing material: Aluminium
- Certification: CE

Packaging content:
- Screws included: Yes
- Quick installation guide: Yes

Weight & dimensions:
- Width: 255 mm
- Depth: 221 mm
- Height: 235 mm
- Weight: 1.62 kg

Packaging data:
- Package width: 185 mm
- Package depth: 210 mm
- Package height: 52 mm
- Package weight: 1.65 kg
