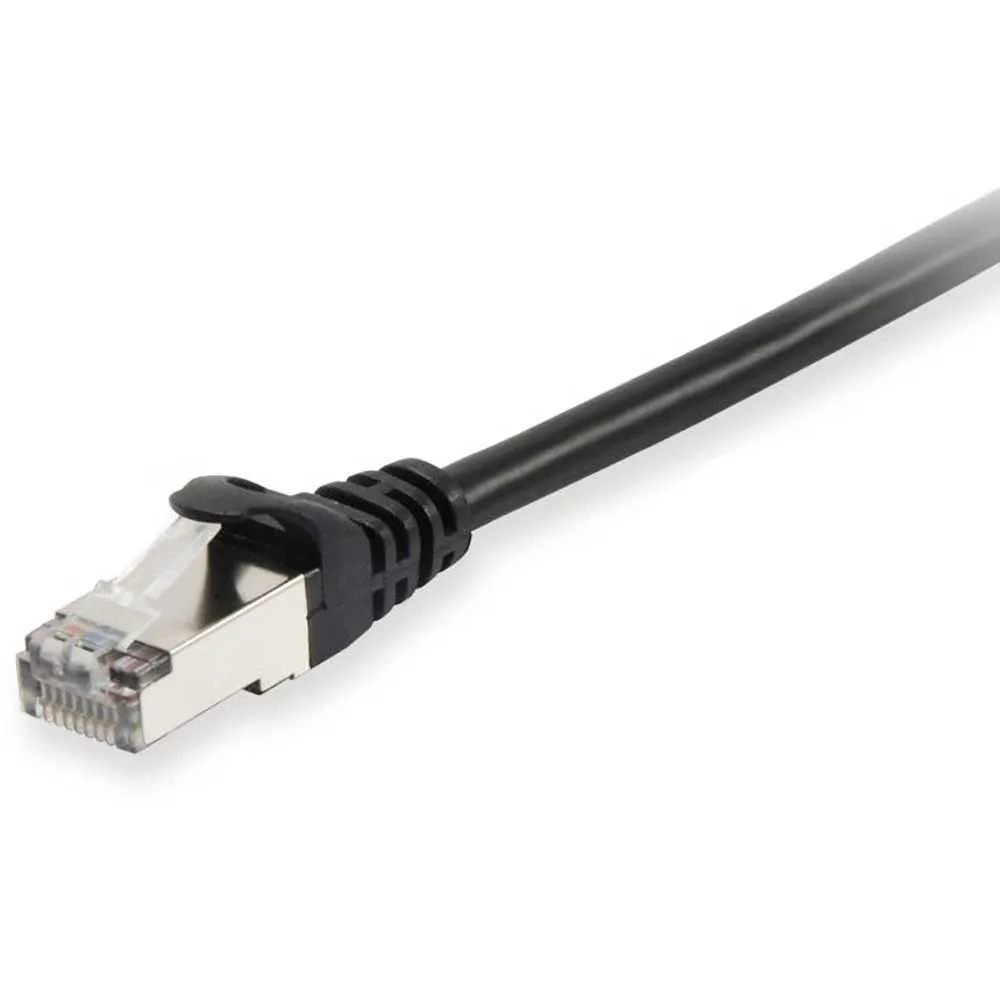

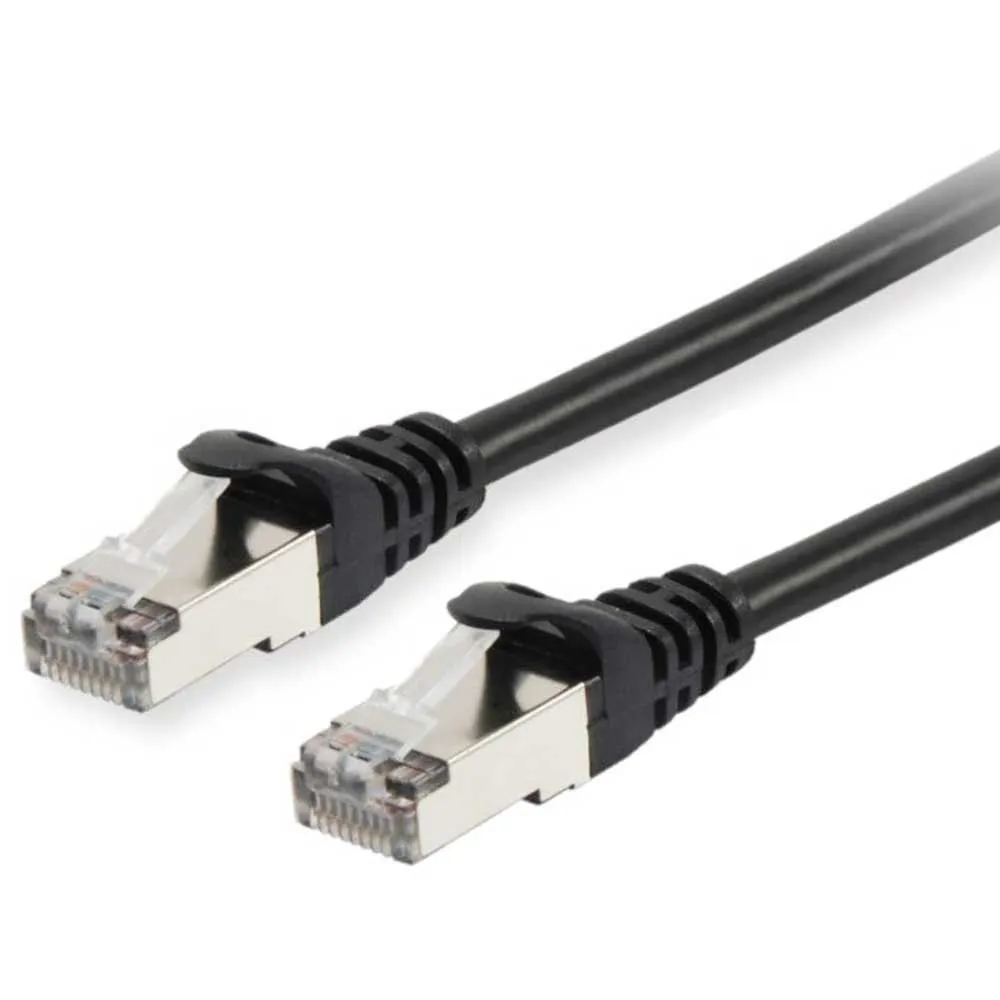

Equip S/Ftp 30 m CAT6a network cable

The equip® Cat.6A S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application.


Features:

- 26AWG
- Stranded bare copper conductor
- S/FTP, Double Shielding
- Gold Plated Connectors for high signal quality
- Molded boot with Strain relief
- Low Smoke Zero Halogen (LSZH/LSOH)
- RoHS compliant


Specifications:

- Cable length: 30 m
- Cable standard: Cat6a
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 10GBase-T
- Networking standards: IEEE 802.3,IEEE 802.5
- AWG wire size: 26
- Data transfer rate: 10000 Mbit/s
- Frequency: 500 MHz
- Molded cable boot: Yes
- Plug and Play: Yes

Weight & dimensions:
- Width: 8,34 mm
- Depth: 11,7 mm
- Height: 30000 mm
- Weight: 935 g

Packaging data:
- Quantity per pack: 1 pc(s)
- Package weight: 435 g

Technical details:
- Sustainability certificates: RoHS
- Doesn´t contain: Halogen
- Insulation outer diameter: 1,05 mm
