Euroconnex 4088 HDMI extender

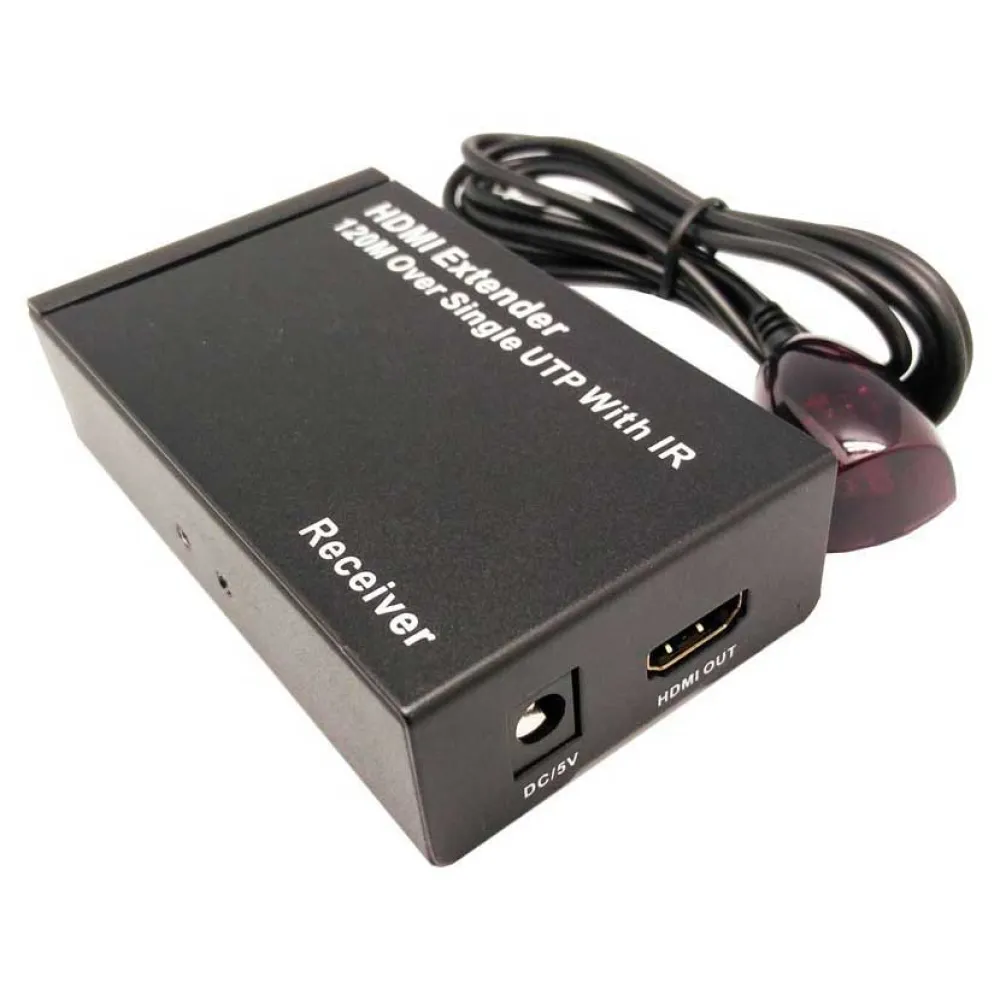

EUROCONNEX 4088 HDMI Extender Receiver over IP

Category: Devices
Subcategory: Connectivities

Expand your high-definition video distribution network with the EUROCONNEX 4088 HDMI Extender Receiver. This powerful device is the key to overcoming traditional HDMI cable distance limitations and creating a scalable, versatile video broadcasting system. Designed for professionals and enthusiasts who demand pristine signal quality over long distances, the 4088 leverages the power of standard network infrastructure to deliver flawless Full HD video and audio exactly where you need it. Whether you are setting up a complex digital signage network, a multi-room home theater, or a sophisticated presentation system for a corporate or educational environment, this receiver provides the reliability and performance required for any demanding application.

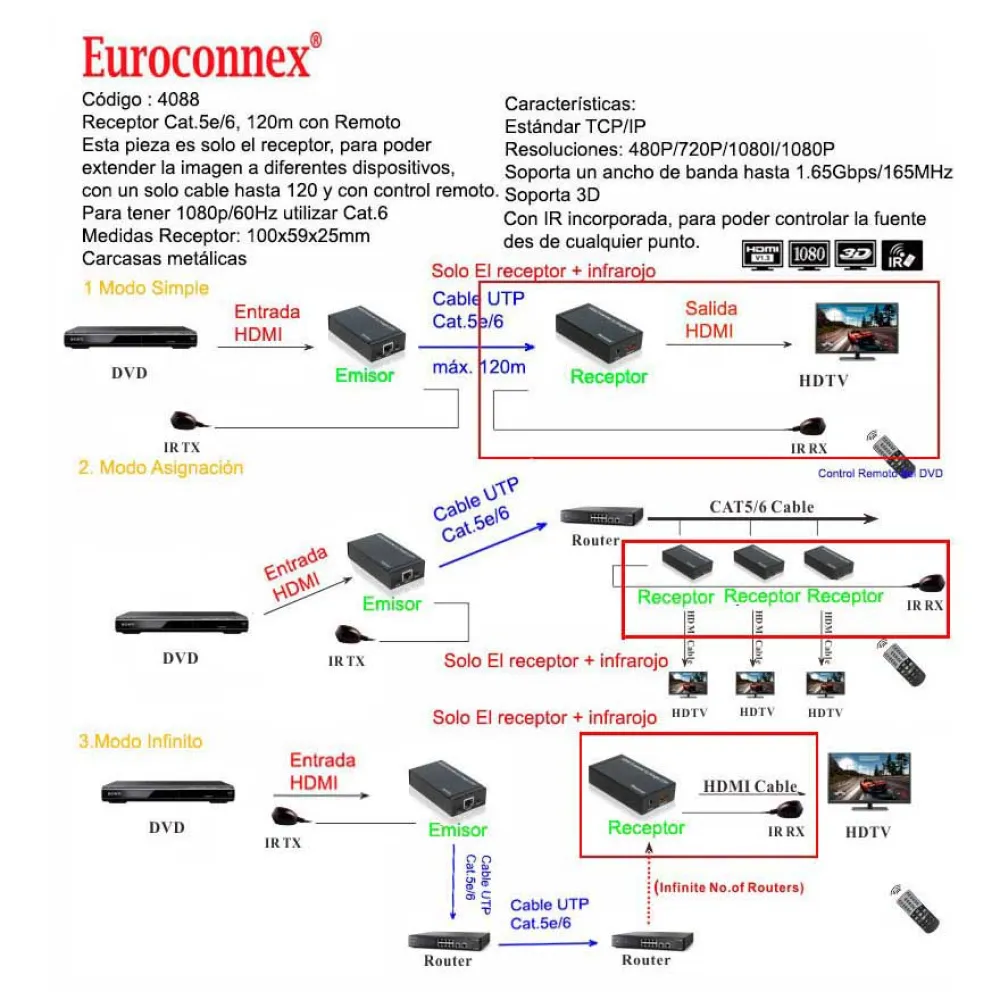

The EUROCONNEX 4088 is an essential component for building advanced HDMI over IP systems. This is an HDMI receiver, it is used to distribute the HDMI signal from the extender to more devices, meaning you can connect the main extender (4086 or 4087) in Assignment or Infinite mode (see diagram) and thus reproduce the initial signal to different devices. This architecture allows you to create flexible point-to-multipoint or even a fully configurable matrix setup by simply adding more 4088 receivers to your network. Each receiver acts as an independent endpoint, decoding the signal from the transmitter and delivering a perfect, uncompressed 1080p image to its connected display.

Key Benefits:

* Massive System Scalability: Effortlessly expand your video distribution by adding more 4088 receivers to a single transmitter. Go from a simple one-to-one connection to a massive one-to-many broadcast system without signal degradation.
* Long-Distance HD Transmission: Transmit a crystal-clear Full HD 1080p signal up to 120 meters (394 feet) using a single, cost-effective Cat5e/Cat6 network cable, far surpassing the limits of standard HDMI cables.
* Pristine Signal Integrity: Enjoy a visually lossless video feed with perfect audio-video synchronization. The technology ensures that the signal at the receiver end is an identical replica of the source, free from compression artifacts or latency issues.
* Full Remote Control: An integrated IR pass-through function allows you to control the source device from the display´s location, adding a layer of convenience and seamless operation.
* Utilize Existing Infrastructure: By running on the standard TCP/IP protocol, this device can be integrated into your existing LAN. Use network switches to easily build complex distribution networks, saving on installation time and cabling costs.

Main Features:

* Supports Full HD 1080p resolution at 60Hz.
* Functions as a receiver unit in HDMI over IP Extenders systems.
* Enables point-to-multipoint and matrix distribution configurations.
* Transmits signal over a single Cat5e/Cat6/Cat7 cable.
* Built-in IR signal extension for remote source control.
* HDCP 1.2 compliant for protected content playback.
* Follows the standard TCP/IP protocol.
* Plug-and-play installation with automatic device detection.

Technical Specifications:

* Attribute: Extenders (Receiver Unit)
* HDMI Signal: HDMI 1.3
* HDCP Compliance: HDCP 1.2
* Supported Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
* Network Cable: UTP/STP Cat5e, Cat6, Cat7
* Transmission Distance: Up to 120 meters via Cat6 cable
* IR Signal: Supports 20~60KHz IR devices
* Working Temperature: 0°C ~ 60°C
* Power Supply: DC 5V/1A
* Power Consumption: < 3.5W
