Fantec MB-Bracket 25 HDD/SSD External Case

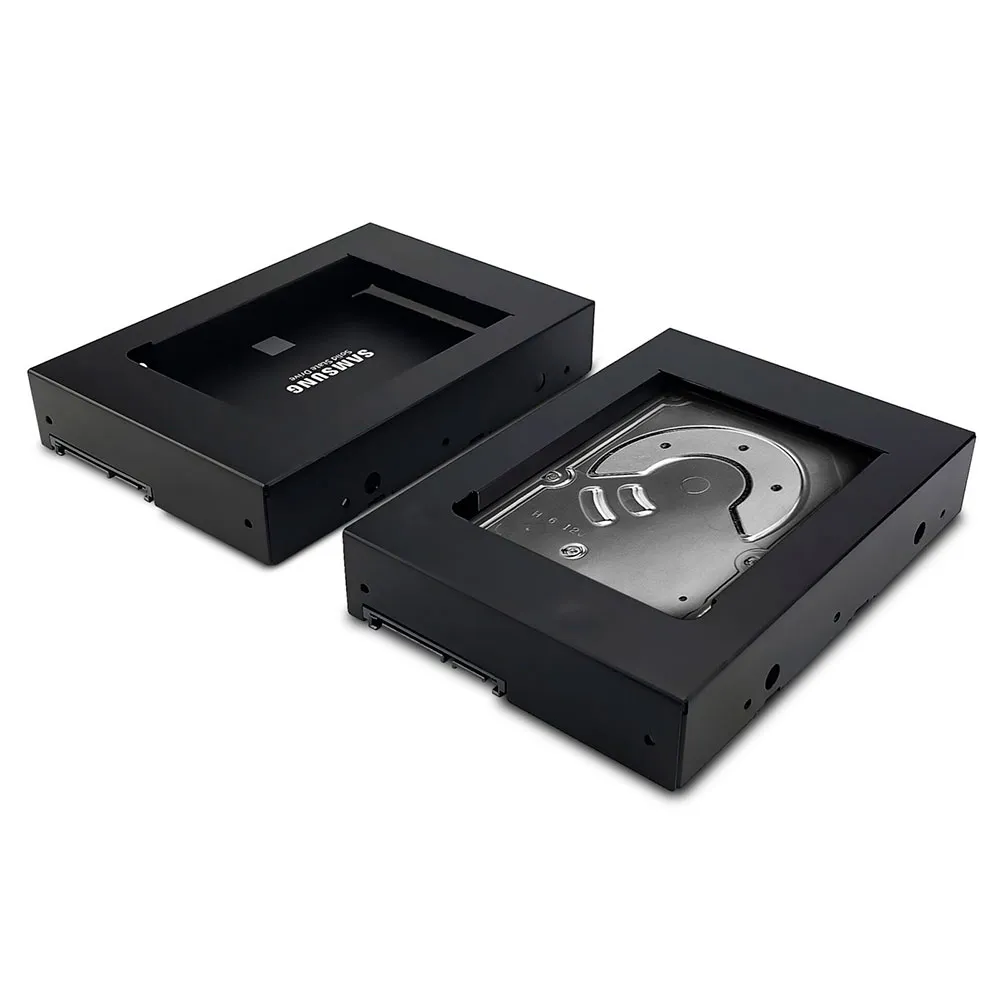

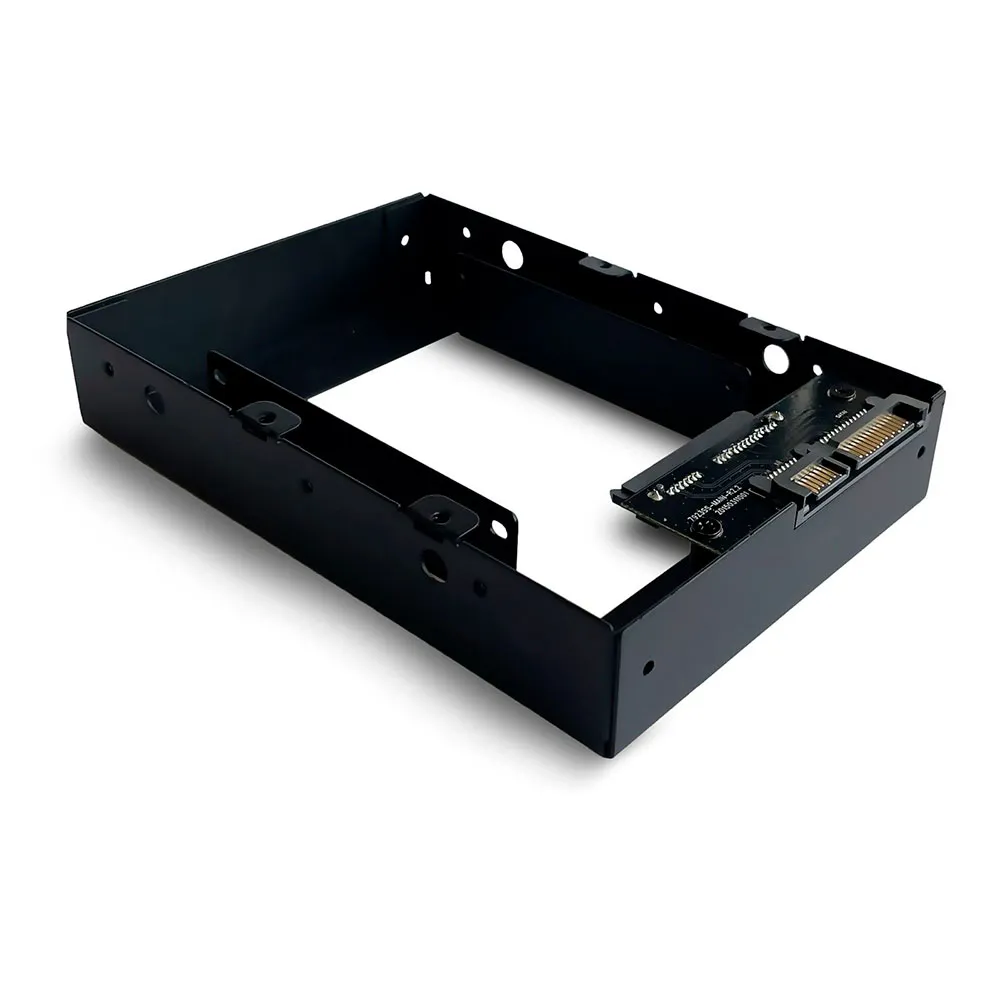

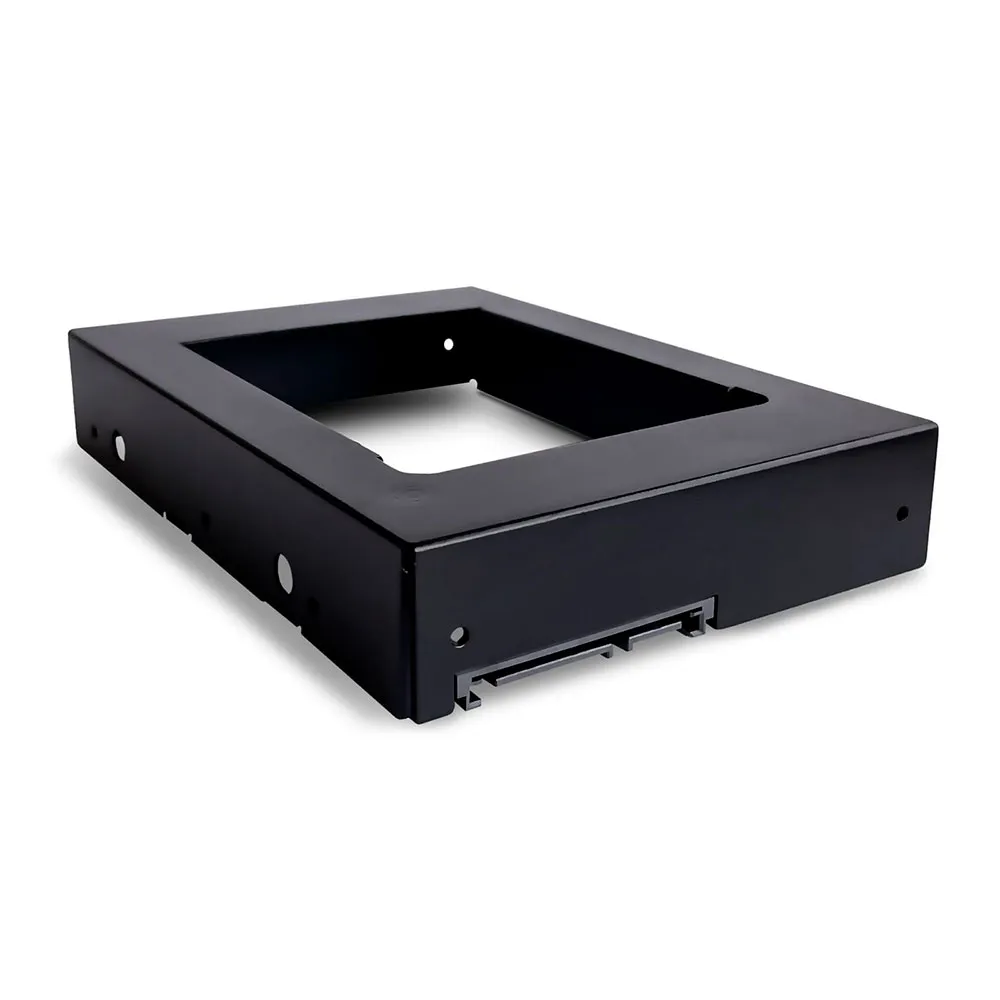

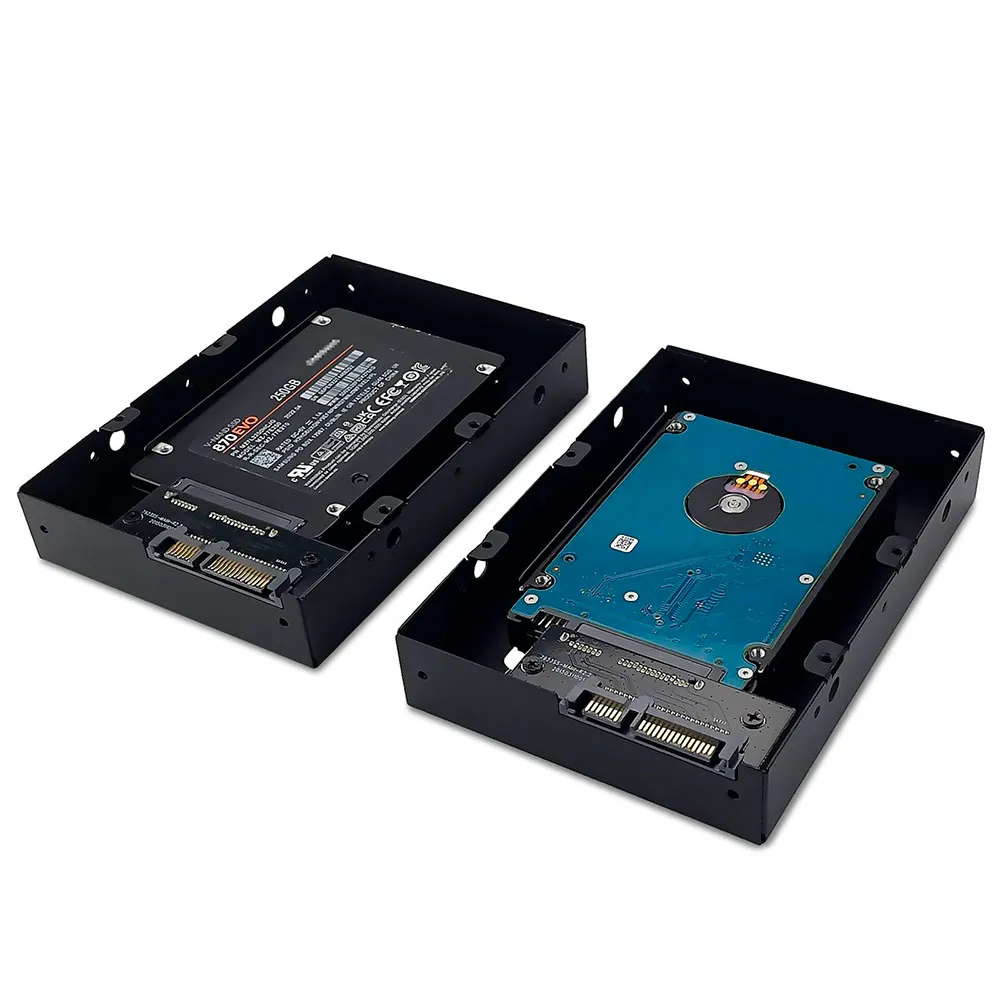

FANTEC MB-Bracket 25 | 2.5" to 3.5" SSD/HDD Mounting Frame

Unlock the full potential of your storage setup with the FANTEC MB-Bracket 25. This expertly engineered mounting frame provides a simple, secure, and highly versatile solution for upgrading or repurposing your storage devices. Whether you are looking to boost the speed of an older desktop PC with a modern Solid State Drive (SSD) or need to fit a compact 2.5-inch laptop Hard Disk Drive (HDD) into a larger enclosure, this adapter is the perfect tool for the job.

FANTEC MB-Bracket 25 Mounting frame for 2.5´´ SSDs/HDDs. The MB-Bracket 25 is a practical 2.5 to 3.5 inch adapter for installing a 2.5´´ SSD or 2.5 HDD.

While it was developed for seamless integration with FANTEC MB series products, its universal design ensures it can also be used for a wide array of other purposes, making it an essential component for any tech enthusiast, system builder, or IT professional. The bracket´s precise dimensions are designed to mimic those of a standard 3.5" hard drive, guaranteeing a perfect and stable fit in any compatible bay or caddy, eliminating vibrations and ensuring reliable connectivity.

Key Benefits:

* Universal Upgrade Solution: Effortlessly install any 2.5" SATA SSD or HDD into a standard 3.5" drive bay. This is ideal for upgrading desktop PCs, servers, or external enclosures to take advantage of the superior speed of SSDs or the compact size of laptop drives.

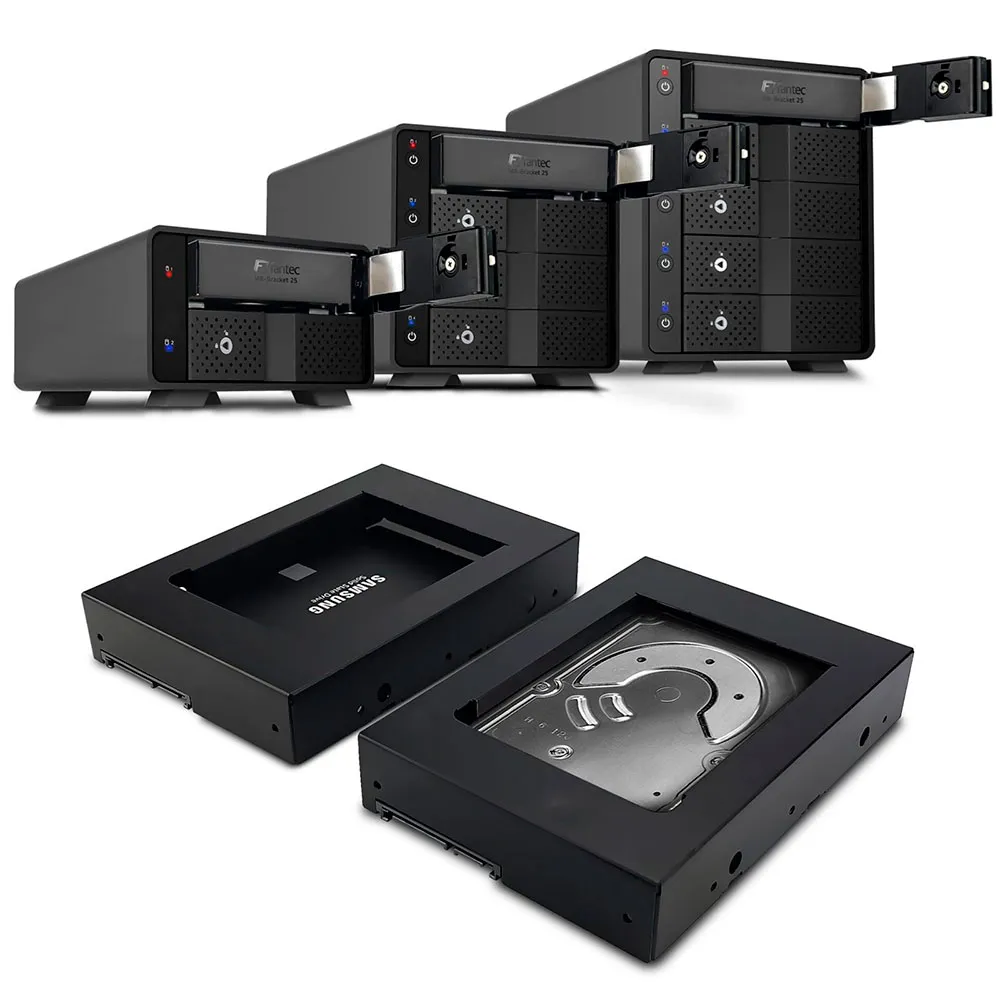

* Seamless FANTEC Ecosystem Integration: Specifically designed for a perfect fit within FANTEC´s renowned MB and QB series enclosures, ensuring a hassle-free and secure installation for users already invested in the FANTEC ecosystem.
* Broad Compatibility: Beyond FANTEC products, this mounting bracket is suitable for installation in virtually any standard PC case or third-party 3.5" SATA hard drive enclosure, thanks to its standardized dimensions and strategically placed threaded holes.
* Robust and Secure Mounting: The sturdy construction and precise engineering provide a firm and stable housing for your 2.5" drive, protecting it from movement and potential connection issues, even accommodating taller drives up to 15mm in height.
* Excellent Value: The product is supplied as a set of two, providing a cost-effective solution for multiple upgrades or for setting up RAID configurations with smaller drives in a larger system.

Main Features

It was developed for FANTEC MB series products, but can also be used for other purposes.

Features:

* Adapter for 2.5´´ HDDs/SSDs to 3.5 format factor
* Supplied as two adapters in one package
* Suitable for 2.5´´ hard drives with a height of up to 15mm
* Suitable for installation in enclosures of the QB series
* Also suitable for installation in other 3.5´´ SATA hard drive enclosures; the dimensions correspond to a 26mm high 3.5´´ SATA hard drive
* Suitable for installation in a PC, as appropriate threaded holes are attached to the side
* Colour: black
* Number: 2

Technical Specifications

General
* Type: Mounting Frame (Housings)
* Colour: Black
* WiFi: No

Compatibility
* Compatible HDD: 2.5´´
* Compatible SSD: 2.5´´
* Max. Amount of Hard Drives: 1 (per bracket)
* M.2 (NVMe / PCIe): No
* SAS: No

Dimensions & Weight
* Width (mm): 110.6
* Height (mm): 12
* Depth (mm): 39.5
* Weight (g): 460
