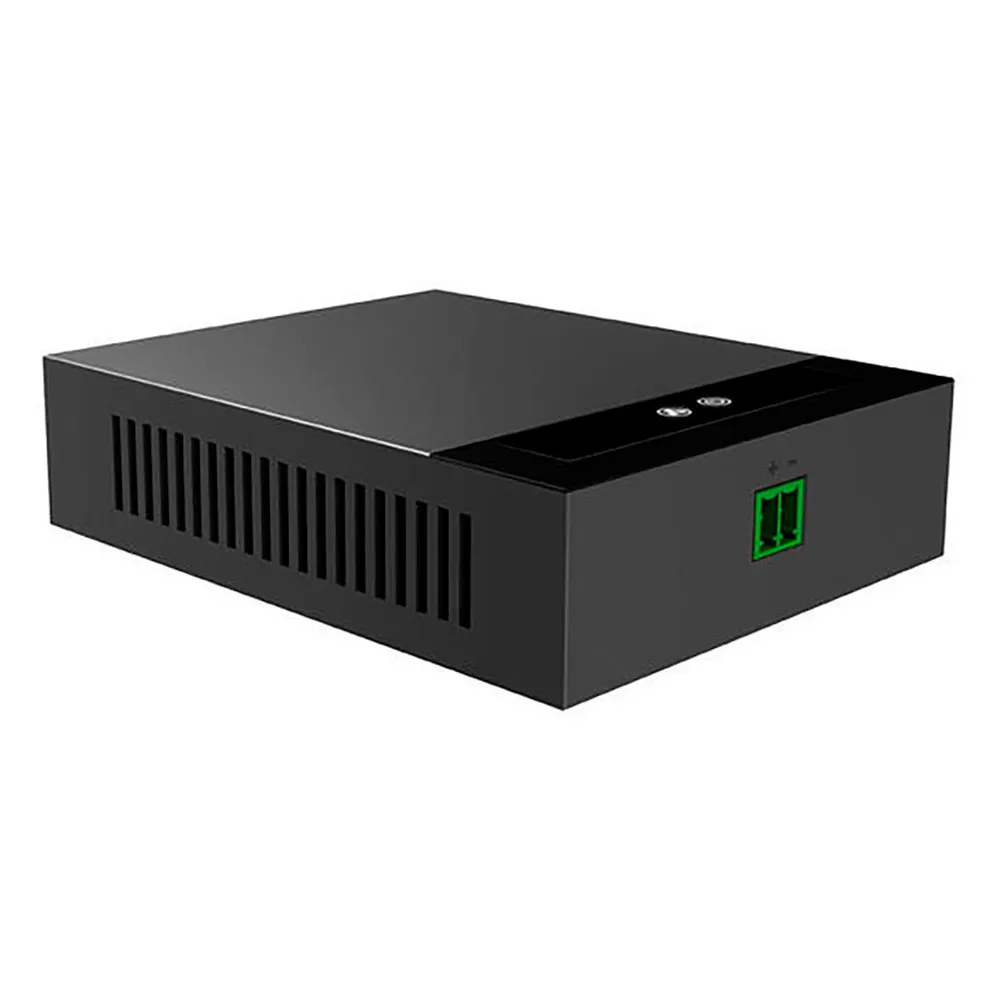

Fanvil PN1 2-Wire Converter

Seamlessly Upgrade Your Analog Intercom System to IP with the Fanvil PN1 2-Wire Converter

Unlock the power of modern IP communication without the prohibitive cost and disruption of rewiring your building. The Fanvil PN1 is a revolutionary 2-wire converter designed to bridge the gap between legacy cabling and the advanced capabilities of Fanvil´s IP video door phones and intercom systems. This device is the ultimate solution for retrofitting residential complexes, office buildings, and historic properties, allowing you to leverage existing 2-wire infrastructure to transmit both Ethernet data and Power over Ethernet (PoE).

The primary benefit of the Fanvil PN1 is its ability to dramatically reduce installation costs and complexity. By repurposing the simple two-conductor cables already running through your walls, you can avoid expensive and labor-intensive Ethernet cable pulls. This makes upgrading to a high-definition, feature-rich IP intercom system faster, cleaner, and significantly more budget-friendly. The PN1 ensures a smooth, efficient transition to a more secure and connected future.

Engineered for performance and reliability, the PN1 extends your network reach far beyond standard Ethernet limitations. It capably transmits stable 10/100 Mbps network data and PoE power over a distance of up to 300 meters (984 feet). This long-range capability makes it ideal for large-scale deployments where the central network switch is located far from the entry points. With integrated PoE support, a single 2-wire pair delivers everything the end device needs, eliminating the necessity for a separate power supply at the door station and further simplifying the installation process.

Its plug-and-play design means there is no complex software or network configuration required. Simply connect one PN1 unit to your PoE switch and the other to your Fanvil IP intercom, link them with the existing 2-wire cable, and the system is operational. Intuitive LED indicators provide an immediate visual status of power and network link activity, aiding in quick setup and troubleshooting.

Main Features:

* 2-Wire to IP Conversion: Effortlessly transmits Ethernet data and power over a single pair of 2-wire cables.
* Power over Ethernet (PoE) Support: Delivers power to the connected IP device via the 2-wire line, compliant with IEEE 802.3af/at standards.
* Long-Range Transmission: Achieves a stable connection for data and power up to a maximum distance of 300 meters.
* High-Speed Data Rate: Supports 10/100 Mbps adaptive network speed, ensuring smooth video and audio communication.
* Plug-and-Play Installation: Requires no IP configuration or setup, enabling rapid deployment and reducing labor costs.
* Compact and Versatile Design: Its small footprint allows for discreet and flexible installation in wall boxes, enclosures, or behind devices.
* Clear LED Status Indicators: Provides at-a-glance confirmation of Power and Link/Activity status for easy diagnostics.

Technical Specifications:

* Product Type: 2-Wire Ethernet Converters

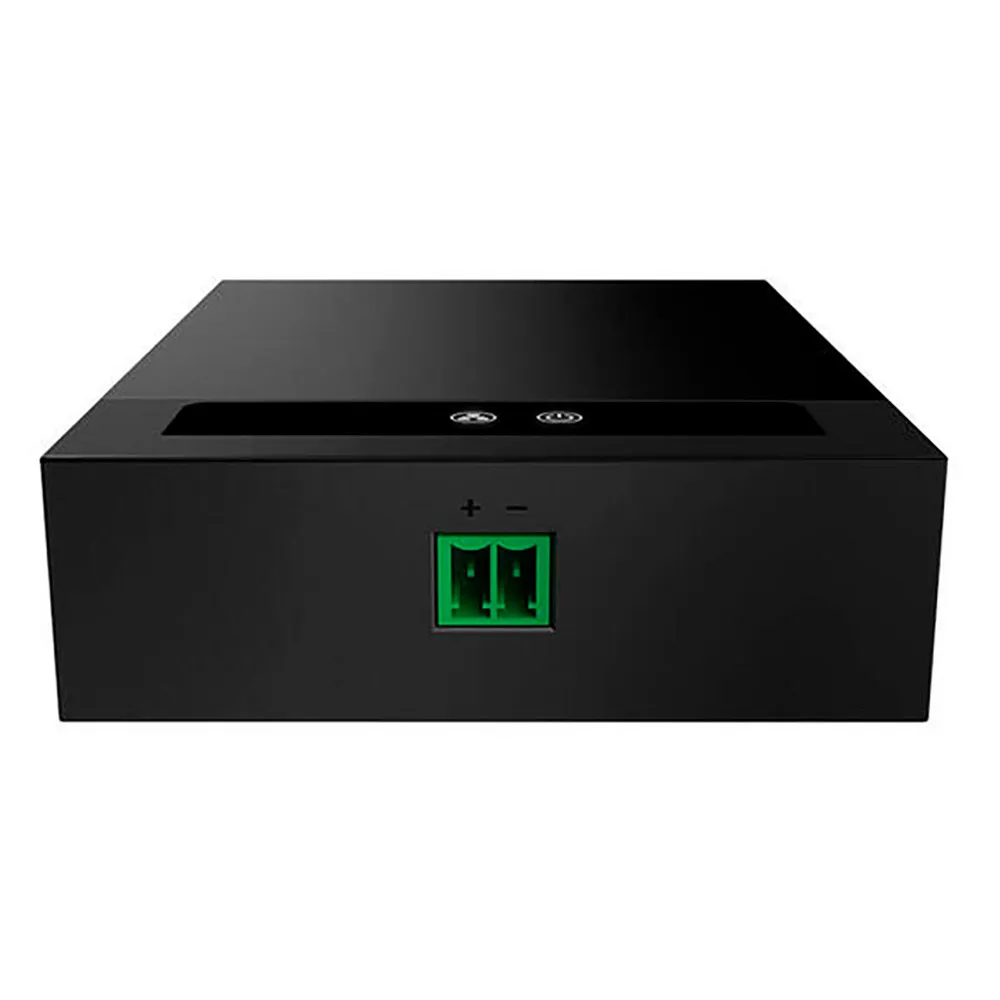

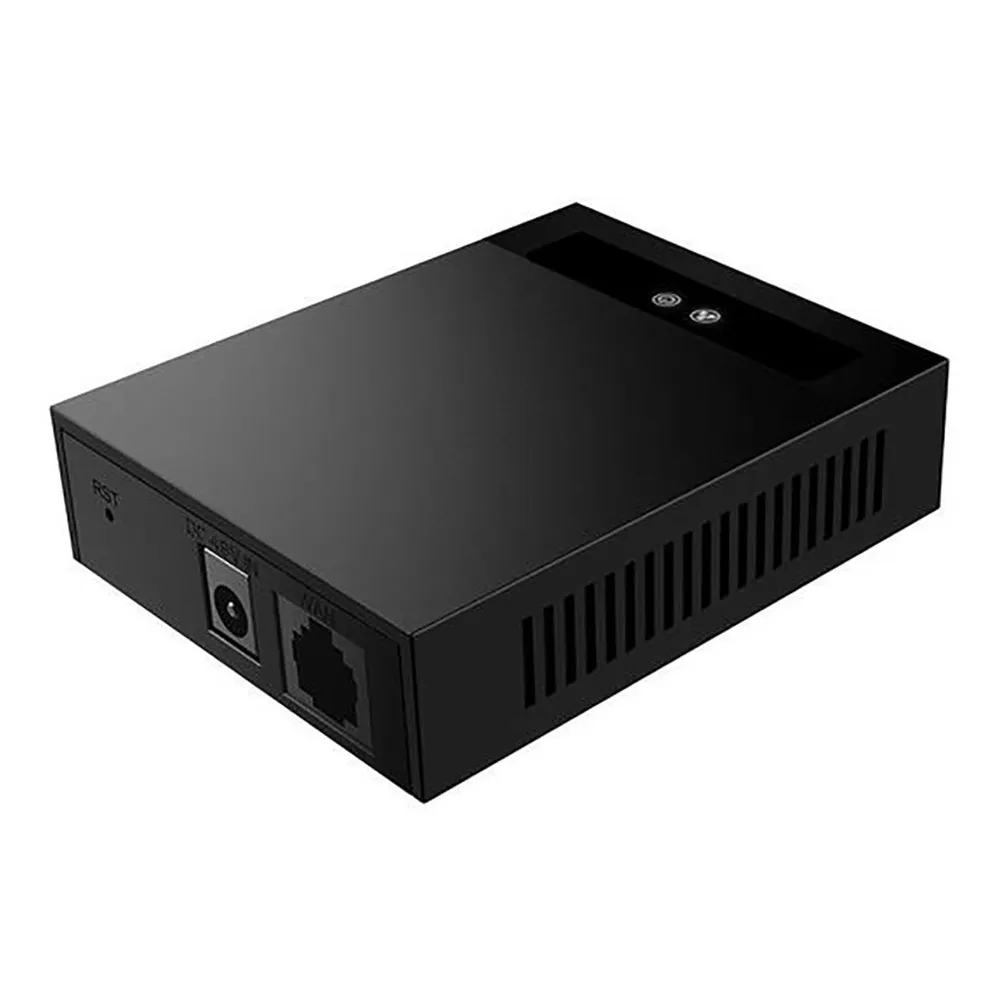

* Ports: 1x RJ45 10/100 Mbps Port, 1x 2-pin Terminal Block
* Transmission Medium: 2-wire cable
* Maximum Transmission Distance: 300 meters (984 ft)
* Power Supply: Powered by PoE (IEEE 802.3af/at)
* Power Consumption: <2W
* Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
* PoE Standards: IEEE 802.3af, IEEE 802.3at
* Dimensions: 75x51 x 23 mm
* Weight: 53g
