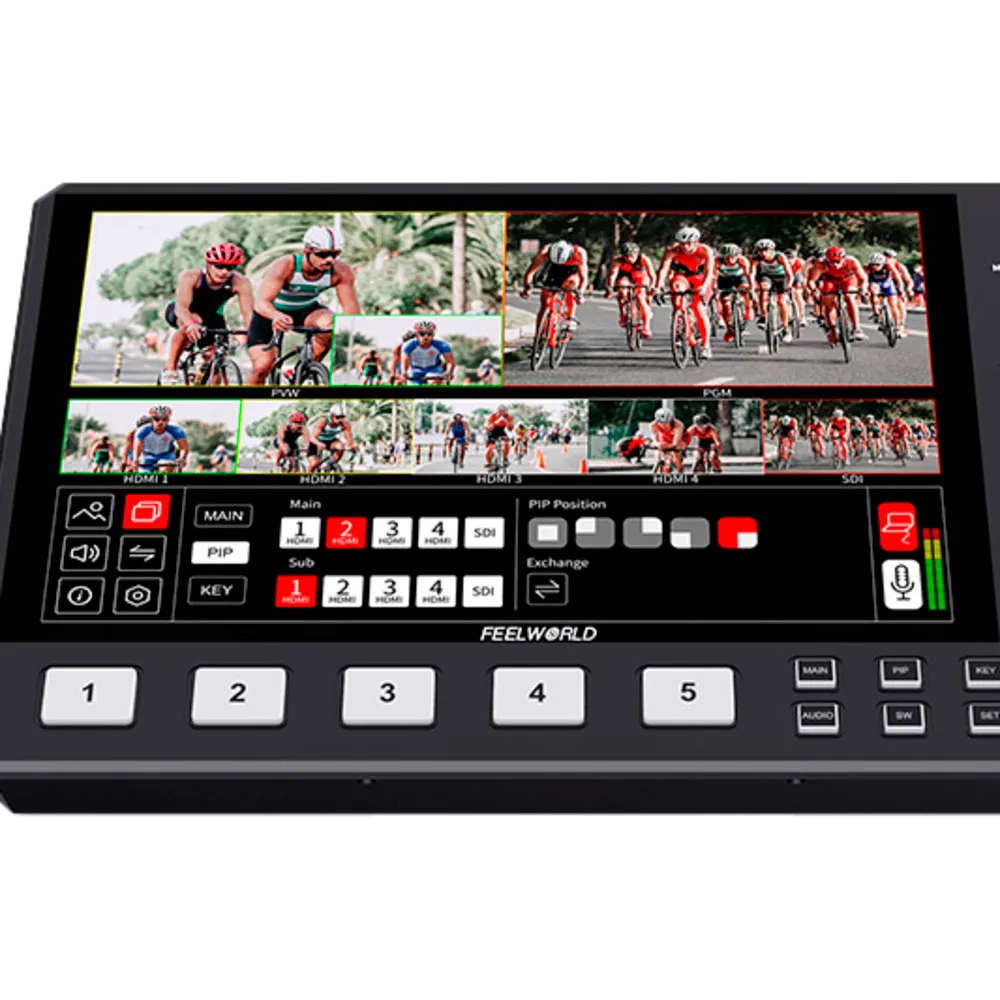

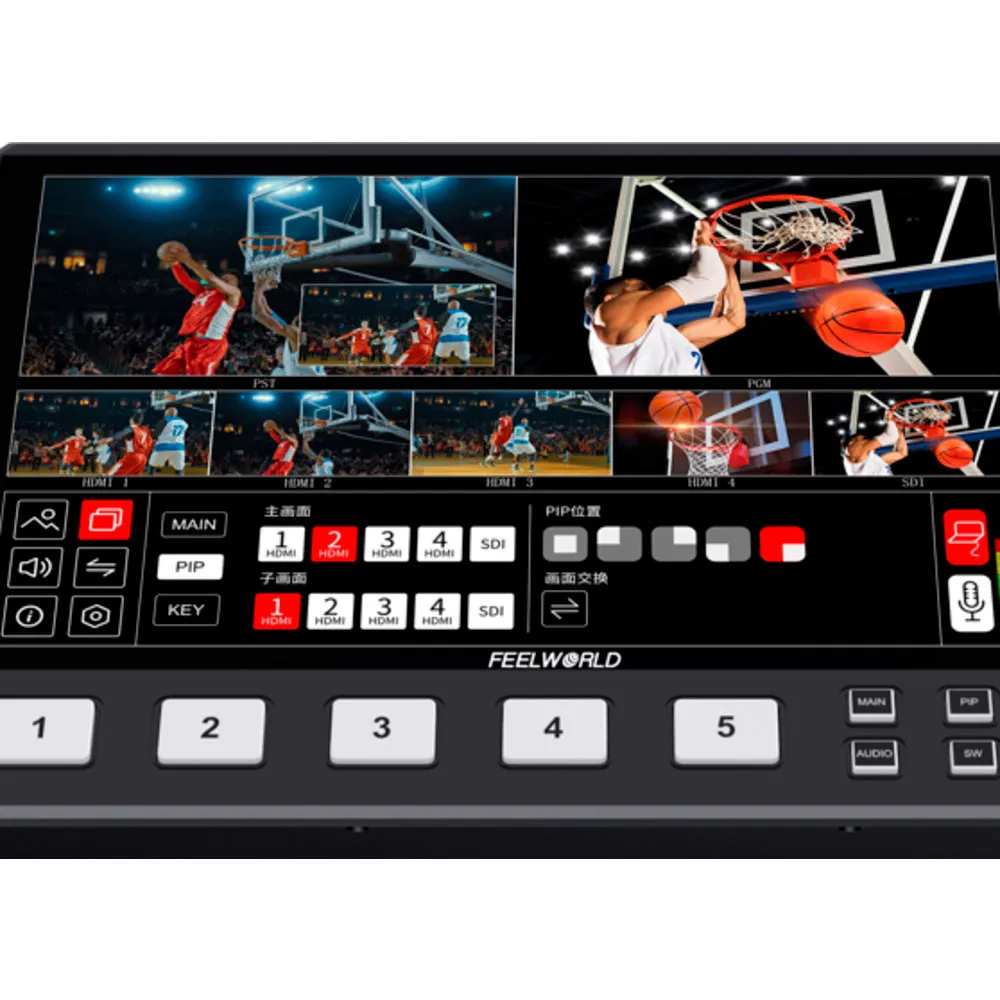

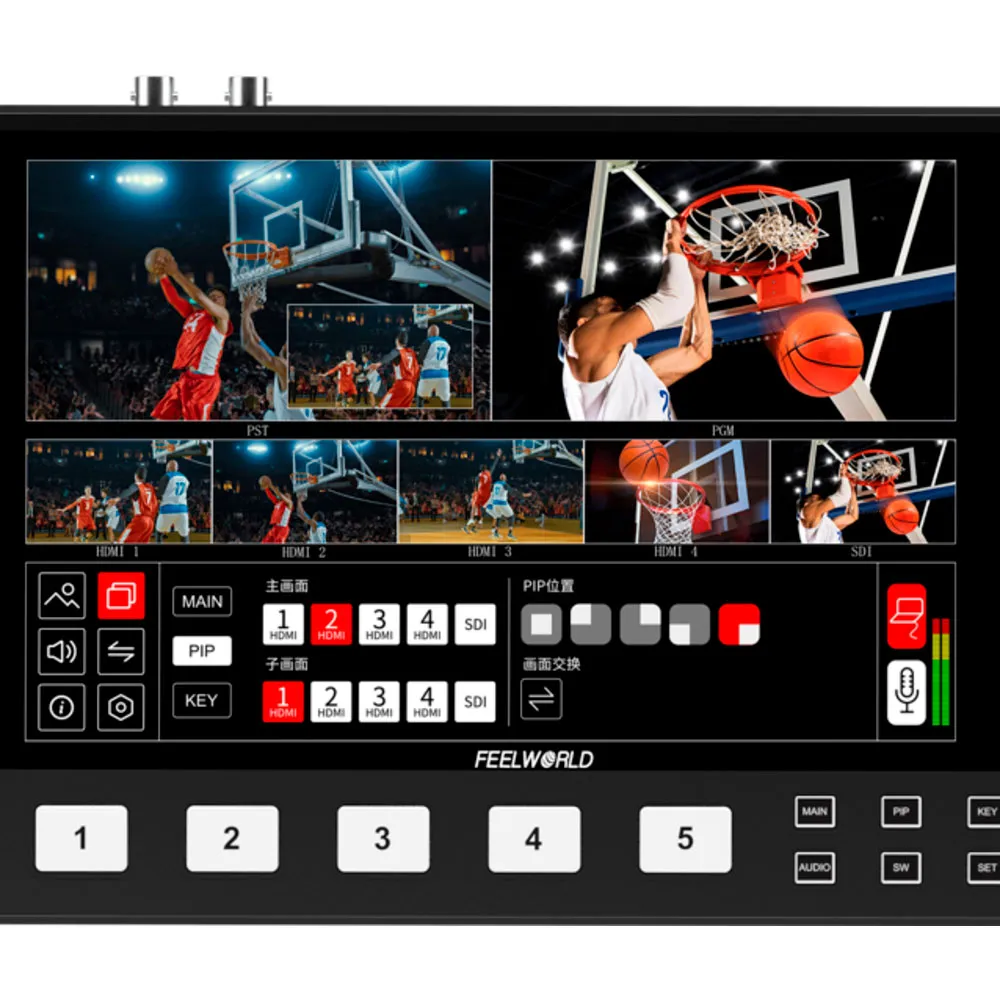

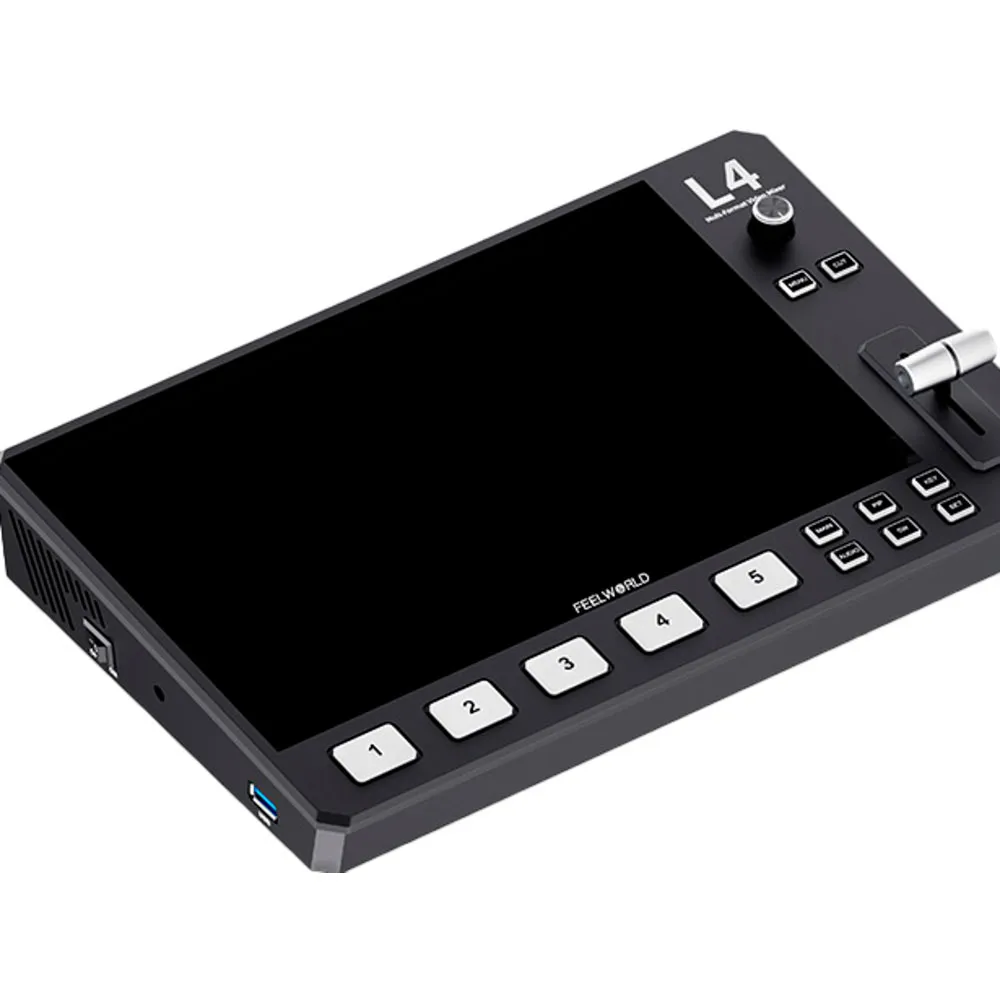

Feelworld L4 video mixer

FEELWORLD L4 Multi-Camera Video Mixer | Live Streaming Switcher

Elevate your live productions with the FEELWORLD L4, the ultimate all-in-one video mixer designed for seamless multi-camera streaming and professional presentations. The L4 simplifies your workflow by integrating a 10.1-inch full HD touchscreen monitor, a 4-channel video switcher, and a USB 3.0 capture device into a single, compact, and powerful unit. This versatile solution is perfect for content creators, houses of worship, educational institutions, and corporate event producers looking to create engaging, broadcast-quality live streams on platforms like YouTube, Facebook, and Twitch without the complexity of multiple devices.

Experience unparalleled control and efficiency with the L4´s intuitive touchscreen interface. Effortlessly switch between four HDMI sources, monitor all inputs in real-time, and view your program output simultaneously on the vibrant, high-resolution display. The "plug and play" functionality means you can connect directly to any PC or Mac and start streaming instantly, as it´s recognized as a standard webcam source with no drivers required. Achieve a polished, professional look with a suite of built-in broadcast features, including advanced chroma keying for virtual sets, customizable Picture-in-Picture (PiP) for interviews and presentations, and smooth transitions using the manual T-bar.

Key Benefits:

* All-in-One Integrated Design: Drastically simplifies your production setup by combining a multi-view monitor, video switcher, and USB streaming encoder in one portable device, reducing cable clutter and potential points of failure.
* Intuitive Touchscreen Operation: The large 10.1" full HD touchscreen provides a clear and responsive interface, allowing you to manage all aspects of your production with simple taps and swipes, making it accessible for both beginners and professionals.
* Professional Broadcast Features: Go beyond basic switching with advanced tools like high-quality Chroma Key, flexible PiP effects, logo overlay for branding, and a manual T-Bar for precise, cinematic transitions.
* Effortless Plug-and-Play Streaming: The USB 3.0 output operates on UVC and UAC standards, ensuring instant compatibility with your favorite streaming software and video conferencing platforms without needing to install any drivers.
* Comprehensive Real-Time Monitoring: View all four HDMI inputs, your program (PGM), and preview (PVW) outputs on a single screen, giving you complete situational awareness to direct your live show with confidence.

Main Features
* 10.1-inch Full HD IPS Touchscreen
* 4 x HDMI Inputs for Multiple Sources
* USB 3.0 Output for Live Streaming & Recording
* Integrated Audio Mixer with MIC/LINE Inputs
* Advanced Chroma Key for Green Screen Effects
* Customizable Picture-in-Picture (PiP) functionality
* T-Bar & CUT for Smooth Video Transitions
* Support for Logo Overlay
* PTZ Camera Control
* HDMI Program (PGM) Output for External Monitoring

Attribute

Mixers

Technical Specifications
* Display
* Screen Size: 10.1-inch IPS Touchscreen
* Resolution: 1920x1200 pixels
* Aspect Ratio: 16:10
* Brightness: 500cd/m²
* Contrast Ratio: 1000:1
* Input
* 4 x HDMI: Supports 1080p, 1080i, 720p, 576i, 480p
* Frame Rates: 60/59.94/50/30/29.97/25/24/23.98
* Output
* 1 x HDMI (PGM): Supports 1080p, 1080i, 720p
* Frame Rates: 60/50/30/25/24
* 1 x USB 3.0 (Type A)
* Audio
* Audio In: 1x3.5mm MIC, 1x3.5mm LINE IN
* Audio Out: 1x3.5mm Stereo Headphone Jack
* General
* Interface: LAN port for control
* Input Voltage: DC 12V / 3A
* Power Consumption: ≤36W
* Unit Size: 253(L) x 181(W) x 43.7(H) mm
* Unit Weight: 1.15kg
