Fnirsi FD10 vehicle diagnostic system

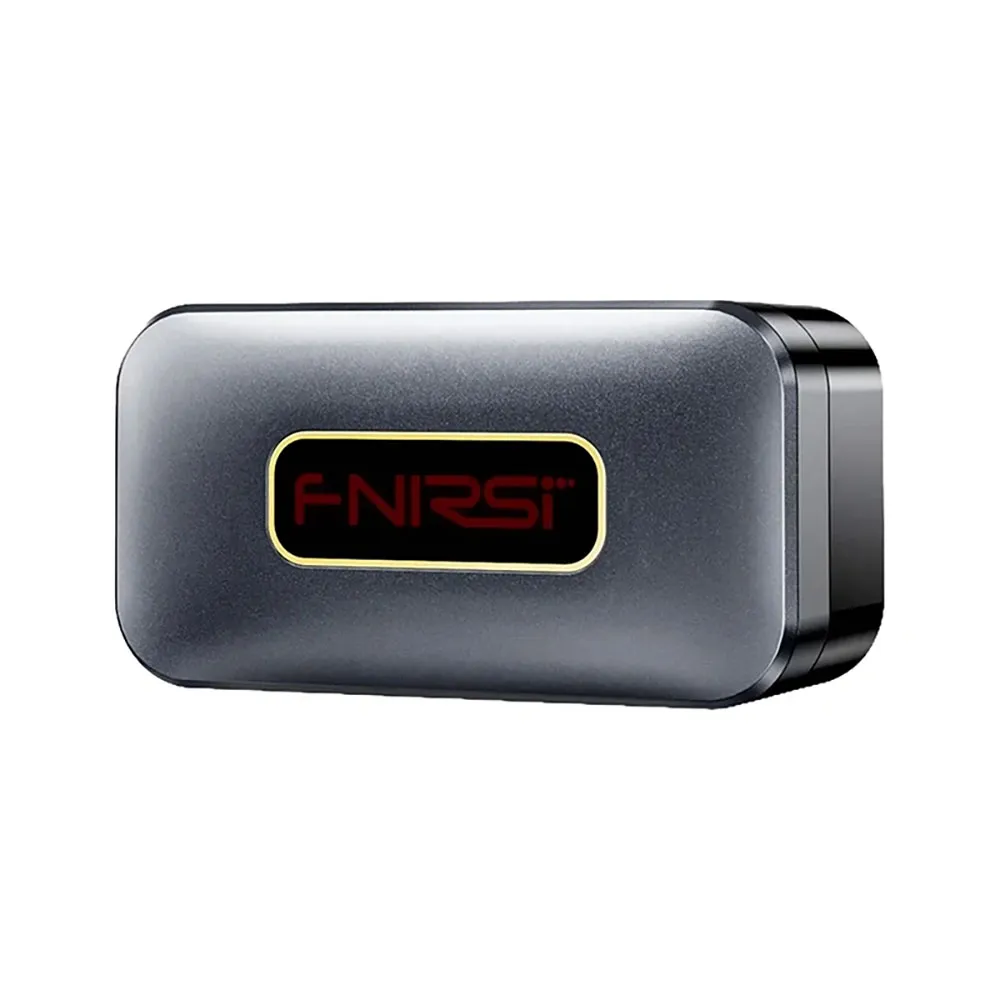

FNIRSI FD10 OBD2 Diagnostic Tool.

The FNIRSI FD10 is a compact OBD2 diagnostic tool that allows you to quickly check your vehicle´s condition, read error codes, and monitor the car´s operating parameters in real time.

The device supports the OBD II standard as well as CAN_BUS, K_LINE, and L_LINE protocols, and thanks to Bluetooth 5.1 connectivity, it automatically connects to the YMOBD app on your smartphone.

The product offers as many as 12 diagnostic functions, including full vehicle scanning, fuel consumption analysis, driving parameter monitoring, and clearing engine warning lights.

Its compact dimensions (49 × 33 × 26 mm) mean the device can always stay in the car and remains virtually unnoticeable when plugged into the OBD port.

Quick diagnostics without a visit to the service center.

The tool allows you to instantly read and clear fault codes without having to visit a repair shop.

In the app, you can check engine error details, perform a full vehicle scan, and monitor the status of diagnostic systems.

It´s a practical solution for drivers who want to detect problems faster and better monitor their car´s condition.

Real-time monitoring of vehicle parameters.

The FNIRSI FD10 allows you to track the most important vehicle performance parameters while driving.

The app displays, among other things, vehicle speed, engine RPM, coolant temperature, battery voltage, and fuel consumption.

The route and fuel consumption analysis feature helps you control your driving style and reduce fuel consumption, while real-time data previews give you greater control over your car during daily use.

Extensive diagnostic functions.

The adapter offers 12 useful functions that help analyze the vehicle´s technical condition.

The device allows, among other things, for recording trip data, detecting fault codes, monitoring vehicle parameters in real time, resetting the check engine light, performance testing, trip analysis, data stream reading, throttle body carbon deposit detection, precise fuel consumption monitoring, and battery voltage checking.

Additionally, the full 360° scan capability helps detect issues related to, among other things, the ignition system, fuel injectors, valves, or excessive fuel consumption.

Stable Bluetooth 5.1 Connection.

The built-in Bluetooth 5.1 module ensures a fast and stable connection with mobile devices.

Additionally, it offers lower power consumption and greater range compared to earlier wireless communication standards.

Once the adapter is plugged into the OBD port, the app automatically detects the device without the need for manual pairing.

Wide compatibility and convenience.

The FNIRSI FD10 works with iOS and Android systems and supports 24 languages, including Polish.

The device supports OBD2-compliant gasoline-powered cars manufactured since 2006.

Thanks to its compact design, the tool can be easily installed in the OBD port under the dashboard and used on a daily basis without taking up space in the cabin.

Simple installation and intuitive operation.

Installing the device takes just a moment.

Simply connect the adapter to the car´s OBD2 port and launch the YMOBD app to automatically establish a connection.

The app´s intuitive interface allows you to quickly switch between diagnostic functions, parameter monitoring, and vehicle data analysis.

Manufacturer:FNIRSI.

Model:FD10.

Interface:OBD II.

Supported buses:CAN_BUS / K_LINE / L_LINE.

Connectivity:Bluetooth 5.1.

App:YMOBD.

Power consumption:?1 W.

Operating voltage:8 V - 28 V.

Operating temperature:From -40°C to +85°C.

Dimensions:49 × 33 × 26 mm.

Compatibility:iOS / Android.

Supported vehicles:OBD2 gasoline cars from 2006 onwards.

Supported protocols:SAE J1850 PWM (41.6Kbaud), SAE J1850 VPW (10.4Kbaud), ISO9141-2 (5 baud init, 10.4 Kbaud), ISO14230-4 KWP (5 baud init, 10.4 Kbaud), ISO14230-4 KWP (fast init, 10.4 Kbaud), ISO15765-4 CAN (11-bit ID, 500 Kbaud), ISO15765-4 CAN (29-bit ID, 500 Kbaud), ISO15765-4 CAN (11-bit ID, 250 Kbaud), ISO15765-4 CAN (29-bit ID, 250 Kbaud).
