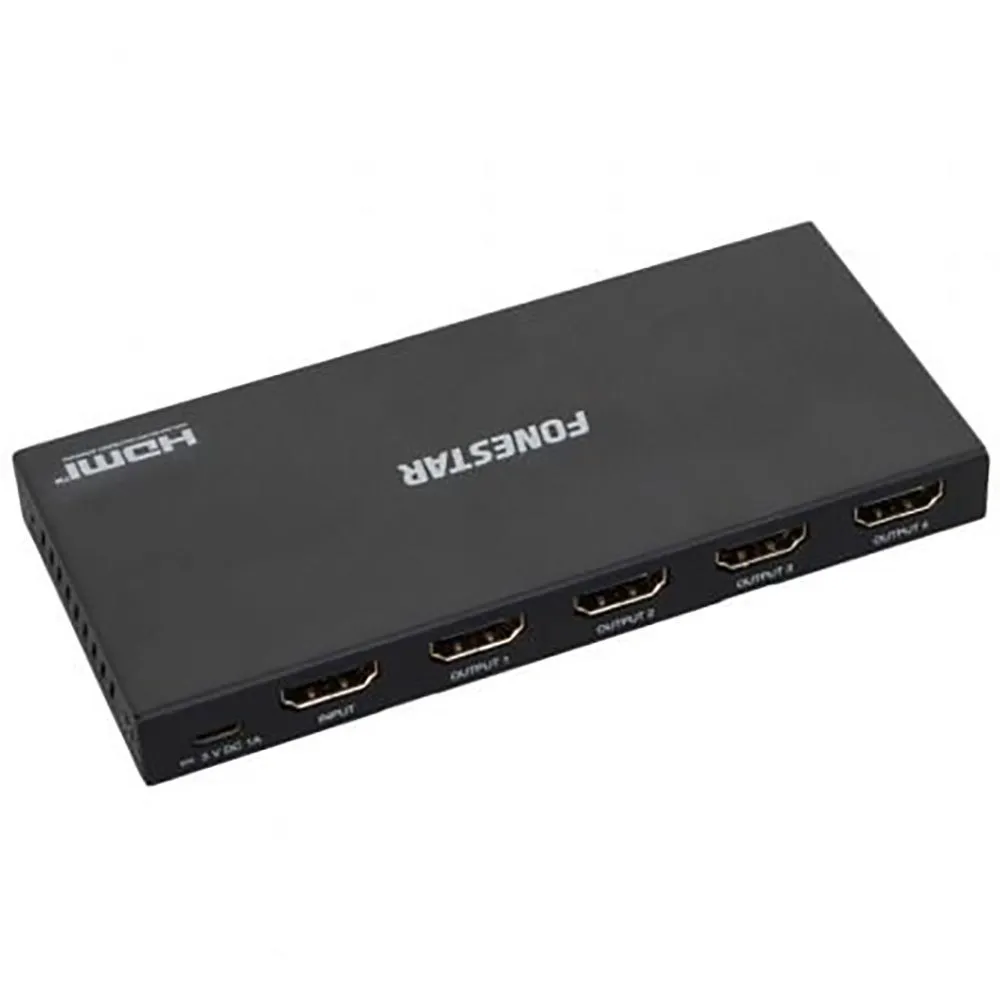

Fonestar FO-22S4ED HDMI Distributor And Extender

FONESTAR FO-22S4ED HDMI Distributor And Extender

Effortlessly Distribute and Extend Flawless 4K Video to Multiple Displays

Transform your audio-visual capabilities with the FONESTAR FO-22S4ED, the definitive solution for distributing a single high-definition source to four remote displays without any loss in quality. This professional-grade HDMI Distributor and Extender kit is engineered for reliability and performance, making it the perfect choice for commercial installations, digital signage, conference rooms, educational facilities, and sophisticated home theater systems. Say goodbye to signal degradation over long distances and the complexity of managing multiple cables. The FO-22S4ED simplifies your setup by transmitting a pristine 4K signal over a single, cost-effective Cat 6/6a/7 network cable to each of the four included receivers.

Uncompromised Quality and Unmatched Convenience

Experience breathtaking visuals exactly as the creator intended. The FO-22S4ED fully supports stunning 4K@60Hz (4:4:4) resolution and High Dynamic Range (HDR), delivering vibrant colors, deep contrasts, and incredible detail. With a massive 18 Gbps bandwidth, it handles the most demanding video content with ease. A standout benefit is the innovative Power over Cable (PoC) technology. This feature eliminates the need for power outlets at each display location; simply power the central transmitter, and it will supply the necessary electricity to all four connected receivers through the network cables, resulting in a cleaner, faster, and more flexible installation.

Furthermore, this system provides complete control from any remote location. The integrated bi-directional IR pass-through function allows you to use your source device´s remote control at any of the four display locations. For added versatility, the transmitter unit includes an HDMI loop-out port, enabling you to connect a local monitor for real-time monitoring or as a fifth display, ensuring you never lose sight of your source feed.

Main Features

* 1-to-4 Distribution & Extension: Splits a single HDMI 2.0 source and extends it to four separate displays simultaneously.
* Long-Distance Transmission: Reliably extends 4K@60Hz signals up to 40 meters (131 ft) and 1080p@60Hz signals up to 70 meters (230 ft) over a single Cat 6/6a/7 cable.
* Superior Video Quality: Full support for 4K UHD resolution at 60 Hz with 4:4:4 chroma subsampling, HDR, and 3D video.
* Simplified Installation with PoC: The transmitter powers all four receivers via the network cable, requiring only one power adapter for the entire system.
* Local Monitoring: Features an HDMI loop-out on the transmitter to connect a local screen for monitoring or additional viewing.
* Full Remote Control: Bi-directional IR pass-through allows you to control the source device from any of the remote display locations.
* Guaranteed Compatibility: Advanced EDID management ensures seamless communication between the source and displays, while HDCP 2.2 compliance allows playback of protected content.
* Zero-Latency: Delivers a perfect, real-time audio and video signal with no discernible delay.
* Robust Construction: Housed in a durable metal casing that provides excellent heat dissipation and protection for long-term, reliable operation.

Technical Specifications

* Video Resolution: Up to 4K@60Hz (3840x2160), 1080p@120Hz, and 1080p 3D@60Hz
* HDMI Version: 2.0
* HDCP Version: 2.2
* Bandwidth: 18 Gbps
* Supported Audio Formats: LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio
* Transmission Cable: UTP/STP Cat 6/6a/7

* 40 m for 4K@60Hz
* 70 m for 1080p@60Hz
* Power: Power over Cable (PoC); one power adapter for the transmitter powers all units.

* Input: 1 x HDMI
* Outputs: 4 x RJ-45, 1 x HDMI loop-out
* Control: 1 x IR input, 1 x IR output

* Input: 1 x RJ-45
* Output: 1 x HDMI
* Control: 1 x IR input, 1 x IR output
* In the Box: 1 x Transmitter, 4 x Receivers, 1 x Power Adapter (12V DC, 3A), 5 x IR Emitters, 5 x IR Receivers, Mounting Brackets
