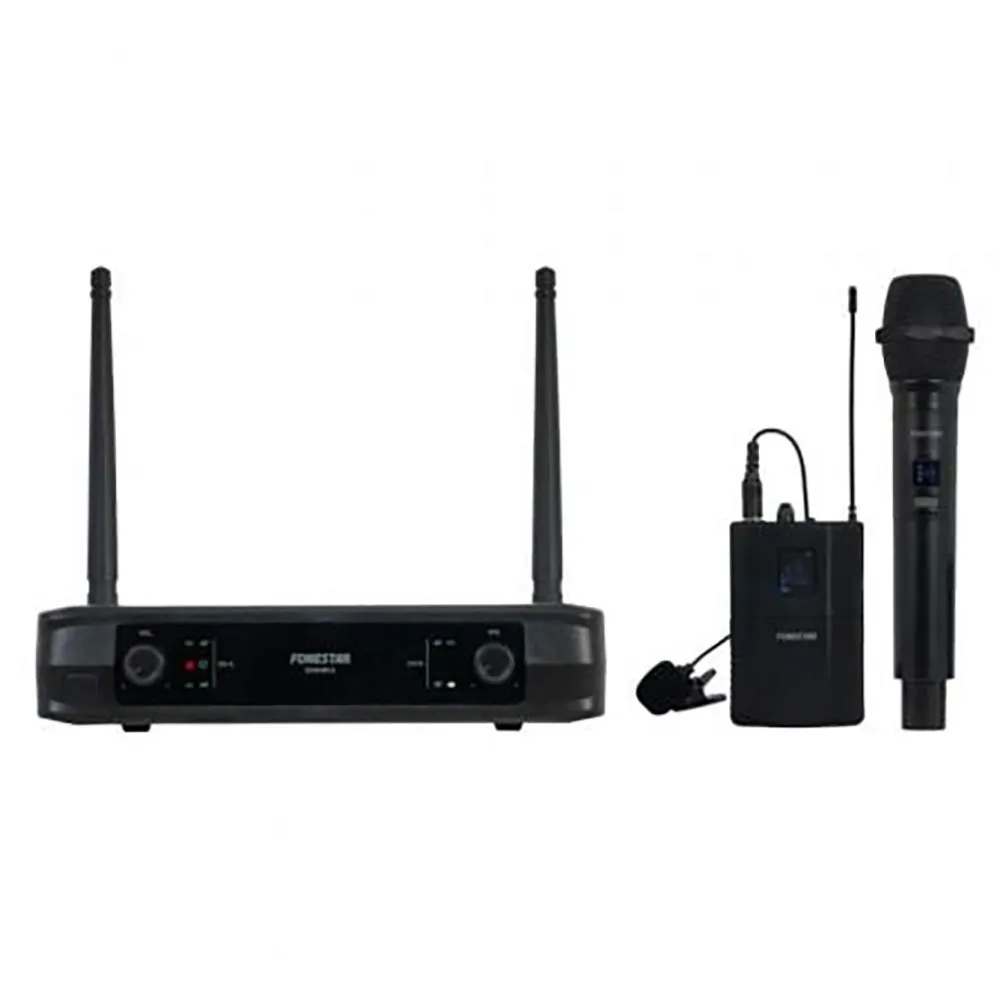

Fonestar SONAIR-2MP wireless microphone

Features:

- Dual handheld and bodypack UHF wireless microphone, fixed frequency.

- High quality sound.

- Long-range.

- Long battery life.

- Easy to use.

- UHF Dual Handheld & Bodypack Wireless Microphone.

- Wireless microphone with excellent range and sound quality.

The transmitter uses a single-chip audio management and transmission solution based on a DSP audio processor and PLL frequency control.

Compared with systems that integrate discrete components, the stability and reliability of this system is much higher.

- Our microphone uses traditional FM modulation technology with great sound quality.

- Fixed frequency transmission channels provide great ease of use.

- It has a highly efficient battery power management design that allows for extended microphone use.

- Low noise balanced and unbalanced output mixed for easy connection.

- Compact and simple design.

- Consisting of a dual receiver and two transmitters, a handheld microphone and a beltpack microphone.

The handheld wireless microphone has a unidirectional dynamic capsule that maximizes direct voice pickup and rejection of indirect noise and sounds.

And a beltpack transmitter with a lapel microphone for efficient voice pickup.

- Suitable for events with mobile microphones, such as presentations, conferences, events, performances, etc.

Specifications:

- Dual wireless handheld and bodypack microphone.

- Handheld microphone with unidirectional dynamic capsule.

- Bodypack transmitter with lapel microphone with unidirectional condenser capsule.

- Compact receiver with radio frequency signal and audio signal indicator.

- Fixed frequency transmission channels.

- Transmission distance greater than 30 m.

- Easy to use.

- Maximum 8.

- 10 microphones at the same time on different channels.

Frequencies:

- Group 1:

557´2 / 578´4 MHz.

- Group 2:

636´5 / 652´1 MHz.

- Group 3:

680´2 / 687´5 MHz.

- Group 4:

685´3 / 691´5 MHz Power:

- 30 mW Answer:

- 30-20,000 Hz (+/- 2 dB) Signal/Noise Ratio:

- > 96 dB Departures:

Audio:

- 2 balanced, XLR, 0 ~ 250 mV, 600 Ω.

- 1 unbalanced mix, 6´3 mm jack, 0 ~ 250 mV, 1 KΩ Receiver:

- Reception sensitivity:

- 95 dBm.

- Distortion:

< 0´3%.

- Latency:

3 ms Microphones:

- 1 wireless handheld microphone with unidirectional dynamic capsule.

- 1 wireless beltpack microphone with lapel microphone.

- 3.5 mm mono input connector with female thread.

- Harmonic radiation:

<.

- 50 dBc.

- Battery life (alkaline):

approx.

8-10 hours.

Feeding:

- Receiver:

12V DC, 500mA, with adapter included.

- Transmitting microphone:

- 2 AA batteries.

Supports rechargeable batteries.

Measures:

- Receiver:

210 x 46 x 156 mm depth Weight:

- 0´4 kg.

- Accessories:

6´3 mm mono jack cable, 1m.

- Anti-rotation ring.

- Power adapter.

- Batteries for the microphone Compatibility:

- FCM-850-TSM:

Lavalier microphone.

- FCM-970-TSM:

Headworn Microphone.

- FCM-660-TSM:

Headworn Microphone.
