Fractal Design Ridge PC tower case

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.

Inch-perfect efficiency:
- Meticulously engineered to maximize its capability while minimizing its footprint
- Small form factor case with a volume of 12.6 liters
- Supports GPUs up to a length of 335 mm
- Supports GPUs up to a length of 335 mm
- All panels are removable, enabling maximum accessibility

Horizontal or vertical:

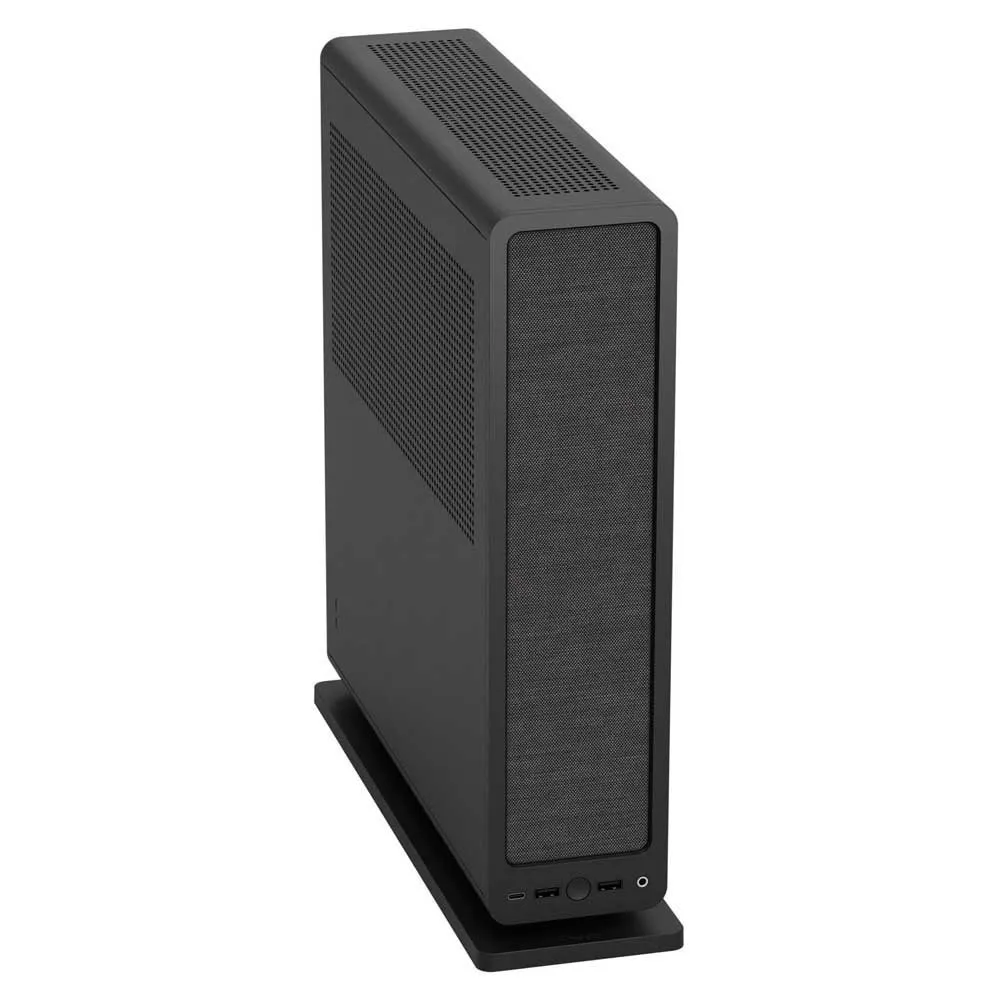

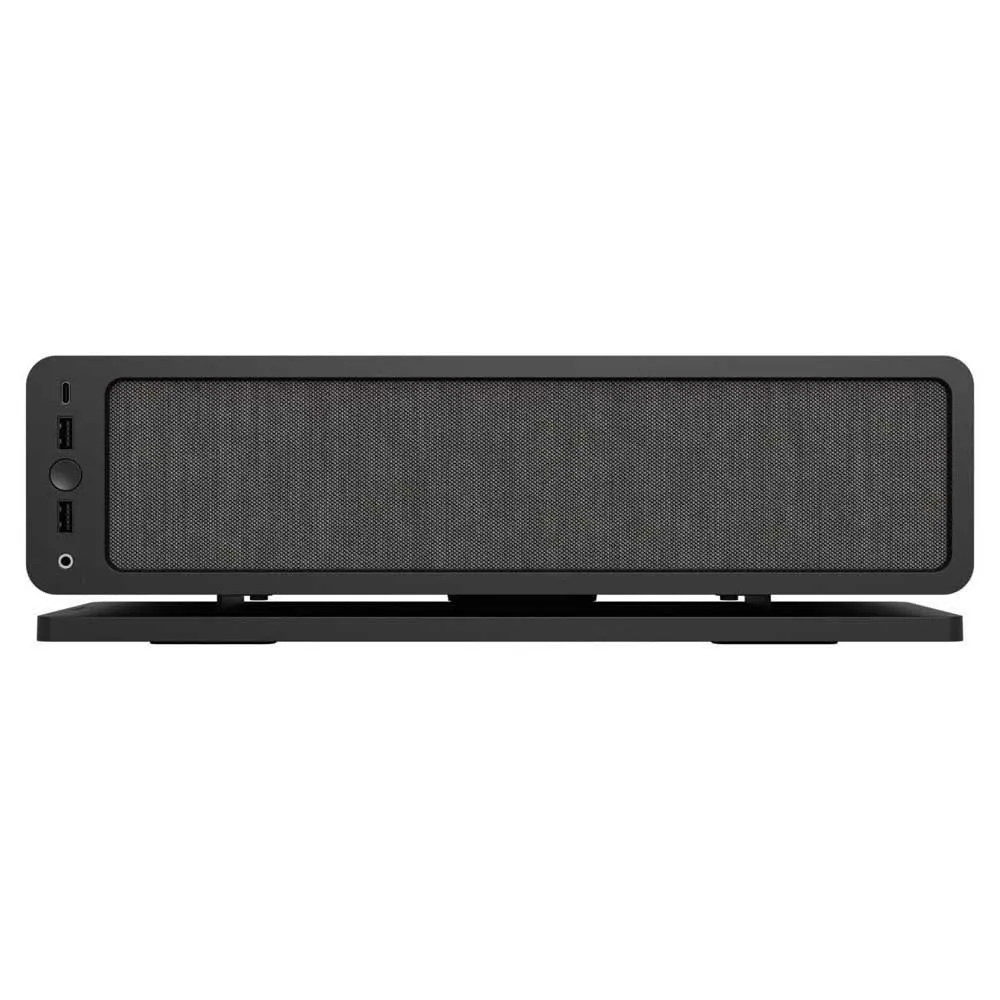

- Multiple feet configurations allow for both horizontal and vertical orientation
- Elevate any gaming desk, workspace or entertainment area

All-around ventilation:
- Ventilated on all sides to maximize its cooling potential
- Comes with 2x 140 mm PWM Aspect fans pre-installed
- Supports 2x 120/140 mm and 3x 80 mm fans

Well-balanced design:
- Stylish fabric front with CNC machined aluminum frame
- Features a Power LED bar in front

Type-C interface:
- Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack

Smart configurations:
- Comes with our own PCIe 4.0 or PCIe 3.0 riser card pre-installed
- Four 2.5” drive mounts included


Specifications:

- Dedicated 2.5´´ drive mounts: 4x included, 4x positions total
- Expansion slots: 3-slot
- Front interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
- Total fan mounts: 2x 120/140 mm and 3x 80 mm
- Side fan: 2x 120/140 mm (2x PWM Aspect fan 140 mm included)
- Top fan: 3x 80 mm (not included)
- Cable routing space: 13,8 mm (behind PSU)
- Tool-less slide with thumbscrew lock: Side panels
- Captive thumbscrews: Side panels
- Left side panel: Steel
- Right side panel: Steel

Compatibility:
- Motherboard compatibility: Mini ITX
- Power supply type: SFX, SFX-L
- Side radiator: 120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
- PSU max length: SFX-L
- GPU max length: 325 mm with SSD installed. 335 mm without SSD installed.
- GPU max height: 125 mm with top fan(s) installed, 137 mm without top fans
- GPU max thickness: 57 mm with 2x 140 mm fans installed, 82 mm without side fans
- CPU cooler max height: 70 mm

Dimensions:
- Case dimensions: Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
- Case dimensions w/o feet/protrusions/screws: 355 x 95 x 375 mm
- Net weight: 4.3 kg
- Gross weight: 5.5 kg
- Volume: 12.6 liter
