Name: Gigabyte A520M DS3H V2 motherboard
Brand: Gigabyte
SKU: 140529387
Price: 62.99 EUR
Availability: InStock
Rating: 4 (1 reviews)

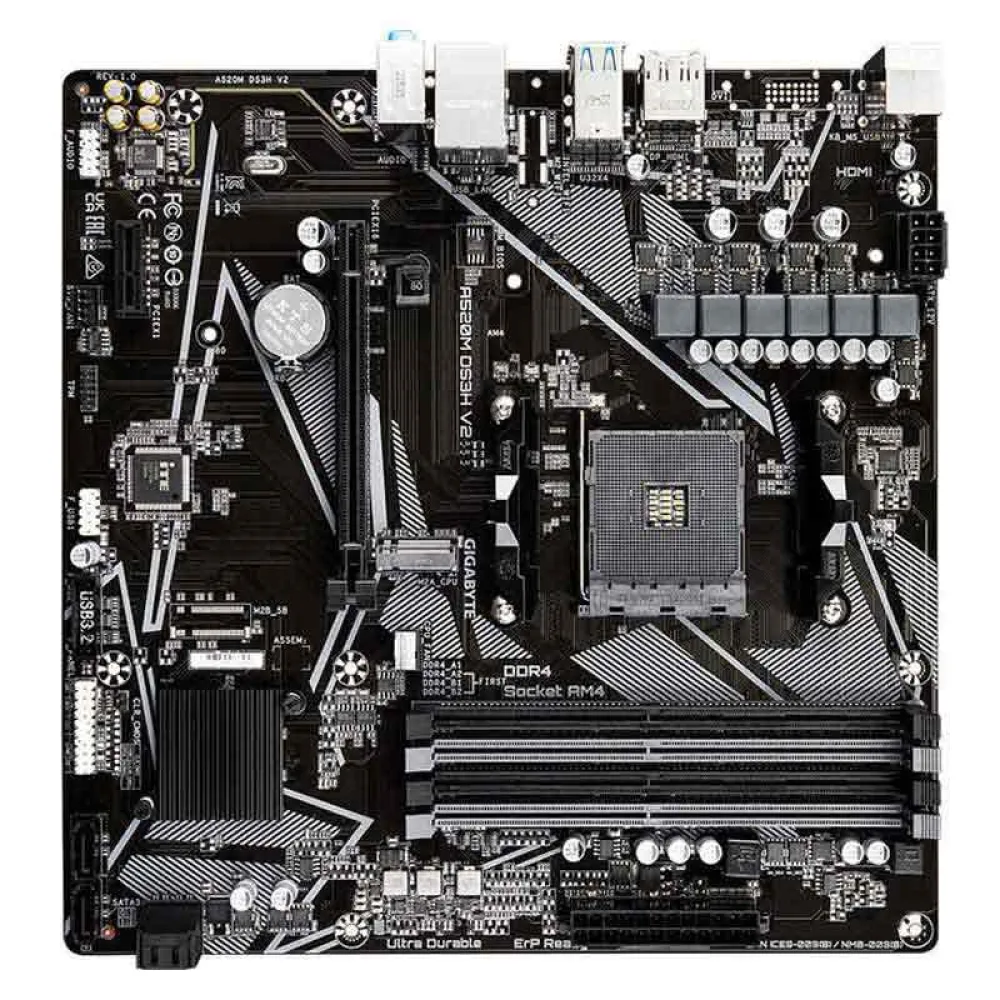

Gigabyte A520M DS3H V2 motherboard

62.99 €

Price without code 62.99

RRP:

You save:

Price applying the code 15CM to your basket:

VAT & duties included

1 Reviews

0 Questions

No import duties to be paid.

Sold and shipped by

See other sellers()

Size

Long

What is my size?

Virtual fitting room

Stringing

Unstrung

Tension

18 Kg
19 Kg
20 Kg
21 Kg
22 Kg
23 Kg
24 Kg
25 Kg
26 Kg
27 Kg
28 Kg
29 Kg
30 Kg
31 Kg
32 Kg
33 Kg
34 Kg
35 Kg
36 Kg

To adjust your bindings, type in the following informations:

(Customized items cannot be returned or exchanged)

It´s free!

(Customized items cannot be returned or exchanged)

This size is currently out of stock

Stay in the loop! Add your email and be the first to know when this item is back in stock.

Sorry, we don´t have enough of this item in stock

Back to PC configurator

Add to my pack

You save:

Buy now with 1-Click

Buy this product and earn

Color:

Free shipping

Free assembly

Free removal of old appliance (only with Ader)

Your interest-free financing from with Klarna Paypal

Pay in 3, 4, 6 or up to 12 installments

Virtual fitting room

Other colors available

Perfect pairings

Reportar error

Features of Gigabyte A520M DS3H V2

Trusted by over 25 million satisfied customers worldwide

Official brand warranty

Quick & easy 30-day return

Specifications Gigabyte A520M DS3H V2

Features of Gigabyte A520M DS3H V2

Color Black

Color

Black

Memory Type DDR4

Memory Type

DDR4

Chipset AMD

Chipset

AMD

Socket Socket AM4

Socket

Socket AM4

Form Factor ATX

Form Factor

ATX

Multi Gpu No

Multi Gpu

Internal Conections SATA

Internal Conections

SATA

M2 SATA

MHz Speed 4733

MHz Speed

4733

Product description of Gigabyte A520M DS3H V2 motherboard

Description summary

Unleash the power of 3rd Gen AMD Ryzen processors with the GIGABYTE A520M DS3H V2. This versatile Micro ATX motherboard provides a robust foundation for your build, supporting up to 128GB of dual-channel DDR4 RAM and ultra-fast M.2 storage alongside 4 SATA III ports. Experience smooth online gaming with Realtek Gigabit Gaming LAN. Connect all your peripherals with ample USB 3.2 ports and drive up to three displays simultaneously with HDMI 2.1, DisplayPort, and DVI-D, supporting resolutions up to 5K. A perfect blend of performance and features

Read full description

Automatic translation

Automatic translation
Original description available here

Gigabyte A520M DS3H V2 (rev.

1.0).

Processor manufacturer:AMD, Processor socket:Socket AM4, Compatible processor:3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen™ 7, 3rd.

Compatible memory types:DDR4-SDRAM, Maximum internal memory:128 GB, Memory slot type:DIMM.

Supported storage drive interfaces:M.2, SATA III, Supported storage drive types:HDD & SSD, RAID levels:0, 1, 10.

Maximum resolution:5120 x 2880 Pixels.

USB connector:USB type A.

Specifications:- Processor manufacturer:AMD.

-Processor socket:Socket AM4.

-Compatible Processor:3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ Threadripper™, AMD Ryzen Threadripper Pro 3rd Gen.

- Max.

number of SMP processor:1.

-Supported processor sockets:AM4 socket.

-Maximum internal memory supported by the processor:128 GB.

-Compatible memory types:DDR4-SDRAM.

-Number of memory slots:4.

-Type of memory slots:DIMM.

-Maximum internal memory:128 GB.

-Memory channels:Dual channel.

-Supported memory clock speeds:2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz.

-ECC:Yes.

-Non-ECC:Yes.

-Unbuffered memory:Yes.

-Supported memory module capacities:1GB, 2GB, 4GB, 8GB, 16GB, 32GB.

-Ethernet:Yes.

-Ethernet interface type:Gigabit Ethernet.

-Wifi:No.

-USB 2.0, connectors:1.

-USB 3.2 Gen 1 (3.1 Gen 1) connectors:1.

-Number of SATA III connectors:4.

-Audio connector on front panel:Yes.

-ATX power connector (24 pins):Yes.

-CPU fan connector:Yes.

-Front panel connector:Yes.

-Number of EATX power connectors:1.

-12 V electrical connector:Yes.

-TPM connector:Yes.

-Serial port header:1.

-Fan connector:Yes.

-Total quantity of SATA connectors:4.

-USB 2.0:2.

-USB 3.2 Gen 1 (3.1 Gen 1):4.

-PS/2:1 mouse port.

-Ethernet LAN ports (RJ-45):1.

-Optical Audio Output:1.

-HDMI Ports:1.

-Number of DVI-D ports:1.

-HDMI version:2.1.

-DisplayPort:1.

-DisplayPort version:2.0.

-Headphone jack:1.

-USB Connector:USB type A.

-Microphone Input:Yes.

-RAID compatibility:Yes.

-Number of supported storage units:5.

-Supported storage disk interfaces:M.2, SATA III.

-Types of storage units supported:HDD & SSD.

-RAID levels:0, 1, 10.

-Number of HDDs supported:4.

-Number of M.2 slots (M):1.

-PCI Express x1 (Gen 3.x) slots:2.

-PCI Express x16 Gen (3.x) slots:1.

-BIOS types:UEFI AMI.

-BIOS, memory size:128 MB/s.

-ACPI version:5.0.

-Jumper Clear CMOS:Yes.

-System Management BIOS (SMBIOS) version:2.7.

-CMOS cleaning button:Yes.

-Desktop Management Interface (DMI) Version:2.7.

-Maximum resolution:5120 x 2880 Pixels.

-HDCP:Yes.

-Number of screens supported:3.

-Discrete graphics support:Yes.

-Chipset family:AMD.

-Form factor:Micro ATX.

-Audio output channels:7.1 channels.

-Sound chip:Realtek ALC887.

-Power:ATX.

-Component for:PC.

-Supported Windows operating system:Windows 10 x64.

-Cooling type:Active.

-PC health monitoring:CPU, LED, Power system, Temperature, Voltage.

-Width:244 mm.

-Depth:244 mm.

-Cables included:SATA.

-Controllers included:Yes.

-Software included:Norton Internet Security (OEM version)Realtek 8118 Gaming LAN Bandwidth Control Utility.
