Gitzo GH4383LR Branch With Inclination

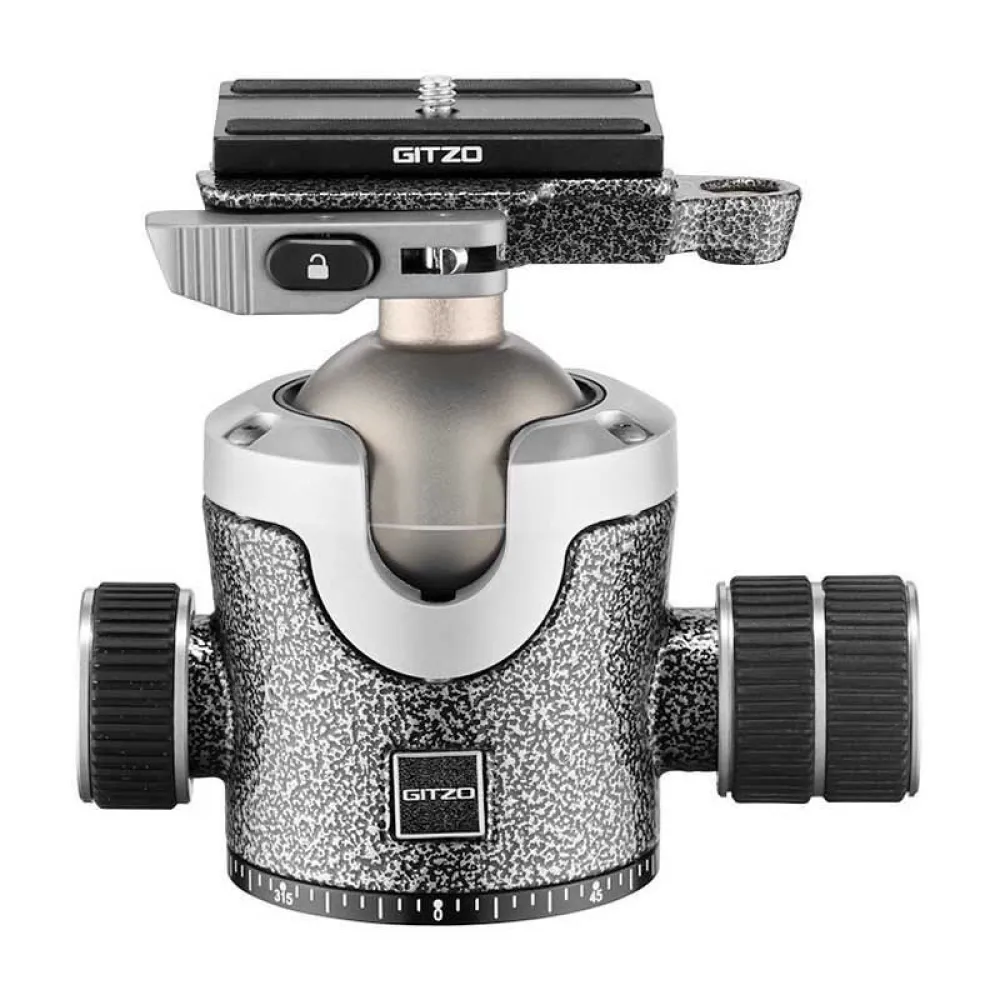

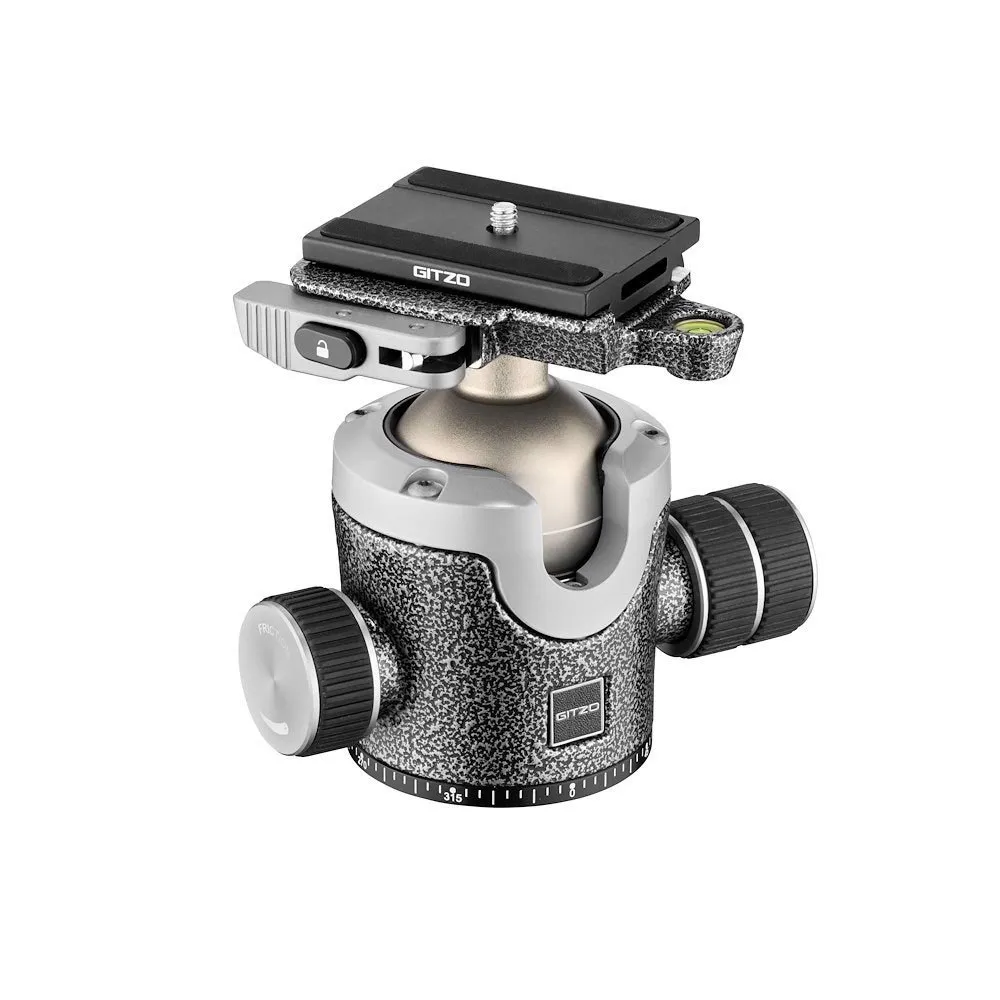

The Gitzo Ball Head Series 4 Gh4383lr (Lever Version) Is A Heavy-Duty Tripod Head Ideal For Large Telephoto Lenses, Engineered To Ensure The Ultimate In Smoothness And Precision Of Movement.

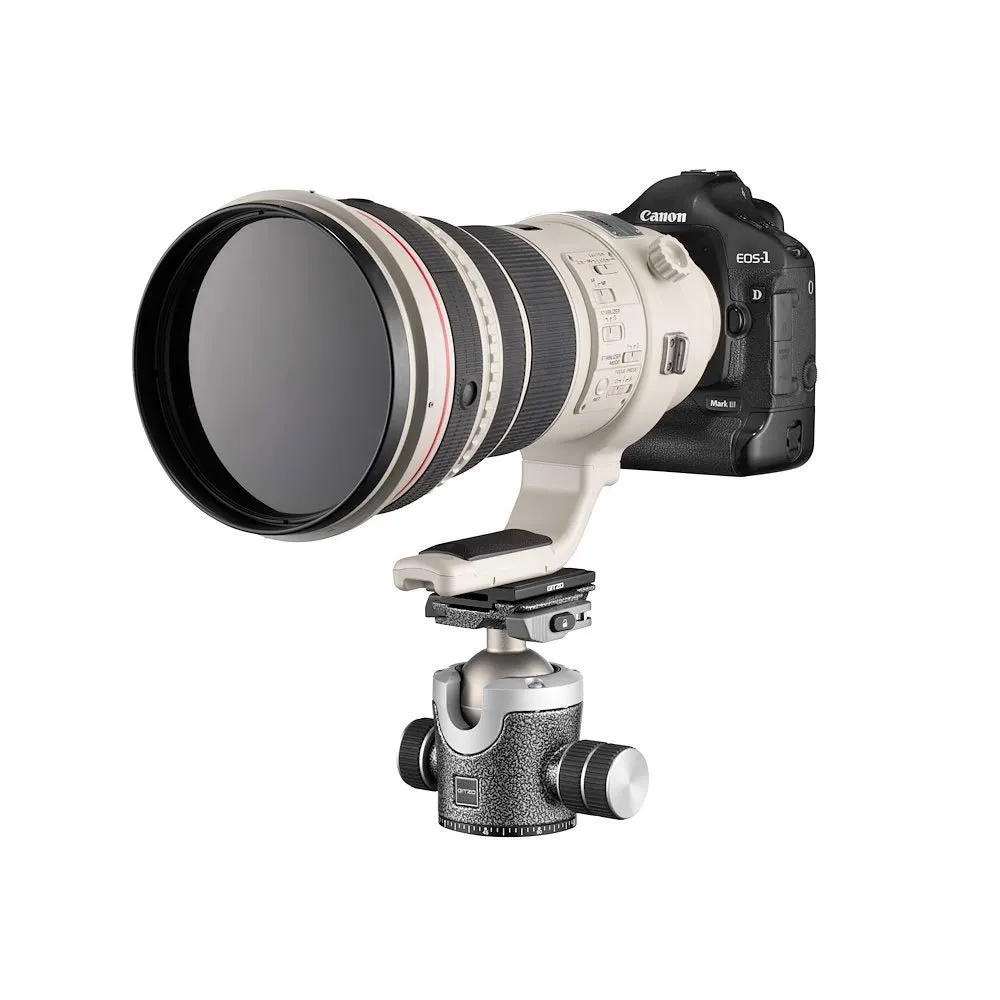

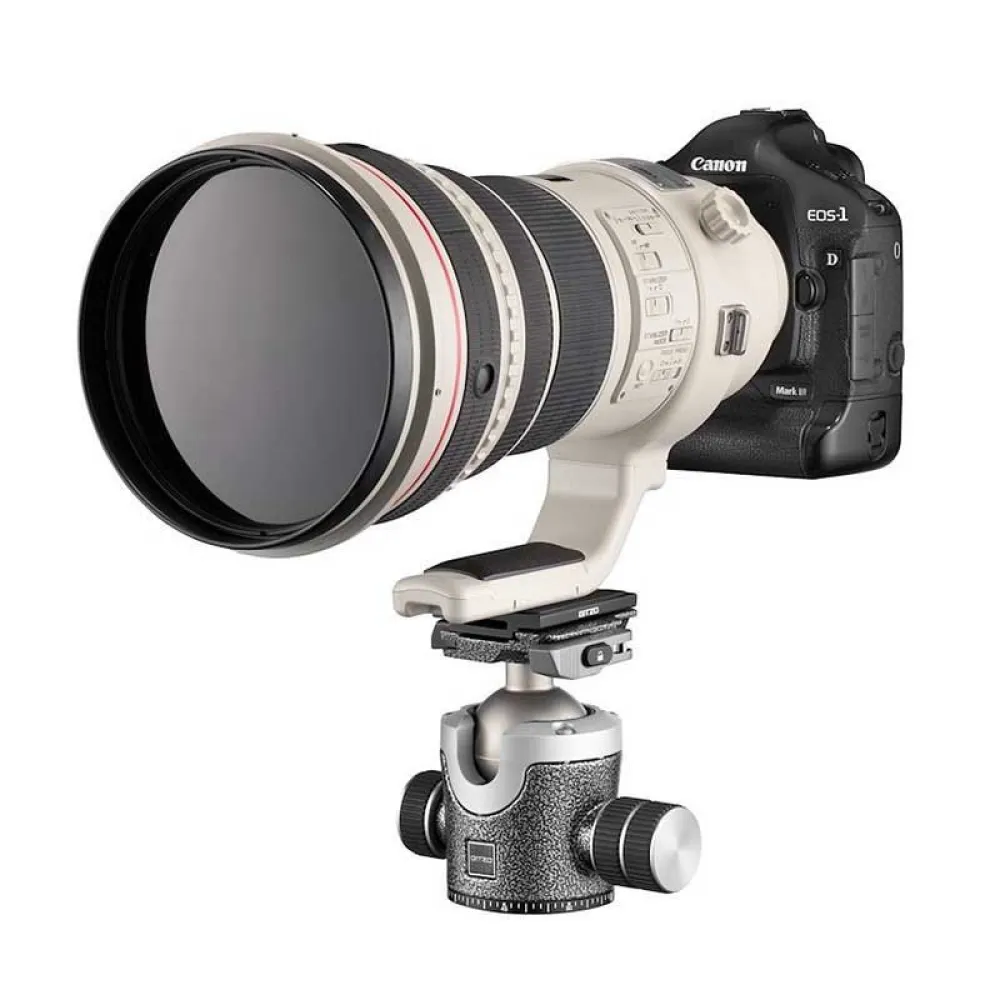

Though Weighing-In At Less Than 1kg, It Securely Holds An Impressive 30kg Load – Effortlessly Handling A Csc Or Dslr Equipped With A 400-600mm Lens . The Unit Perfectly Complements Gitzo’S Series 3, 4 And 5 Systematic Tripods And Is Available In Both Lever And Screw Plate Lock Configurations.

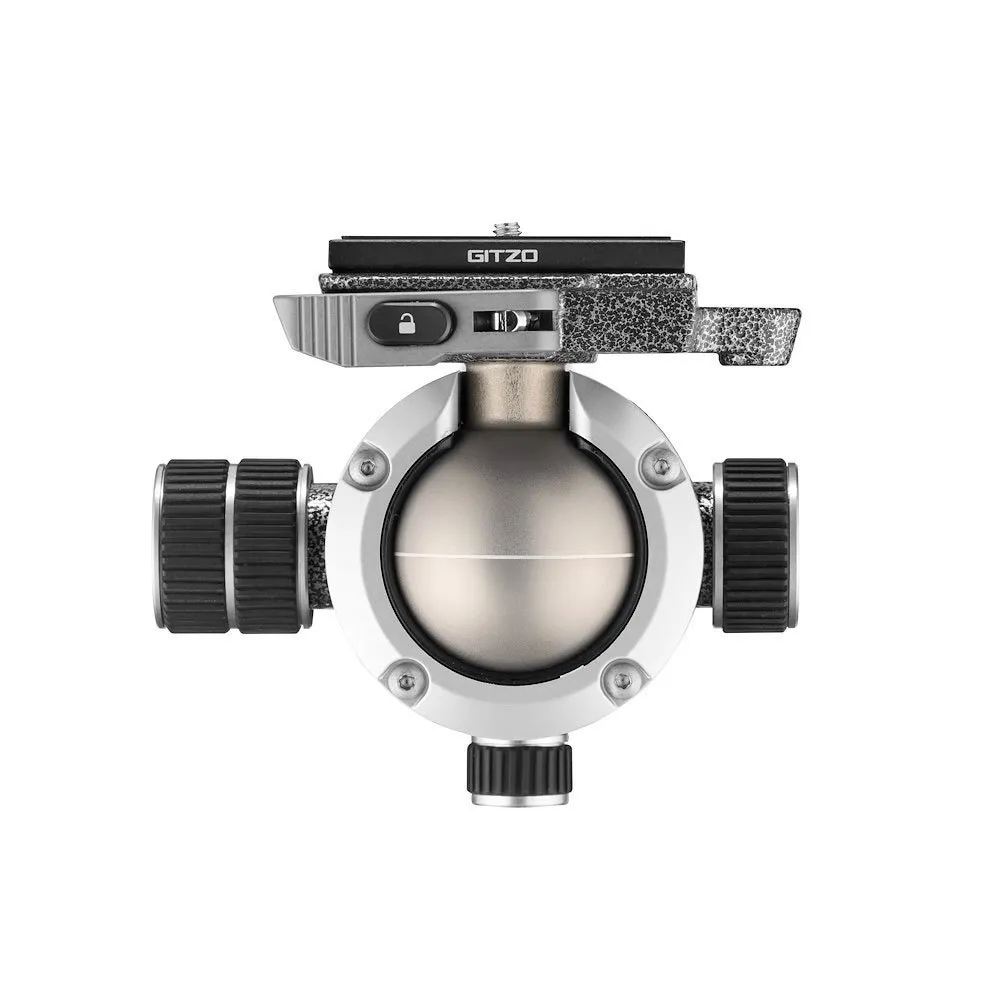

The Ball Head Series 4 Has A Larger Super-Smooth Coated Hollow-Sphere Ball Ensuring Confident And Comfortable Use With Heavier Equipment, Even In Extreme Conditions And Temperatures From -30° To 70°C.

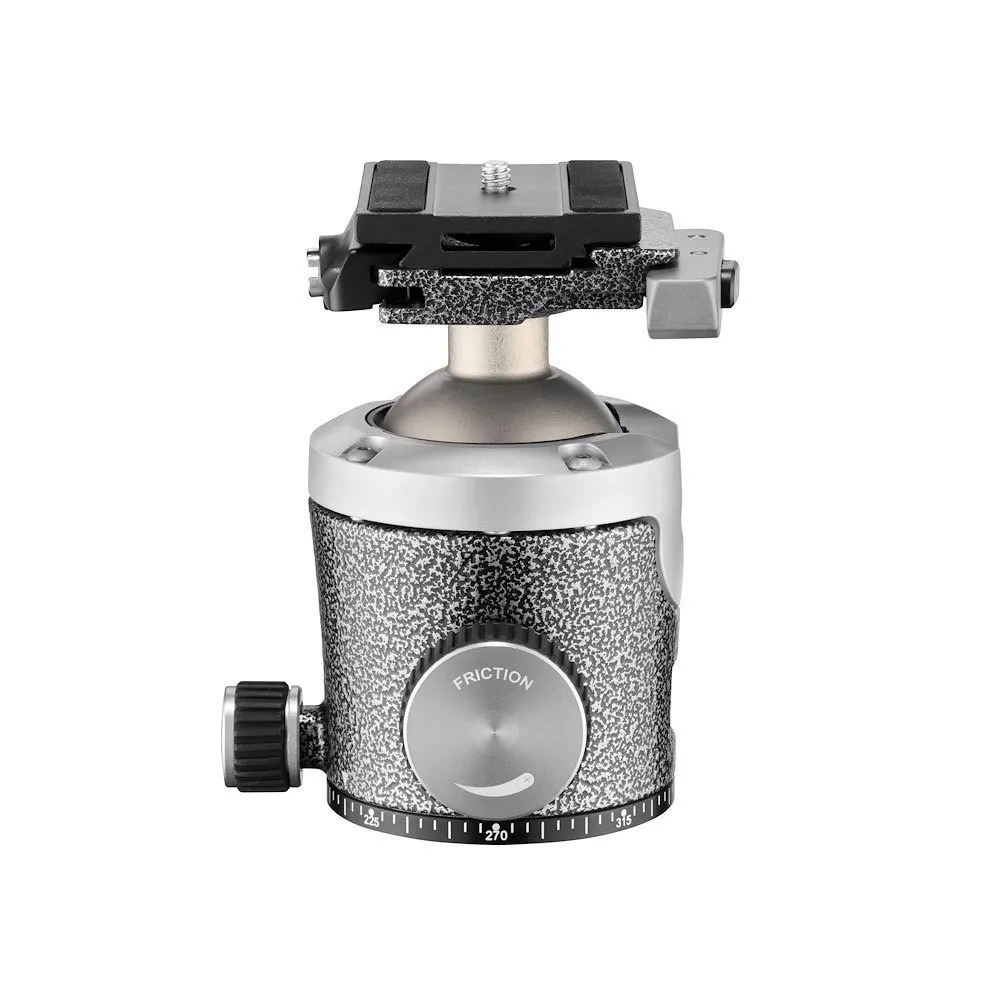

It Is Rich In Features – A Friction Control For Precise Adjustment And A Bubble Level To Help Keep A True Horizon. A 360° Independent Panning Lock Provides Uncompromisingly Smooth Movement In A Fluid Cartridge And A Short-Rotation Fast Lock Assists In Getting The Perfect Shot At A Moment’S Notice.

The Whole Ensemble Is Precision Manufactured Using The Highest-Quality Materials – Including High-Tolerance Steel And Aluminum Components.

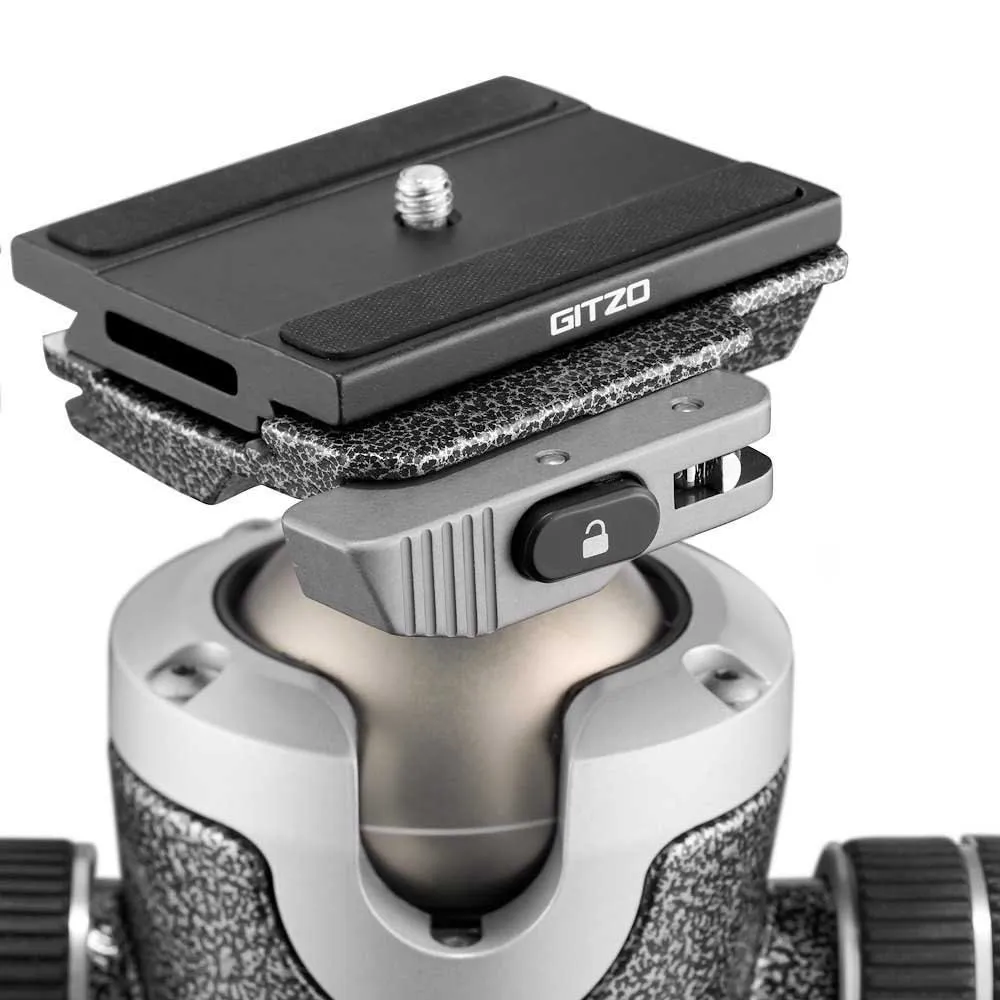

The Gitzo Ball Head Series 4 Offers Unrivaled Load Capacity, Ultra-Smooth Movement And Rapid Friction Control – All In A Sub-1kg Unit Designed And Precision-Made In Italy. Supplied With Gitzo D Profile Plate, The Ball Head Series 4 Is Also Compatible With Arca-Swiss Style Plates From Other Brands.


Features:

- Patented Zero-Drift Locking System Supports Up To 30kg Payload
- Ideal For Professional Longer Lenses And Heavy Cameras
- Maximum Smothness And Precision Friction System
- Dedicated Pan Axis Thermo-Stable Fluid Cartridge
- Highest Safety Standards Ensured By Uni/Pdr 105:2021 Compliance


Specifications:

- Weight: 0.9 Kg
- Base Diameter: 60 Mm
- Material: Aluminium
- Front Tilt: -90° / +40°
- Safety Payload Uni/Pdr 105:2021: 30 Kg
- Bubble Spirit Level (No.): 1
- Plate Type: Gs5370dr
- Base Type: 54 Mm
- Ball Locking: Yes
- Top Attachment: 1/4´´
- Friction Control: Yes
- Head Type: Ball Head
- Independent Pan Lock: Yes
- Independent Tilt Lock: Yes
- Lateral Tilt: -90° / +40°
- Maximum Working Temperature: 70 °C
- Minimum Working Temperature: -30 °C
- Pan Drag: Fluid Cartridge With Fixed Drag
- Panoramic Rotation: 360 °
- Quick Release: Yes
- Working Height: 12.5 Cm
