Gosund ST20 Tuya motion sensor ZigBee

About the Gosund ST20.

The Gosund ST20 is a smart security device that detects movement through its Zigbee technology.

It is controlled remotely through the Gosund app, which sends alerts and activates alarms on your mobile phone when suspicious activity is detected.

Therefore, it is suitable for integration into home automation systems.

Advanced detection and security.

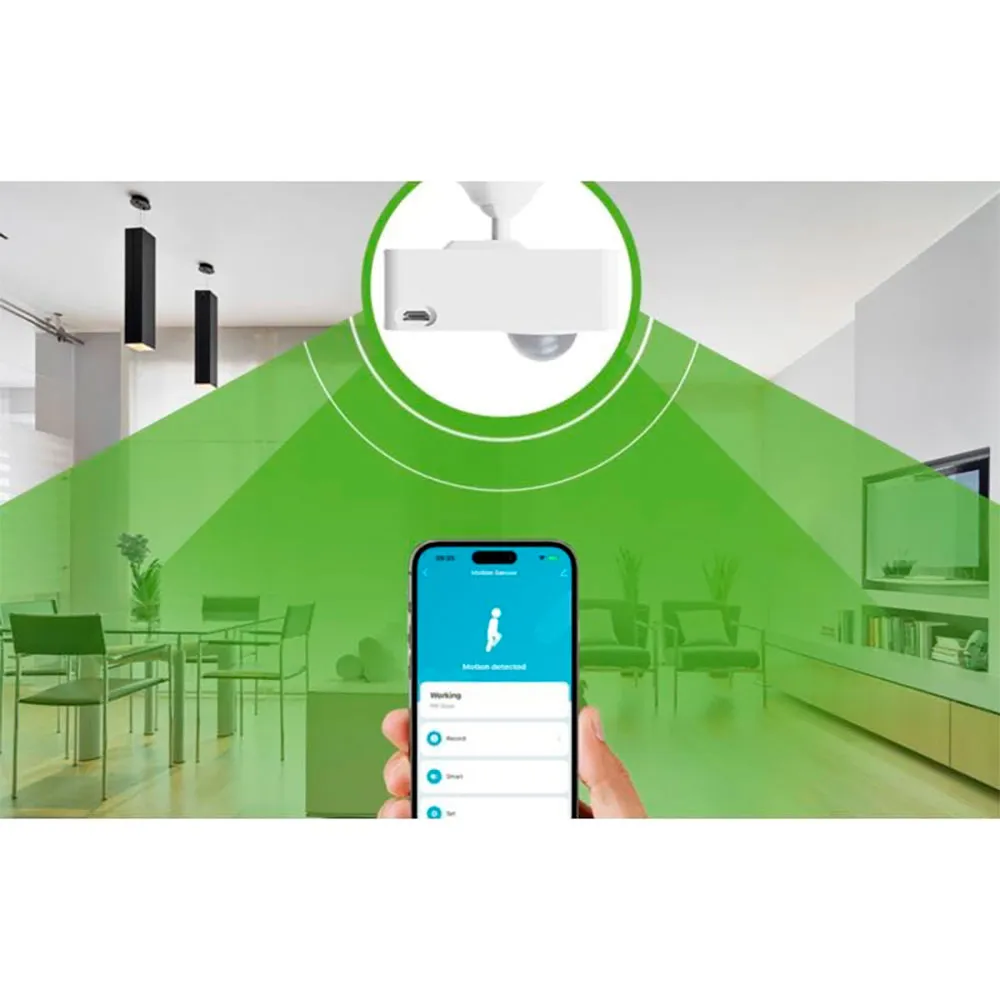

It uses 2.4GHz Zigbee technology with infrared detection and a wide viewing angle of 128°.

Its detection range of up to 10 meters reduces potential blind spots.

In case movement is detected.

It sends instant notifications and audible alarms, improving the protection of selected areas.

Automated intelligent control.

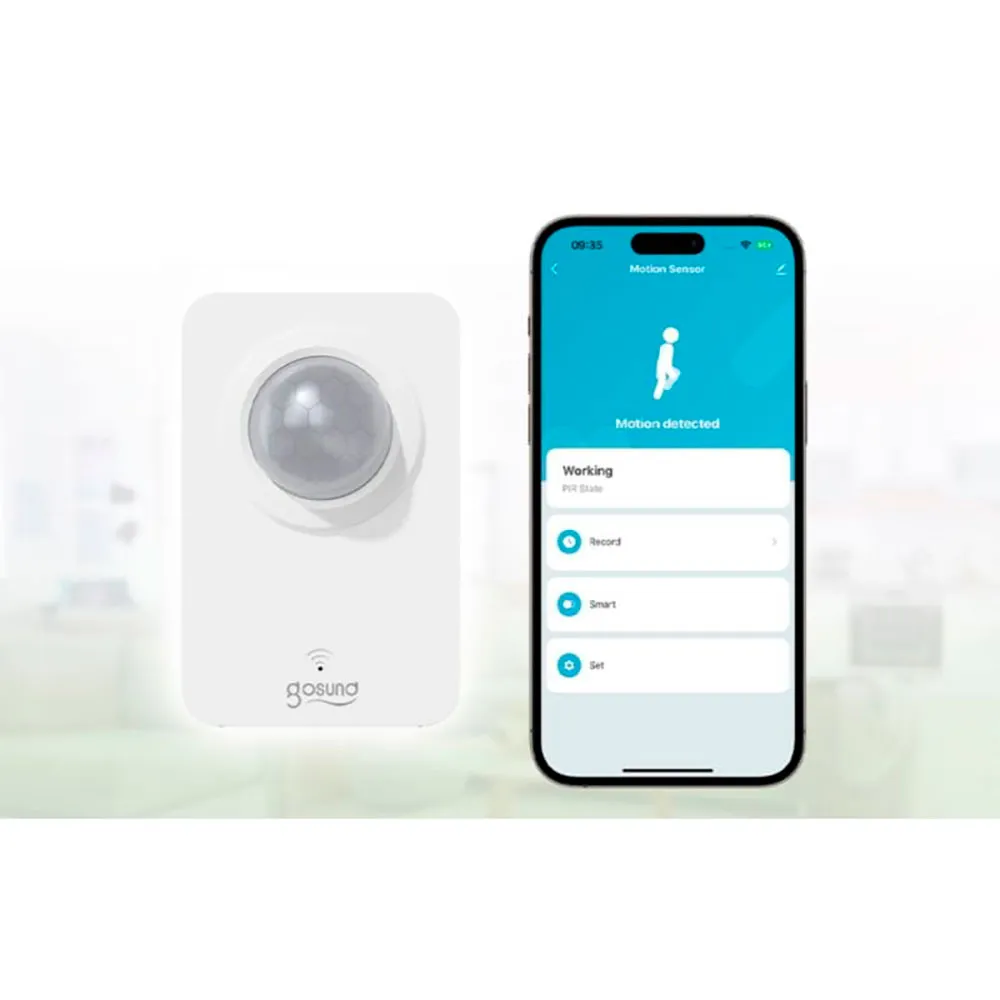

It allows you to remotely monitor and control the status of your home from anywhere through the Gosund mobile application.

It is also possible to integrate it with other smart devices such as light bulbs, alarms, cameras or curtains, to create automated scenarios at all times.

Dual power and safety certifications.

The sensor is powered in a versatile way by 2 LR6-1.5V/AA batteries or through a DC 5V/1A micro USB.

It offers a very moderate consumption of only ≤ 81uA in standby mode and ≤ 3mA for the alarm.

In addition, it operates in a temperature range of 0°C ~ 50°C and with humidity levels of 10% ~ 85% RH.

All this certified under the European safety standards CE/RED, RoHS.

Technical specifications Gosund ST20.

Brand.

Brand: Gosund.

Model: ST20.

Color: White.

Performance.

Type: Smart motion sensor.

Detection technology: Infrared.

Material: ABS.

LED indicator: Red.

Certifications: CE/RED, RoHS.

Connectivity.

Zigbee frequency: 2.4GHz IEEE 802.15.4.

Detection range: ≤ 8 meters.

Detection angle: 128°.

Compatible APP: Gosund.

Power control.

Micro USB power supply: DC 5V/1A.

Standby mode consumption: ≤ 81uA.

Alarm consumption: ≤ 3mA.

Operating temperature range: 0°C ~ 50°C.

Operating humidity range: 10% ~ 85% RH. Storage temperature range: 0°C ~ 70°C.

Storage humidity range: 5% ~ 95% RH.

Dimensions and weight.

Dimensions: 70x45 x 35.6 mm.

Weight: 100 g (without batteries).

Package contents.

1 x Gosund ST20:.

1 x User manual.
-Brand: Gosund.
-Model: ST20.
-Color: White.
-Type: Smart motion sensor.
-Detection technology: Infrared.
-Material: ABS.
-LED indicator: Red.
-Certifications: CE/RED, RoHS.
-Zigbee frequency: 2.4GHz IEEE 802.15.4.
-Detection range: ≤ 8 meters.
-Detection angle: 128°.
-Compatible APP: Gosund.
-Batteries: LR6-1.5V/AA x 2 (alkaline batteries).
-Micro USB power supply: DC 5V/1A.
-Standby power consumption: ≤ 81uA.
-Alarm power consumption: ≤ 3mA.
-Operating temperature range: 0°C ~ 50°C.
-Operating humidity range: 10% ~ 85% RH.
-Storage temperature range: 0°C ~ 70°C.
-Storage humidity range: 5% ~ 95% RH.
-Dimensions: 70x45 x 35.6 mm.
-Weight: 100 g (without batteries)
