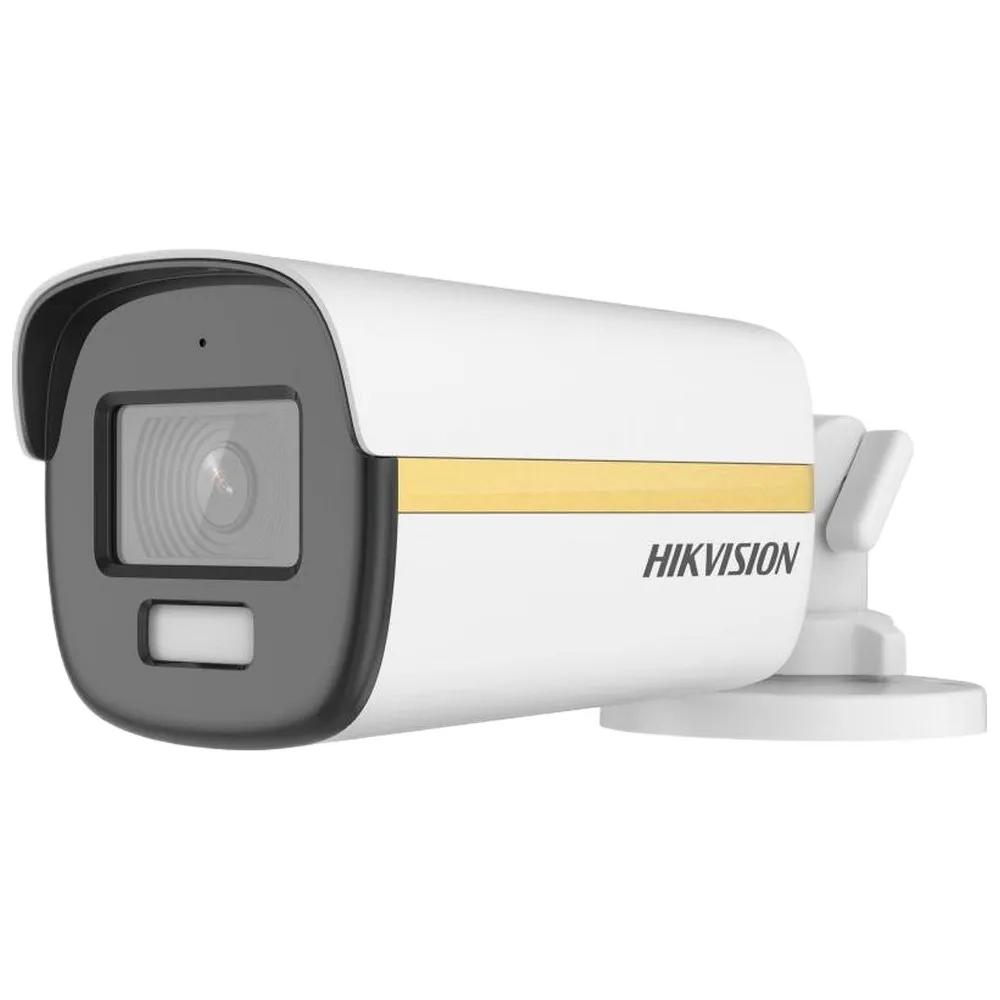

Hikvision DS-2CE12DF3T-FS security camera

HIKVISION DS-2CE12DF3T-FS: 24/7 Full-Color Surveillance with Integrated Audio

Elevate your security and surveillance capabilities with the HIKVISION DS-2CE12DF3T-FS, a state-of-the-art analog HD camera designed to deliver exceptional performance in any lighting condition. Part of the innovative ColorVu series, this camera revolutionizes nighttime monitoring by providing vivid, full-color images around the clock. Say goodbye to grainy, indistinct black-and-white footage. With its advanced F1.0 super-aperture and high-performance sensor, the DS-2CE12DF3T-FS captures rich detail and accurate color information even in near-total darkness, ensuring you can clearly identify subjects, vehicles, and critical details when it matters most.

Beyond its superior visual capabilities, the "-FS" model integrates a high-quality built-in microphone. This allows the camera to capture and transmit audio over the same coaxial cable as the video, adding a crucial layer of auditory evidence to your recordings without the need for separate wiring. This synchronized audio-visual data provides comprehensive situational awareness. Engineered for resilience and clarity, the camera also features 130 dB True Wide Dynamic Range (WDR) technology, which guarantees balanced and clear images even in scenes with intense backlighting, such as a sunlit doorway or a vehicle´s headlights. Housed in a durable, IP67-rated metal enclosure, this camera is fully protected against dust and water, making it the perfect choice for robust outdoor security and surveillance installations.

Main Features:

* High quality imaging with 2 MP, 1920 × 1080 resolution
* 24/7 full-color imaging with an advanced F1.0 aperture lens
* Clear imaging against strong back light due to 130 dB true WDR technology
* 3D DNR technology delivers clean, sharp, and noise-free images
* Fixed focal lens options (2.8 mm or 3.6 mm) for different viewing angles
* Supplemental white light with a range of up to 40 meters for bright night imaging
* High-quality audio recording with audio over coaxial cable via a built-in microphone
* Single port for four switchable signal outputs (TVI/AHD/CVI/CVBS) for maximum compatibility
* Water and dust resistant with an IP67 rating for reliable outdoor performance
---

Technical Specifications

Cameras
* Image Sensor: 2 MP CMOS
* Max. Resolution: 1920 (H) × 1080 (V)
* Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
* Shutter Time: PAL: 1/25 s to 1/50.000 s; NTSC: 1/30 s to 1/50.000 s
* Field of View (2.8 mm): horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
* Field of View (3.6 mm): horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
* Lens Mount: M12
* Day & Night: 24/7 Color Imaging
* Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°

* Image Settings: Brightness, Sharpness, Mirror, Smart Light
* TVI: 1080p @ 25fps/30fps
* CVI: 1080p @ 25fps/30fps
* AHD: 1080p @ 25fps/30fps
* CVBS: PAL/NTSC
* Wide Dynamic Range (WDR): ≥130 dB
* Image Enhancement: WDR, BLC, HLC, Global, HLS
* White Balance: Auto/Manual
* White Light: Up to 40 m

Interface
* Video Output: 1 HD analog output (Switchable TVI/AHD/CVI/CVBS)
* Audio In: Built-in microphone

General
* Material: Metal
* Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
* Power Supply: 12 VDC ± 25% (*Power adapter not included*)
* Consumption: Max. 4.2 W
* Dimensions: 223.1 mm × 77.1 mm × 82.6 mm (8.78" × 3.04" × 3.25")
* Weight: Approx. 565 g (1.25 lb.)
