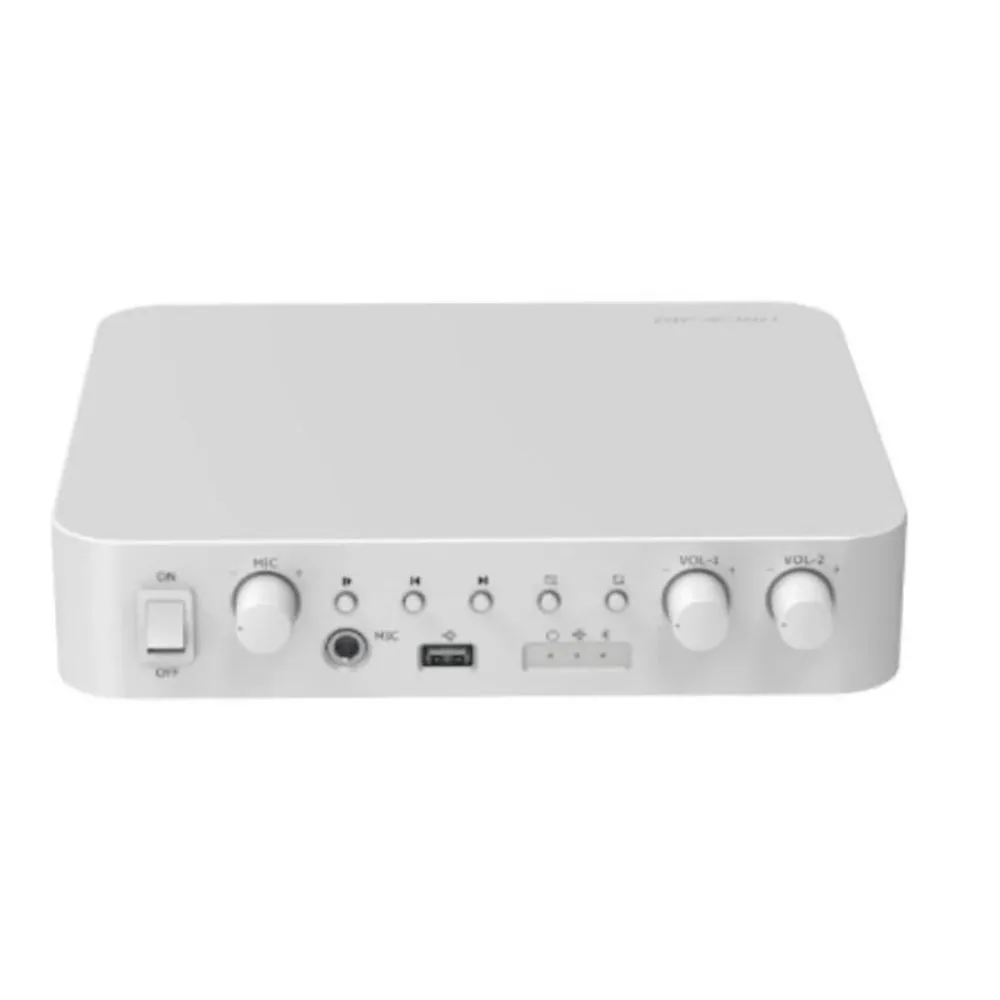

Hikvision DS-QAE0A60G1-VB Audio Amplifier

Elevate your audio surveillance and monitoring capabilities with the HIKVISION DS-QAE0A60G1-VB Audio Amplifier, a professional-grade device engineered for superior sound clarity and reliability. Designed to seamlessly integrate into sophisticated security systems, this compact amplifier is the definitive solution for capturing pristine, high-fidelity audio in any environment. Whether you are looking to enhance the audio pickup from a long-distance microphone or clean up ambient sound for clearer evidence, the DS-QAE0A60G1-VB delivers exceptional performance. Its primary function is to boost weak audio signals, transforming them into clear, intelligible sound that is crucial for effective monitoring and recording.

Experience the key benefits of advanced audio processing. This amplifier ensures that every sound is captured with remarkable detail and accuracy, thanks to its high-fidelity architecture. It incorporates a sophisticated Automatic Gain Control (AGC) circuit, which intelligently stabilizes the output amplitude. This means you get consistent audio levels without the distortion of sudden loud noises or the loss of quiet whispers, providing a balanced and reliable sound feed. Furthermore, its powerful built-in noise reduction technology actively filters out distracting background interference, such as humming from equipment or environmental noise, allowing you to focus on the critical sounds and conversations you need to hear. This makes it an indispensable tool for security applications where audio clarity is paramount.

The main features of the HIKVISION DS-QAE0A60G1-VB are a testament to its advanced design. The amplifier is built with a focus on high-fidelity audio signal processing for professional-grade results. It integrates a dynamic AGC circuit for stable amplitude and consistent volume. It also incorporates a highly effective noise reduction module to ensure clean signal transmission. Engineered for durability and versatile deployment, it supports a wide voltage input design, ensuring stable operation even in installations with fluctuating power conditions. The unit is also equipped with reverse polarity protection to safeguard the device against incorrect power connections, enhancing its operational lifespan and reliability in the field.

Connectivity is made simple and versatile with standard audio interfaces. The device features both RCA and a 3.5mm Jack output, offering flexible integration with a wide array of recording devices, monitors, and surveillance systems. This dual-output capability ensures compatibility and straightforward setup, whether you are connecting to a DVR, NVR, or a dedicated audio monitoring station. The amplifier’s robust engineering guarantees a clean, powerful audio signal ready for any professional application.

Technical Specifications:

* Audio Input: 1-ch, RCA (Line in, 2.2 kΩ, Unbalanced)
* Audio Output: 1-ch, 3.5 mm Jack; 1-ch, RCA (600 Ω, Unbalanced)
* Frequency Response: 20 Hz to 20 kHz
* Gain: 25 dB
* Output Amplitude: 5.0 Vpp
* Power Supply: 12 VDC
* Power Consumption: < 1 W
* Dimensions: 67 mm × 35 mm × 25 mm (2.64" × 1.38" × 0.98")
* Weight: Approx. 50 g (0.11 lb)
