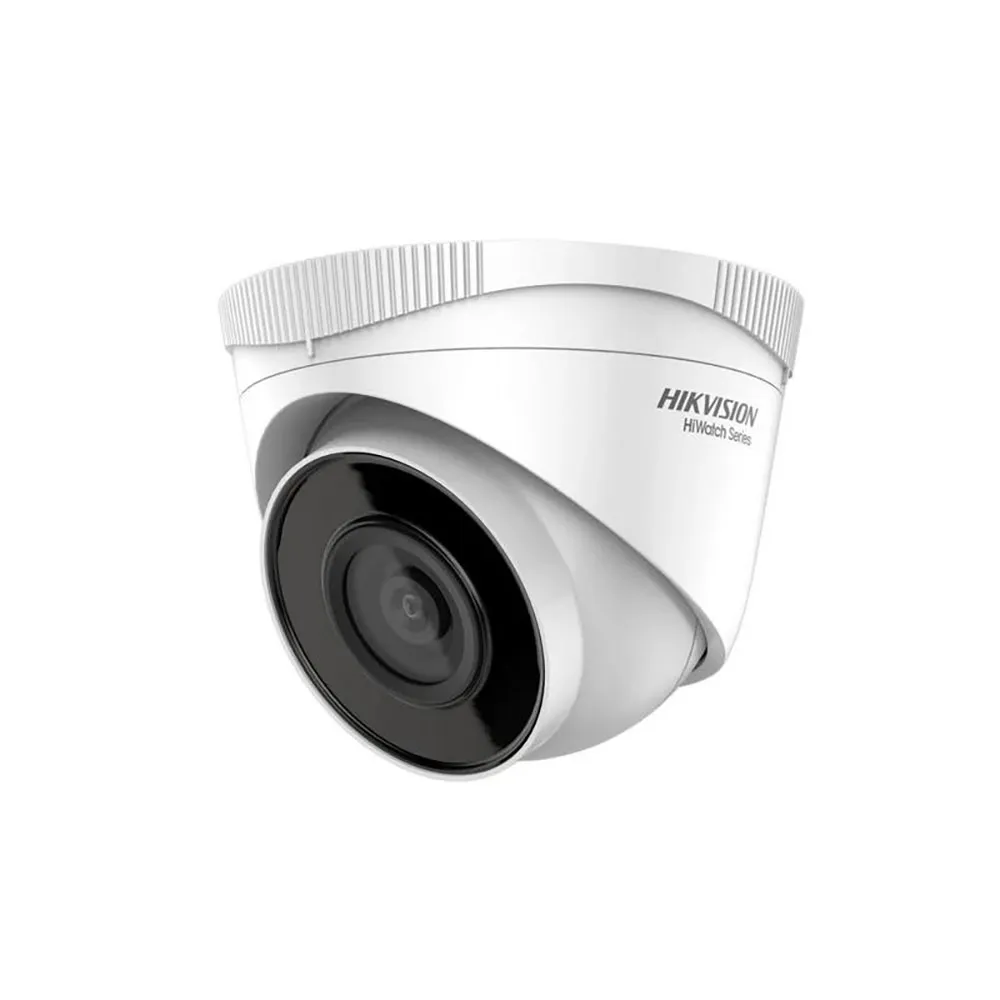

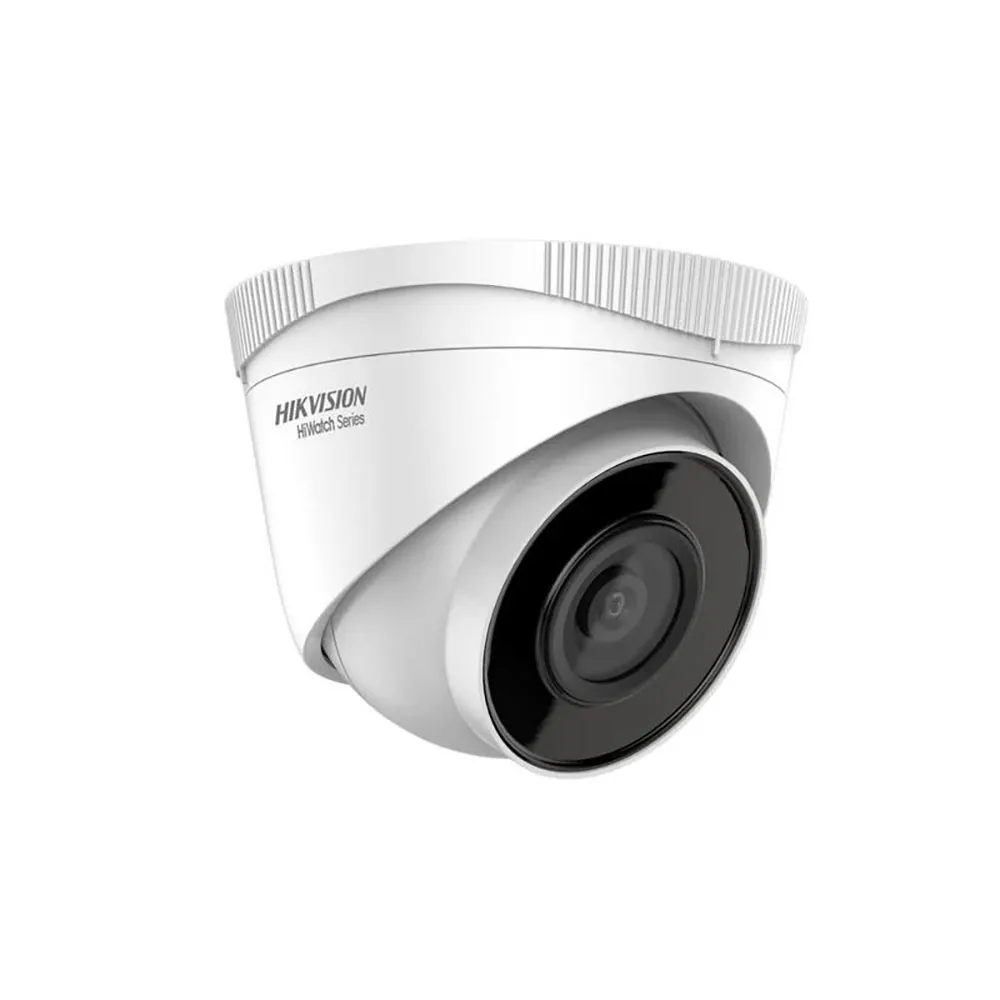

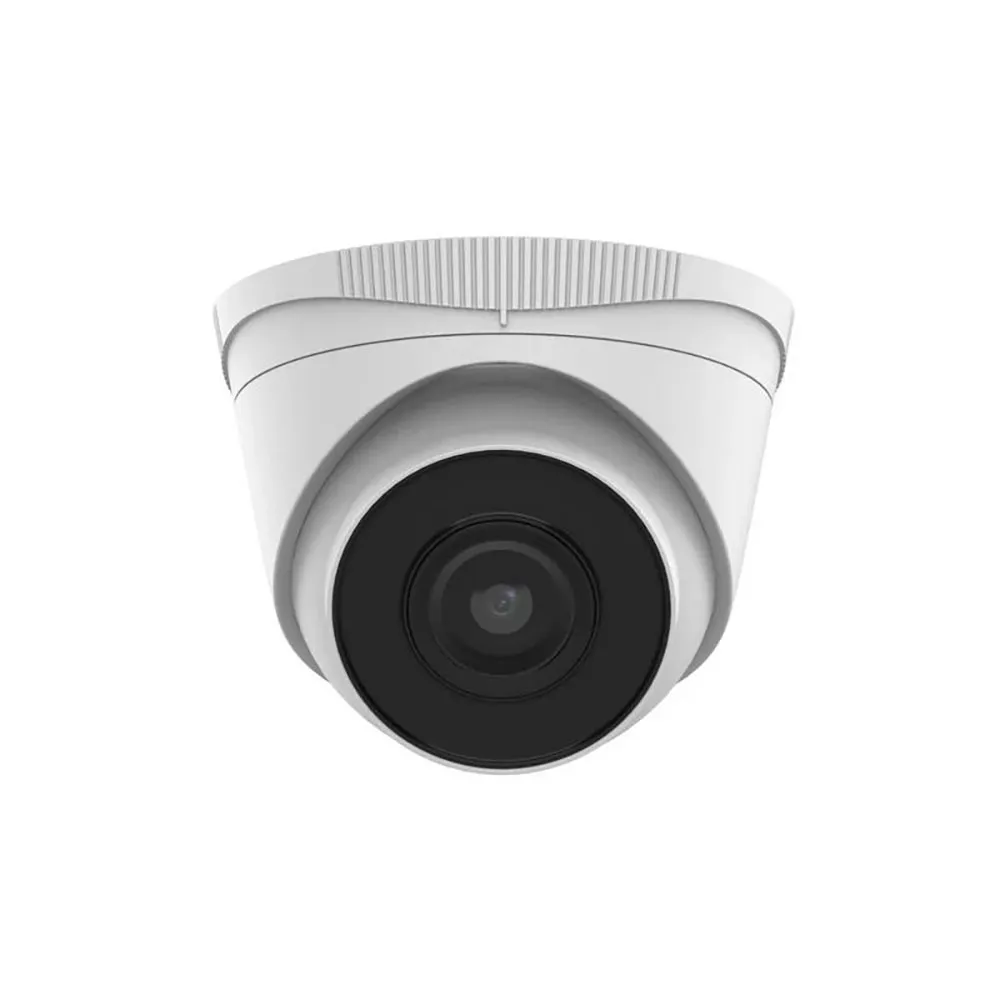

Hikvision HWI-T240HA security camera

HIKVISION HWI-T240HA 4MP Turret Security Camera | High-Definition Surveillance

Elevate your security with the HIKVISION HWI-T240HA, a state-of-the-art 4 Megapixel turret camera designed for uncompromising clarity and reliability. This powerful surveillance solution captures exceptionally detailed video, ensuring that critical details are never missed, day or night. Ideal for both residential and commercial properties, the HWI-T240HA provides a robust defense against potential threats. Its advanced EXIR 2.0 infrared technology delivers superior night vision, producing bright, uniform illumination for clear images in complete darkness up to 20 meters. One of its most significant advantages is its remarkable versatility; with a 4-in-1 switchable video output (TVI/AHD/CVI/CVBS), this camera seamlessly integrates with a wide variety of new and existing DVR systems, making it a perfect choice for upgrades or new installations. Built to withstand the elements, its durable, weatherproof construction ensures consistent performance in any environment, offering you peace of mind 24/7. Trust in HIKVISION to provide a professional-grade security experience with the clarity and flexibility you demand.

Main Features
* High-quality imaging with 4 MP, 2560 × 1440 resolution
* Advanced EXIR 2.0 infrared technology for superior night vision
* 20-meter IR distance for clear imaging in total darkness
* One port for four switchable signals (TVI/AHD/CVI/CVBS)
* Digital Wide Dynamic Range (DWDR) for balanced exposure
* Fixed focal lens options (2.8 mm, 3.6 mm, 6 mm)
* Day and Night functionality with an automatic IR cut filter (ICR)
* IP66 weatherproof rating for outdoor and indoor use

Attributes

Cameras
* High-Performance 4MP Sensor: Delivers video with four million pixels for sharp, detailed footage that allows for easier identification and digital zoom.
* Advanced EXIR 2.0 Night Vision: Utilizes a highly efficient light source and a revolutionary rectangular lens for evenly distributed IR illumination, eliminating dark corners and over-exposure common in standard IR cameras.
* Universal System Compatibility: The 4-in-1 signal output ensures that this camera can be easily connected to virtually any analog HD DVR, providing maximum flexibility for system integration and future upgrades.
* Durable Weatherproof Design: With an IP66 rating and a robust metal housing, the camera is fully protected against dust, rain, and harsh weather conditions, guaranteeing long-term operational reliability.

Technical Specifications

Camera
* Image Sensor: 4 MP CMOS
* Max. Resolution: 2560 (H) × 1440 (V)
* Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
* Shutter Time: PAL: 1/25 s to 1/50.000 s; NTSC: 1/30 s to 1/50.000 s
* Day & Night: ICR (Infrared Cut Filter)
* Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
* Lens Type: Fixed Focal Lens
* 2.8 mm, horizontal FOV: 100.2°, vertical FOV: 55.1°, diagonal FOV: 118.9°
* 3.6 mm, horizontal FOV: 88°, vertical FOV: 48.6°, diagonal FOV: 105.9°
* 6 mm, horizontal FOV: 56.9°, vertical FOV: 31.5°, diagonal FOV: 66.2°
* Lens Mount: M12

* Image Settings: Brightness, Sharpness, DNR, Mirror, Smart IR
* TVI: 4 MP @ 25fps/30fps
* AHD: 4 MP @ 25fps/30fps
* CVI: 4 MP @ 25fps/30fps
* CVBS: PAL/NTSC
* Wide Dynamic Range (WDR): Digital WDR
* Image Enhancement: BLC (Backlight Compensation)
* White Balance: ATW/MWB
* AGC: Supported

Interface
* Video Output: 1 HD analog output (Switchable TVI/AHD/CVI/CVBS)

General
* Material: Metal
* Dimensions: Ø 85.4 mm × 76.12 mm (Ø 3.36" × 3.00")
* Weight: Approx. 330 g (0.73 lb.)
* Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
* Power Supply: 12 VDC ±25%
* Power Consumption: Max. 4 W
* Protection: IP66
