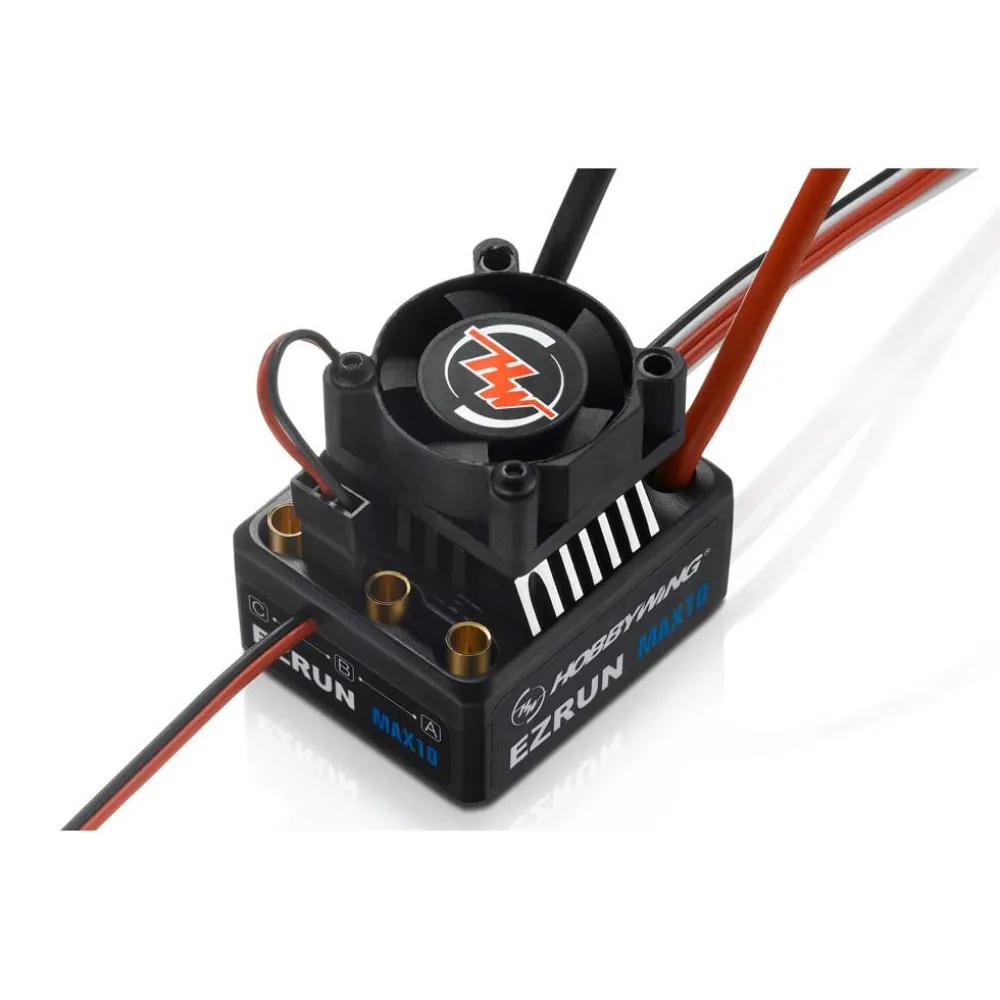

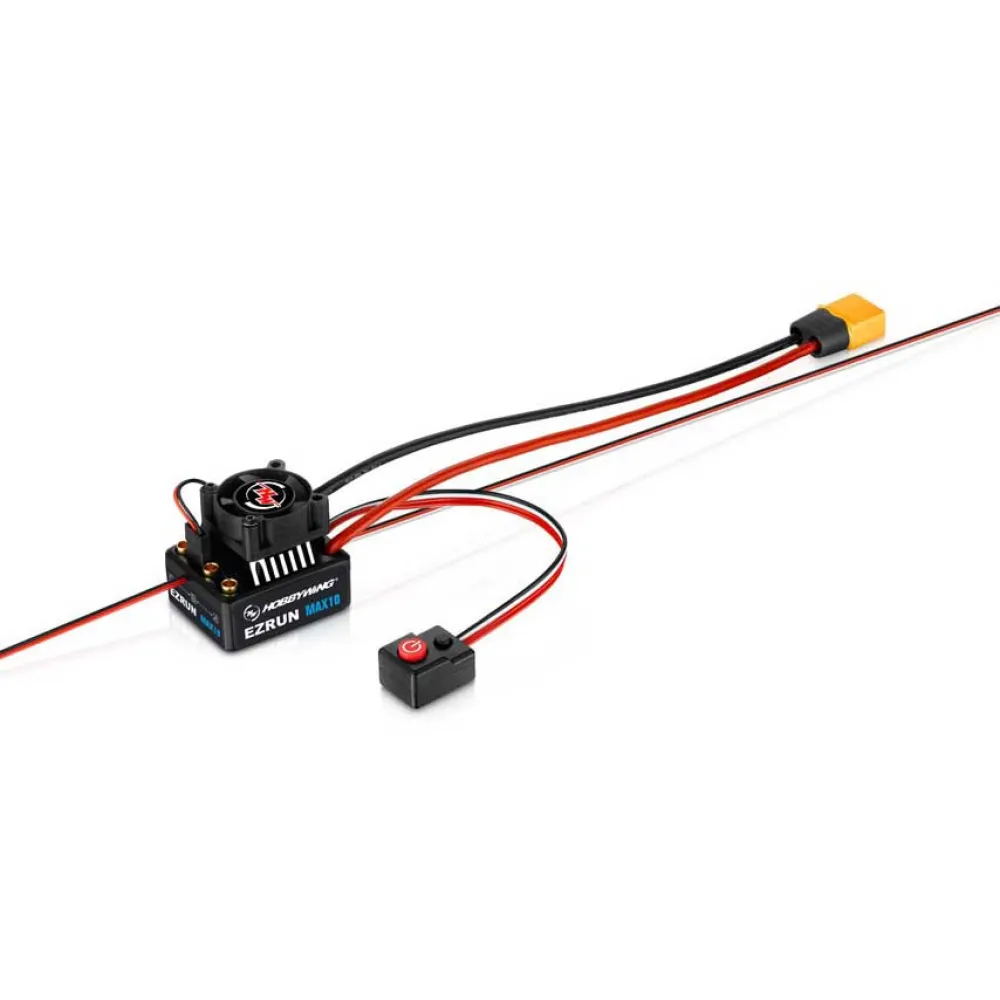

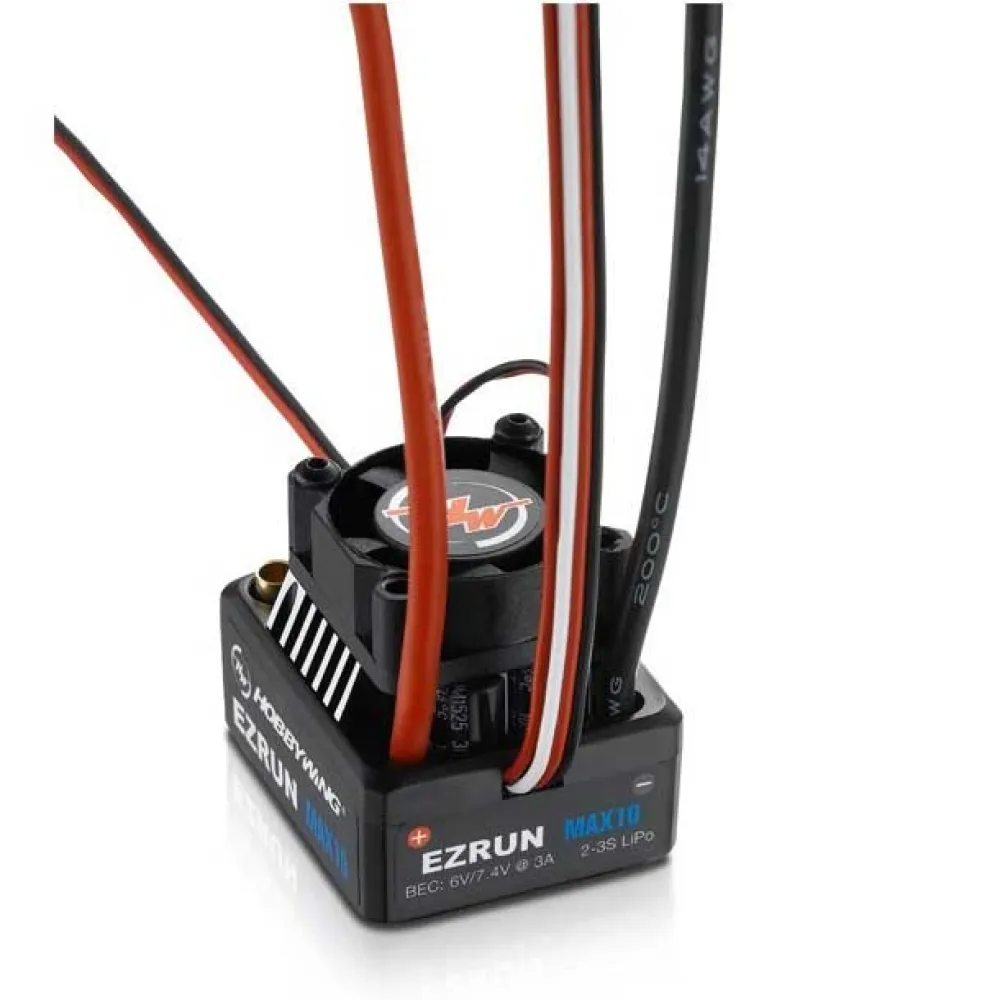

Hobbywing Ezrun Max10 60A Waterproof electronic speed controller

Ezrun Max10 60A Waterproof Speed Controller HW30102602 .

-The MAX10 features a Motor Thermal Protection circuit (in Sensorless Mode).

When paired with a matching Hobbywing motor (i.e., EzRun 3652/3660 G2 motor), the temperature sensor cable on the ESC will monitor the motor temperature and protect it from irreversible damage due to overheating in real time.

-Capacitor Thermal Protection The capacitor thermal protection first implemented in the MAX10 effectively safeguards capacitors from dielectric failure that could cause irreversible damage to the ESC due to overload.

-High Reliability .

Durability Constructed with high-quality components and advanced firmware, the MAX10 delivers unmatched power and performance for even the most extreme racing applications, while also being responsive enough to protect itself from damage due to overloading caused by physical abuse, overuse, or even human error.

-Super Internal BEC The built-in switch mode BEC with a maximum output of 6A and adjustable voltage between 6V and 7.4V allows for the use of various high voltage servos.

-Applicable to All Weather Conditions The waterproof and dust-proof design enables the MAX10 to be used in all weather conditions without any risk of damage to the ESC from water or debris.

-Advanced and Secure Electronic Switch The MAX10 features an electronic switch with a lifespan of over 50,000 on/off cycles, housed in a completely waterproof, dust-proof, and shock-resistant design.

-Regular Firmware Updates Free of Charge You can upgrade the MAX10 using the Hobbywing WiFi/USB LINK software, a WiFi module/LED or LCD program box, and a smartphone/laptop.

Hobbywing regularly updates its ESC firmware, providing you with upgraded features more frequently when available.

- Specifications .

Type Scale - 1/10th Brushed/Brushless - BL Sensored/Sensorless - SL Waterproof - Yes.

-Cont./Peak Current - 60A/450A Input Voltage - 2-3S LiPo/6-9 Cells NiMH BEC Output - Switch Mode:

6V/7.4V, 3A.

- Wires .

Connectors Input Wires - Red-14AWG-200mm*1/Black-14AWG-200mm*1 Output Wires - Black-14AWG-200mm*3 Input Connectors - None Output Connectors - 3.5 Bullet Connectors (Female) (Note:

All wire lengths above are the original lengths, not the lengths visible from the outside.).

- Fan Size - 25.0x25.0x10.0mm Voltage Range - 5-7.4V Powered by - BEC.

- ESC Programming via SET Button on ESC - Supported LED Program Box - Supported LCD Program Box - Supported WiFi Module - Supported Program Port - PRG/Fan Port.

- Firmware Firmware Upgrade - Supported.

- Size .

Weight Size - 39.4x32.8x23.1mm Weight - 67.8g.

- Applications Motors SL BL Motors/SD BL Motors (only in SL mode) Vehicles 1/10th Buggy, On-road, and Lightweight 2WD SCT, Truck, and Monster Truck KV Rating/T Count 2S LiPo:

KV=6000.

3S LiPo:

KV=4000 (3652 Series of Motors)  .
