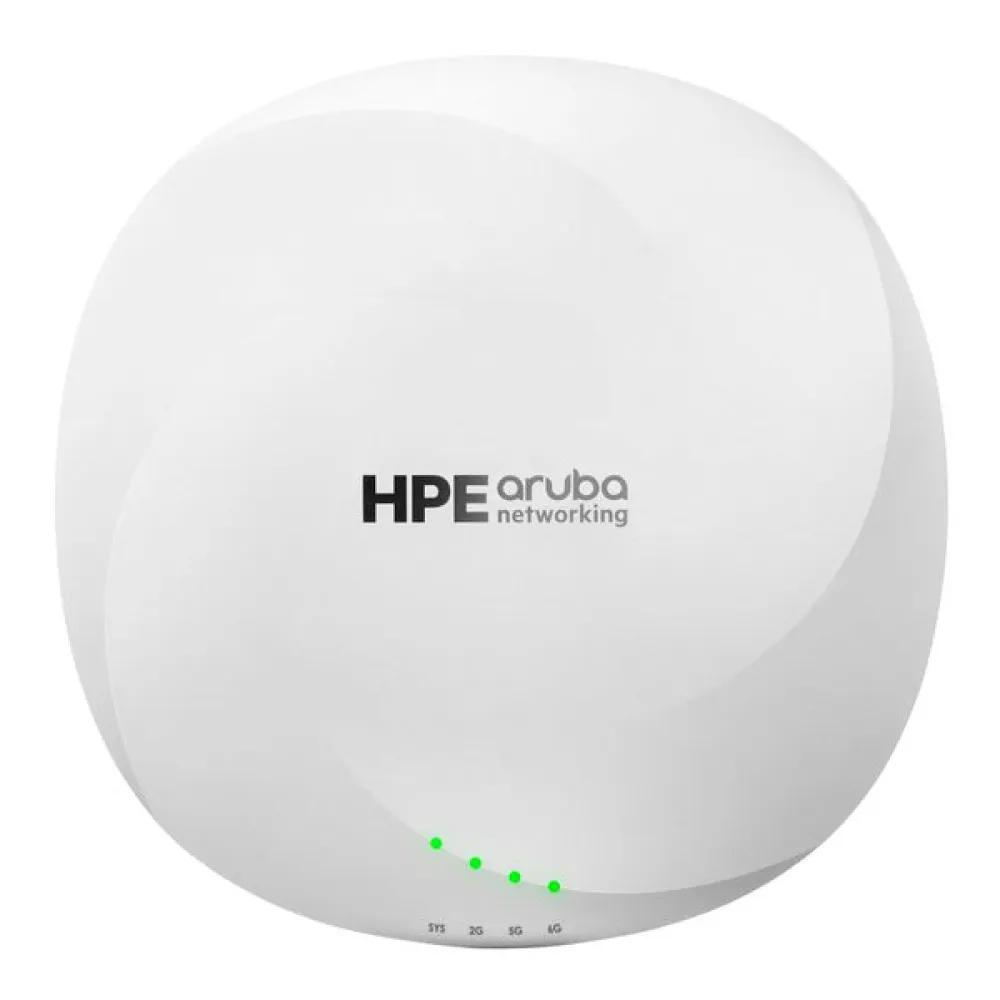

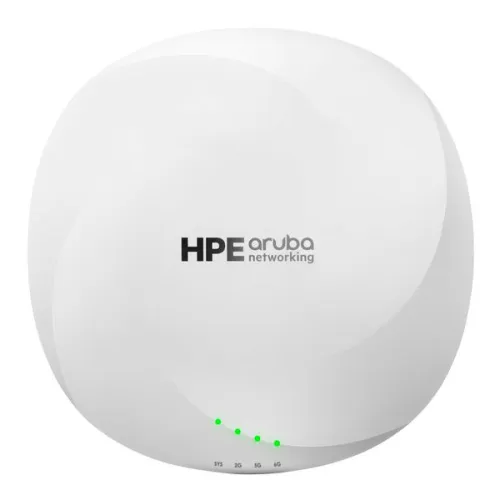

Hpe AP-635 WIFI Access Point

HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled, allowing enterprises to meet needs today and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables.

The 630 series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor (LPI) use. With up to seven 160 MHz channels, the 630 series increases performance for low-latency, bandwidth-hungry applications. The ultra tri-band (UTB) filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel coverage. To ensure high availability, the 630 series includes dual port hitless failover for Ethernet and power.

What´s New:
- Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band accessing up to 1200 MHz of spectrum
- Wider channels and less interference to deliver faster speeds for low-latency, bandwidth-hungry applications like high-definition video and augmented reality / virtual reality
- Unique filtering capabilities to mitigate gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands
- High availability with hitless failover for Ethernet and power to help ensure business continuity
- Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E, once it is approved in the country

More Capacity and Wider Channels with Wi-Fi 6E:
- The HPE Aruba Networking 630 Series Campus Access Points deliver a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds.
- With up to seven 160 MHz channels, the APs help maximize performance for low-latency, bandwidth-hungry applications.
- It is designed for low power indoor (LPI) environments.

Less Interference and Fewer Coverage Gaps:
- The HPE Aruba Networking 630 Series Campus Access Points provide comprehensive tri-band coverage using three radios.
- The unique ultra tri-band (UTB) filtering mitigates interference among 5 GHz and 6 GHz radios and prevents gaps in channel coverage.
- Since only Wi-Fi 6E devices can operate in the 6 GHz band, it is less congested with no interference from legacy devices.

Extends capabilities of Wi-Fi 6 (802.11ax) APs:
- HPE Aruba Networking 630 Series Campus Access Points are based on the 802.11ax standard so multiuser efficiency and security features are applied to Wi-Fi 6E.
- Unique capabilities include HPE Aruba Networking ClientMatch, advanced cellular coexistence (ACC), and intelligent power monitoring (IPM) to optimize user experience and energy use.

Ensures Business Continuity and High Availability:
- High availability with two HPE Smart Rate Ethernet ports offer true hitless failover for both data and power.
- Cloud, controller, or controllerless operation modes address all campus, branch, and remote use cases.

Specifications:

- Deployment: Indoor
- Wi-Fi generation: Wi-Fi 6E (802.11ax with 6 GHz)
- Wi-Fi radios: Triple 2x2
- Radio configuration options: 2.4 GHz and 5 GHz and 6 GHz
- Max bandwidths and peak data rate per band: 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps
- Wi-Fi antenna: Two integrated dual-band downtilt omnidirectional antennas for 2x2 MIMO with peak antenna gain of 4.6 dBi in 2.4 GHz, 7.0 dBi in 5 GHz and 6.3 dBi in 6 GHz. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.9 dBi in 2.4 GHz, 4.9 dBi in 5 GHz and 4.3 dBi in 6 GHz.
- Ultra tri-band (UTB) filtering: Yes
- IoT support: IEEE 802.15.4/Zigbee or Bluetooth 5.0, USB port
- Location services: 802.11 FTM support; GNSS receiver
- Cellular support: USB LTE modem (sold separately)
- Wired network interface: 2 x 2.5GbE

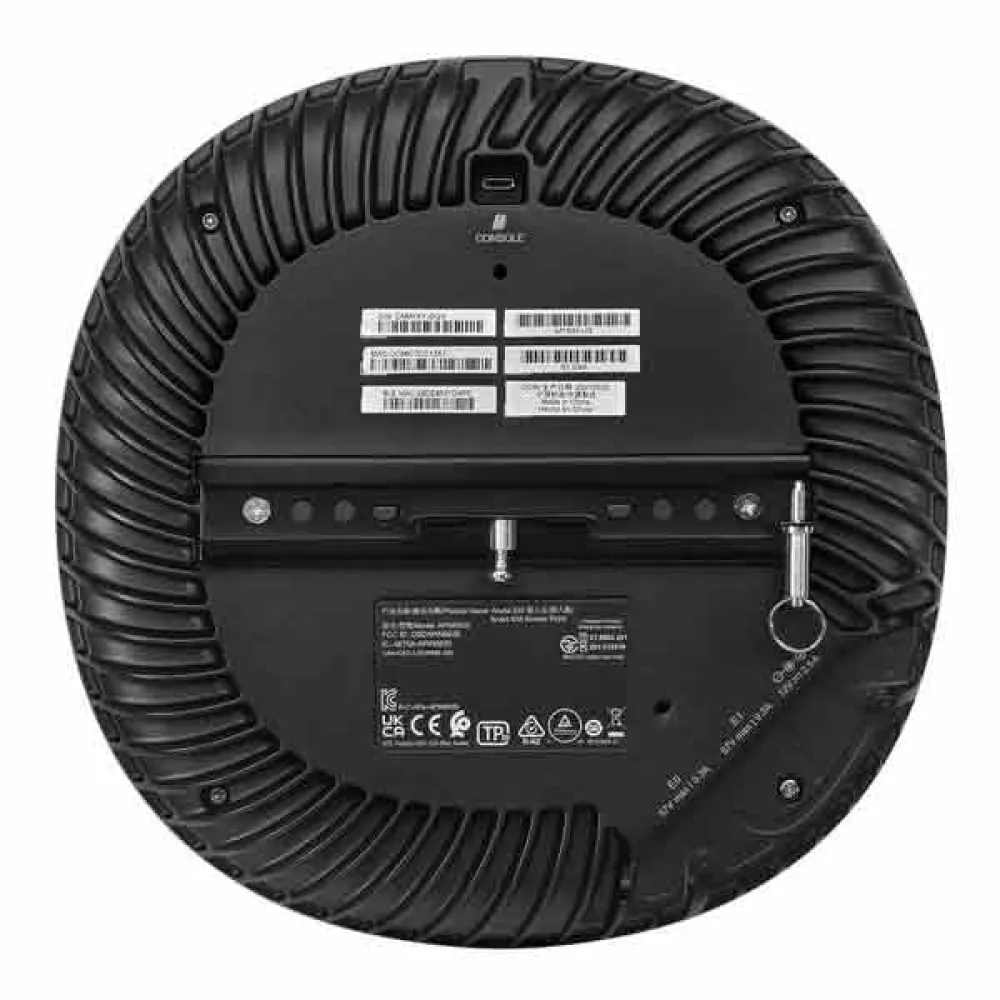

- Ports: E0, E1: Two Ethernet wired network ports (RJ-45)
- USB 2.0 host interface (Type A connector)
- Serial console interface (proprietary, micro-B USB physical jack)
- Kensington security slot
