Hpe JL817A switch

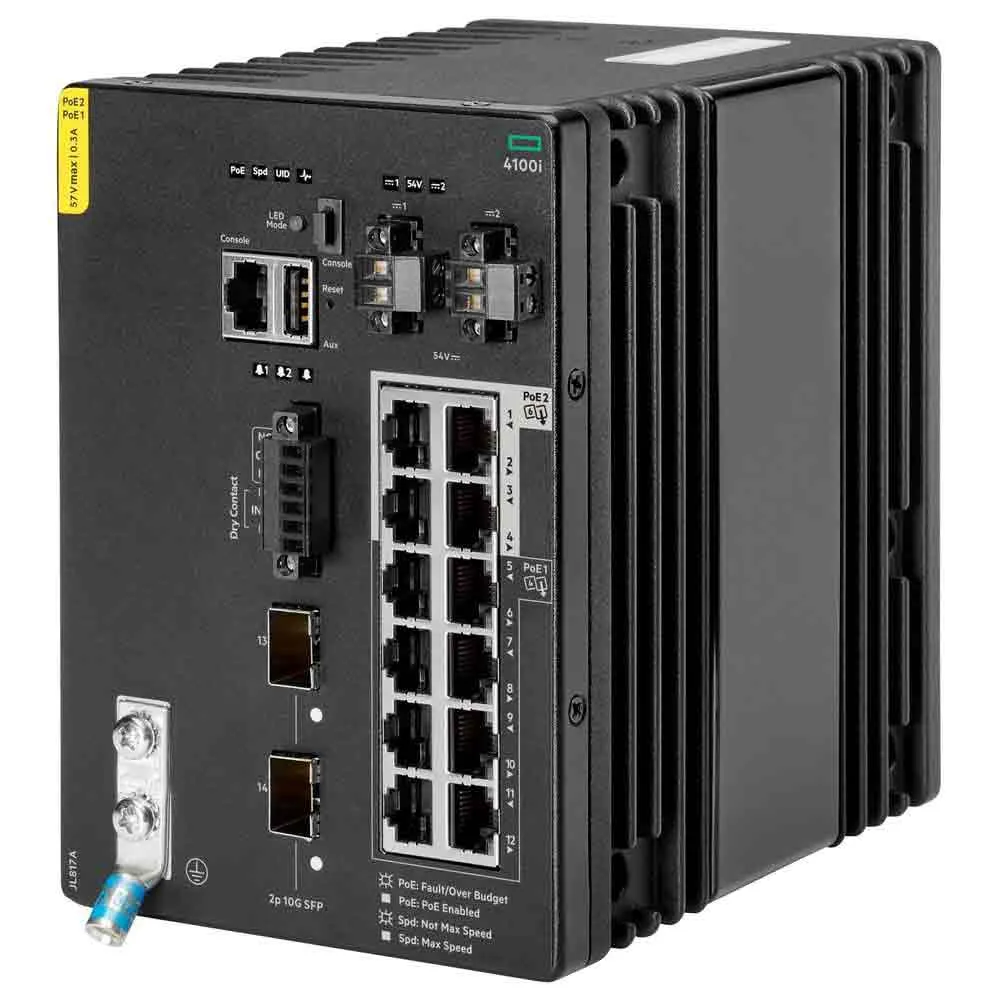

EU PlugHPE Aruba Networking CX 4100i 12p 1GbE 8p Class4 PoE and 4p Class6 PoE 2p SFP+ DIN Mount Switch The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments.

What´s New:

- Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.

- Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.

- Layer 2 feature set with static routing and no switch software licensing required.

- HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.

- Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.

- HPE Aruba Networking Virtual Switching Framework (VSF) now available to scale up local network resources and resiliency requirements.

Ruggedized Access Switch Series:

- The HPE Aruba Networking CX 4100i Switch Series provides IP30 Ethernet connectivity with high speed uplinks, 30W and 60W PoE, to securely extend the enterprise network and support IoT in harsh environments.

- Uses the HPE Aruba Networking CX Switch Operating System (AOS-CX) for a simpler, more consistent operator experience with capabilities fit for ruggedized access.

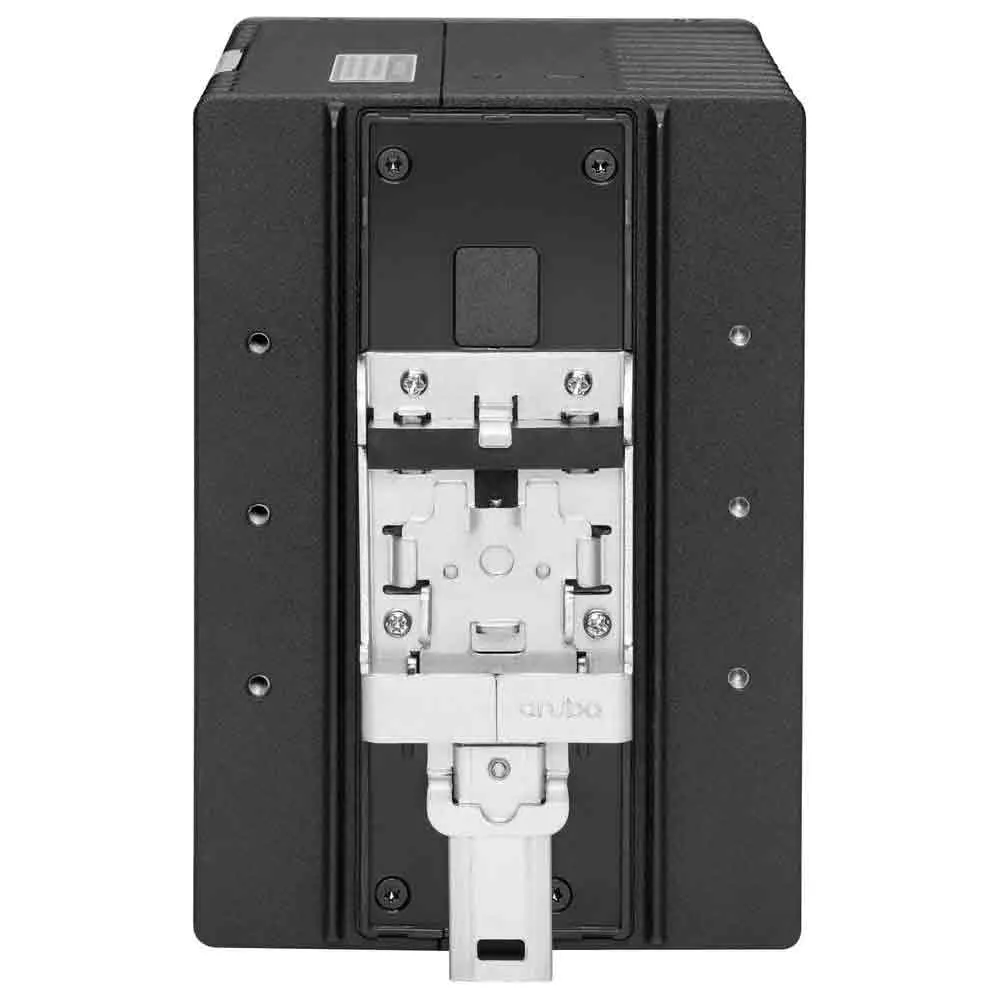

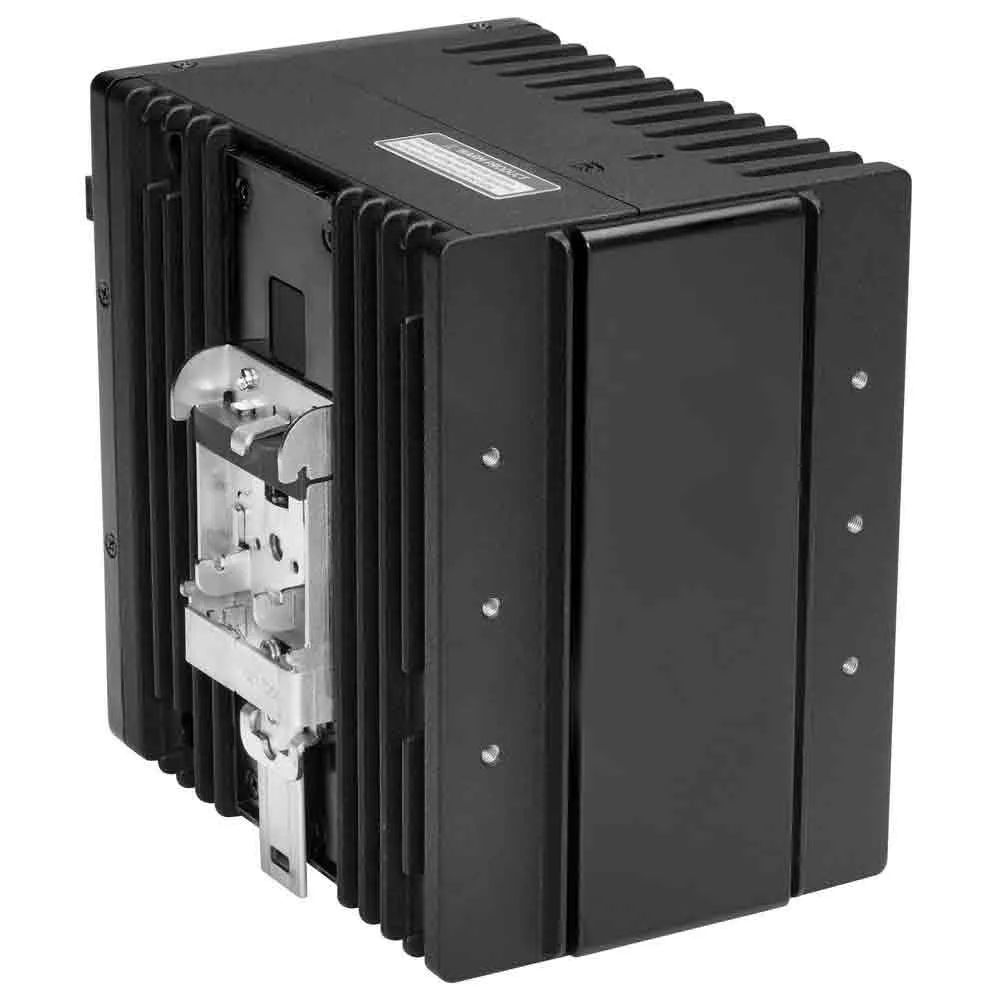

- Achieve versatile deployment with fanless 12 port DIN rail mount and 24 port 1U rack mount models with built-in 1/10 GbE uplinks and up to 360W Class 4 and Class 6 PoE.

- Fully-managed enterprise class switches deliver Layer 2 capabilities with support for static routing, ACLs, robust QoS, traffic prioritization, and IPv6 support.

- Simplifies ownership with no switch software licensing or subscriptions required.

AI-ready performance and power:

- The HPE Aruba Networking CX 4100i Switch Series is designed with ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption needed to support AI, Wi-Fi 7, and IoT requirements.

- Deploy IoT devices and wireless access points in harsh environments with models that support up to 360W IEEE 802.3at Class 4 and IEEE 802.3.bt Class 6 Power over Ethernet.

- Built-in wire speed 1/10 GbE uplinks remove bottlenecks at the access layer where devices connect.

- Operational in extended temperatures from -40°C to 70°C using HPE Aruba Networking´s industrial transceivers.

Simplified Configuration and Management:

- The CX 4100i series provides flexibility to manage and simplify configurations with HPE Aruba Networking Switch Multi-Edit Software, easy to use built-in web GUI, or industry standard CLI.

- HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.

- Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.

- Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance stacking.

Specifications:

- Differentiator8 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port - 2 x 1/10G SFP ports - 2 x DC power socket Power consumption With JL819A PSU:

- Idle:

22W - 100% Traffic Rate:

26W - 100% Traffic Rate (w/ heater):

55W With JL820A PSU:

- Idle:

24W - 100% Traffic Rate:

28W - 100% Traffic Rate (w/ heater):

57W With JL821A PSU:

- Idle:

22W - 100% Traffic Rate:

27W - 100% Traffic Rate (w/ heater):

56W - Note:

Heater will only turn on at extreme low temperature condition.

Heat dissipation:

With JL819A PSU:

- 89 BTU/hr at 230V Room temperature (25°C) With JL820A PSU:

- 95 BTU/hr at 230V Room temperature (25°C) With JL821A PSU:

- 94 BTU/hr at 48V Room temperature (25°C) - Input voltage AC voltage:

100V-240V (JL819A and JL820A) - DC voltage:

12V-48V nominal, UL Certified to:

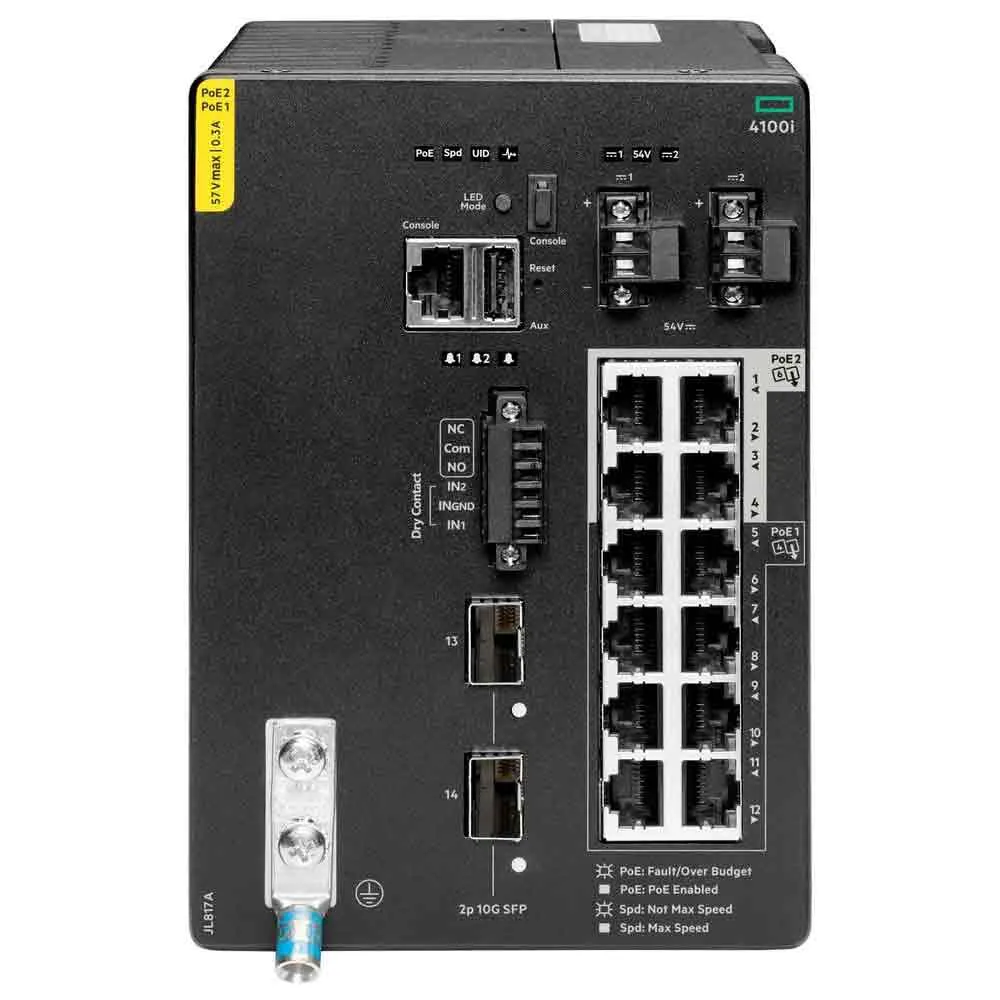

11V-55V (JL821A) - Ports4 x 100M/1G Base-T Class 6 PoE ports, supporting up to 60W per port - 8 x 100M/1G Base-T Class 4 PoE ports, supporting up to 30W per port - 2 x 1G/10G SFP ports - 1 x USB-C console port - 1 x RJ45 console - 1 x USB Type-A host port - 1 x Alarm socket - Latency 1 Gbps:

2.390 μSec , 10 Gbps:

2.038 μSec - Average Latency (LIFO-64-bytes packets) - Switching capacity Up to 128 Gbps depending on the model - Stacking capabilities No stacking capability - Throughput Up to 95 Mpps depending on the model - Memory and processor CPU:

Dual Core Arm® Cortex-A9 @ 1016 MHz - Memory and flash:

4 GB DDR3 32 GB eMMC - Power supply:

Field replaceable Industrial DIN Rail Power Supplies Supported PSUs:

JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non-sharing See external PSU specification table for available PoE power - PoE capability:

Refer to Installation and Getting Started Guide for the PoE budget setup.

Operating temperature:

- 40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) - 40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) - 34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)
