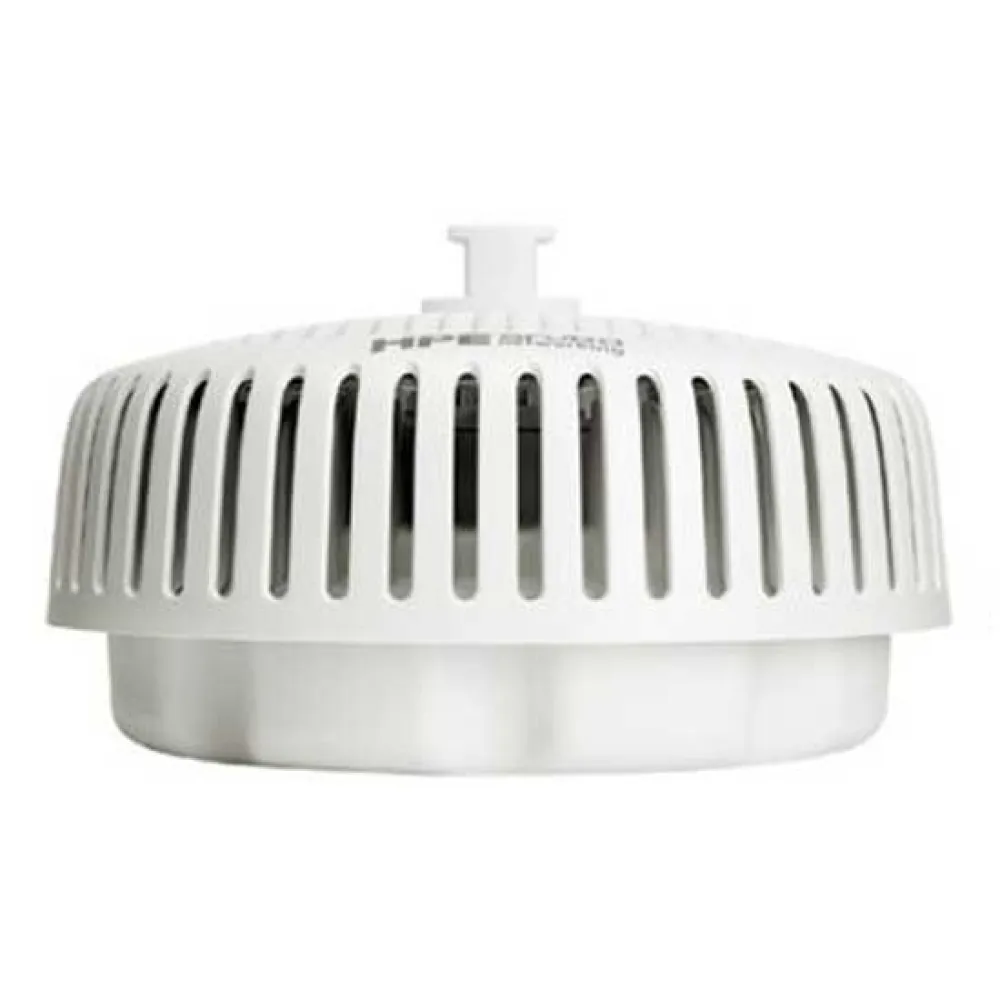

Hpe S0P56A WIFI Access Point

The HPE Aruba Networking 670 Series Outdoor Access Points bring high performance Wi-Fi 6E to outdoor and environmentally challenging locations. The 670 series delivers more wireless capacity and wider channels taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the speed and reliability needed by enterprise and industrial Internet of Things (IoT) environments.

The 670 series is weatherproof, temperature hardened, and ready for hazardous environments. With integrated high-power Bluetooth and Zigbee radios, fast wired connectivity, and a limited lifetime warranty, the access points provide high performance outdoor connectivity you can depend on, delivering up to 3.9 Gbps peak aggregate data rate with a tri-radio 2x2:2 MIMO AP. This series includes the 670EX models that are designed for the most extreme, hazardous locations.

What´s New:
- High performance outdoor Wi-Fi 6E access points ideal for outdoor and environmentally challenging locations
- It delivers up to 3.9 Gbps peak aggregate data rates with a tri-radio 2x2:2 MIMO
- 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications
- High-power Bluetooth and Zigbee radios to meet Industrial IoT requirements
- Flexible and fast-wired connectivity with 2.5GbE port and 1GbE SFP port. The series includes models with internal antennas and new connectorized model that supports external antennas.
- Self-locating with embedded GPS receiver and will operate as standard power (SP) device

High Performance Outdoor Wi-Fi 6E:
- HPE Aruba Networking 670 Series Outdoor Access Points operate as standard power (SP) devices and deliver greater efficiency with OFDMA, MU‑MIMO, and target wake time (TWT) to extend the battery life of devices.
- The 670 series provides fast performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps peak combined data rate to better support high-bandwidth, low-latency applications such as high-definition video.
- It is self-locating with embedded GPS receiver and will operate as standard power (SP) devices that require an automated frequency coordination service (AFC) to protect incumbent outdoor services.
- Enhanced wireless experience with ClientMatch technology removes sticky client issues by steering a client to the AP where it receives one of the best radio signals.
- It offers convenient wired connectivity with fast 2.5GbE uplink port and 1GbE port.

Simplified Access with Enhanced Security:
- The HPE Aruba Networking 670 Series Outdoor Access Points offer enhanced security with dynamic segmentation to mitigate the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
- It offers network protection with stronger encryption and authentication with WPA3, secure credential/key storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEFs).
- It provides simplified policy enforcement with the PEF that encapsulates all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
- For enhanced device assurance, our access points include installed TPM for secure storage of credentials, keys, and boot code.

Ruggedized and Ready for IoT:
- The HPE Aruba Networking 670 Series Outdoor Access Points include integrated high-power Bluetooth and Zigbee radios to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.
- Ruggedized outdoor access points support extended temperatures to address the requirements of a broad range of surface, subsurface, and offshore applications. This series includes 670EX outdoor models that are designed for the most extreme, hazardous locations.
- The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention with other clients.
- Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi, Bluetooth, and Zigbee radios to operate at higher capacity without the impact of interference.
- The intelligent power monitoring (IPM) provides insights into energy consumption. Our APs continuously monitor and report hardware energy usage. Unlike the other vendors APs, our APs can also be configured to enable or disable capabilities based on available PoE power.

Specifications:

- Wi-Fi generation: Wi-Fi 6E (802.11ax with 6 GHz)
- Wi-Fi radios: Triple 2x2
- Radio configuration options: 2.4 GHz and 5 GHz, and 6 GHz
- Max band: widths and peak data rate per band20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps

Deployment:
- Outdoor
- Ruggedized
- Hardened

Wi-Fi antenna Internal antenna model:
- Built-in directional antennas
- 2.4 GHz antennas 6.9 dBi
- 5 GHz antennas 6.5 dBi
- 6 GHz antennas 6.9 dBi
- BLE/Zigbee: Integrated omnidirectional antenna with peak gain of 4.5 dBi
- IoT support: IEEE 802.15.4/Zigbee, Bluetooth 5.4, 2 x USB ports
- Location services: 802.11 FTM support; GNSS receiver
- Wired network interface: 1 x 2.5GbE, 1 x SFP
- Ports: Ethernet wired network port (RJ-45)
- SFP Fiber port
- USB 2.0 host interface (Type C connector)
- USB 2.0 host interface (Type A connector)
- Serial console interface (proprietary, USB-C physical jack)
- Power sources: PoE-PD
- AP operating system support: HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677)
- HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679)
- HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679)
- HPE Aruba Networking Instant OS 8.12.0.0 (Only AP-675, AP-677, and AP-679, no 6 GHz support with Instant OS)
- AP management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
