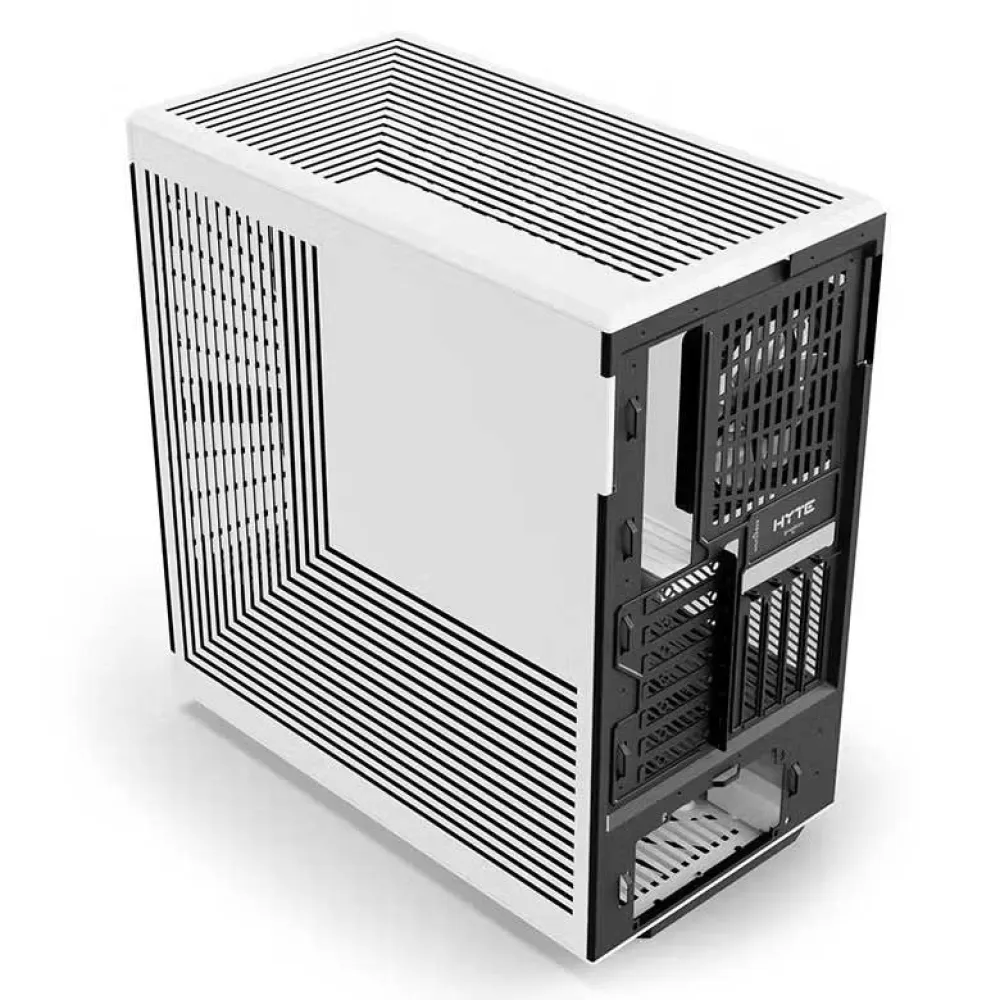

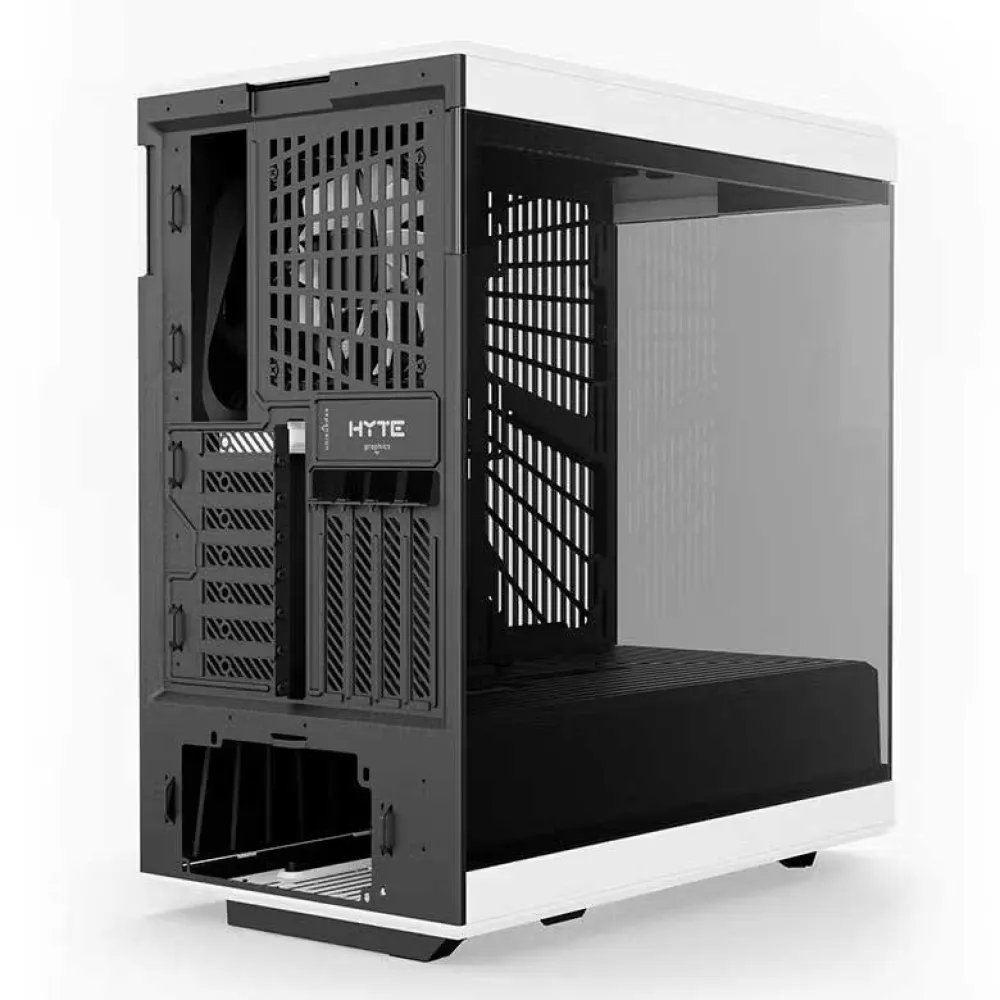

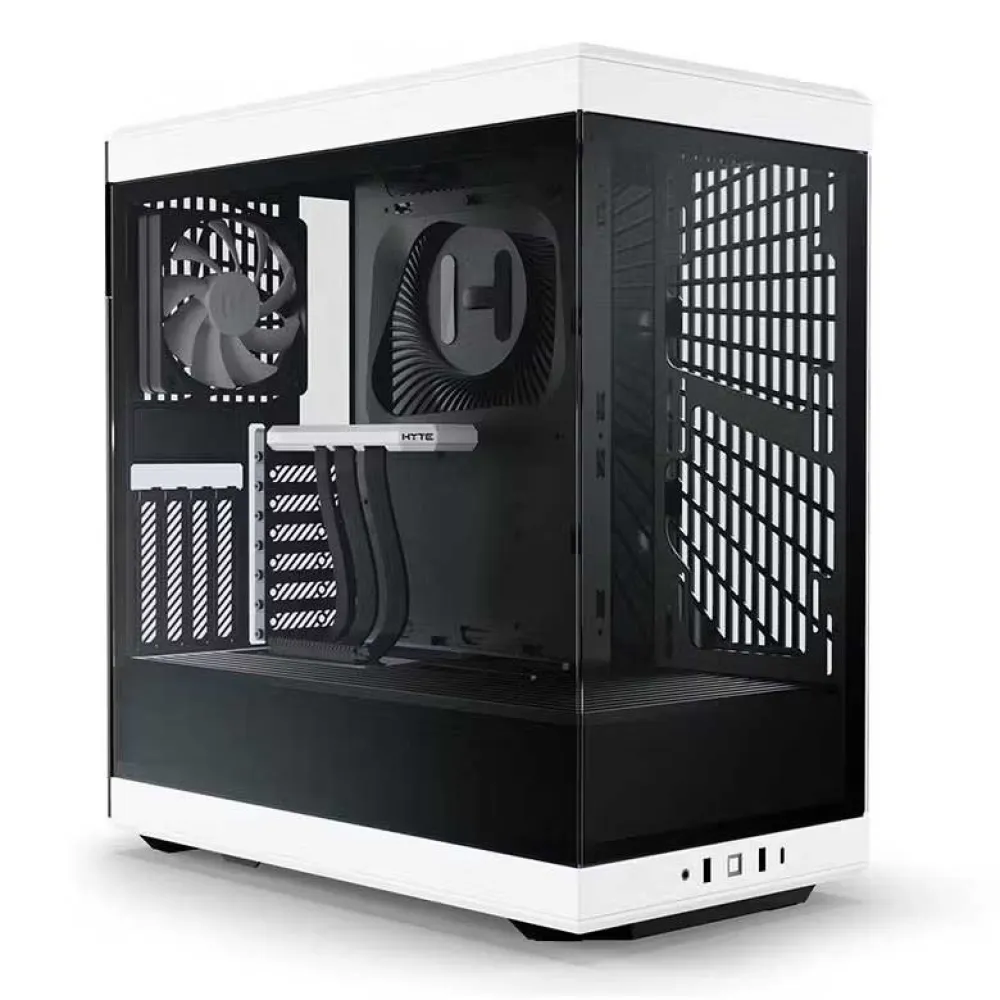

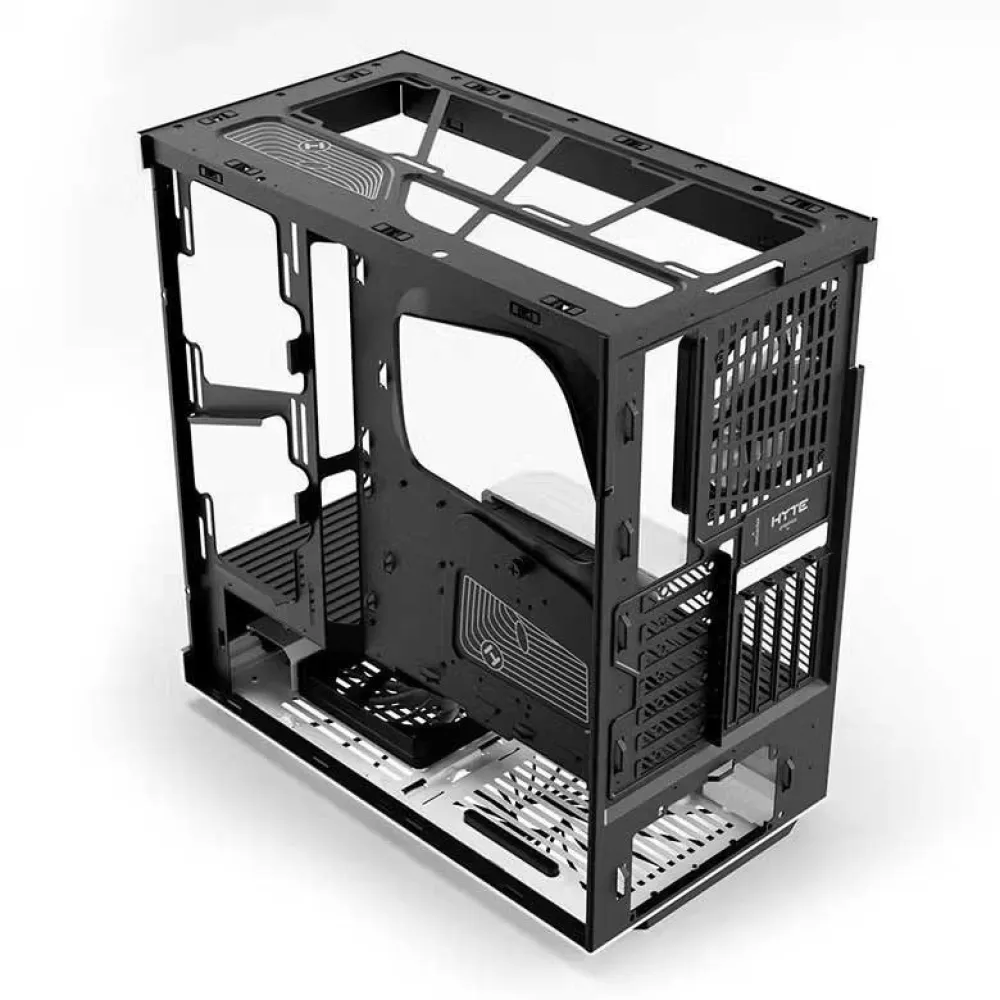

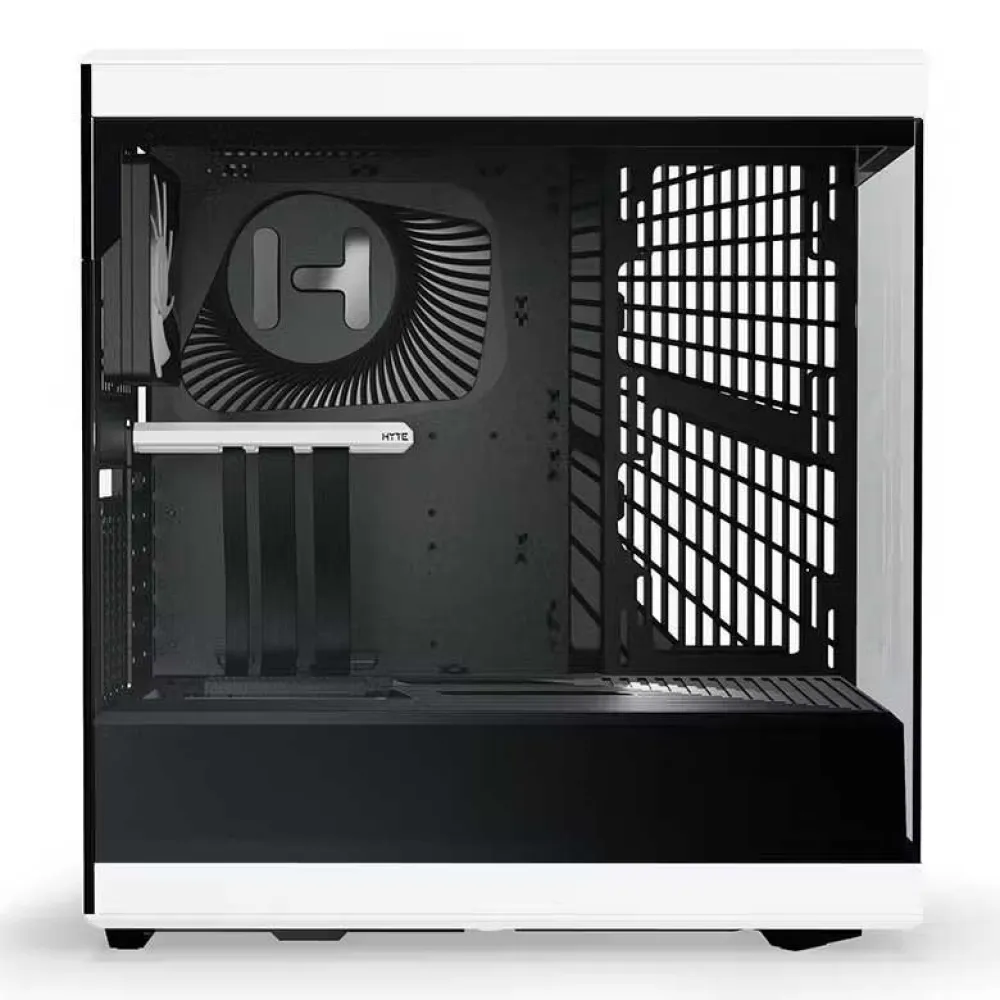

Hyte Y40 PC tower case

The new Y40 is designed to amaze and priced to thrill while defining new industry standards for ATX cases everywhere. Raise your expectations for multi-dimensional case design, next-gen GPU support, and overall system harmony today.


Features:

Multidimensional design:

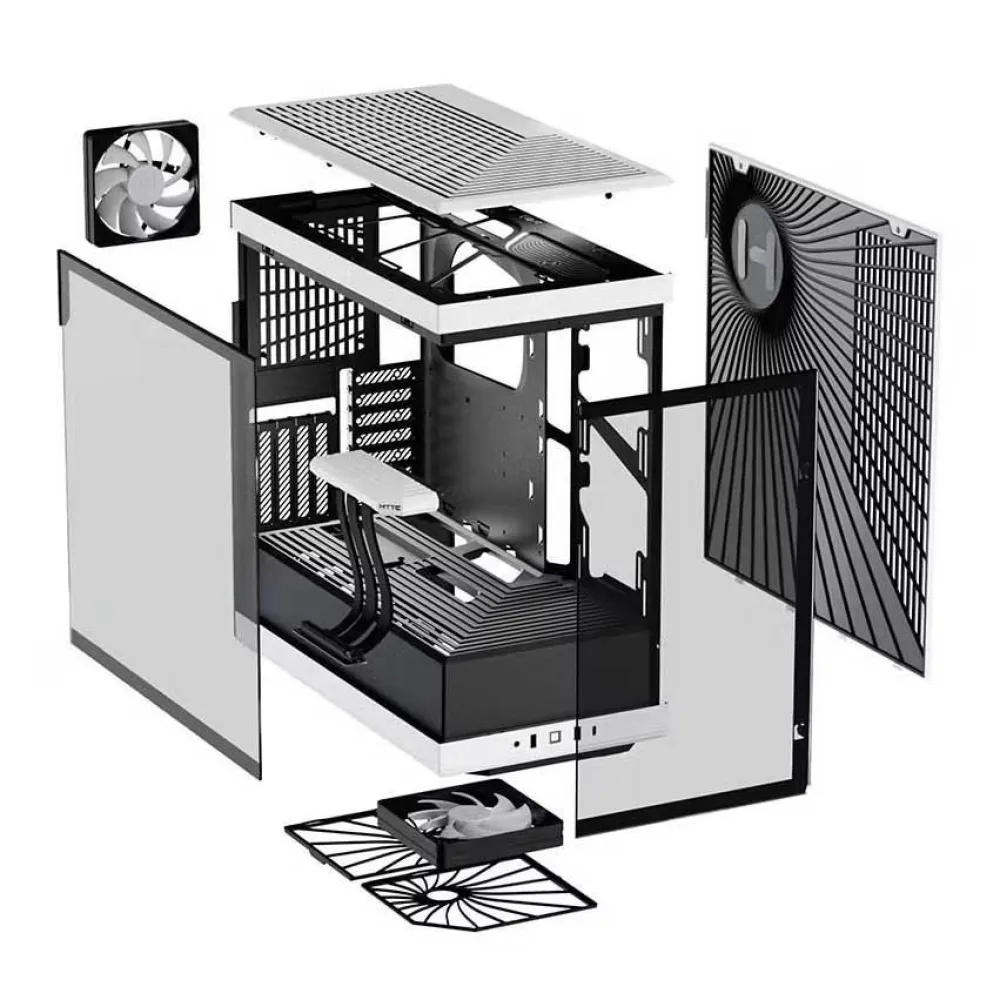

- Details connect every part into a deeply harmonious design structure. Every edge is adorned with tightly controlled chamfering for S-level aesthetics. 2-piece panoramic glass sets the stage for a completely unobstructed view of your system’s performance.

Support for gigantic vertical graphics:
- Y40 increases GPU support to a full 4 slots with additional airflow space between the edge of the card and the glass. An intake fan under the PSU shroud delivers cool air upward to the GPU to further improve cooling.

Deluxe PCIE 4.0 riser cable included:
- A vertical cable protection canopy seamlessly integrates into the case, allowing for half-height PCIE cards behind the vertical graphics card throne.

Cooling:

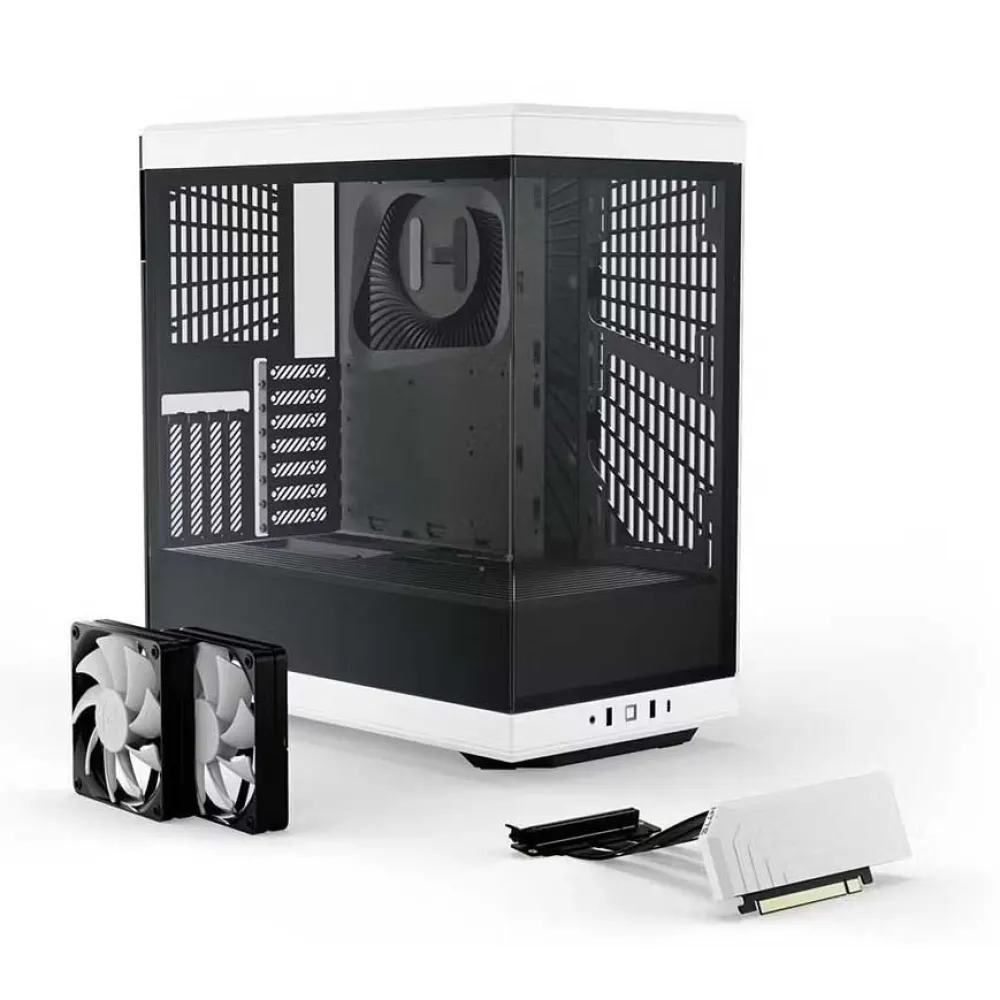

- Y40 comes with 2 pre-installed 120mm fans, one under the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm, allowing for large radiators over 60mm to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also provides support for large air coolers over 180mm in height, allowing for almost all CPU coolers on the market.


Specifications:

- Type: ATX Mid Tower
- Volume: 439mm x 240mm x 472mm
- Case dimensions: 439mm x 240mm x 472mm
- Motherboard support: ITX, mATX, ATX
- Power supply: ATX up to 224mm length
- Maximum video card dimensions: 422mm length, 94mm height (80mm or less height recommended for best cooling)
- Fan support (side): 2x 120mm/140mm
- Fan Support (Top): Top: 3x 120mm
- Fan Support (Rear): 1x 120mm (1x 120mm, 1300RPM included)
- Fan Support (Bottom): 1x 120mm/140mm (1x 120mm, 1300RPM included)
- Radiator Support (Side): 120, 140, 240, 280 mm up to 120 mm thick
- Radiator support (top): 120, 240, 360 mm
- Radiator support (rear): 120mm
- CPU cooler height: 183mm
- Storage: 1 x 3.5´´ HDD or 2 x 2.5´´ SSD
- Expansion slots?: 4 + 6 half-height

Interfaces:
- PCI Express Riser Cable: 4.0x16 (Included)
- Front USB 3.0: 2
- Front USB 3.2 Type-C: 1
