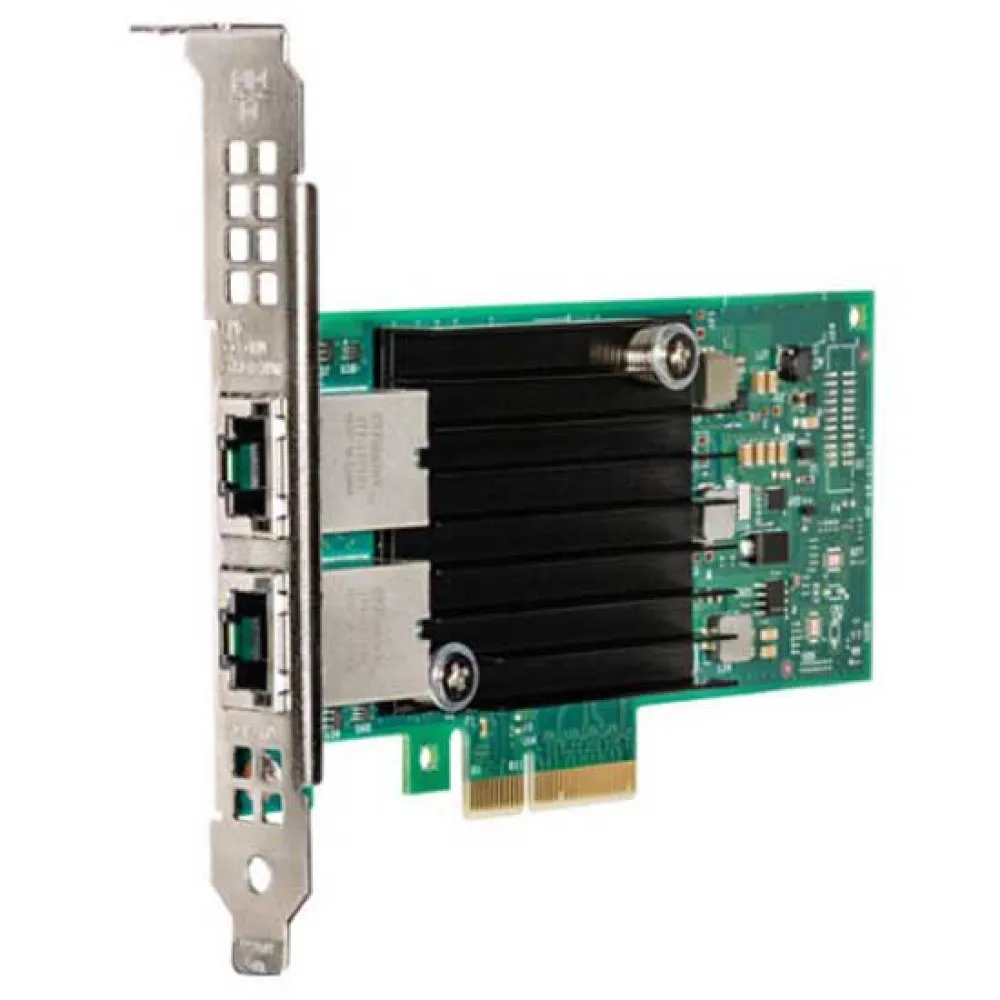

Intel X550T2G1P5 Network Card

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices.

With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

- Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines.

SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

- Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Specifications:

- Connectivity.

Technology:

Wired.

- Host interface:

PCI Express.

- Interface:

Ethernet.

- Ethernet LAN (RJ-45) ports:

2 Network:

- Maximum data transfer rate:

10000 Mbit/s.

- Networking standards:

IEEE 802.1Q,IEEE 802.1as,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad.

- Ethernet LAN:

Yes.

- Ethernet interface type:

5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet.

- Ethernet LAN data rates:

100,1000,2500,5000,10000 Mbit/s.

- Cabling.

Technology:

10GBase-T.

- VLAN tagging:

Yes.

- iSCSI support:

Yes.

- LAN controller:

Intel® X550 Design:

- Internal:

Yes.

- PCI Card form factor:

Half-height (low-profile) System requirements:

- Compatible operating systemsintel.com/support/Ethernet:

OS.

- Windows operating systems supported:

Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64.

- Linux operating systems supported:

Red Hat Enterprise Linux WS 5.0,Red Hat Enterprise Linux WS 6.0,SUSE Linux Enterprise Desktop 10,SUSE Linux Enterprise Desktop 11.

- Server operating systems supported:

Windows Server 2003,Windows Server 2008 R2,Windows Server 2008 R2 x64,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2012 R2 x64 Operational conditions:

- Operating temperature (T-T):

0.

- 55 °C Operational conditions:

- Storage temperature (T-T):

-40.

- 70 °C.

- Storage relative humidity (H-H):

0.

- 90% Other.

Features:

- Data transfer rate:

8 GT/s.

- Cable type:

RJ-45 Category-6 up to 55m.

Category-6A up to 100m.

- Number of VLANs:

4096.

- Intel Virtual Machine Device Queues (VMDq):

Yes.

- PCI-SIG SR-IOV Capable:

Yes.

- On-chip QoS and Traffic Management:

Yes.

- Intel Flexible Port Partitioning:

Yes.

- ntelligent Offloads:

Yes.

- iWARP/RDMA:

No.

- Fiber Channel over Ethernet:

Yes.

- Intel Data Direct I/O.

Technology:

Yes.

- Intel Virtualization Technology for Connectivity (VT-c):

Yes.

- Interface type:

PCIe v3.0 (8.0GT/s).

- Product type:

13.

- Status:

Launched.

- Desktop Management Interface (DMI) version:

2.0.

- Ethernet adapter ARK ID:

88209.

- Product family:

Intel 10 Gigabit server adapter.

- Product series:

Intel® Ethernet Converged Network Adapter X550 Series.
