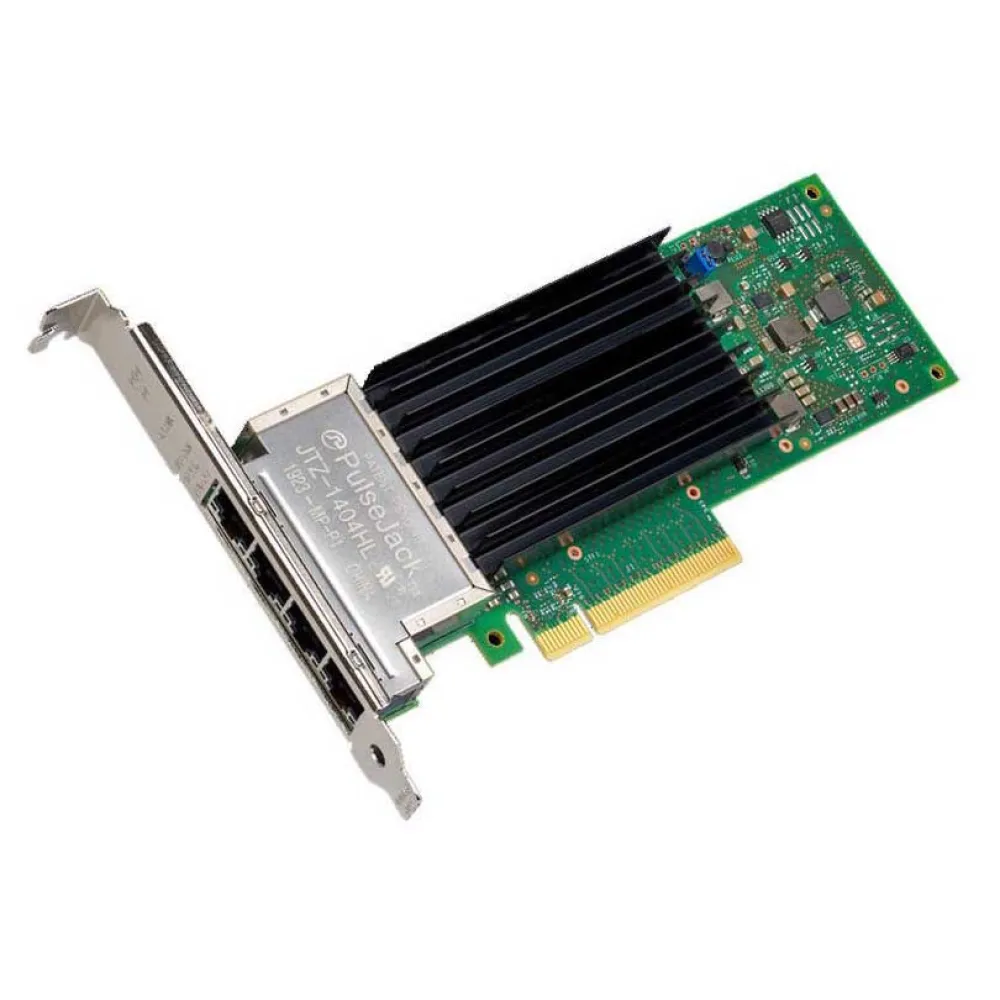

Intel X710-T4L PCI-E Expansion Card

INTEL X710-T4L PCI-E Expansion Card | Quad-Port 10GBASE-T Connectivity

Elevate your network infrastructure with the INTEL X710-T4L PCI-E Expansion Card, a high-performance connectivity solution designed to meet the demanding requirements of modern data centers, cloud deployments, and enterprise networks. This quad-port 10GBASE-T adapter delivers exceptional throughput and advanced features on a low-power, single-chip architecture. As a critical component for server and storage systems, it provides a reliable and scalable path to 10GbE, effectively eliminating I/O bottlenecks and optimizing application performance. This card is an ideal choice for environments that require flexible, high-speed connectivity over standard copper cabling.

The INTEL X710-T4L is engineered for versatility and efficiency. Its backward compatibility with existing 1000BASE-T networks simplifies migration, while its support for multi-gigabit speeds (10G/5G/2.5G/1G/100Mbps) ensures you can adapt to evolving network demands without a complete overhaul. This makes it one of the most adaptable and future-proof Expansion cards available for any PCIe-enabled system.

Key Benefits:

* Maximized Throughput and Port Density: With four 10GbE ports, this adapter provides massive bandwidth for demanding applications, server consolidation, and network-intensive workloads, all within a single PCIe slot.
* Flexible, Future-Proof Connectivity: Achieve broad interoperability with support for multiple network speeds over standard RJ45 copper connections, enabling a seamless and cost-effective upgrade path from 1GbE to 10GbE.
* Optimized for Virtualized Environments: Enhance VM density and performance with Intel® Virtualization Technology for Connectivity (VT-c), which provides I/O offloads like SR-IOV and VMDq to reduce CPU utilization and improve overall system efficiency.
* Accelerated Data Storage Access: The card offers unified networking capabilities, supporting iSCSI, FCoE, and NFS protocols to provide high-speed, reliable access to network-attached Data storage and SANs.
* Ultra-Low Latency Performance: Leverage Remote Direct Memory Access (RDMA) through both iWARP and RoCEv2 protocols to provide direct memory-to-memory data transfers, significantly reducing latency and CPU overhead for applications like high-performance computing (HPC) and financial services.
* Enhanced Data Center Efficiency: Designed with a low-power profile and support for Energy Efficient Ethernet (EEE), the X710-T4L helps reduce operational costs by minimizing power consumption and cooling requirements.

Main Features:

* Quad RJ45 Ports for broad compatibility
* PCI Express (PCIe) 3.0 x8 Host Interface
* Multi-Gigabit Ethernet Speed Support
* Intel® Virtualization Technology for Connectivity (VT-c)
* Single Root I/O Virtualization (SR-IOV)
* Virtual Machine Device Queues (VMDq)
* Intel® Data Direct I/O Technology (DDIO)
* RDMA support with iWARP and RoCEv2
* Intelligent Offloads for TCP/UDP/IP checksum and segmentation
* Unified Networking for Data storage (iSCSI, FCoE, NFS)
* Energy Efficient Ethernet (EEE)
* Low Profile and Full Height bracket compatibility
* Jumbo Frame Support

Technical Specifications:

* Product Code: X710-T4L
* Port Configuration: Quad Port
* Data Rate Per Port: 10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE
* System Interface Type: PCIe 3.0 (8.0 GT/s)
* Interface Width: x8 Lane
* Cabling Type: Cat 6 up to 55m; Cat 6A up to 100m
* Bracket Height: Low Profile and Full Height
* Virtualization Support: SR-IOV, VMDq
* Storage over Ethernet: iSCSI, NFS, FCoE
