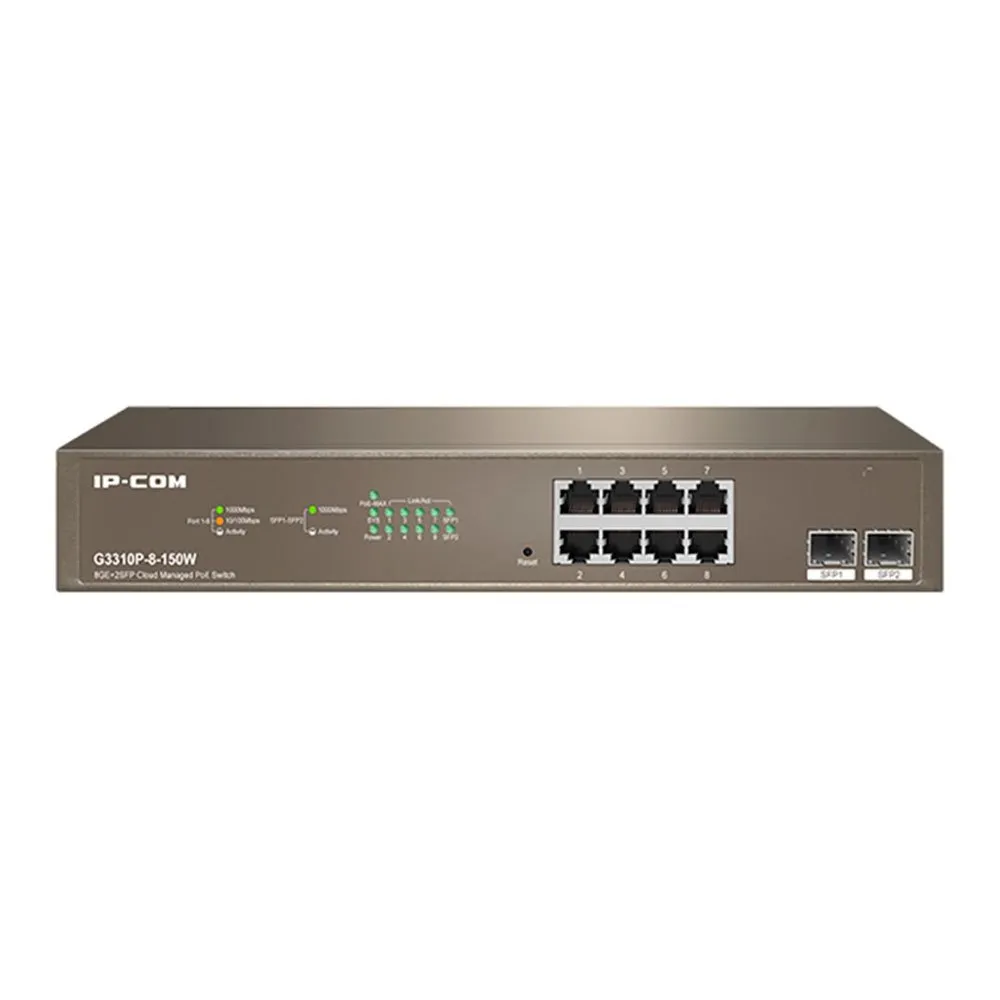

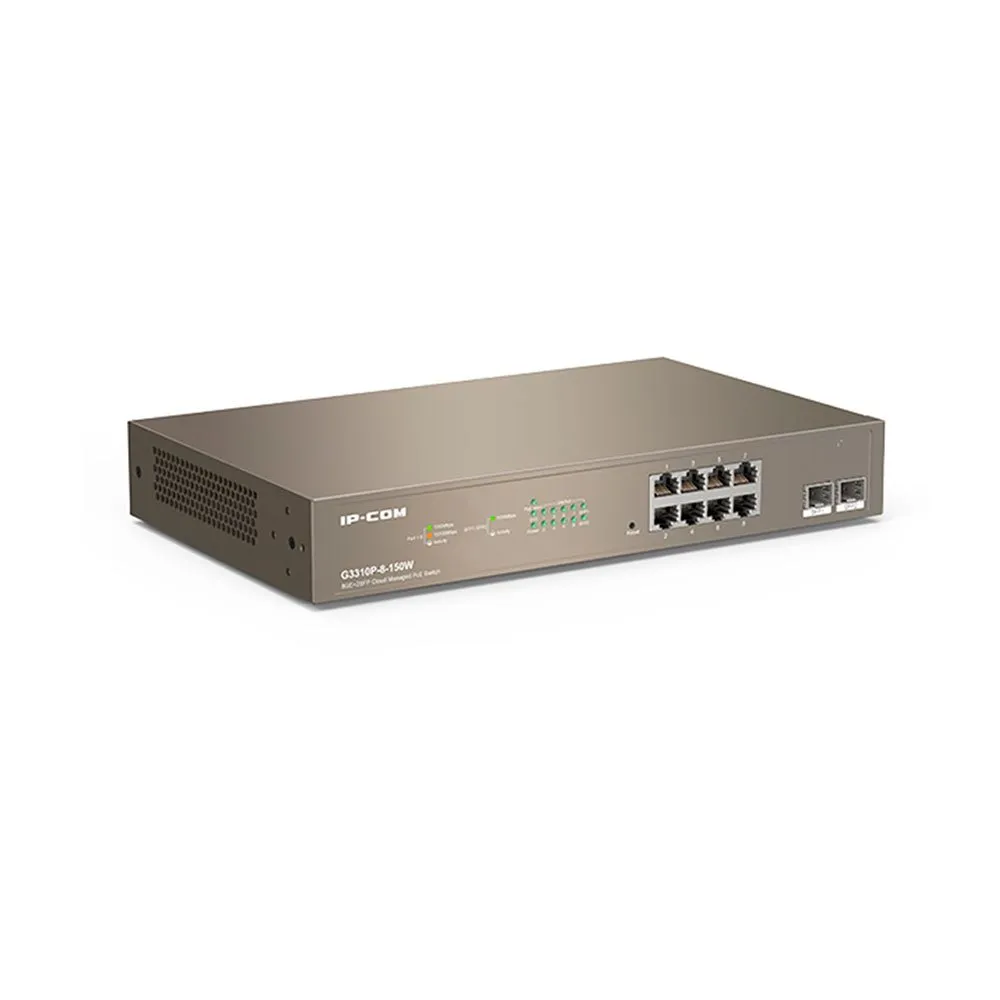

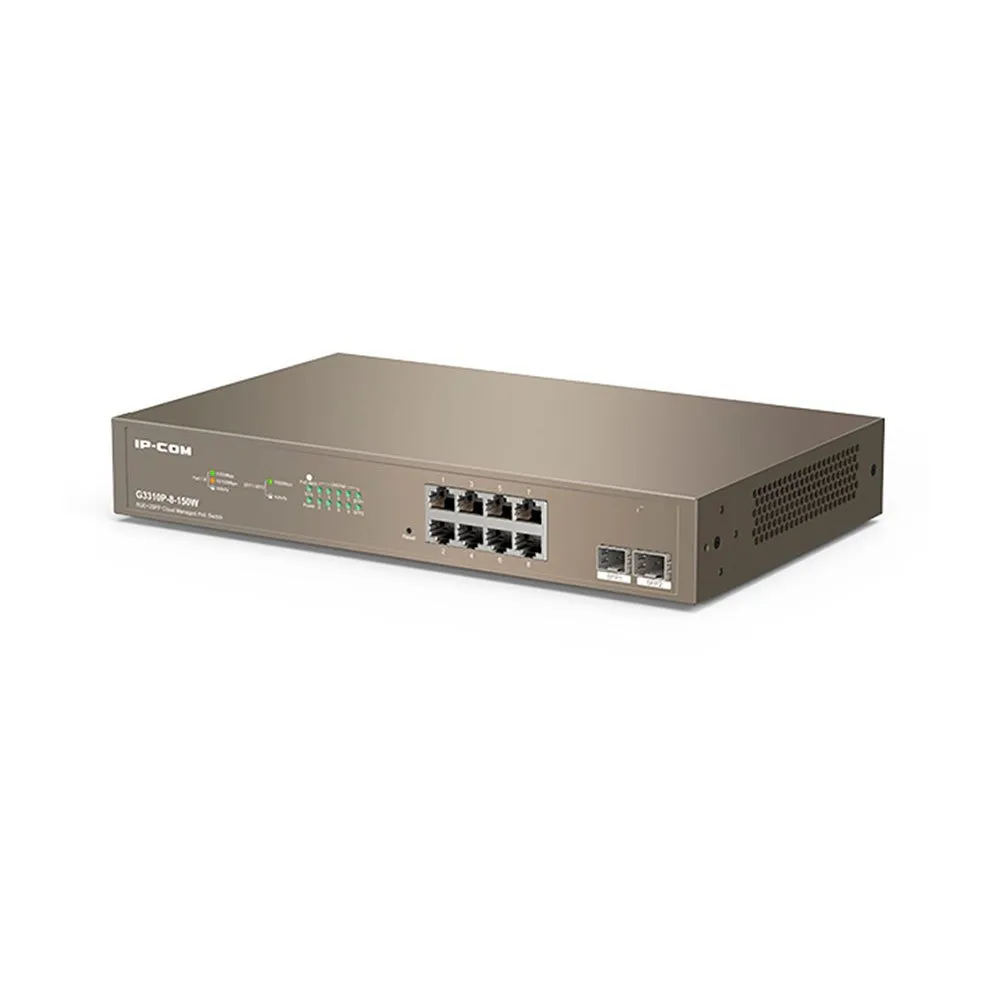

Ip-com G3310P-8-150W switch

EU Plug.

G3310P-8-150W is a smart cloud management PoE switch designed by IP-COM.

It provides 8 gigabit PoE ports and 2 SFP ports, supports IEEE 802.3af/at standards, and can smartly identify powered devices.

The maximum output power of a single port is 30W and the power of the whole switch is 150W.

It supports IMS Cloud, web UI, and IP-COM IMS app management, making network maintenance more efficient, after-sales cost lower, and management and configuration simpler.

It is an ideal choice for video surveillance and wireless networking in such scenarios as small and medium-sized enterprises, hotels, schools, and parks.

Features:

App remote management:- With one-tap, you can add the device to automatically configure and bring online the switch, enabling you to check device status anytime, anywhere IMS Cloud management:- You can remotely divide VLAN and restart PoE port, making network maintenance easier Smart PoE power supply:- The 8 IEEE 802.3af/at gigabit PoE ports, the maximum 130W power output of the whole switch, the maximum 30W power output of a single port all guarantee a stable power supply and data transmission for such devices as HD PoE IP cameras and APs.

Various layer-2 management.

Features:

- The 250-meter power supply distance, and such smart management functions as QVLAN, link aggregation, QoS, and MAC address binding make construction easier and faster, reducing investment to the greatest extent.

- Compliance with IEEE 802.3/3u/3ab/3x/3z/1p/q/w/d/3af/at standards.

- 8 x 10/100/1000 Base-T Ethernet ports (Data/Power).

2 x 100/1000 Base-X SFP ports.

- 8K MAC address and MAC address automatic learning.

- IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control.

- Non-blocking line-rate forwarding for all ports.

- Maximum output power of a single PoE port:30W.

Maximum output power of the whole switch:130W.

- IMS Cloud and IP-COM IMS app remote cloud management.

- IEEE 802.1Q VLAN.

Link aggregation.

QoS.

MAC address binding.

Specifications:

Hardware.

Specifications:

- Standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.3af, IEEE 802.3at LED indicators:- 1 Link/Ack LED indicator for each port.

- 1 PoE Max LED indicator for each device.

- 1 Power LED indicator for each device.

- 1 SYS LED indicator for each device Interfaces:- 8 x 10/100/1000 Base-T Ethernet ports (Data/Power).

- 2 x 100/1000 Base-X SFP ports.

- Port Lightning Protection:≥6KV.

- Forwarding mode:Store-and-forward.

- Switching capability:20 Gbps.

- Packet forwarding rate:14.9 Mpps.

- MAC address table:8K.

- PoE Power Supply:Ports 1 to 8 support 802.3af/at standard 1 2 4 5 +, 3 6 7 8.

- Input voltage:100-240V～ 50/60Hz.

- Dimensions(LWH):294 mm 179.6 mm 44 mm.

- Whole Switch Power Consumption:Whole switch power consumption:- Maximum PoE output.

Power:130W Operating environment:- Operating temperature:0°C.

- 45℃.

- Storage temperature:-40°C.

- 70°C.

- Operating humidity:(10%.

- 90%)RH, non-condensing.

- Storage humidity:(5%.

- 90%)RH, non-condensing Software.

Specifications:

PoE Power Supply Management:- Port PoE configuration and power supply priority configuration supported.

- PoE over-temperature protection supported.

- Smart graphical management and PoE-powered device detection supported (port status, power assignment, and PoE-powered device status).

- Security.

Features:

MAC address binding supported.

- VLAN:IEEE 802.1Q VLAN supported.

- Port aggregation:Static aggregation supported.

- Dynamic aggregation supported.

- Spanning tree:IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) supported.

- Port Mirroring:N:1 port mirroring supported QoS:- FIFO (First-In, First-Out) supported.

- SP (Strict Priority) supported.

- WP (Weighted Priority) supported Loading & Upgrade:- HTTP upgrade supported.

- Configuration import and export supported Management & Maintenance:- IP-COM IMS app management supported.

- Web UI management supported.

- IMS Cloud management supported.

- Certificates:CCC, FCC, CE, RoHS.
