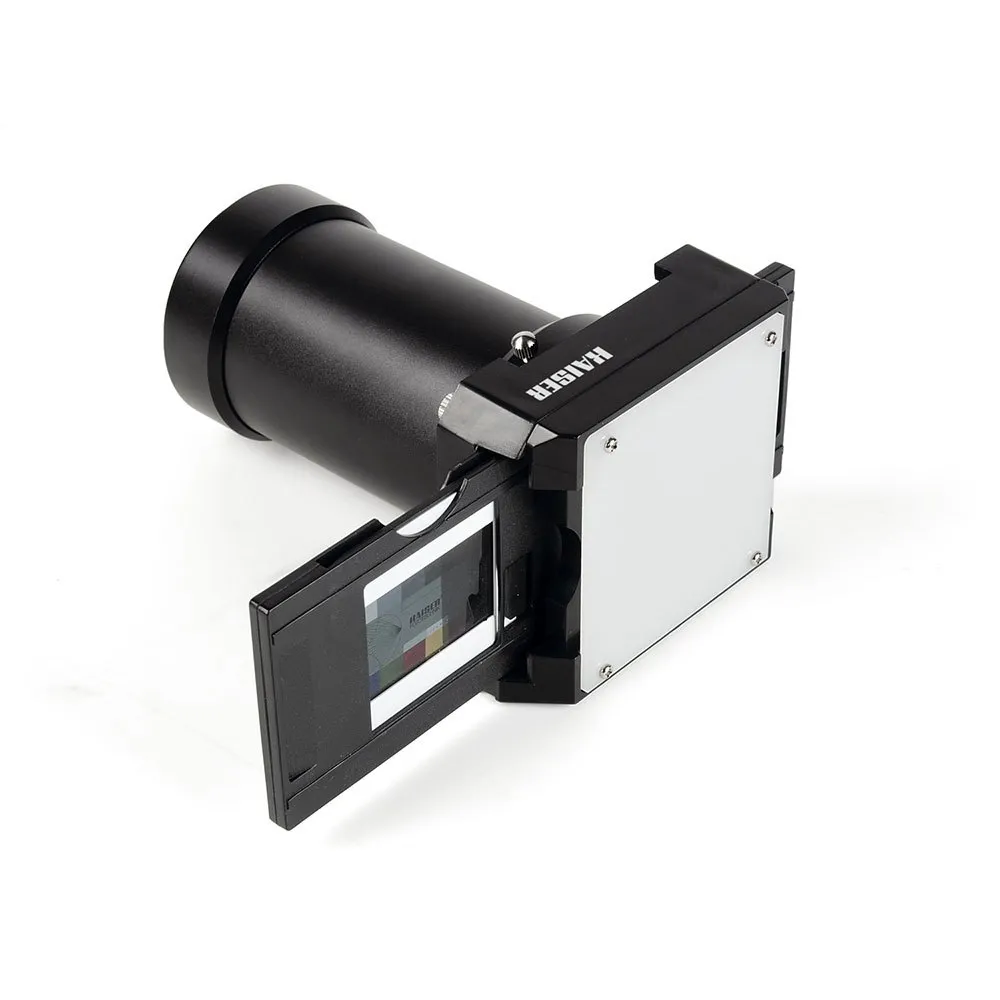

Kaiser Dia Duplicat Digital

KAISER Dia Duplicat Digital: High-Quality Slide Digitization for Your Camera

Unlock a treasure trove of memories and preserve your analog history with the KAISER Dia Duplicat Digital. This essential photo-video accessory is expertly designed for photographers and archivists who want to create high-resolution digital copies of their 35mm slides using the camera they already own. As one of the premier Duplicators on the market, it provides a fast, efficient, and high-quality alternative to dedicated flatbed scanners, allowing you to bring your cherished moments from the past into the digital age with stunning clarity.

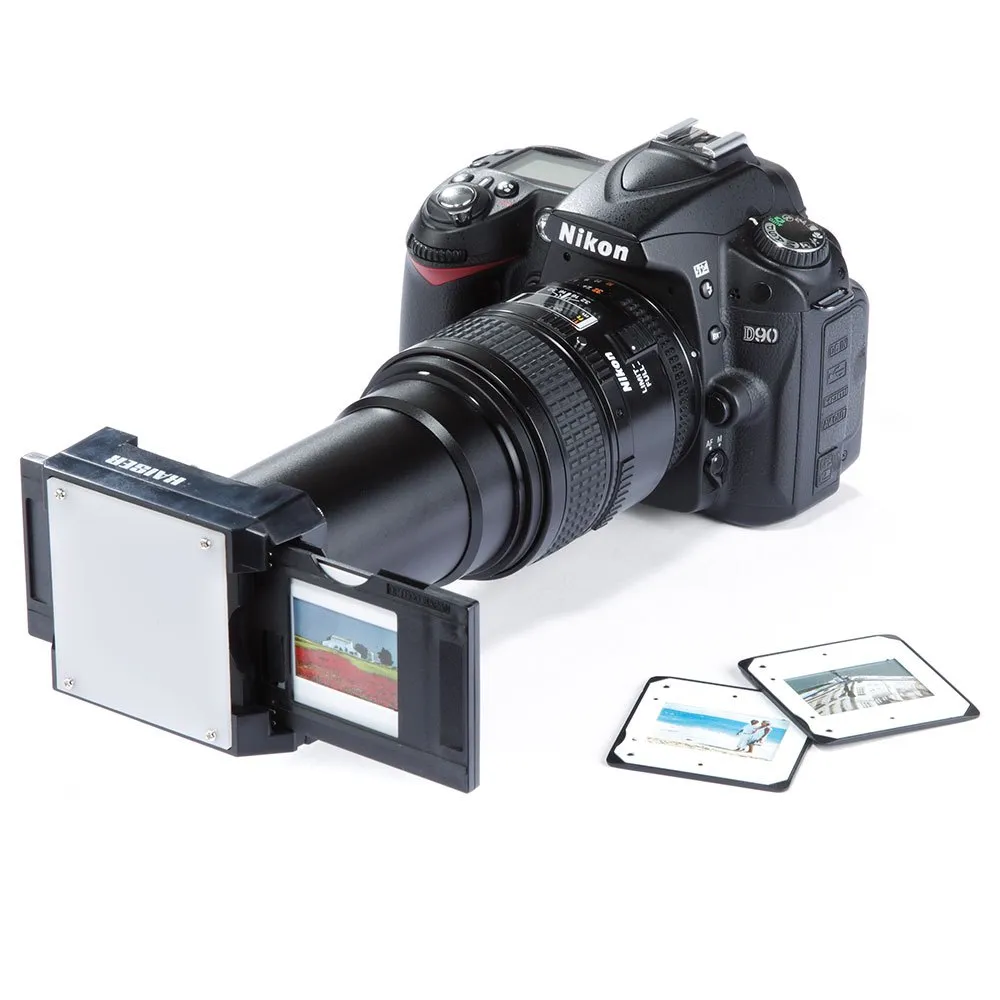

Transform your DSLR, mirrorless, or compatible compact camera into a powerful slide-copying station. The Dia Duplicat Digital empowers you to take full control over the digitization process, leveraging your camer´s sensor and your own lenses to achieve superior results. By attaching directly to your lens´s filter thread, it creates a stable, perfectly aligned system for capturing crisp, evenly illuminated images of your slides. The integrated, high-quality achromatic macro lens ensures edge-to-edge sharpness and minimizes chromatic aberration, delivering faithful color reproduction and detail that honors the original photograph. This versatile tool is not just for archiving; it´s for reviving your visual legacy for sharing, printing, and digital preservation.

FEATURES:
- Designed for DSLRs and mirrorless cameras and digital compacts with front lens thread.
- Not suited for use with macro lenses.
- Attaches to the filter thread of the lens.
- 52 mm connecting thread. 58 mm adapter ring included.
- Detachable achromatic 10 dioptre macro lens, can also be used separately.
- Full size copies with following focal length range:
- Full-framce sensor (35 mm): approx. 80-120 mm
- APS-C-type sensor: approx. 50-80 mm
- Micro-Four-Thirds sensor: approx. 40-60 mm.
- Larger frames require higher focal length.
- Includes holder for two 35 mm slides up to a mount thickness of 3 mm.

Technical Specifications

Product Type: Slide Duplicators

Mounting System:
- Connection: Attaches directly to the front filter thread of a camera lens.
- Connecting Thread: Native 52 mm.
- Adapter Ring: Includes a 58 mm step-up adapter ring for wider compatibility.

Optical System:
- Lens: Detachable achromatic close-up lens.
- Power: +10 dioptre.
- Functionality: The macro lens can be removed and used independently for other close-up photography applications.

Camera and Lens Compatibility:
- Supported Cameras: Digital SLR cameras, mirrorless system cameras, and digital compact cameras featuring a front lens thread.
- Lens Limitation: Not recommended for use with dedicated macro lenses.
- Optimal Focal Length for 1:1 Duplication:
- Full-Frame Sensor : Approx. 80 - 120 mm.
- APS-C Sensor : Approx. 50 - 80 mm.
- Micro Four Thirds Sensor : Approx. 40 - 60 mm.

Media Handling:
- Holder Type: Included holder for mounted slides.
- Capacity: Holds up to two 35 mm format slides simultaneously.
- Maximum Mount Thickness: Accommodates slide mounts up to 3 mm thick
