Keenetic Orbiter 6 router

EU PLUG.

Orbiter?s full functionality is unlocked when connected to a Keenetic router via Ethernet or through Mesh Wi-Fi technology.

Keenetic devices in a Mesh Wi-Fi System create a seamless network with 802.11k/r/v roaming and centralised management ? all accessible via the main router, mobile app, or the Keenetic RMM cloud platform.

Take your Wi-Fi experience to the next level with Orbiter 6 and enjoy unmatched speed and reliability across all your connected devices.

Enterprise-grade hardware Flexible installation and wide coverage:

- Orbiter 6 features a precisely engineered, integrated multi-antenna system with directional beamforming reflectors and discrete signal amplifiers.

It supports both PoE and DC power, and offers flexible installation options ? whether on a table, wall, or ceiling.

With a 2.5G Ethernet port, support for 802.1Q VLANs, and WPA2/WPA3 Enterprise-grade security, it?s built for high-performance business environments.

Whole Home & Mesh Wi-Fi:

- Say goodbye to dead zones with our Mesh Wi-Fi feature, which allows multiple units to work seamlessly together to create consistent, robust wireless coverage throughout your space.

PoE:

- Simplify your network infrastructure with PoE support, allowing you to power devices such as VoIP phones, IP cameras and Wi-Fi access points directly over the network cable.

Wall or ceiling mount:

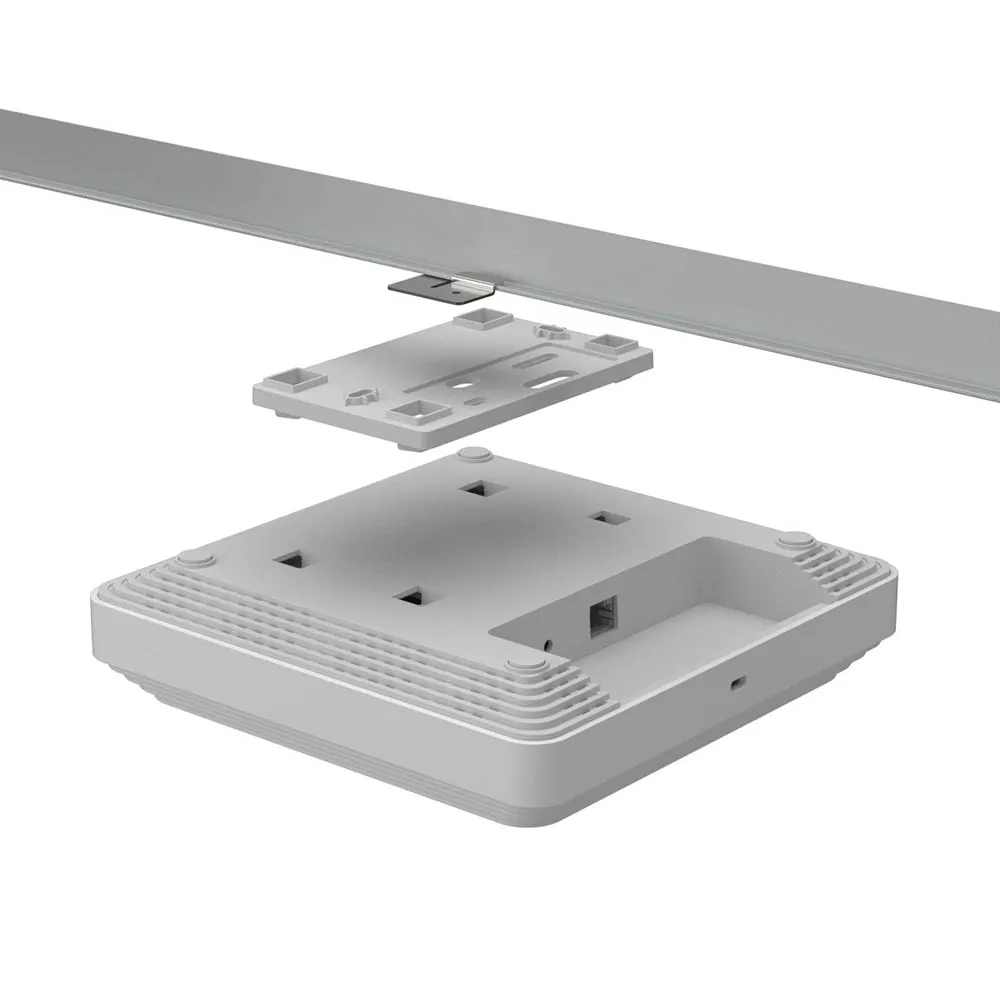

- This Keenetic device can be placed on a flat surface or attached to a wall or solid ceiling using the supplied mounting kit, it can also be fitted to suspended ceilings using the mounting kit together with T-rail clips.

keenetic-os logo:

- The most advanced operating system for your network KeeneticOS makes managing your network a breeze.

With a beautifully designed interface and rich functionality, you can build the most advanced networks that work for your family or business and protect against cyber threats.

Specifications:

- RAM:

512 MB DDR4.

- Flash memory, Dual Image:

128 MB.

- Wi-Fi 2.4 + 5 GHz:

Yes.

- Wi-Fi class:

AX3000.

- Wi-Fi antennas:

5 GHz:

1 internal.

- 2.4 + 5 GHz dual band:

2 internal.

- Wi-Fi client capacity:

Up to 256 in 2.4 & 5 GHz (shared).

- Ethernet ports:

1 ? 2.5 Gbps + PoE.

- Mesh Wi-Fi System:

Yes.

- DFS support:

Zero Wait DFS (ch.

52?64).

- Standard DFS (ch.

100?140) Performance:

- 2.4 GHz Wi-Fi network:

574 Mbps (802.11ax).

- 2T ? 2R:

4SS, 40 MHz.

- 5 GHz Wi-Fi network:

2402 Mbps (802.11ax).

- 3T ? 3R:

2SS, 160 MHz Wireless network:

- Seamless roaming 802.11k/r/v:

Yes.

- MU-MIMO:

Yes.

- Airtime Fairness:

Yes.

- Beamforming:

Yes.

- OFDMA:

Yes.

- Pre-configured Wi-Fi protection:

Yes.

- WEP, WPA-PSK:

Yes.

- WPA2-PSK, WPA2-Enterprise:

Yes.

- WPA3-PSK, WPA3-Enterprise, OWE:

Yes.

- Multiple Wi-Fi networks:

Up to 7.

- Access control by MAC address:

Yes.

- Wi-Fi Multimedia (WMM):

Yes Features and protocols:

- VLAN IEEE 802.1Q:

Yes.

- Direct or cloud access via KeenDNS:

Yes Troubleshooting and management:

- Cloud-based Remote Network Monitoring and Management:

Yes.

- Web Interface with the Initial Setup Wizard and HTTPS security:

Yes.

- Command Line (CLI) via TELNET/SSH:

Yes.

- An option to control from external network:

Yes.

- Backup and restore configuration:

Yes.

- Automatic OS updates:

Yes.

- System event logging:

Yes Physical specifications and environment requirements:

- Device dimensions, w x d x h:

170 mm ? 170 mm ? 42 mm.

- Device weight:

488 g.

- Operating temperature:

0?40 ??.

- Operating humidity:

20?95% non-condensing.

- Power supply voltage:

100?240 V 50/60 Hz.

802.3at (PoE+ 18 W) In the box:

- Device:

Yes.

- Power adapter:

12 V 1.5 A.

- Wall / ceiling mounting kit:

Yes.

- Quick start guide:

Yes.
