Kramer VS-411X HDMI extender

Automatically plays the switched source signal on the connected display according to user-configured preferences, such as priority or last connected input.

When the user switches manually, by pressing a button, the automatic switching is overridden.

HDCP 2.2 compliant, supports deep color, xvColor™, CEC, lip sync, uncompressed HDMI audio channels, Dolby TrueHD, DTS.

- HD, 2K, 4K and 3D as specified in HDMI 2.0.

Up to 32 channels of uncompressed stereo digital signals to support studio-quality surround sound.

Intelligent EDID handling, processing, blocking and transfer algorithm ensures plug & play operation for HDMI sources and display systems.

The digital audio signal passing through the HDMI output is deactivated, converted to an analog signal and sent to the stereo unbalanced analog audio output.

This allows you to play the audio on locally connected speakers, in parallel with playing it on the speakers connected to the AV receiver device.

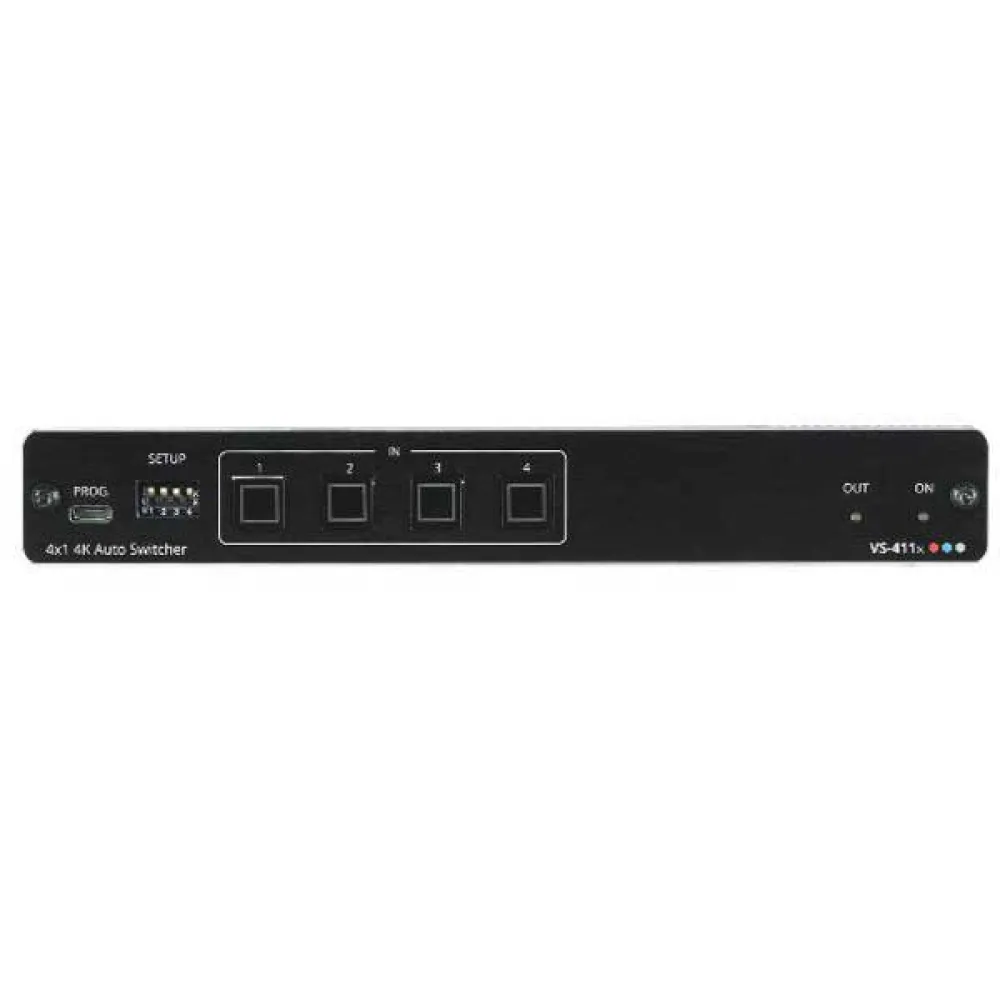

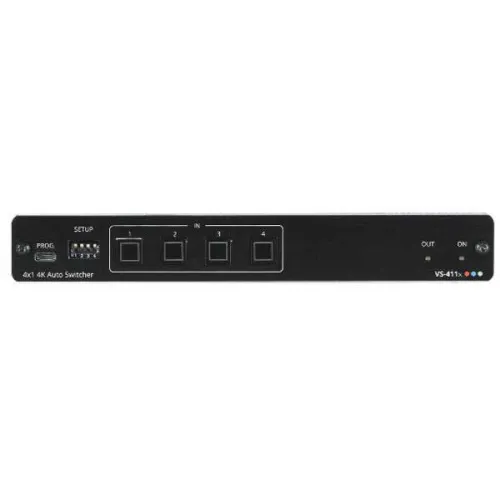

Local buttons or remotely connected contact closure buttons for flexible user input selection and switching control.

Rack adapter.

LED status indicators for HDMI ports facilitate local maintenance and troubleshooting.

Updating local firmware ensures a long-lasting, field-tested deployment.

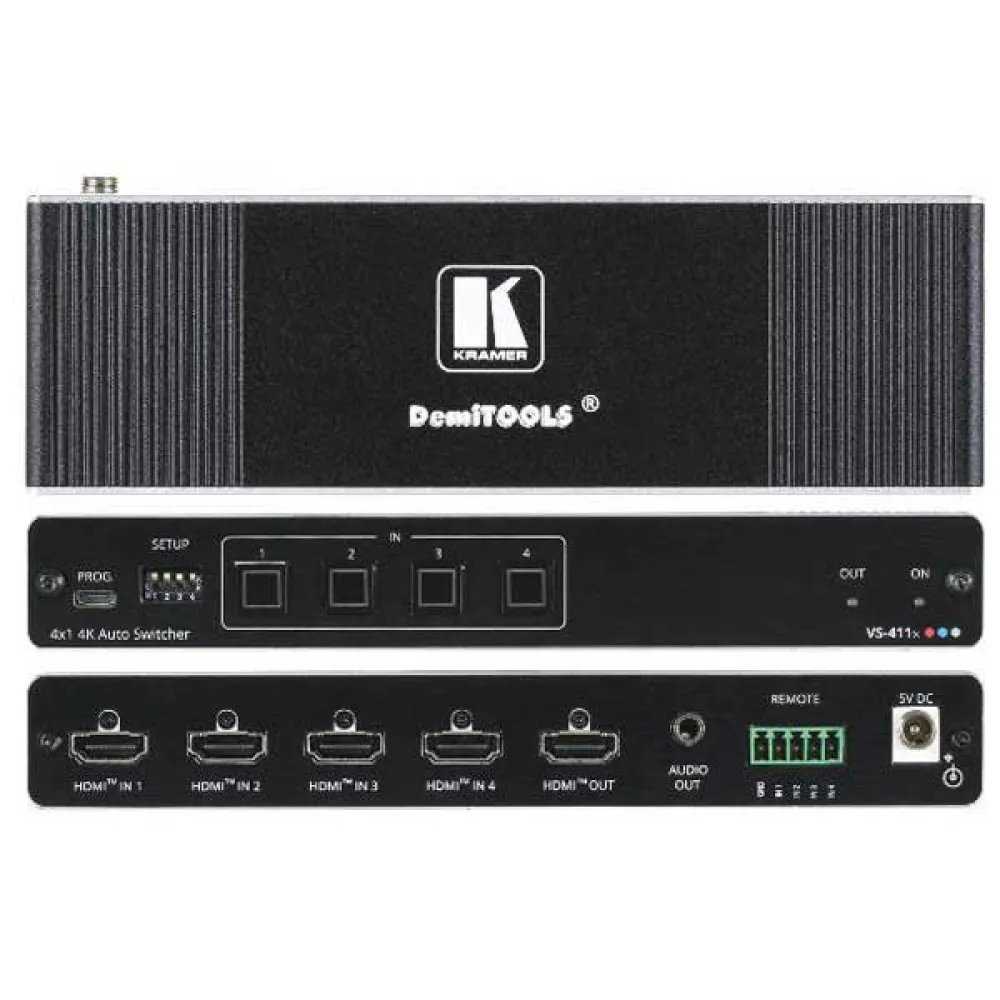

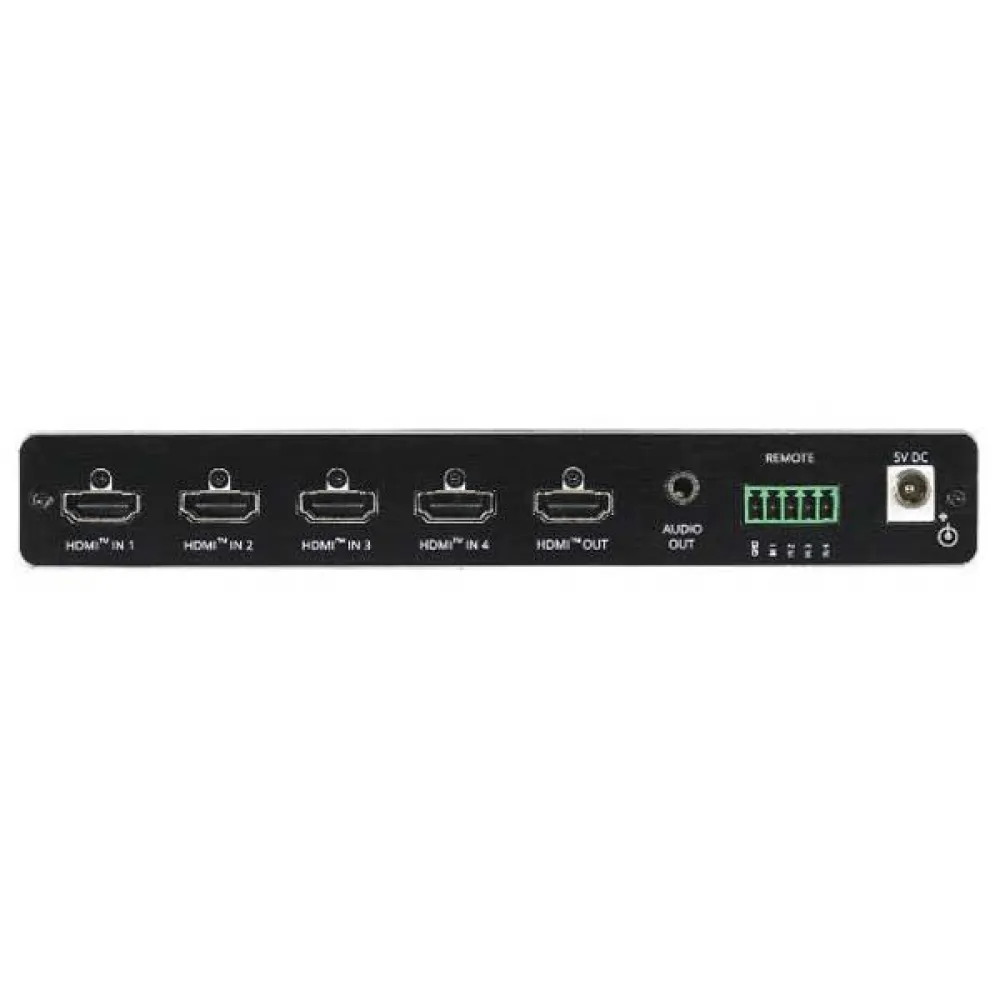

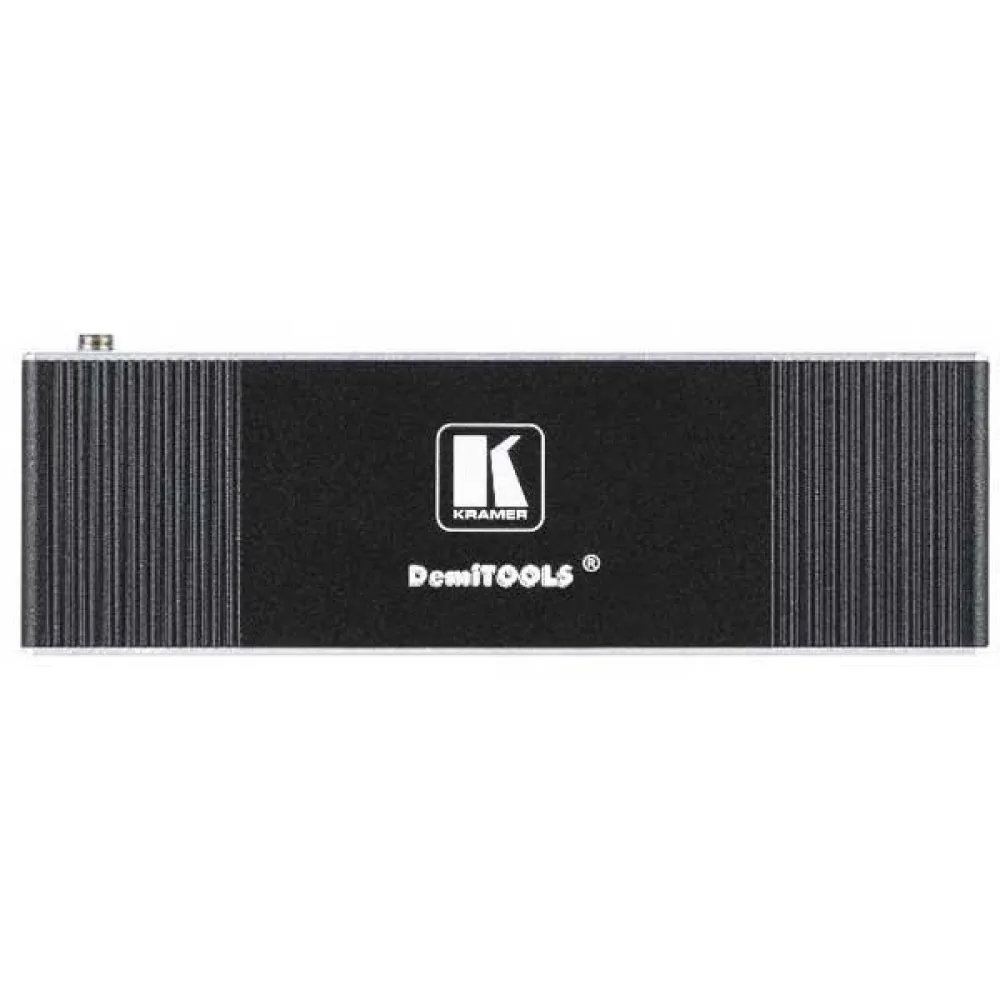

DemiTOOLS® compact fanless case for user-accessible tabletop mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.Input:4 HDMI on one HDMI female connectorOutputs:1 HDMI:on a female HDMI connector and 1 unbalanced stereo audio:on a 3.5mm mini-jack Ports:remote contact closure, on a 5-pin terminal block connector VIDEO:Maximum data rate:17.82GBPS, Maximum resolution 4K 60, HDR10 compliance as specified in HDMI 2.0, HDCP 2.2 Source:5V DC, 2A Consumption:5V DC, 600mA User Interface Controls input selection buttons.

DIP switches to set switching mode and EDID modeSize:DemiTOOLS®Type:AluminumCooling:Convection ventilationOperating temperature:0° to +40°C Storage temperature:-40° to +70°CHumidity:10% to 90%, RHL without condensation.

Specifications:-Operating temperature range:0 -40°C.
