Kramer VS-88H2 Video Line Amplifier

It is a high-performance matrix switch for 4K 60Hz HDR signals and digital audio routing.

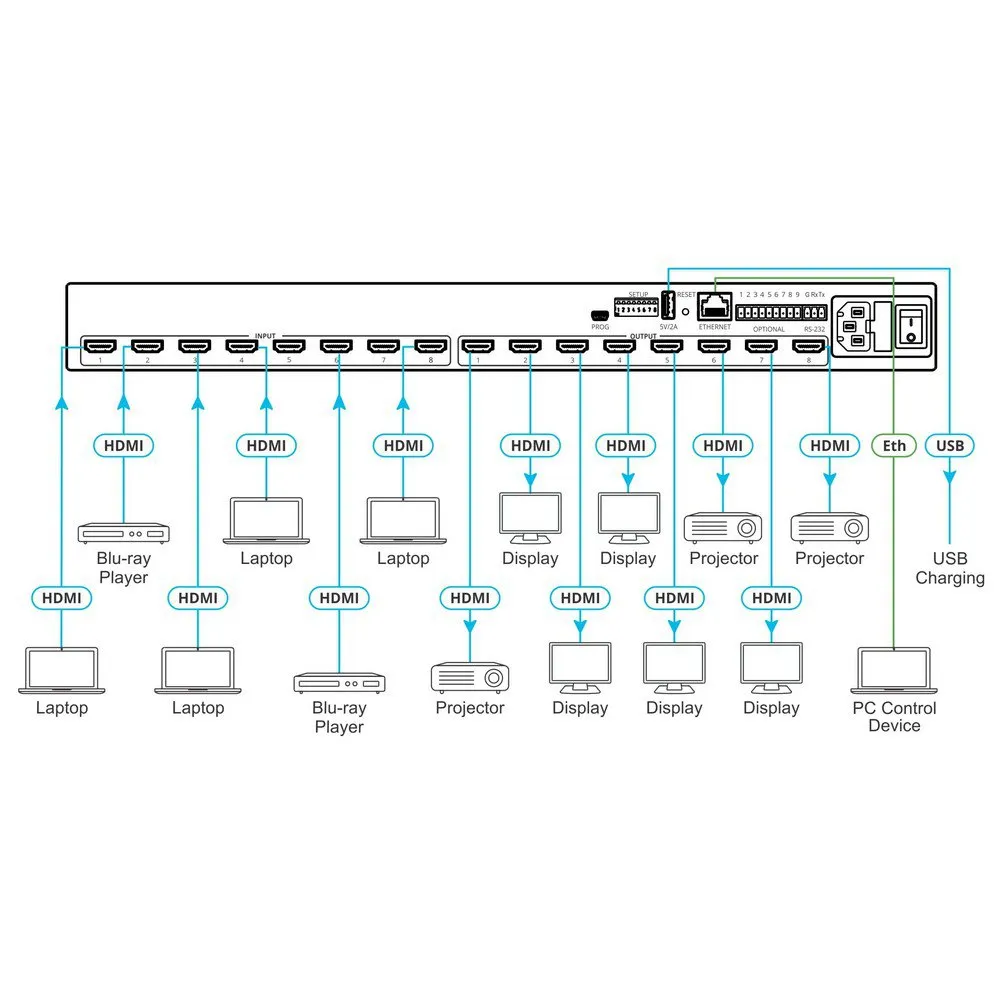

It rewires and equalizes signals and can route any of 8 HDMI, HDCP-compatible sources to any or all outputs simultaneously.

VS-88H2 offers unparalleled audio flexibility where any built-in digital audio input can be routed to any digital output plus eight ARC sources to produce an equivalent 16x12 audio matrix.

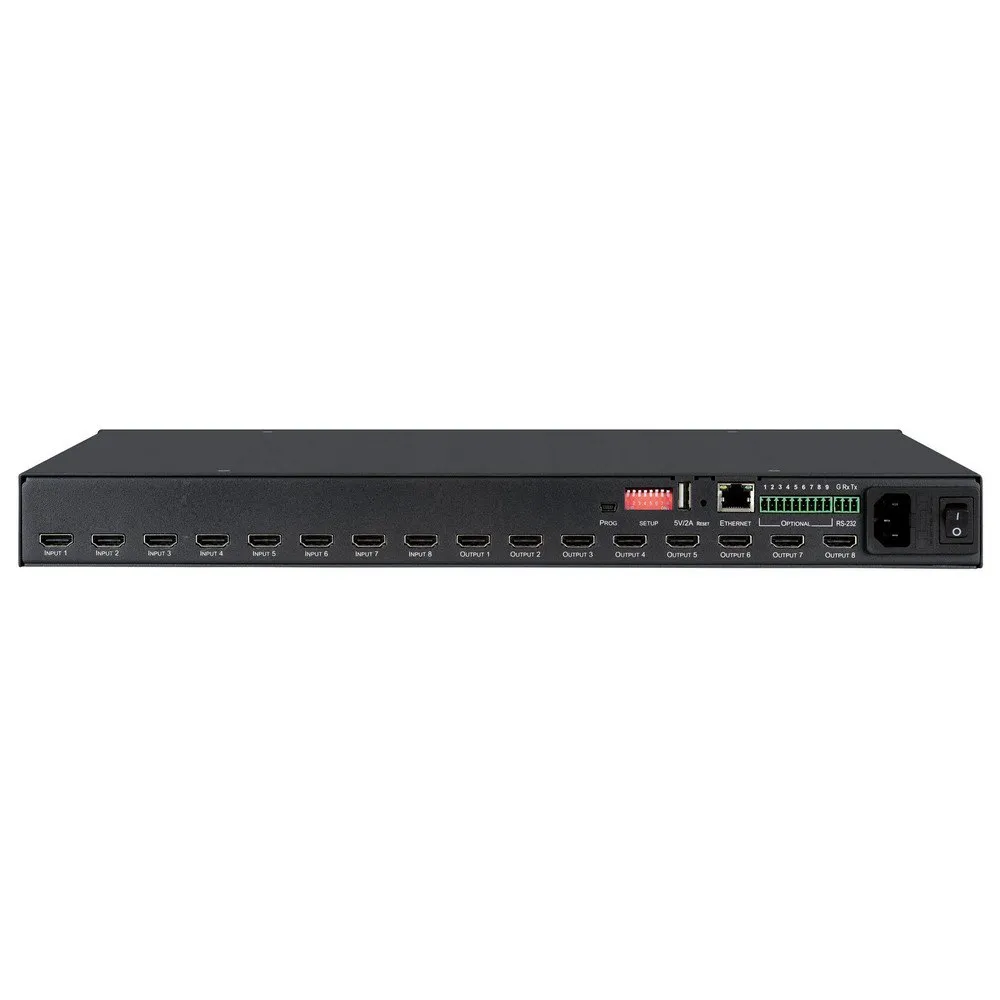

8 HDMI inputs on female HDMI connectors 8 HDMI outputs on HDMI connectors Female Ports:1 Ethernet on an RJ-45 connector, 1 RS-232 on a 3-pin terminal block connector, 1 USB on a USB Type A connector, for powering an external device, 1 USB on a mini USB connector, for firmware update or communication with a PC or serial controller.Video:Support HDMI Deep Color, 3D, ARC, up to 7.1 channels of uncompressed audio as specified in HDMI 2.0, HDCP 2.2 content protection, Max.

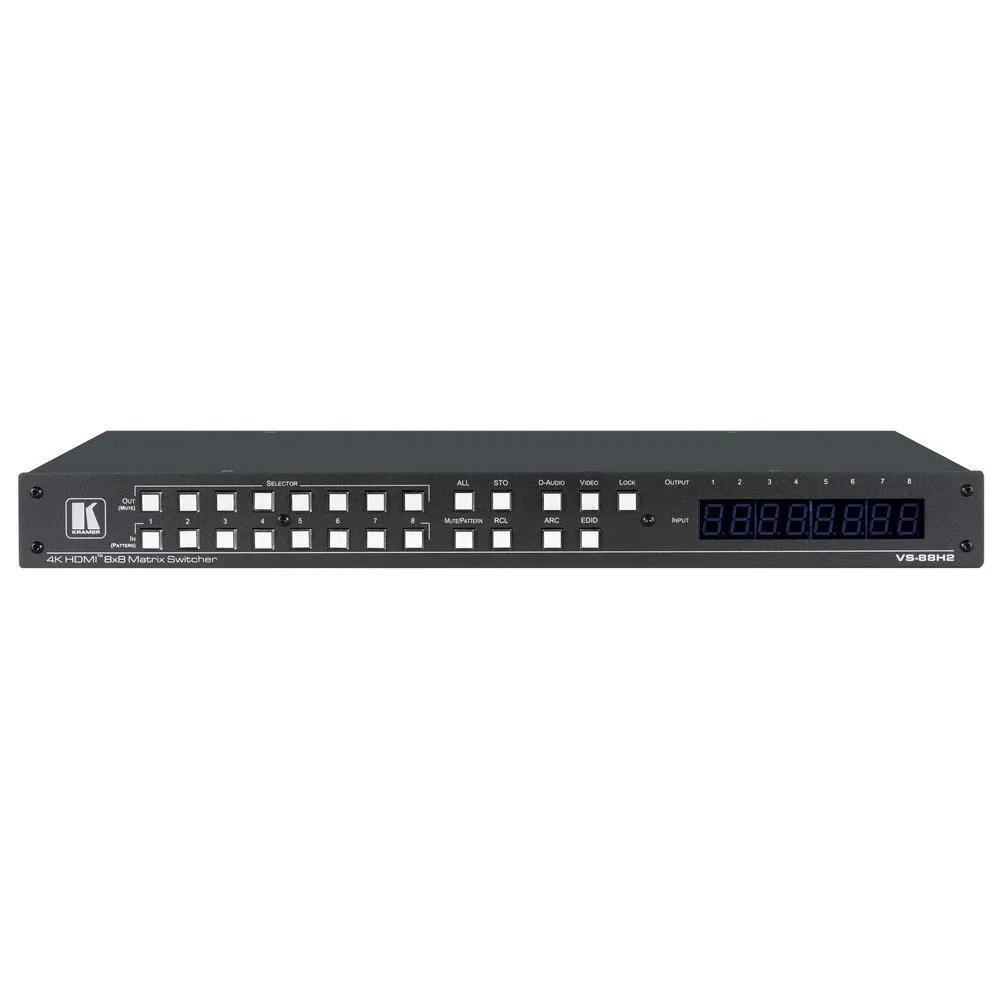

Output resolution 4K 60Hz User interface:Control input/output selection, mute, test pattern, memory, front panel lock, buttons.

RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, integrated web pages via LAN for configuration and control, LCD display input/output indicators Power:source:100-240V AC 50/60Hz , consumption 600mAEnvironmental conditions:Operating temperature 32° to 104°F, Storage temperature -40° to 158°F, humidity 10 to 90%, RH Dimensions:43.64 x 18.30 x 4.36cmWeight:2.4kg.
