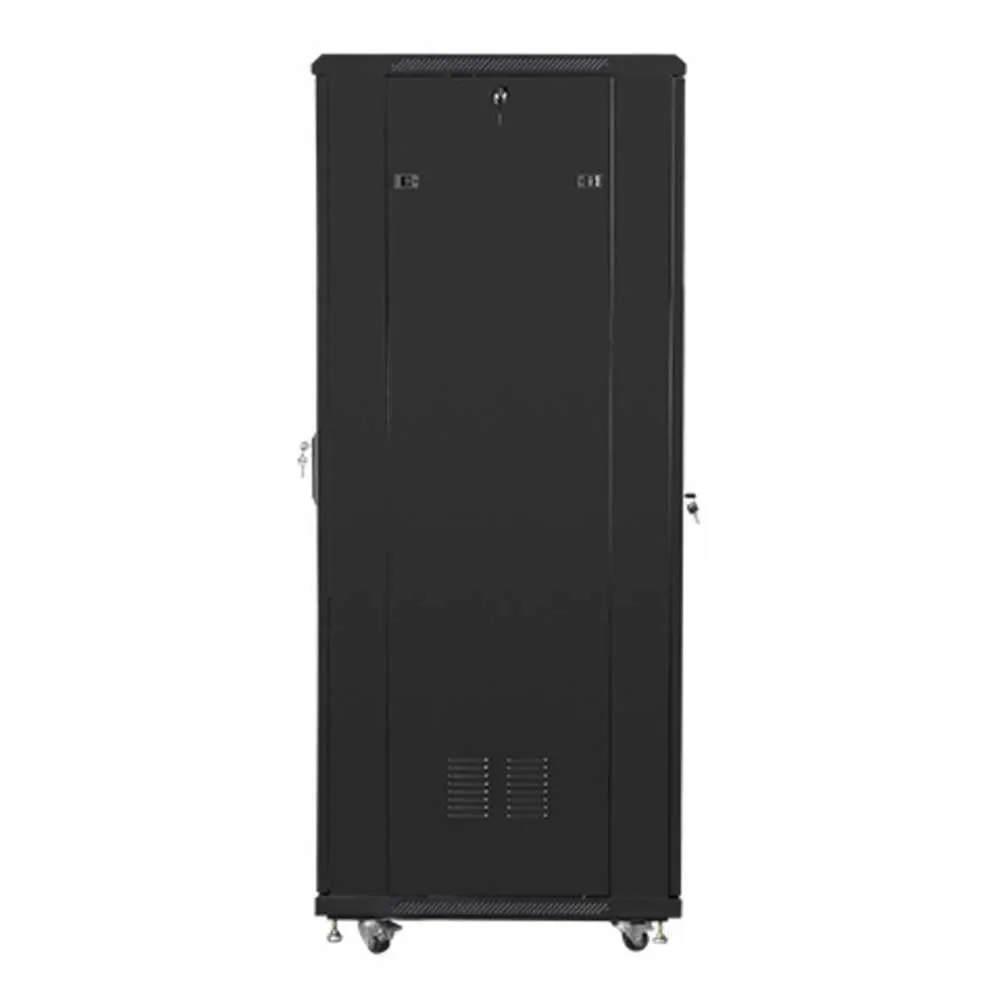

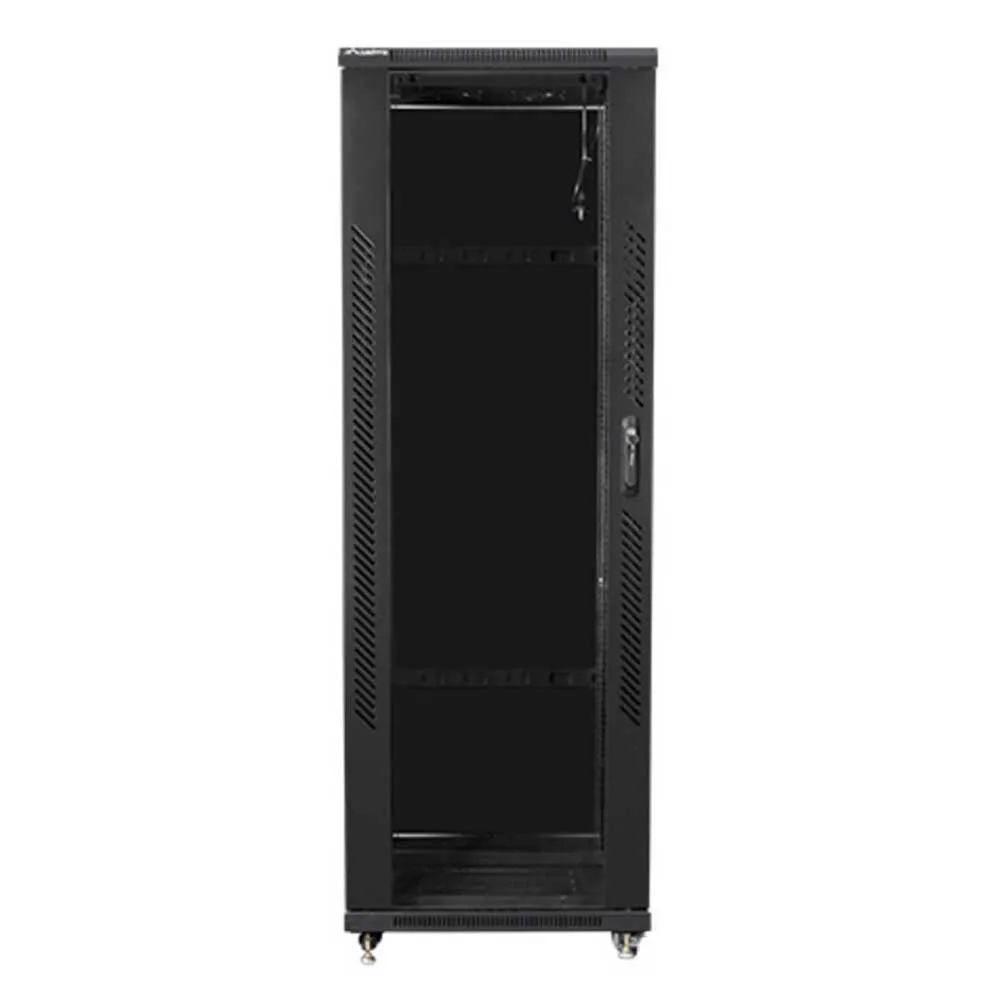

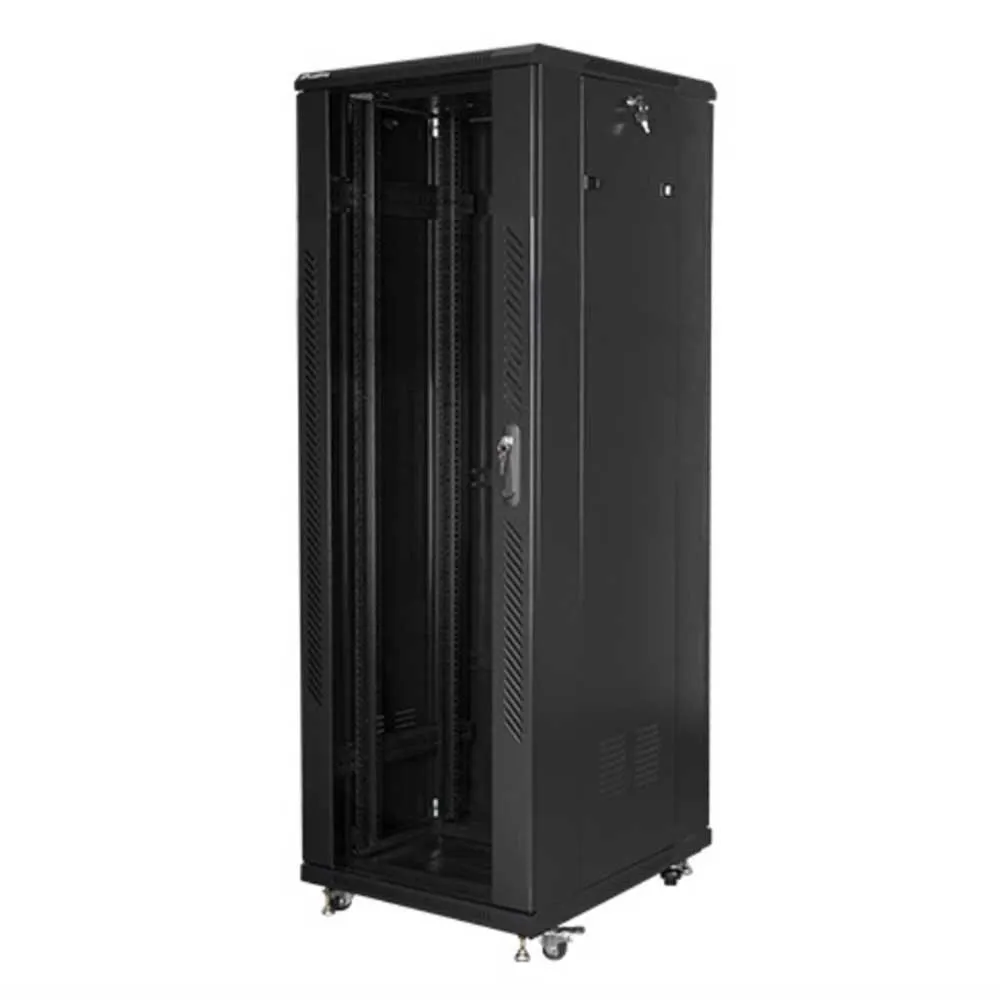

Lanberg Rack Cabinet 60x80 cm

EU Plug.

Free standing Lanberg cabinet FF01-6837-12B is a solution designed to expand networks, installation of cabling and equipment in size 19´´ with max.

800kg.

loading capacity.

It can be used in networks, server rooms, small, medium businesses and data centers which needs lot of space in cabinet for network equipment´s.

It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance.

Construction is made of high grade cold rolled steel which characterized by excellent design and high quality of craftsmanship.

The cabinet allows full adjustment of the depth of the vertical mounting rails.

It is equipped with front tempered glass door with lock and possibility installing on right or left side.

It has removable side panels (include locks) and rear solid steel door with lock.

You can put the wiring through entry cable on top and bottom panels (with blank entry panels).

The fan tray include 2 fans 230V.

In addition, parcel includes additional accessories for rails mounts, M6 cage nuts and blank entry panels.

Cabinet structure for self-assembly is in three flat packs which facilitates transport.

Specifications:

- Cabinet type:Free standing.

- Body color:Black RAL9004.

- Height:37U.

- Cabinet dimensions (W x D x H):600x800x1826 mm.

- Height (top panel.

- bottom panel):1747 mm.

- Height (top panel.

- ground):1820 mm.

- Height (top panel.

- ground including screws):1826 mm.

- Packaging dimensions (W x D x H):Top & Bottom.

- 63x168x9.5 cm, Doors.

- 63.5x82x13 cm, Frame.

- 61x174x25 cm.

- Floor panel:4 castors with brake + adjustable legs.

- Internal width spacing between rack rails:450 mm.

- Width of the spacing between holes of rack rails:465 mm.

- External width spacing between rack rails:500 mm.

- Loading capacity:To 800 KG.

- Degree of protection:IP20.

- Top with fan tray:included 4 fans 230V in top cover.

- Doors type:Front.

- Temper glass, Rear.

- Steel.

- Standard:ANSI/EIA RS-310D, IEC297-2, DIN41494.

PART1 & PART7, ETSI.

- Material:High grade cold rolled steel, powder coated.

- Glass thickness:5.0 mm.

- Sheet thickness:vertical mounting rails.

- 2,00 mm.

mounting profile.

- 2,00 mm.

others.

- 1,50 mm.

- 1,20 mm.

- Cable entry panel:Top, Bottom (adjustable).
