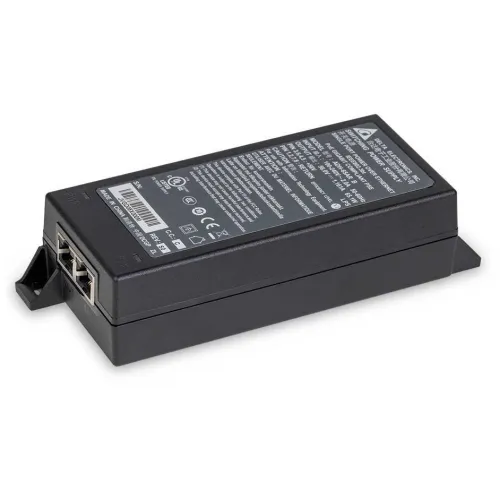

Lancom GE PoE++ Injector

EU Plug.

The lancom poe++ injector is impressive in terms of flexibility and.

Performance:the ability to provide power up to 100m away from the access point allows flexible positioning of the access points for perfect radio field coverage.

the power supply is based on the poe standards ieee 802.3af (poe), ieee 802.3at (poe+), and ieee 802.3bt (poe++), allowing high-performance devices to be connected without any loss of performance.

a cost-effective solution for companies that want to make their network poe-enabled.

Features:

- 1-port PoE injector with multi-Gigabit Ethernet support.

- Supports the PoE standard IEEE 802.3af/at/bt.

- Power supply through up to 100m of Ethernet cable.

- Support of link speeds of up to 5 Gbps.

- Easy plug & play installation Benefits:Multi-Gigabit Ethernet support:- Even where a PoE-enabled switch is not in use, access points are reliably powered by the LANCOM PoE++ Injector thanks to multi-Gigabit Ethernet (up to 5 Gbps).

Access points that are far away from a regular power outlet continue to offer full performance without loss.

Full power thanks to PoE, PoE+, and PoE++:- As it supports the PoE standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (PoE++), the Injector is the optimal choice for powering all of your LANCOM access points by means of Power over Ethernet.

Even high-performance products operate without performance loss.

High output.

Power:- With power supplied as per IEEE 802.3af/at/bt with a guaranteed power output of 65W over up to 100m, the LANCOM PoE++ Injector gives you the flexibility to position your access points for perfect signal coverage.

Integrated power supply unit:- Thanks to the power supply unit integrated into the LANCOM PoE++ Injector, the IEC connector supplied with it is the only additional component you need - a space-saving solution.

Plug & play:- The Injector works with a convenient plug & play installation for quick and easy integration into the network.

Simply connect the LANCOM PoE++ Injector between the switch and the access point and use the power cord to supply electricity Interfaces:- LAN:10/100/1000/2500/5000 Mbit/s, PoE compliant with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (up to 65W) Hardware:- AC Input Voltage anf AC Frequency 100 to 240 V AC, 50 to 60 Hz.

- Output Voltage 56 V DC.

- Output power up to 65W.

- Pin Assignment and Polarity Output 4/5(+), 7/8(-).

- Indicators System Indicator two LEDs showing operation condition.

- Connectors Shielded RJ-45, EIA 568A and 568B.

- Environment Operating Ambient Temperature 30W:-25°C.

- 40°C.

Storage Temperature:-25°C.

- +65°C.

Humidity max.

90%, non-condensing.

- Protections Overvoltage, Overload/Overcurrent, Over Temperature, Short Circuit (all with Auto-Recovery) Declarations of conformity:- Safety Approvals EN 62368.

- FCC FCC Part 15, Class B with FTP cabling.

- ) Note You will find all declarations of conformity in the products section of our website at www.lancom-systems.com Scope of delivery:- Manual Printed Installation Guide (DE/EN).

- Cable IEC power cord.
