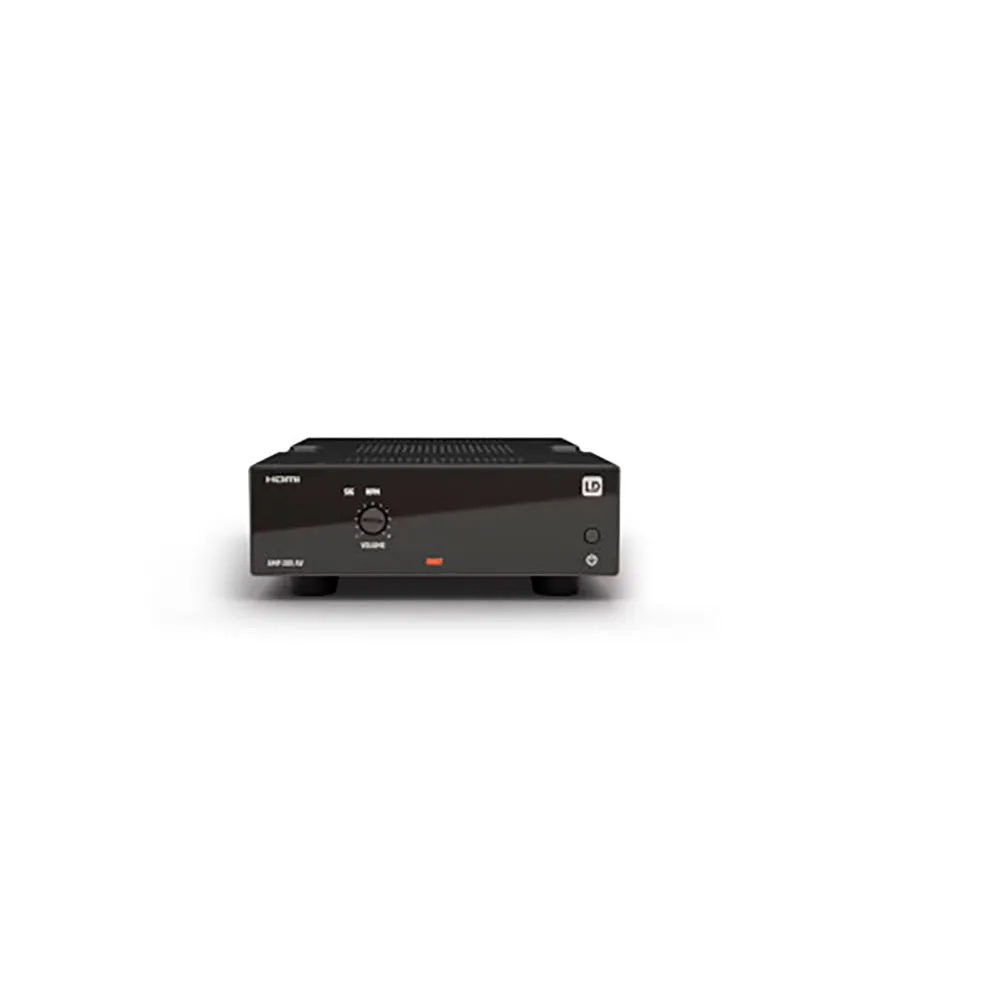

Ld Systems LDAMP205AV Audio Amplifier

LD SYSTEMS LDAMP205AV: Compact Audio Installation Amplifier for Professional Sound

Elevate your audio and video installations with the LD SYSTEMS LDAMP205AV, a highly compact and remarkably versatile mixing amplifier designed for seamless integration and superior performance. Engineered for reliability in permanent installations, this Class D amplifier is the perfect solution for delivering crystal-clear audio in commercial and residential environments, from conference rooms and hotel lobbies to restaurants, retail stores, and sophisticated home AV systems. Its discreet, half-rack design ensures it can be placed almost anywhere without disrupting your space´s aesthetics.

The LDAMP205AV is built to provide exceptional flexibility and control over your sound. It empowers you to manage multiple audio sources effortlessly, ensuring your presentations, background music, or announcements are always heard with pristine clarity. Its energy-efficient design and silent, fanless operation make it an ideal choice for environments where noise levels must be kept to an absolute minimum.

Key Benefits:

* Versatile Connectivity: Effortlessly connect a wide range of devices. The LDAMP205AV features a stereo line input via RCA, a balanced microphone input with switchable phantom power for professional condenser mics, and a convenient front-panel Jack 3.5mm input for quick connection of laptops, smartphones, or other portable Audio players.
* Superior Audio Control: Fine-tune your sound to perfection. With dedicated controls for bass and treble, you can easily adjust the tonal balance to suit the room´s acoustics or the specific audio content. A master volume control and a clear Mic/Line selector switch provide straightforward, intuitive operation.
* Energy-Efficient & Silent Operation: Designed for modern demands, the amplifier utilizes a highly efficient Class D power stage and features an intelligent auto-standby mode that significantly reduces power consumption when not in use. The completely fanless, convection-cooled design guarantees silent performance, making it perfect for quiet settings.
* Compact & Robust Design: Built for the rigors of professional installation, the LDAMP205AV features a sturdy metal housing in a compact 9.5" format. This small footprint allows for easy installation in racks, on shelves, or integrated directly into custom furniture and media cabinets.

Main Features:

* Powerful and efficient Class D installation mixing amplifier.
* Comprehensive input section including stereo line, balanced microphone, and a 3.5mm auxiliary jack.
* Switchable 15V phantom power for the microphone input.
* Onboard 2-band equalizer for precise Bass and Treble adjustment.
* Selectable auto-standby mode for enhanced energy savings.
* Clear LED indicators for power, signal, and clipping status.
* Secure terminal block connectors for speaker outputs.
* Silent, 100% fanless design for noise-free operation.

---

Technical Specifications:

* Product Type: Installation Mixing Amplifier
* Power Output (at 4 Ohms): 2x5 W
* Amplifier Class: Class D
* Frequency Response: 20 - 20.000 Hz
* Cooling: Convection (Fanless)
* Inputs: 1x Mic (Terminal Block), 1x Line (RCA), 1x Line (Jack 3.5mm)
* Input Impedance (Line): 10 kOhm
* Input Impedance (Mic): 1.8 kOhm
* Controls: Bass, Treble, Master Volume, Mic/Line Switch, Standby
* Indicators: Clip, Power, Signal
* Phantom Power: 15 V DC, switchable
* Speaker Outputs: 1 (Terminal Block)
* Operating Voltage: 100 V AC - 240 V AC, 50 - 60 Hz
* Dimensions (W x H x D): 214x44 x 223 mm
* Weight: 1.8 kg
