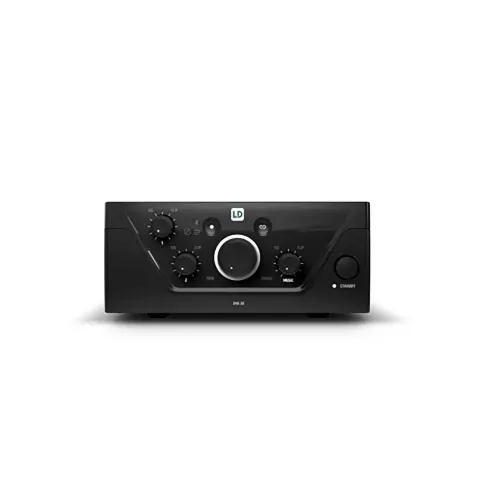

Ld Systems LDIMA30 Audio Amplifier

LD Systems IMA 30: The Compact and Versatile Installation Mixing Amplifier

Elevate the audio experience in any commercial space with the LD Systems IMA 30, a professional installation mixing amplifier designed for seamless integration and exceptional performance. Perfect for retail stores, restaurants, bars, and corporate environments, the IMA 30 delivers reliable, high-quality background music and crystal-clear announcements from an incredibly compact 9.5-inch housing. This amplifier is the cornerstone of any professional audio and video setup, providing the power and flexibility needed to create the perfect ambiance.

The IMA 30 is engineered for versatility. Its key benefit lies in its wide array of connectivity options, ensuring it can handle any audio source you throw at it. Stream music wirelessly from any smartphone or tablet with its integrated Bluetooth 4.0 receiver, or connect traditional players via two stereo line inputs. For vocal applications, a dedicated microphone/line input with switchable 24V phantom power accommodates both dynamic and condenser microphones, while its priority "ducking" function automatically lowers the background music volume during announcements, ensuring every word is heard.

For maximum safety and integration into emergency systems, the IMA 30 features a priority input that mutes all other signals when an emergency audio signal is detected. An energy-saving auto-standby mode automatically powers the unit down when not in use, reducing operational costs and environmental impact. The intuitive front panel provides straightforward control over volume, bass, and treble, allowing for quick and easy sound adjustments.

Main Features:

* Four selectable input channels: Mic/Line, 2x Line (RCA), and wireless Bluetooth 4.0.
* Powerful 35W Class-D amplifier for efficient and reliable operation.
* Selectable speaker outputs for both low-impedance (4 Ohm) and 70V/100V distributed audio systems.
* Priority input for emergency signals with automatic muting.
* Switchable 24V phantom power on the microphone channel.
* Energy-efficient auto-standby mode.
* Universal wide-range switch-mode power supply.

Connectivity and Audio Attributes:

The IMA 30 is a central hub for all your audio needs. It features professional-grade inputs including a combo XLR/6.3mm jack for microphones and two stereo RCA inputs for line-level sources. While it does not have a native 3.5mm input, you can effortlessly connect any audio device with a Jack 3.5 mm output, such as a laptop or mobile phone, using a simple and widely available 3.5mm-to-RCA adapter cable.

Technical Specifications:

* Product Type: Installation Mixing Amplifier
* RMS Power: 35 W @ 4 Ohms / 70 V / 100 V
* Amplifier: Class D
* Frequency Response: 80 - 20.000 Hz
* Inputs: 1x Mic/Line (XLR/6.3mm Jack Combo), 2x Line (RCA), 1x Emergency (Terminal Block), 1x Bluetooth Receiver
* Outputs: 1x Speaker Output (Terminal Block, 4 Ohm / 70V / 100V), 1x Aux Out (RCA)
* Controls: Bass, Treble, Master Volume, Input Select, Bluetooth Pair
* Phantom Power: +24 V, switchable
* Dimensions (W x H x D): 210x44 x 240 mm
* Weight: 2.4 kg
