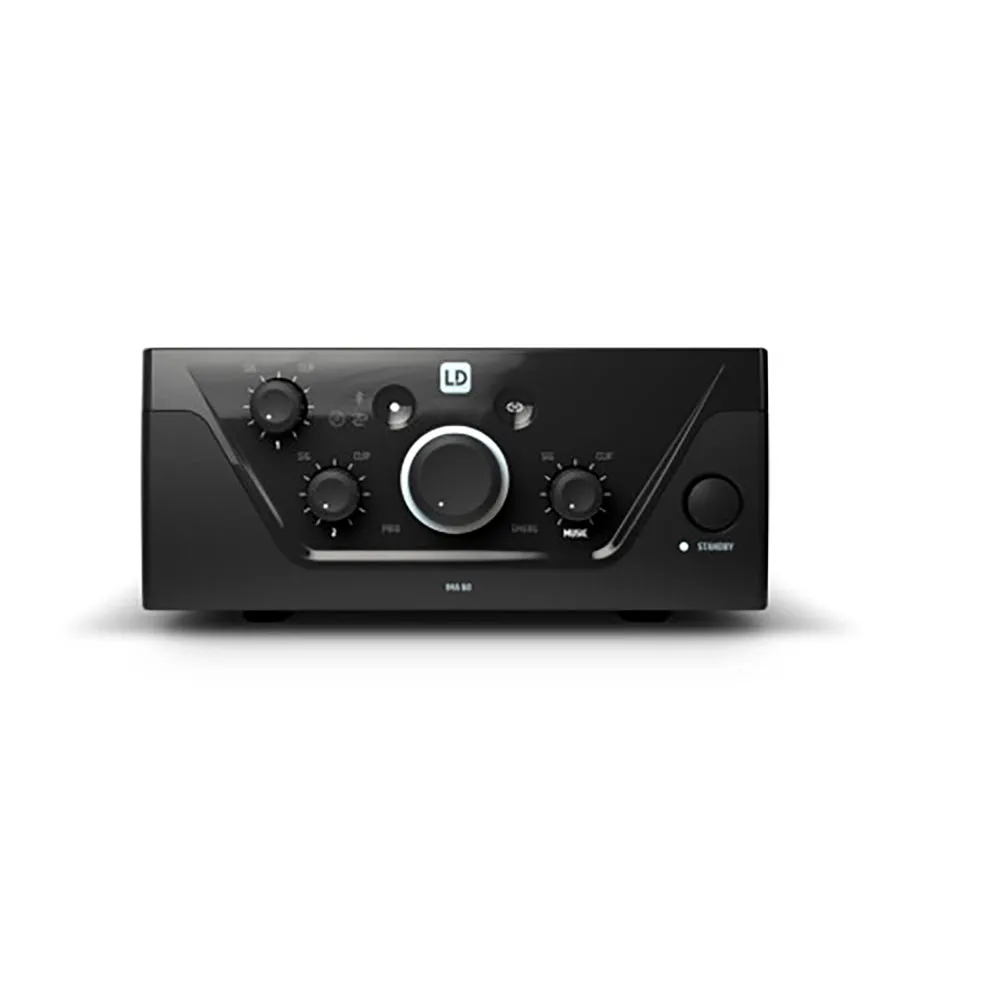

Ld Systems LDIMA60 Audio Amplifier

LD SYSTEMS LDIMA60 Installation Mixing Amplifier: Versatile and Reliable Audio for Commercial Spaces

Elevate the auditory experience in your commercial environment with the LD SYSTEMS LDIMA60, a professional-grade installation mixing amplifier designed for seamless integration and exceptional performance. Perfect for restaurants, retail stores, corporate offices, and fitness centers, the LDIMA60 provides a comprehensive and user-friendly solution for background music, paging, and announcements. This compact yet powerful unit combines the functionality of a mixer and a power amplifier into a single, robust half-rack chassis, delivering pristine Audio quality and unmatched operational reliability.

The LDIMA60 is engineered to be the heart of your sound system, offering unparalleled flexibility. Its energy-efficient Class-D amplifier delivers a robust 65 watts of power at 4 Ohms, or can be switched to drive 70V/100V speaker lines, making it compatible with a vast range of installation speakers without the need for an external transformer. This dual-capability ensures that whether you are setting up a new system or upgrading an existing one, the LDIMA60 integrates flawlessly.

Key Benefits:

* Unmatched Connectivity: With a wide array of inputs, the LDIMA60 is ready for any source. It features two mic/line inputs with switchable +24V phantom power for condenser microphones, two stereo RCA line inputs for media players, and an integrated Bluetooth 4.0 receiver for effortless wireless streaming from smartphones and tablets. For quick, temporary connections, a convenient front-panel Jack 3.5 mm stereo input is also included.
* Energy-Efficient Performance: Built around a modern Class-D amplifier, the LDIMA60 operates with high efficiency, generating minimal heat and reducing power consumption. An auto-standby mode further minimizes energy use during periods of inactivity, contributing to lower operational costs.
* Intuitive User Control: The front panel is designed for clarity and ease of use, allowing staff to adjust master volume, bass, and treble with simple rotary controls. Clear LED indicators provide at-a-glance status for signal, clipping, protection, and power.

Main Features:

* Powerful Class-D mixing amplifier with 65 W of power.
* Selectable low-impedance (4 Ohm) and high-impedance (70/100 V) outputs.
* Integrated Bluetooth 4.0 receiver for wireless Audio streaming.
* Two Mic/Line inputs with XLR/jack combo sockets and switchable 24 V phantom power.
* Two stereo line inputs with RCA sockets and a front-panel Jack 3.5 mm input.
* Four-level priority switching for emergency line input and microphone inputs.
* Balanced auxiliary line output for connecting additional amplifiers or active subwoofers.
* Compact 9.5" half-rack design for space-saving installation.
* Energy-saving auto-standby mode.

---

Technical Specifications:

* Product Type: Installation Mixing Amplifier
* Amplifier: Class D
* RMS Power Output: 65 W @ 4 Ohms, 35 W @ 70 V, 35 W @ 100 V
* Frequency Response: 60 Hz – 20.000 Hz (Low-Z), 80 Hz - 20.000 Hz (Hi-Z)

* 2 x Mic/Line (XLR / 6.3 mm Jack Combo, balanced)
* 2 x Line (RCA)
* 1 x Emergency Line (5-pin terminal block, balanced)
* 1 x Music Mix (Stereo Jack 3.5 mm)

* 1 x Aux Out (RCA, balanced)
* 1 x Speaker Output (5-pin terminal block, 70V/100V/4 Ohm)
* Controls: Bass, Treble, Master Volume, Input Gain, Phantom Power Switch, Line/Mic Switch
* Indicators: Signal, Clip, Protect, Power, Bluetooth Status
* Power Consumption (Max): 150 W
* Dimensions (W x H x D): 210x98 x 275 mm
* Weight: 2.7 kg
