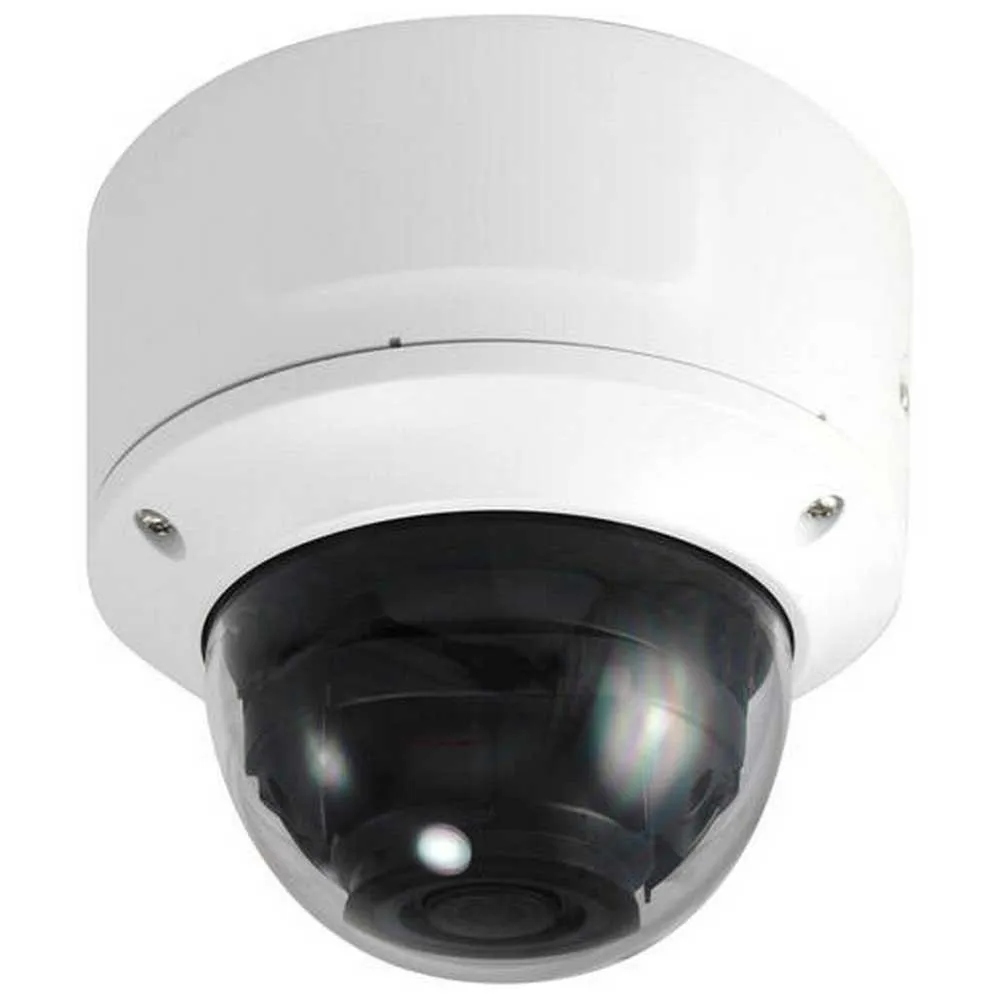

Level One FCS-41203 security camera

The LevelOne FCS-4203 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity.

The FCS-4203 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible.

The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Features:

- 360° pan and 220° tilt movements allow for a wide range of monitoring angles.

- Triple power support:

12V DC/24V AC/PoE (IEEE 802.3at 60W).

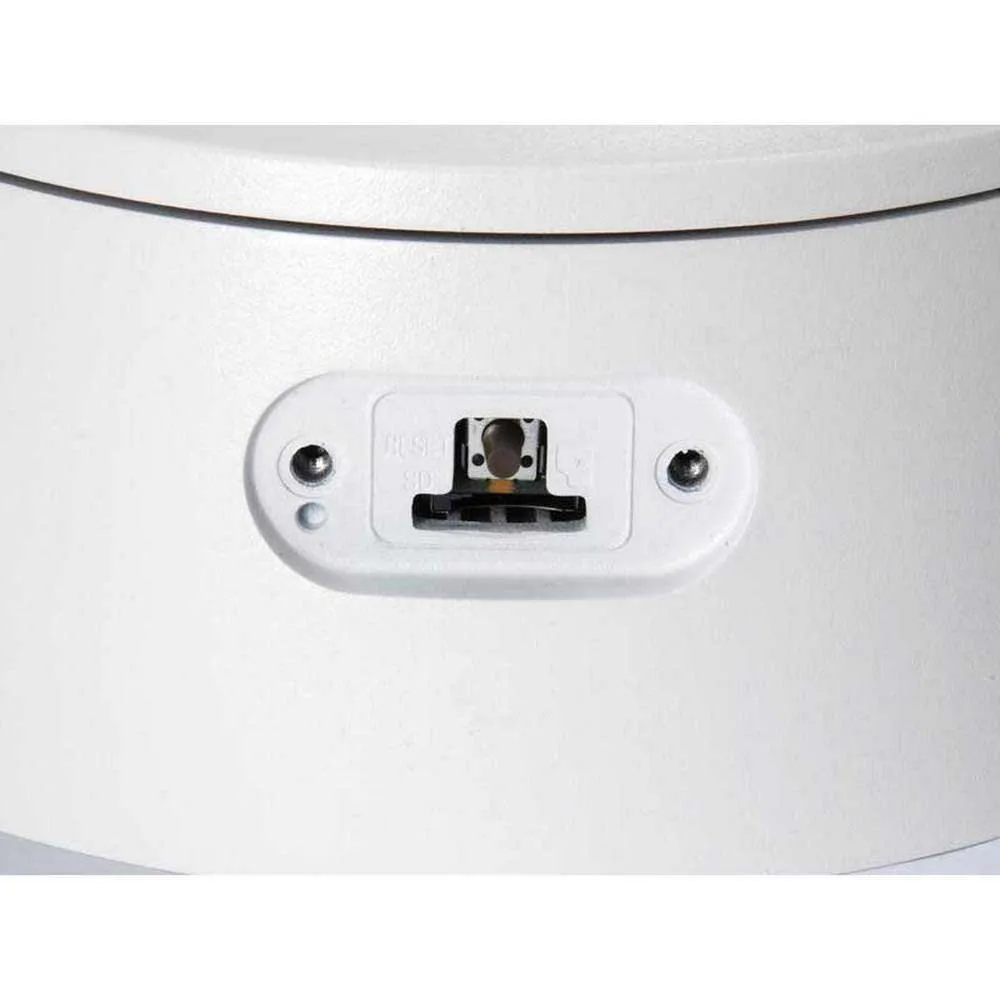

- Built-in Micro SD/SDHC card slot for local storage.

- Video compression:

H.264, H.265, MJPEG.

- Power support:

PoE (IEEE 802.3af).

- Vandal-proof IK10-rated housing.

- Supports 4.3X optical zoom.

- Built-in Micro SD/SDHC card slot for local storage.

Specifications:

- Max.

operating temperature (°C) 60.

- Max.

storage temperature (°C):

95.

- Min.

operating temperature (°C) -30.

- Min.

storage temperature (°C):

0.

- Supported browsers Internet Explorer 9.0 or above.

- Angle of view (°):

Horizontal field of view:

105 to 35.

- Audio format:

G.711/G.722.1/G.726/MP2L2, 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 128 Kbps (MP2L2.

- Digital zoom:

8X.

- Image sensor:

1/2.8´´ Progressive Scan CMOS.

- Indicators Power.

- IR cut filter:

Yes.

- IR range:

Up to 30 meter.

- Lens:

2.8 mm to 12 mm 1.4, motorized lens.

- Minimum illumination (lux) Color:

0.005 Lux (F1.2, AGC ON), 0 Lux with IR B/W:

0.0068 Lux (F1.4, AGC ON), 0 Lux with IR.

- Resolution 50Hz:

25fps (1920 1080, 1280 960, 1280720).

- 60Hz:

30fps (1920 1080, 1280 960, 1280720).

- Shutter time:

1/3 s to 1/100,000 s.

- Storage capacity:

Support Micro SD/SDHC/SDXC card with ANR (up to 128G).

- Standards:

TCP/IP (IPv4), UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour.

- Video format:

H.265/H.264/MJPEG.

- Weatherproof rating IP67.

-.

Features:

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser.

- Product weight (kg) 1,287.

- Product breadth (mm):

133,1.

- Product depth (mm) 153,4.

- Product height (mm) 153,4.

- Package contents:

FCS-4203.

- Screw Kit.

- Resource CD (User Manual, Utility, 64-CH Monitoring Software).

- Fast Ethernet RJ45 10/100 Mbps PoE 802.3af.

- 3.5mm audio in/out In x1, Out x1.

- Camera Type Dome.

- Resistance Weatherproof.

- Zoom Type:

Motorization.

- 2-way Audio Yes.

- IR Leds for night vision:

Yes.

- PoE Supported:

Yes.

- Max.

Resolution 2 Megapixels.

- IP Camera series:

GEMINI.

- Power consumption:

- 12 VDC, 0.75A, max.

9.5W.

- PoE0.3A to 0.1A, max.

11W.
