Level One FPS-1031 Mini Pocket Adapter

The LevelOne FPS-1031 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. This print server is equipped with a 10/100Mbps autosensing Ethernet port and a DB-36-pin male bi-directional Centronic port that connects to parallel printers.

Multi OS and Network Printing Protocol Support:
- The FPS-1031 is a print server with 1 parallel port that supports Windows 7, 8 and 10 operating systems as well as Mac OS 8.1 and higher, UNIX/Linux and Netware (Bindery/NDS).

- Network Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR and SMB over TCP/IP for flexible use with different network clients connected to the same office network. The FPS-1031 also includes Internet Printing Protocol (IPP) support and Windows Print Monitor Technology to monitor printing jobs received.

Easy Installation Wizard:
- The LevelOne FPS-1031 is easily configurable using a Web Browser or the Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the Windows set-up program or the Web based user interface.


Features:

- Parallel print server for network print sharing
- Simple setup with user-friendly interface
- Support multiple network printing protocols
- Support multiple operating systems


Specifications:

- Data rate: 740 KB/sec
- Power Consumption: 1.3 Walt
- Approval and compliance: CE, FCC, RoHS
- Max. operating humidity (%): 70
- Max. operating temperature (°C): 50
- Max. storage humidity (%): 80
- Max. storage temperature (°C): 65
- Min. storage temperature (°C): -5
- Compatible operating systems: Windows ME/2000/XP/Vista
- Mac OS 8.1 and higher
- UNIX/Linux and Netware (Bindery/NDS).
- DC start: Yes
- RAM size: 2Mbytes SDRAM
- Power supply: Power adapter
- Standards: IEEE 802.3, 802.3u Ethernet Standards
- General features: Network Print Protocol Support :
- LPR,RAW, TCP, IPP, SMB, AppleTalk Netware Bindery/NDS, Print Monitor, Bonjour printing
- Product weight (kg): 0,56
- Product breadth (mm): 55
- Product depth (mm): 51
- Product height (mm): 25

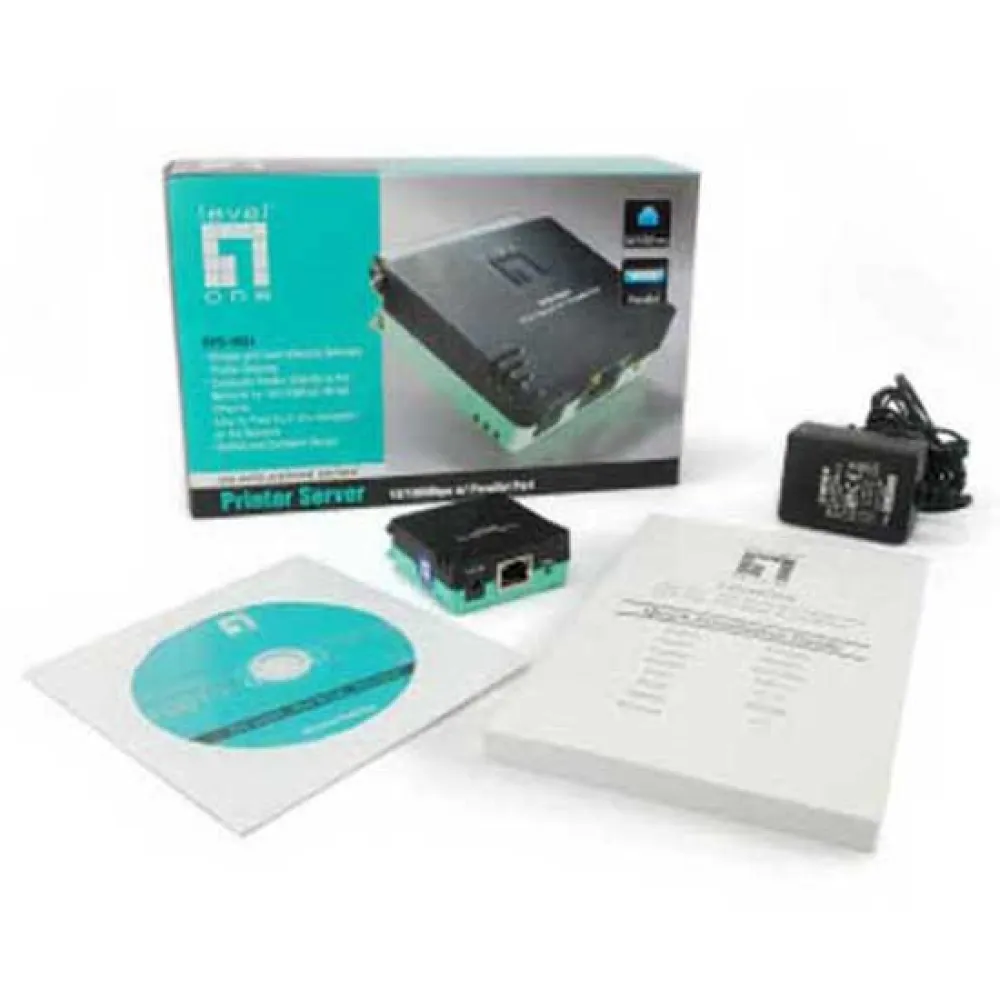

- Package contents: FPS-1031
- Netzadapter
- Quick Installation Guide
- Ressource CD (Bedienungsanleitung, Hilfsprogramm, Treiber)
- Fast Ethernet RJ45: 1
- Parallel: D-sub 25-pins Female
