Level One SFP transceiver

Product Overview.

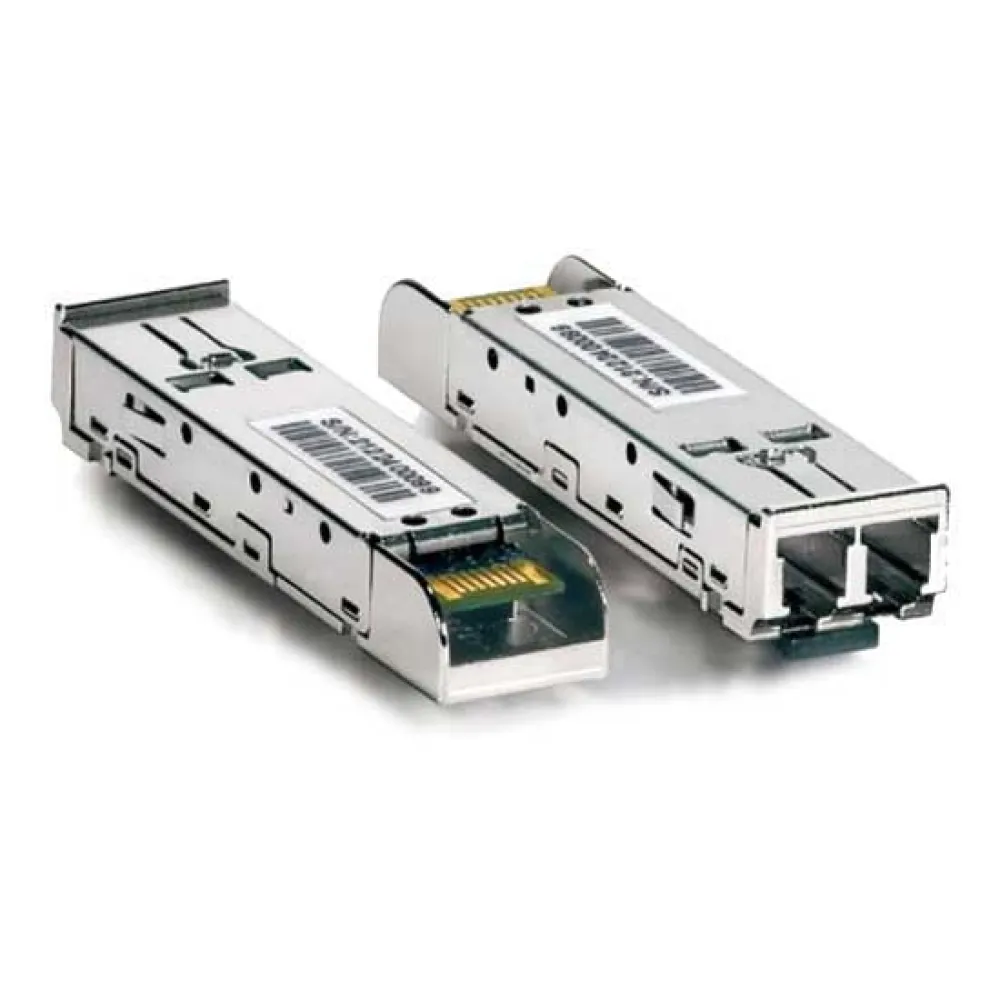

The LevelOne GVT-0300 SFP (Small form-factor pluggable) fiber optic transceiver provides fullduplex connectivity over multi-mode fiber at distances up to 550 meters.

GVT-0300 is designed for use in Gigabit Ethernet networks to provide an IEEE-802.3z-compliant link for 1.25 Gb/s speeds to serve short-range applications.

GVT-0300 operates at a nominal wavelength of 850nm and complies with a Multi-Source Agreement (MSA) for compatibility between manufacturers.

It comes with a click-and-latch.

LC connector for a solid connection into the SFP port.

Multi-Purpose Usage.

GVT-0300 can be used for distributed multiprocessing, switch-to-switch, converterto-switch, or converter-to converter interfaces, high-speed I/O file transfer, bus extension applications, and as a channel extender in data storage applications.

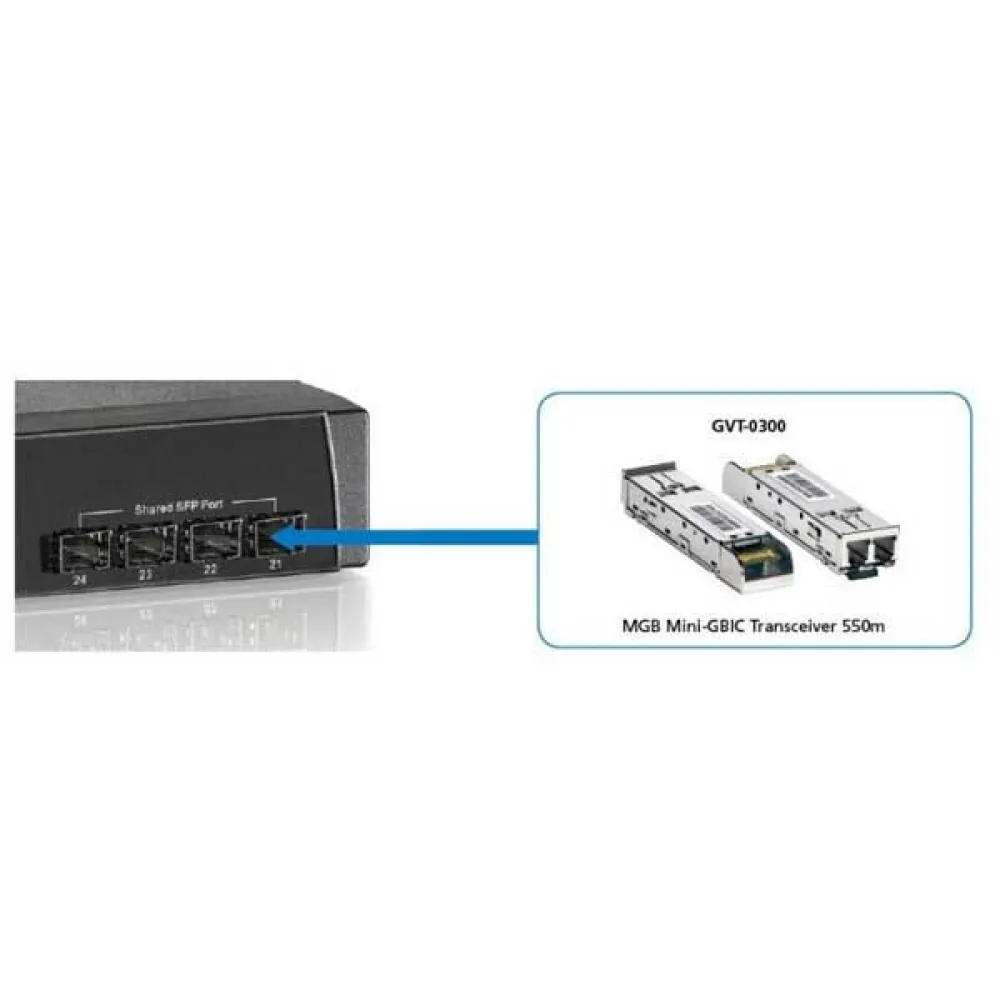

LevelOne GVT-0300 can be used in any LevelOne switch or converter that can accommodate SFP (Mini-GBIC) transceivers.

-Small Form Factor Pluggable MSA compliant.

-For Multi-mode Applications.

-Up to 850nm & 1.25Gbps.

-Compliant for IEEE802.3z Gigabit Ethernet.

-Easy to install and Hot-pluggable.

-Connect switches up to 550m away with each other.

-Single 3.3V power supply.

-Duplex LC Connector.

-TTL signal detect indicator.

-EEPROM with serial ID functionality.

LevelOne 1.25Gbps Multi-mode SFP Transceiver, 550m, 850nm.

SFP transceiver type:Fiber optic, Maximum data transfer rate:1250 Mbit/s, Interface type:SFP.

Compatible products:GSW-2453 GVT-4000.

Input voltage:3.5 V, Maximum voltage:6 V, Maximum current:0.3 A.

Certification:Class 1 Laser:EN60825-1 FDA 21:1040.10, 1040.11.

Width:13.4 mm, Depth:56.6 mm, Height:8.4 mm.
