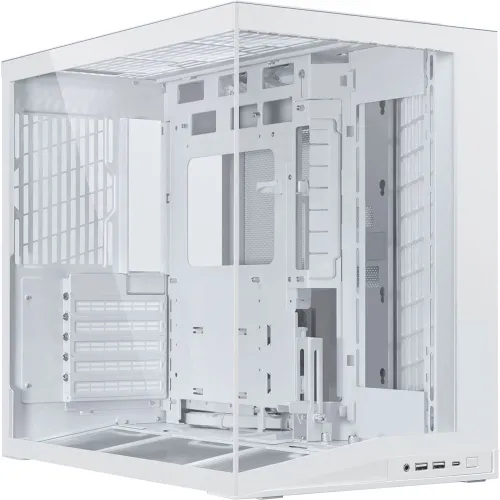

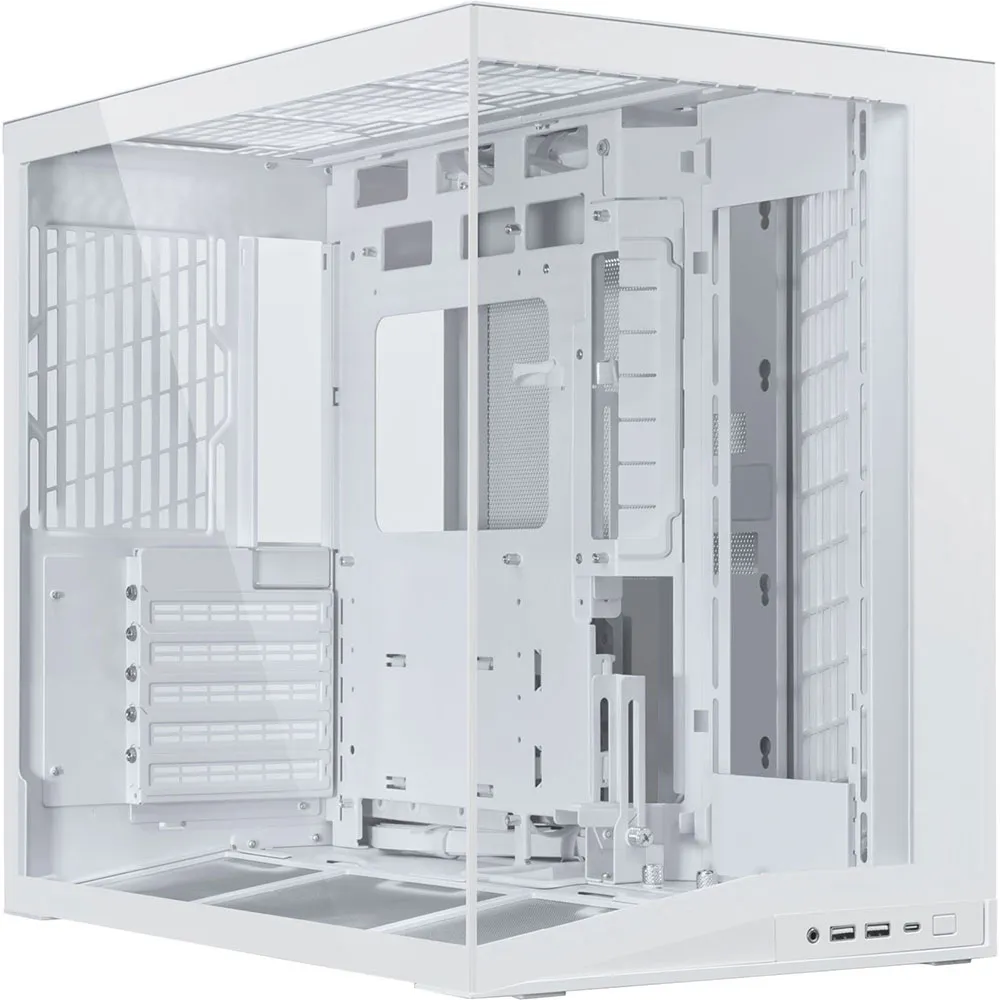

Lian Li O11D MINI V2 PC tower case

Discover the pinnacle of compact PC case engineering with the LIAN LI O11D MINI V2. This PC tower case is a masterpiece designed for enthusiasts who refuse to compromise on performance or aesthetics, even in a smaller form factor. Building upon a legendary design, the O11D MINI V2 offers unparalleled modularity and component support, allowing you to build a clean, powerful, and stunning system that stands out. Its intelligent dual-chamber layout and premium materials make it the definitive choice for your next high-performance build.

Experience the key benefits of a truly flexible and powerful chassis. The O11D MINI V2’s greatest strength lies in its revolutionary modularity. A configurable back panel allows you to switch between 7, 5, or 3 expansion slots, optimizing the interior layout for your specific motherboard, from a compact Mini-ITX to a full-sized Extended ATX board. This adaptability ensures you can fit large, powerful components without wasted space. Despite its compact footprint, this case offers exceptional cooling potential, rivaling that of much larger towers. It provides extensive support for both air and liquid cooling, ensuring your high-end components remain cool under the most demanding loads. The iconic dual-chamber design separates the main components from the power supply and drives, resulting in a pristine, cable-free showcase chamber and superior thermal management.

The main features of the LIAN LI O11D MINI V2 are crafted for the modern PC builder:

* Unprecedented Modularity: A swappable backplate system supports various motherboard sizes and GPU configurations, giving you complete control over your build´s layout.
* Extensive Cooling Support: Mount multiple radiators simultaneously, including up to a 360 mm radiator on the top or bottom, and up to a 280 mm radiator on the side.
* Versatile Fan Options: Accommodates up to nine fans, with support for both 120 mm and 140 mm fan sizes for optimized airflow or silent operation.
* Dual-Chamber Showcase: A clean and beautiful interior is made possible by hiding the SFX / SFX-L power supply, cables, and storage drives behind the motherboard tray.
* Premium Build Quality: Constructed with a sleek aluminum exterior and crystal-clear tempered glass side and front panels to elegantly display your hardware.
* Large Component Compatibility: Thoughtful engineering provides clearance for large GPUs up to 395mm in length and tall CPU coolers, proving that great power can come in a small package.
* Simplified Assembly: Features tool-less panel removal and strategically placed cable management grommets and tie-downs for an effortless and enjoyable building experience.

Technical Specifications:

* Model: LIAN LI O11D MINI V2
* Case Type: Tower Chassis
* Dimensions: (D) 420mm x (W) 269.5mm x (H) 380mm
* Material: Aluminum, Steel, Tempered Glass
* Motherboard Support: Extended ATX (E-ATX, up to 280mm wide), ATX, Micro-ATX, Mini-ITX
* PSU Support: SFX, SFX-L
* Top: 3x 120mm or 2x 140 mm
* Side: 2x 120mm or 2x 140 mm
* Bottom: 3x 120mm or 2x 140 mm
* Rear: 1x 120mm
* Top: 360 mm / 280mm / 240mm
* Side: 280mm / 240mm
* Bottom: 360 mm / 280mm / 240mm
* Max GPU Length: 395mm
* Max CPU Cooler Height: 170mm
* Drive Bays: 2x3.5" HDD or 2.5" SSD + 2x2.5" SSD
* Expansion Slots: 7, 5, or 3 (Modular)
* Front I/O Ports: 2 x USB 3.0, 1 x USB 3.1 Type-C, 1 x HD Audio
