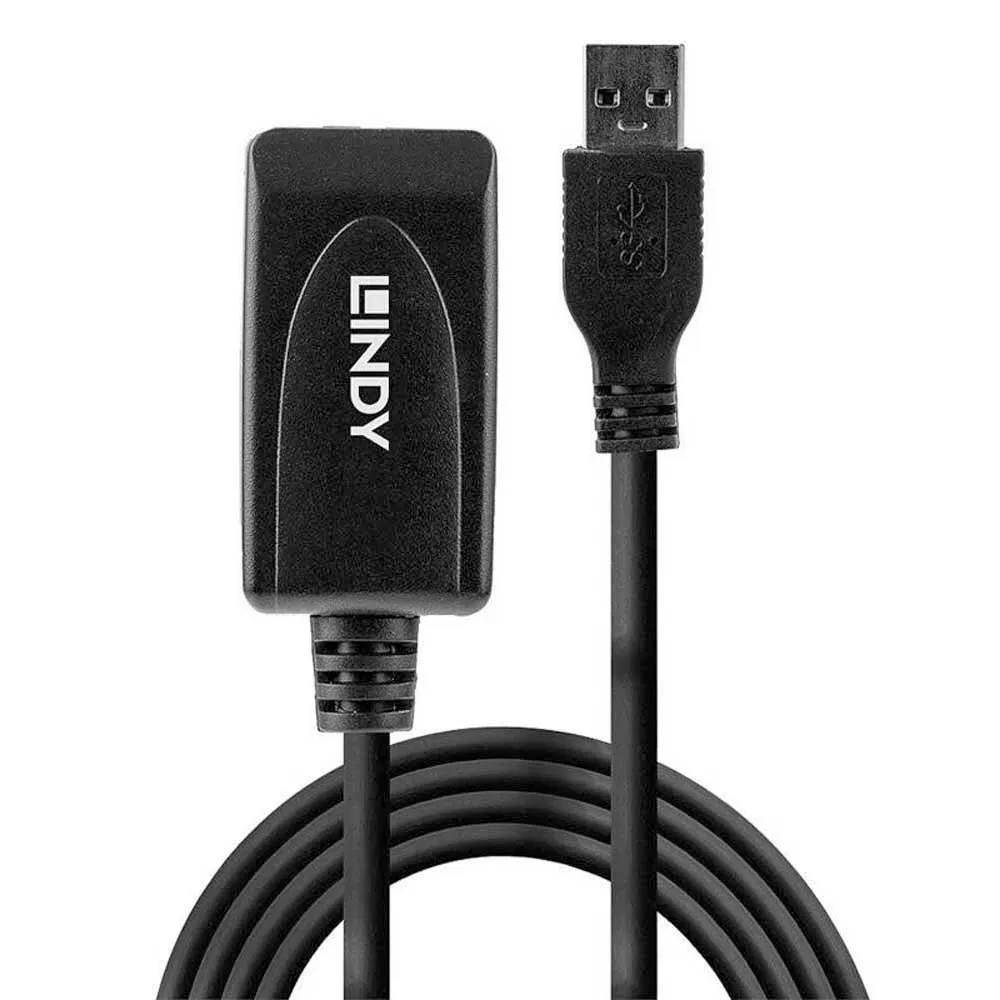

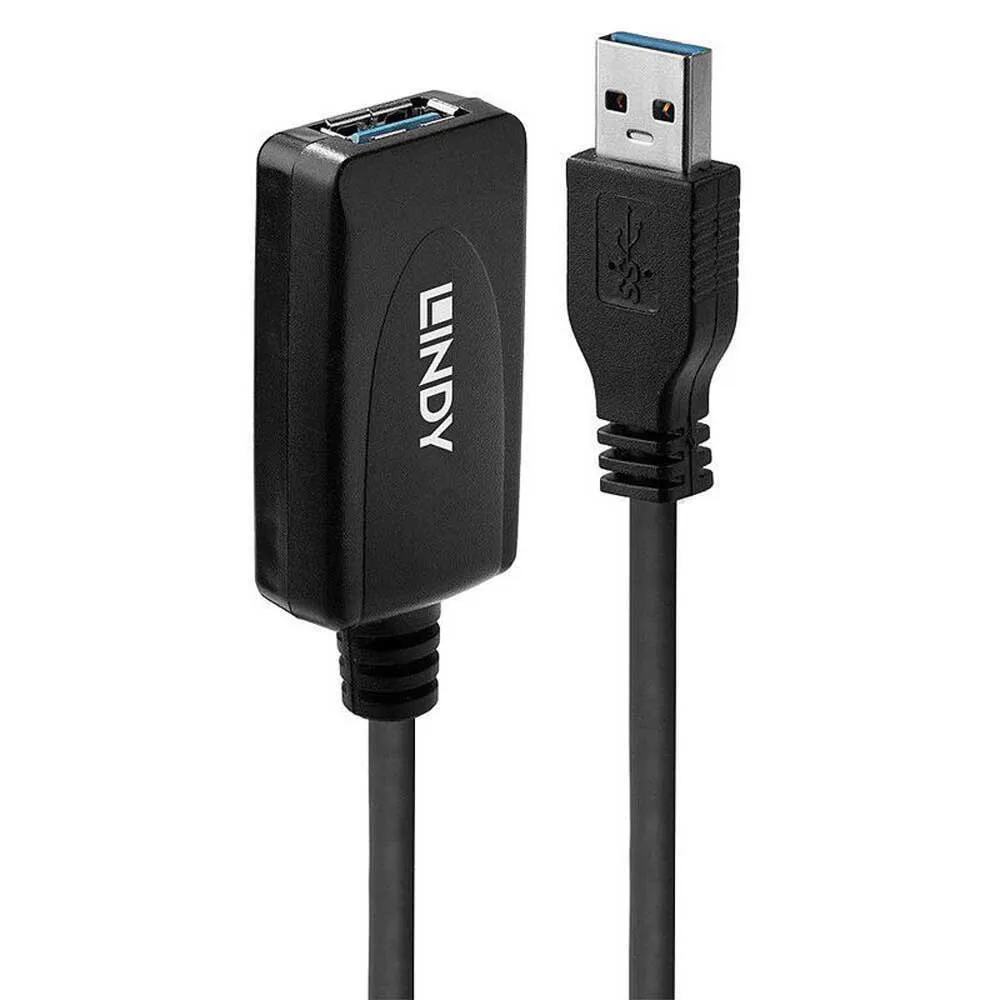

Lindy 3.0 Active USB extension cable 5 m

The Lindy Usb 3.0 Active Extension Cable Uses Built-In Active Electronics To Extend The Cable Length Of A Usb 3.0 Device By An Additional 5m Whilst Continuing To Support Data Transfer Rates Of Up To 5gbps. With Its Usb A Male And Usb A Female Connector It Allows Type A Devices Such As Storage Devices, Webcams And Other Type A Devices To Be Connected At Longer Distances To Pcs, Laptops And Tablets, While Also Ensuring Flexible Positioning. Up To 2 Extension Cables Can Be Chained Together. The Lindy Usb 3.0 Active Extension Cable Is Compatible With All Usb Type A Equipped Computers. It Is Certified By Google To Provide A Long Distance Active Connection Between The Asus Chromebox And Usb Camera In A Google Hangouts Meet Hardware Installation, Perfect For Use In Boardrooms And Other Video Conferencing Scenarios.


Features:

- 5 Metre Usb 3.0 Active Extension Repeater Lead
- Supports Transfer Rates Up To 5gbps
- For Even Greater Distances Simply Connect 2 Cables In Series
- Plug & Play


Technical Details:

Connectors:
- Connector A: Usb Type A Male
- Connector B: Usb Type A Female
- Power
- Housing Material: Plastic
- Connector Plating: Gold 3µ
- Pin Construction: Brass
- Pin Plating: Gold 15µ
- Dimensions (Approx.) Wxdxh:
- Usb A Male: 16x48x6mm (0.63x1.89x0.24in)
- Usb A Female: 24x46x12mm (0.94x1.81x0.47in)

Cable Construction:
- Length: 5m (16.4ft)
- Standard: Usb 3.1 Gen 1 / 3.0
- Type: Round
- Jacket Diameter: 5.5mm (0.22in)
- Jacket Material: Matt Pvc
- Conductor Material: Tinned Copper
- Conductor Gauge: 28awg+24awg
- Shielding: Al Mylar

Specifications:
- Supported Bandwidth: 5 Gbps
- Nominal Attenuation:
- 1.5db/2m@1ghz
- 5.0db/2m@1.25ghz
- 7.5db/2m@2.5ghz
- 25db/2m@7.5ghz
- Minimum Bend Radius: 55mm (2.17in)
- Maximum Tensile Load: 1500psi Min
- Operating Temperature: 0°C - 60°C (32°F - 140°F)
- Storage Temperature: 0°C - 70°C (32°F - 158°F)
- Transmission Medium: Twisted Pair
- Transmission Technology: Usb 3.1 Gen 1 / 3.0

Miscellaneous:
- Packaging Type: Polybag
- Packaging Dimensions: 236x255mm (9.29x10.04in)
- Net Weight: 0.22kg (0.49lb)
- Gross Weight: 0.289kg (0.52lb)

Packaging Content:
- Usb 3.0 Active Extension 5m
