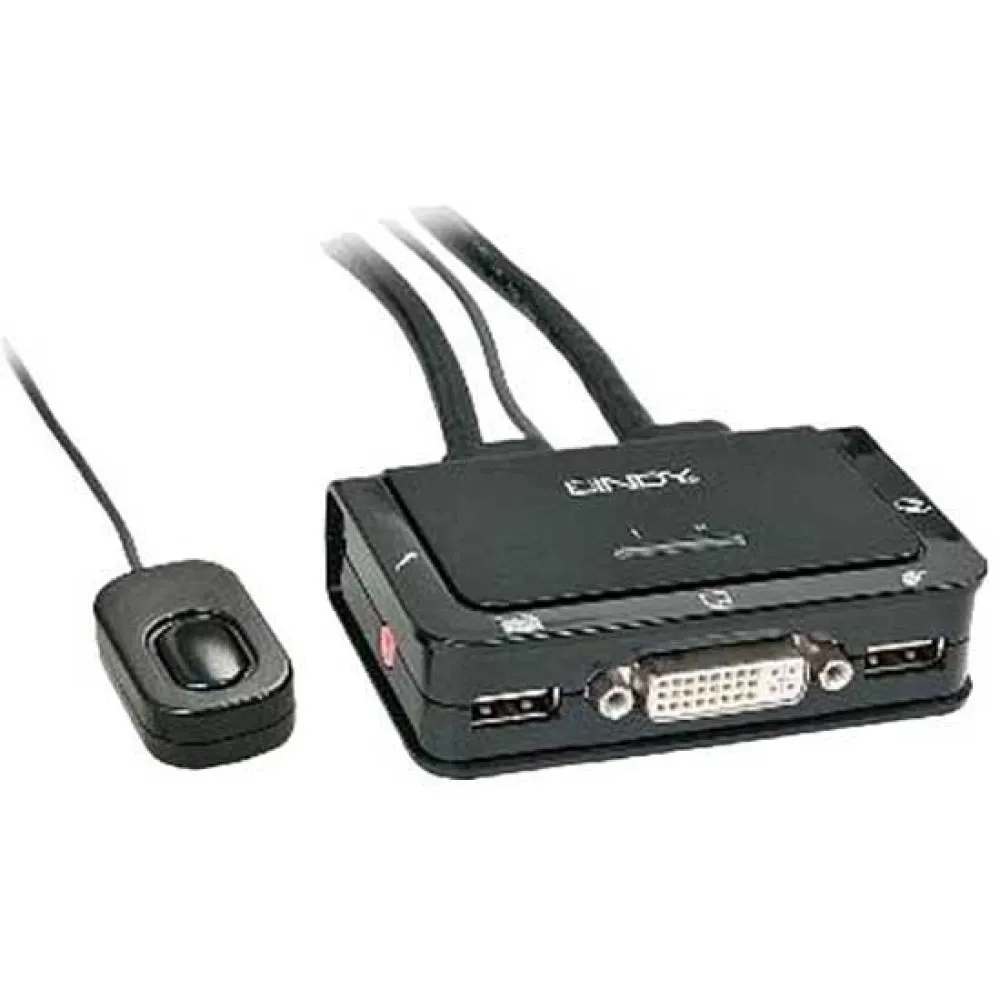

Lindy 42341 KVM Switch

A KVM switch gives the user the ability to quickly control multiple computers via a single console (keyboard, mouse and display).

The Lindy 2 Port DVI-D Single Link, USB 2.0 & Audio KVM Switch provides a compact solution for accessing and controlling two DVI equipped PCs from a single console of keyboard, mouse and monitor.

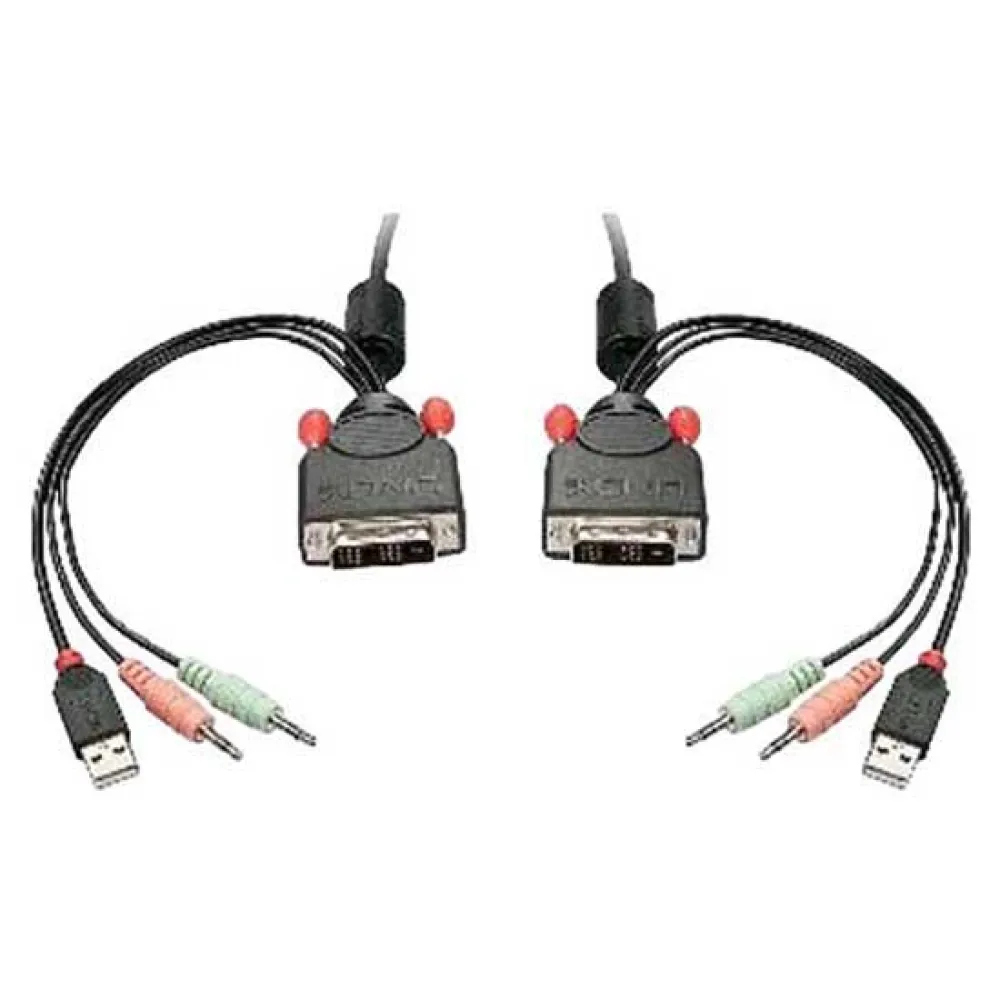

With cables already integrated, this switch can be easily connected directly to the system without the need to purchase additional cables, saving time and money on installation.

The switch supports DVI single-link resolutions up to 1920x1200.

The audio output port allows users to connect headphones or speakers to add 2-channel audio and a microphone to the setup.

Keyboards and mice can be connected to dedicated USB ports, other peripherals or hubs are not supported.

The KVM Switch features multiple switching options, namely push buttons on the device as well as hotkey and software switching, to provide the user with simple, reliable control that is suitable for both professional users and beginners.

Specifications:

- AV interface:

DVI-D.

- Console interface:

USB.

- Interface standard:

DVI-D (Single Link), USB 2.0.

- Maximum resolution:

1920x120060Hz.

- HDCP support:

1.4.

- Audio:

2-channel stereo, analog.

- Separate audio ports:

2 x 3.5mm (jack).

- Number of consoles:

1.

- Maximum number of PCs/servers:

2.

- Switching method:

device keys, hotkey and software switching.

- Special.

Features:

LED indicator for active channel Connections:

- Console interface:

DVI (female), USB 2.0 Type A (female), 2 x 3.5mm jack (female).

- PC/Server Interface:

2 x DVI-D (male), USB 2.0 Type A (male), 2 x 3.5mm jack (male) integrated cable Physical properties:

- Housing dimensions WxDxH:

87x25x58.78mm (3.43x0.97x2.31in), cable length 0.9m (2.95ft).

- Housing material:

plastic.

- Net weight device/s:

0.46kg (1.01lb).

- Operating temperature:

0°C.

- 50°C (32°F.

- 122°F).

- Storage temperature:

-20°C.

- 60°C (-4°F.

- 140°F).

- Humidity:

0~90% RH (non-condensing).

- Power consumption:

Via USB.
