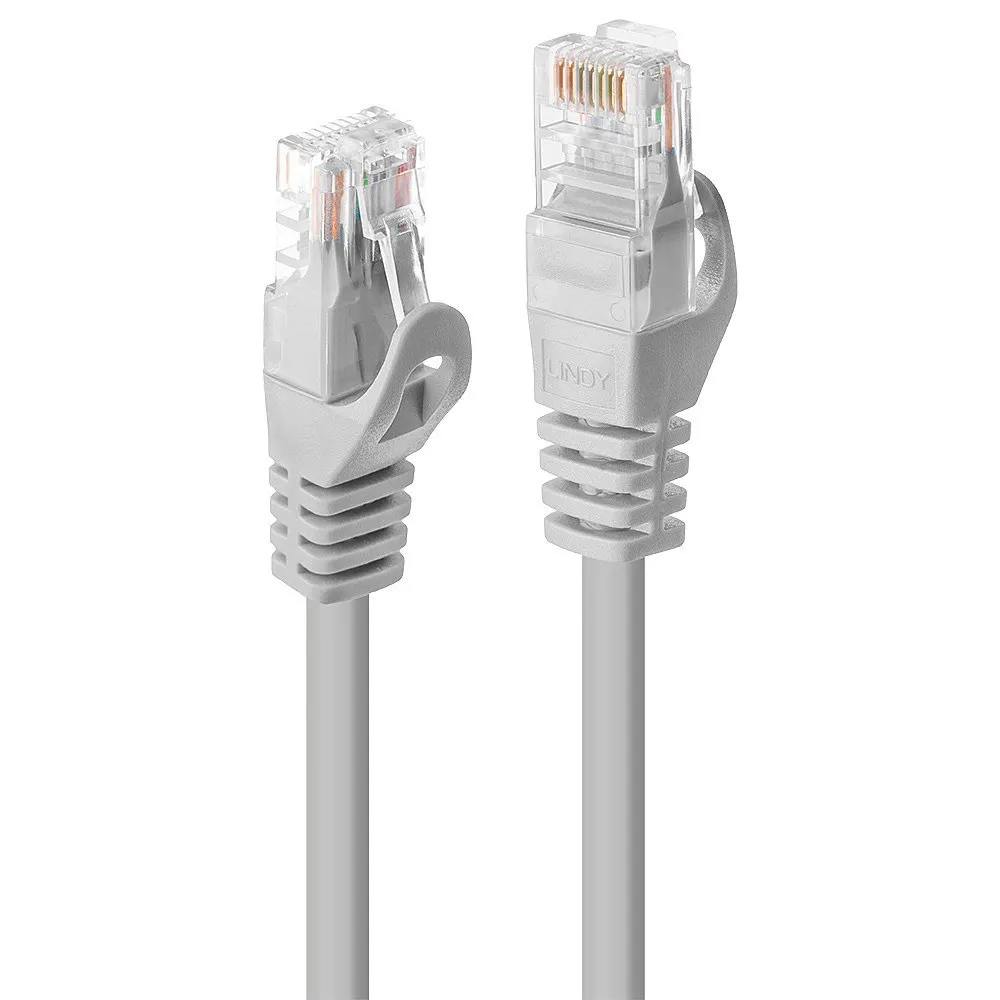

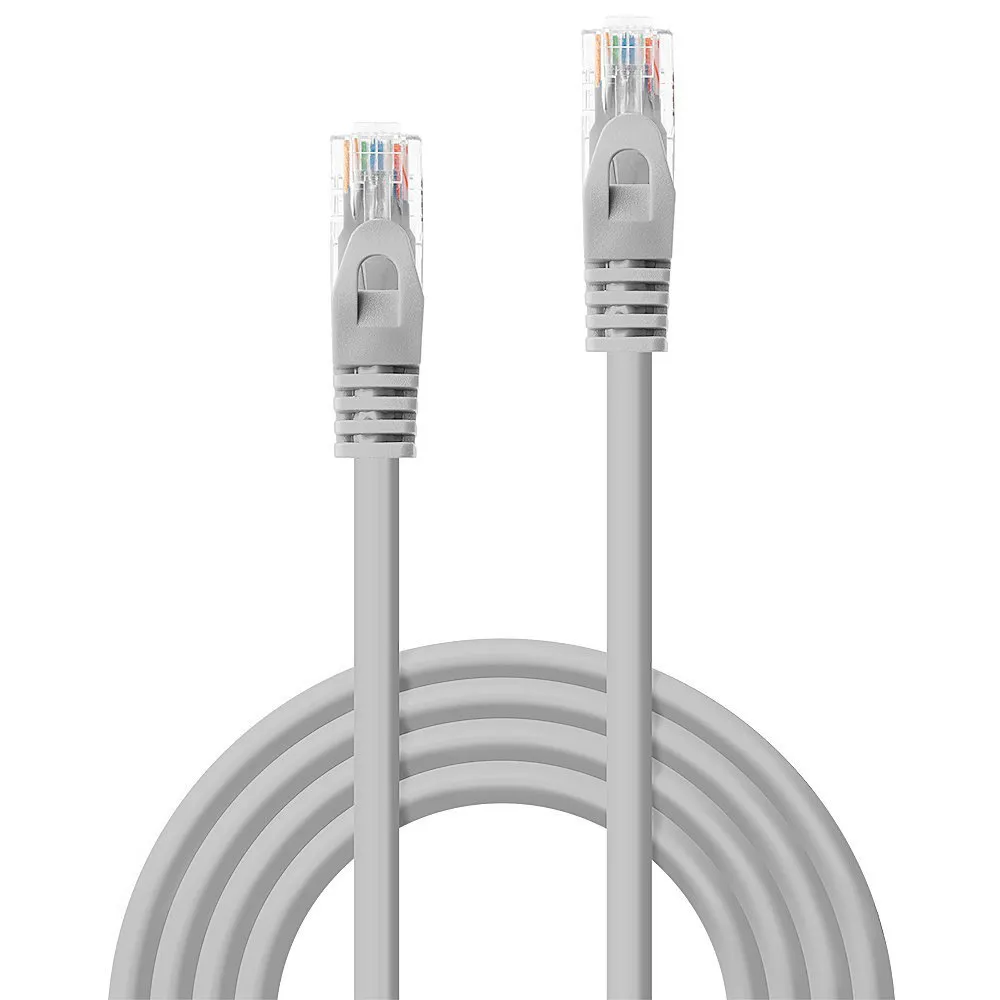

Lindy CAT 5E U/UTP network cable 20 m

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

Cat.5e cable, designed for operating frequencies up to 100MHz.

The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding.

These cables are manufactured and tested according to the ISO/IEC 11801 specification.

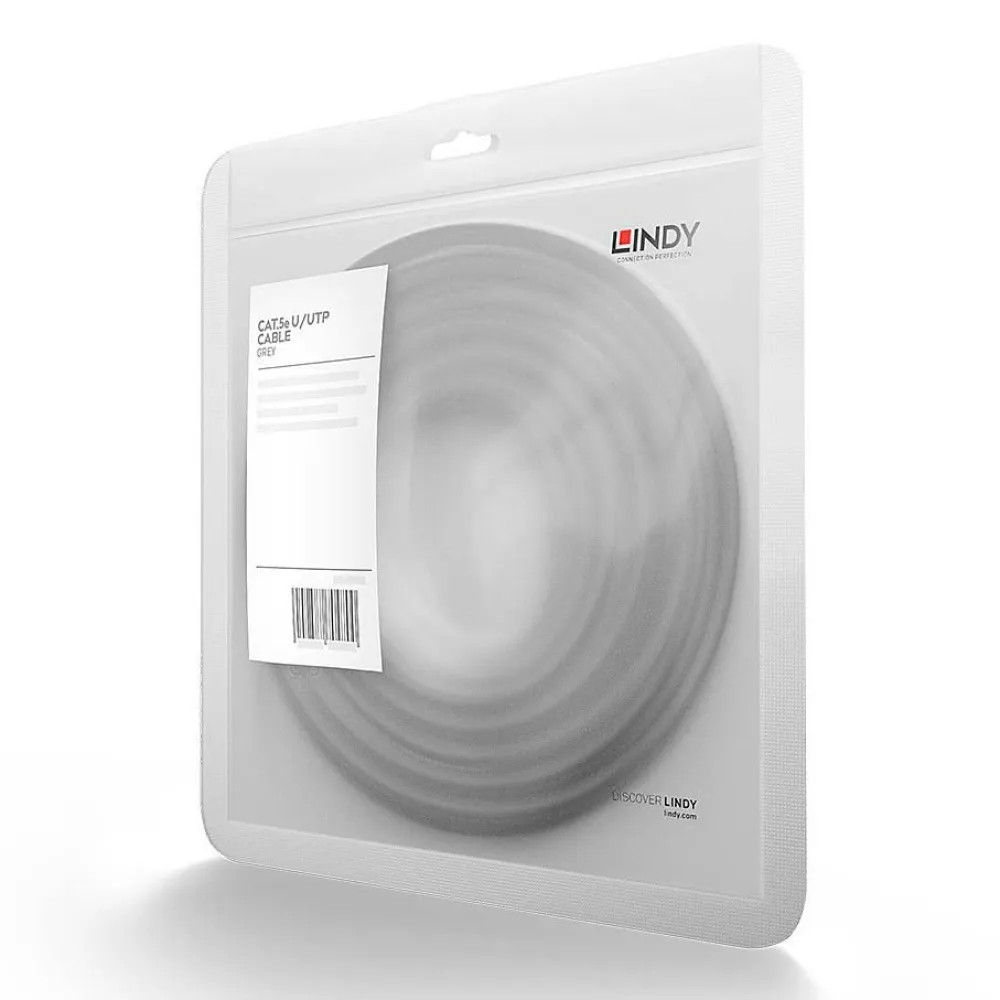

The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time.

A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Features:

- Twisted Pair Patch Cable with RJ45 connectors.

- Cat.5e U/UTP, PVC.

- Integrated snagless connector for latch protection.

- Gold plated pins for better conductivity and elimination of signal loss.

Specifications:

Connectors:

- Connector A:

RJ45 Male.

- Connector B:

RJ45 Male.

- Housing Material:

Polycarbonate Connector Plating:

- Pin Construction:

Copper Alloy.

- Pin Plating:

Gold plated.

- Dimensions (approx.) WxDxH:

11.6x22.8x8.3mm (0.46x0.90x0.33in) Cable Construction:

- Length:

20m (65.62ft).

- Type:

Cat.5e.

- Jacket Diameter:

4.8mm (0.19in).

- Jacket Material:

PVC.

- Conductor Material:

Copper.

- Conductor Gauge:

26AWG.

- Supported Bandwidth:

100MHz.

- Nominal Attenuation:

24dB/100m 100MHz.

- Minimum Band Radius:

57mm (2.24in).

- Operating Temperature:

-10°C.

- 60°C (14°F.

- 140°F).

- Storage Temperature:

-20°C.

- 75°C (-4°F.

- 167°F).
